SAI Optics 1-6x24 Riflescope .223/5.56 Crosshair Reticle – RNG16-T170-C10
$1,298.00
Skip to product information
Low stock
SAI Optics
SAI Optics 1-6x24 Riflescope .223/5.56 Crosshair Reticle – RNG16-T170-C10
$1,298.00
RNG16-T170-C10
Secure checkout
Questions about fit or compatibility?Our product support team can help before you order.Contact us
Shipping Information
Orders ship within the United States only and are typically processed in 1–2 business days. Delivery estimates and any free-shipping offers are shown at checkout. We do not ship internationally. Read our full Shipping Policy.
Returns
Unused items in their original packaging may be returned within 30 days of delivery. Optics that have been mounted or used may be inspected. Email support@dnrsports.com to start a return. Read our full Return & Refund Policy.
Warranty Information
Products are covered by their manufacturer's warranty; coverage and length vary by brand. We'll help you start a claim if needed — email support@dnrsports.com. Read our Warranty page.
The D&R Standard
- Secure Online Ordering
- Carefully Selected Equipment
- Knowledgeable Product Support
- Manufacturer Warranty Information Available
Product Overview
Overview
The SAI Optics 1-6x24 Riflescope .223/5.56 Crosshair Reticle is a SAI Optics rifle scope with 1–6× magnification and FFP Crosshair with RAF reticle.
How It Compares
Browse the full SAI Optics range at D&R Sports Center.
Ideal For
- Shooters who want the reach of 1–6× on one rifle without swapping optics
- Shooting into shadow or at first light, with the FFP Crosshair with RAF reticle illuminated
- Rifles set up with 30 mm rings
Key Features
- Magnification: 1–6×
- Reticle: FFP Crosshair with RAF, LED-illuminated
- Illumination: LED, 10 brightness settings
- Tube Diameter: 30 mm
- Click Value: 0.1 mrad
- Parallax: Fixed @ 110 m
- Eye Relief: ~90 mm (3.5″)
- Exit Pupil: 9.5 mm (1×) / 4.0 mm (6×)
About This Model

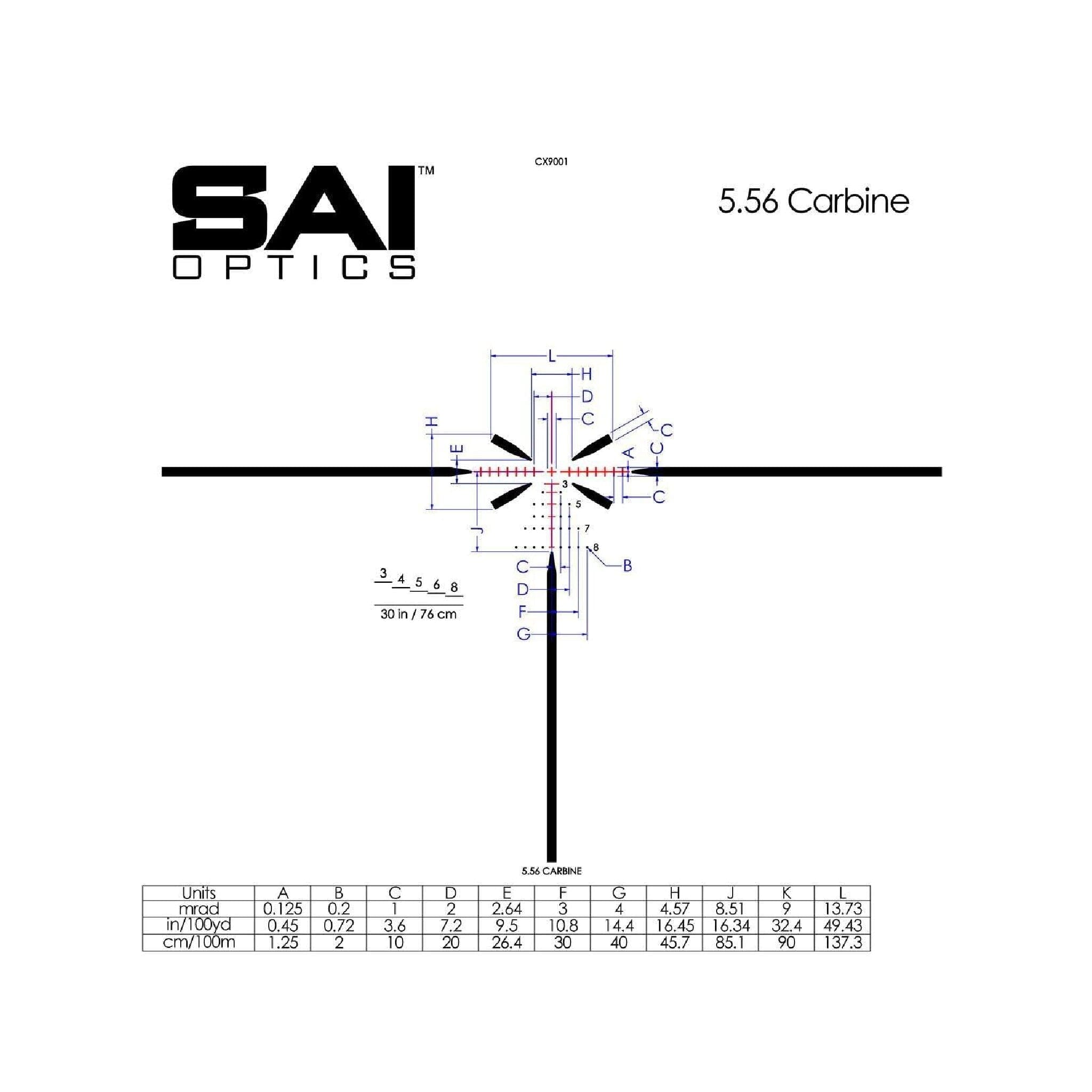

- Crosshair Reticle with Rapid Aiming Feature (RAF) – First focal plane reticle designed for fast target acquisition. Calibrated for 5.56 NATO with VSOR range estimation, holdovers, and wind holds.
- 1–6× Magnification Range – Ideal for both close-quarters and mid-range engagements.
- First Focal Plane (FFP) Reticle – Ensures accurate holdovers and range estimation at all magnifications.

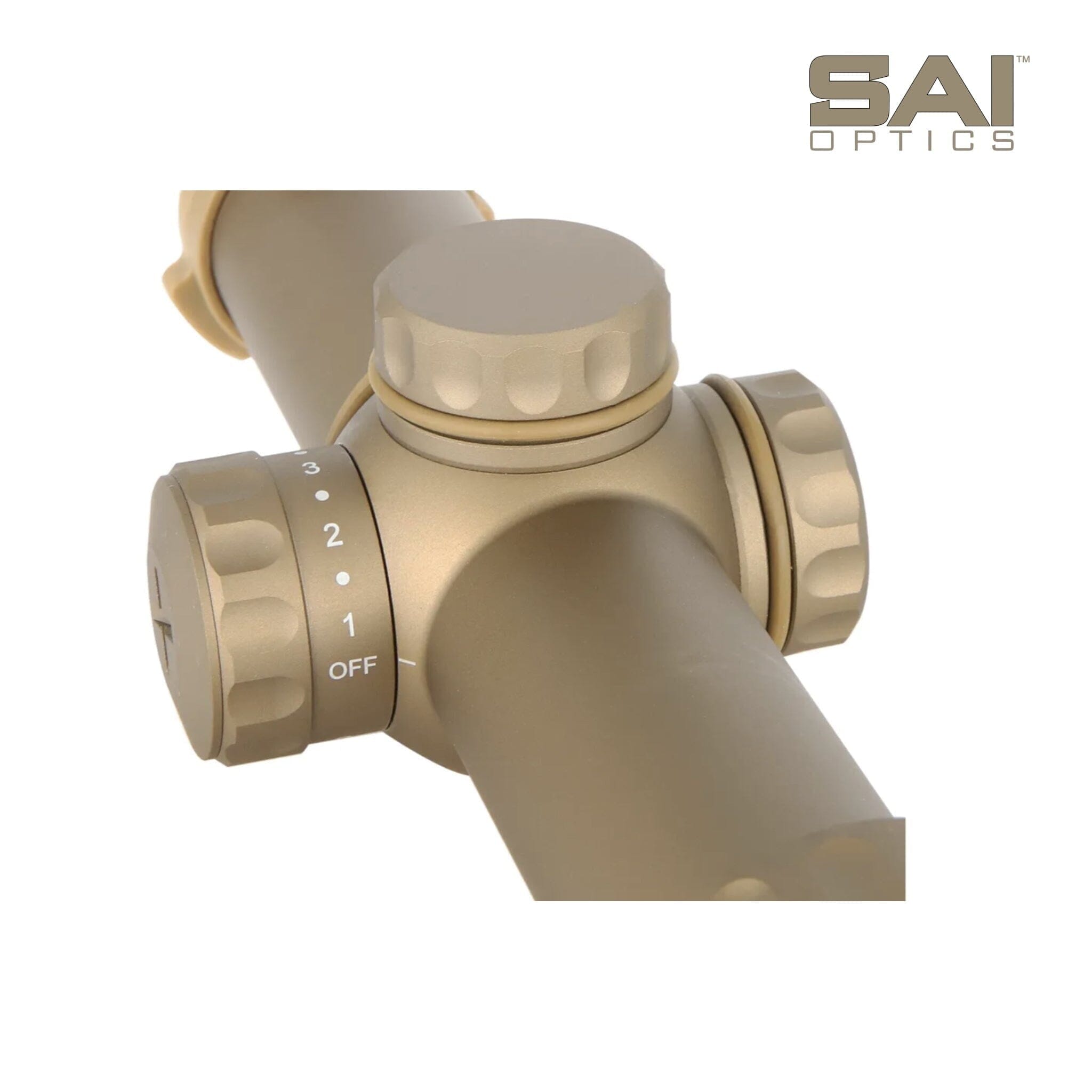

- LED-Illuminated Reticle – Adjustable brightness with daylight-visible center cross; RAF outline remains non-illuminated.
- Fixed Parallax at 110m – Optimized for rapid transitions and typical engagement distances in tactical environments.
- Precise 0.1 mrad Adjustments – Repeatable, tactile turret clicks for windage and elevation.
- Rugged Duty-Grade Construction – Waterproof to 3 meters, shockproof (tested to 1000g), fog-resistant, and built to handle extreme temperatures from –40°C to +65°C.
- Matte Hardcoat Anodized Finish – Durable and non-reflective to reduce visual signature.
What's Included
- Tenebraex Tactical Flip-Up Lens Covers
- KillFlash Anti-Reflection Device
- CR2032 Battery
- Adjustment-Cap Lanyard
- Battery Tool
- User Manual
- Warranty Documentation
Technical Specifications
Manufacturer |
SAI Optics |
Model / MPN |
RNG16-T170-C10 |
SKU |
RNG16-T170-C10 |
UPC |
666595000582 |
Magnification |
1–6× |
Objective Lens Diameter |
24 mm |
Tube Diameter |
30 mm |
Reticle |
FFP Crosshair with RAF, LED-illuminated |
Caliber Calibration |
.223/5.56 NATO |
Click Value |
0.1 mrad |
Elevation / Windage Range |
35 mrad (~120 MOA) |
Parallax |
Fixed @ 110 m |
Eye Relief |
~90 mm (3.5″) |
Exit Pupil |
9.5 mm (1×) / 4.0 mm (6×) |
Field of View @ 100 m |
38.8 m (1×) / 6.5 m (6×) |
Length |
256 mm (10.07″) |
Weight |
510 g (18 oz) |
Finish |
Hardcoat Anodized – Matte Black |
Housing Material |
Aircraft-Grade Aluminum |
Waterproof / Fogproof |
Yes – waterproof to 3 m, nitrogen-purged |
Shock Resistance |
1000 g – tested over 10,000 impacts |
Illumination |
LED, 10 brightness settings |
Battery Type |
CR2032 |
Operating Temperature |
–40°C to +65°C |
Country of Origin |
Japan (optics) / Assembled in USA |
SKU / MPN / UPC |
RNG16-T170-C10 / RNG16-T170-C10 / 666595000582 |
Warranty
SAI Optics state the warranty as: Limited 5-Year / Lifetime Mechanical.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Which reticle does it have?
FFP Crosshair with RAF, LED-illuminated.
Is the reticle illuminated?
LED, 10 brightness settings.
What is the parallax setting?
Fixed @ 110 m.
What size rings or mount does it need?
It has a 30 mm main tube, so it takes 30 mm rings.
Is this a genuine SAI Optics product?
Yes — factory-new SAI Optics, supplied through US distribution. The part number is RNG16-T170-C10 and the barcode is 666595000582.
What warranty does it carry?
SAI Optics state the warranty as: Limited 5-Year / Lifetime Mechanical.
By the Numbers
Technical Specifications
- SKU
- RNG16-T170-C10
- UPC
- 666595000582
- Manufacturer
- SAI Optics
- Model / MPN
- RNG16-T170-C10
- Magnification
- 1–6×
- Objective Lens Diameter
- 24 mm
- Tube Diameter
- 30 mm
- Reticle
- FFP Crosshair with RAF, LED-illuminated
- Caliber Calibration
- .223/5.56 NATO
- Click Value
- 0.1 mrad
- Elevation / Windage Range
- 35 mrad (~120 MOA)
- Parallax
- Fixed @ 110 m
- Eye Relief
- ~90 mm (3.5″)
- Exit Pupil
- 9.5 mm (1×) / 4.0 mm (6×)
- Field of View @ 100 m
- 38.8 m (1×) / 6.5 m (6×)
- Length
- 256 mm (10.07″)
- Weight
- 510 g (18 oz)
- Finish
- Hardcoat Anodized – Matte Black
- Housing Material
- Aircraft-Grade Aluminum
- Waterproof / Fogproof
- Yes – waterproof to 3 m, nitrogen-purged
- Shock Resistance
- 1000 g – tested over 10,000 impacts
- Illumination
- LED, 10 brightness settings
- Battery Type
- CR2032
- Operating Temperature
- –40°C to +65°C
- Warranty
- Limited 5-Year / Lifetime Mechanical
- Country of Origin
- Japan (optics) / Assembled in USA
