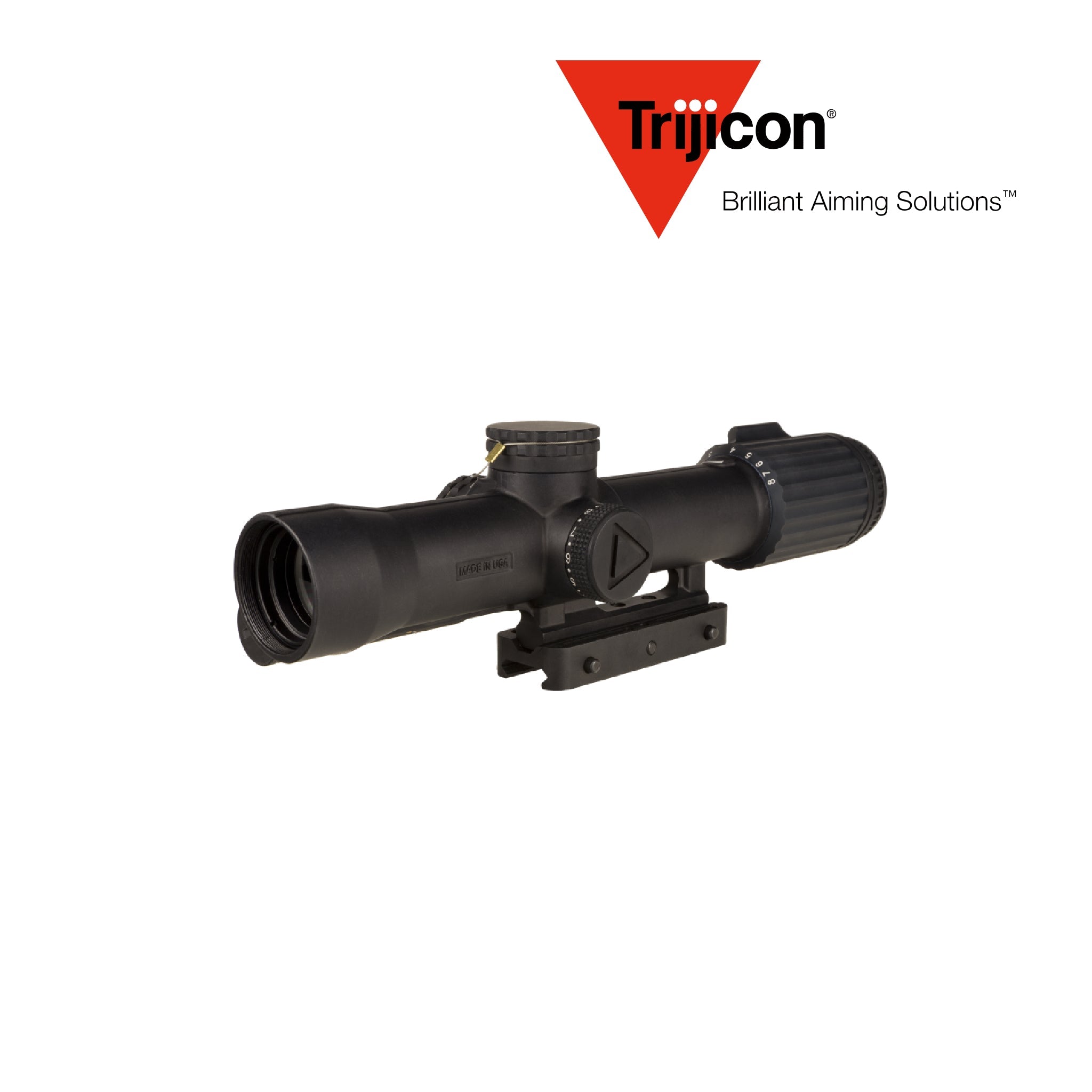

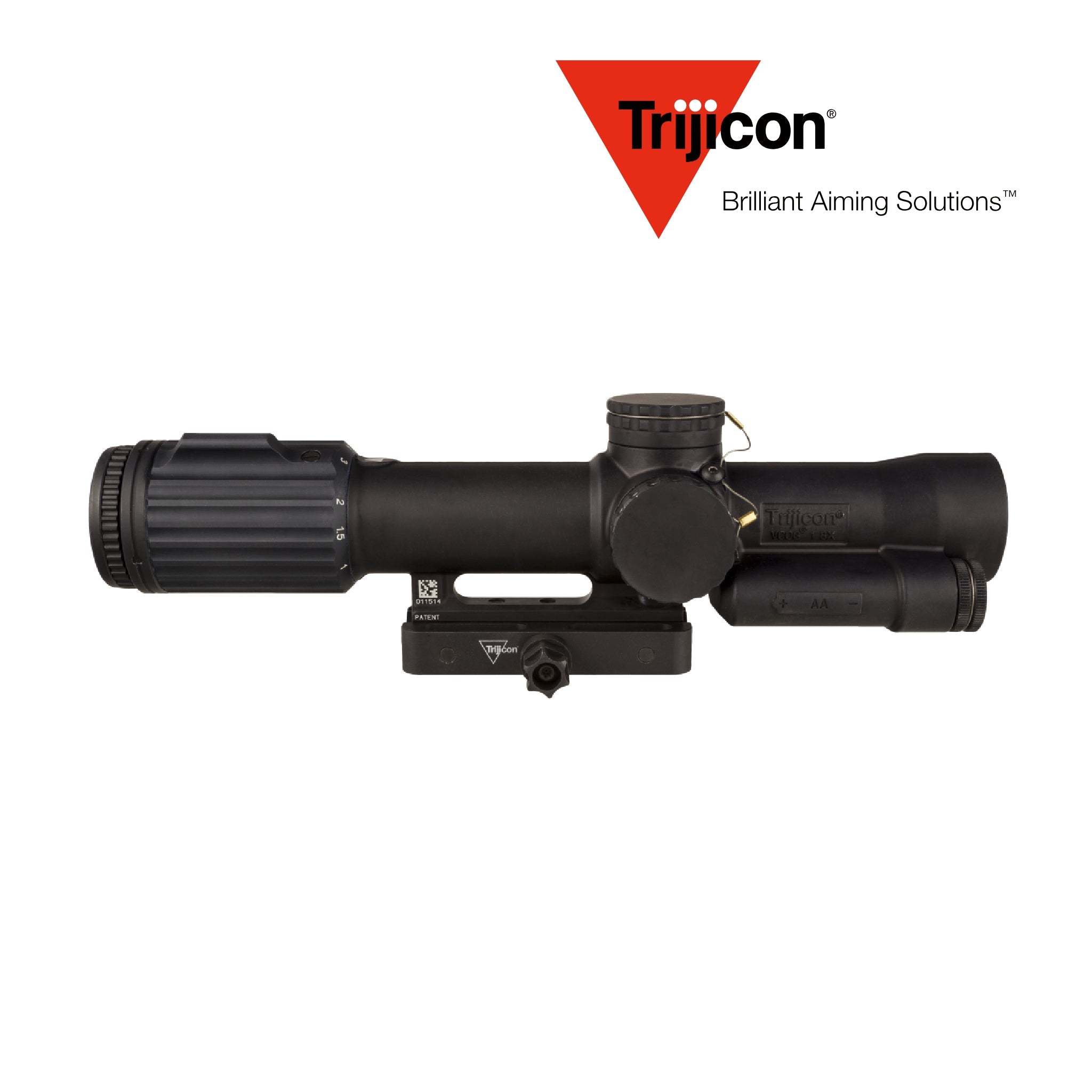

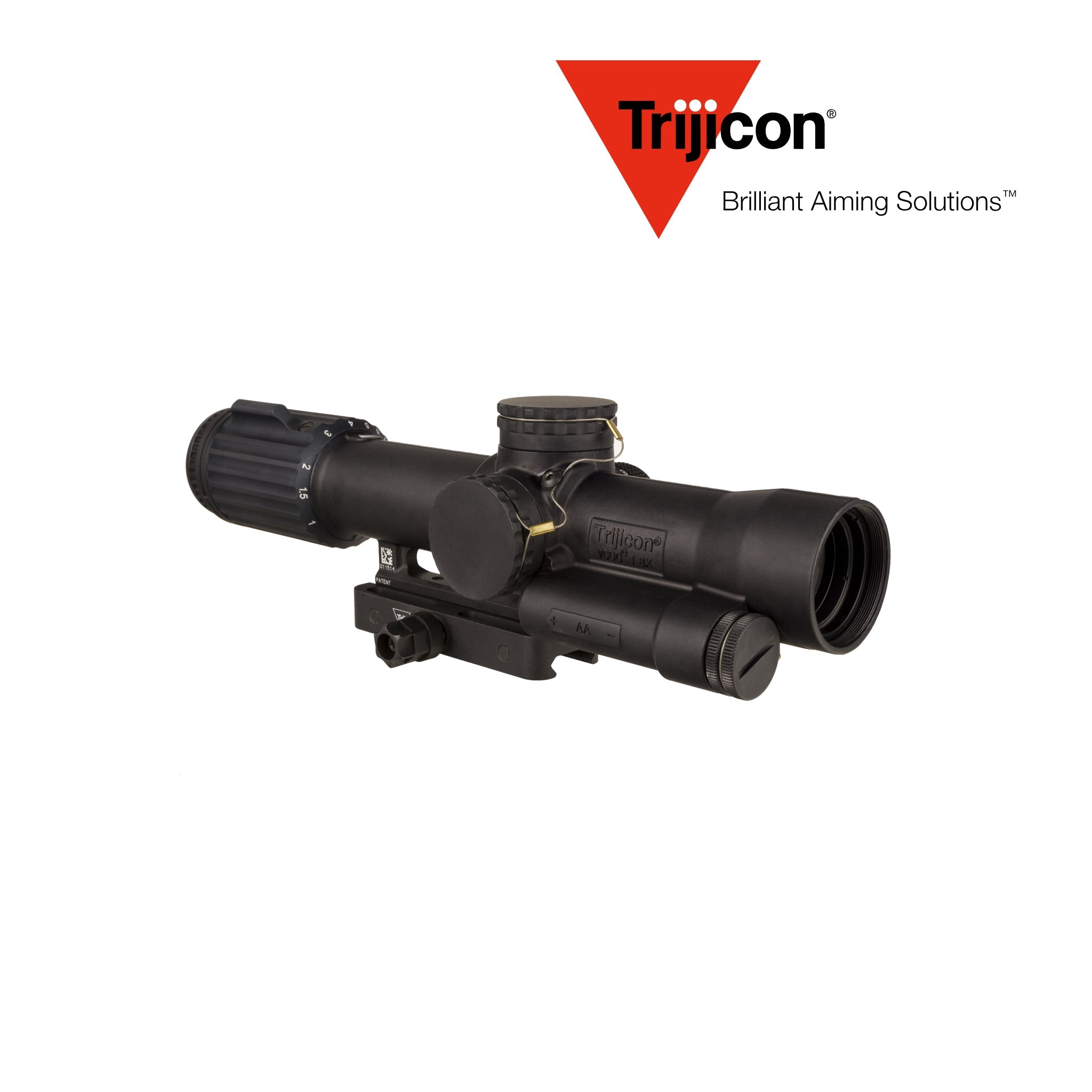

Trijicon VCOG 1-8x28 LPVO Rifle Scope FFP Red MRAD Crosshair Dot – VC18-C-2400014
Trijicon
Trijicon VCOG 1-8x28 LPVO Rifle Scope FFP Red MRAD Crosshair Dot – VC18-C-2400014
Shipping Information
Orders ship within the United States only and are typically processed in 1–2 business days. Delivery estimates and any free-shipping offers are shown at checkout. We do not ship internationally. Read our full Shipping Policy.
Returns
Unused items in their original packaging may be returned within 30 days of delivery. Optics that have been mounted or used may be inspected. Email support@dnrsports.com to start a return. Read our full Return & Refund Policy.
Warranty Information
Products are covered by their manufacturer's warranty; coverage and length vary by brand. We'll help you start a claim if needed — email support@dnrsports.com. Read our Warranty page.
The D&R Standard
- Secure Online Ordering
- Carefully Selected Equipment
- Knowledgeable Product Support
- Manufacturer Warranty Information Available
Overview
The Trijicon VCOG 1-8x28 LPVO Rifle Scope FFP Red MRAD Crosshair Dot is a Trijicon lpvo rifle scope with 1-8x magnification and 28mm objective.
How It Compares
Compare with the Trijicon USMC SCO VCOG 1-8x28mm Red MRAD Tree Reticle Riflescope w/LaRue LT799 Mount, Tenebraex Flip Caps & Soft Case and Trijicon VCOG 1-8x28 FFP LPVO Riflescope Red MOA Crosshair Dot. Browse all LPVO rifle scopes or Trijicon rifle scopes.
Ideal For
- Shooters who want the reach of 1-8x on one rifle without swapping optics
- Low-light work, where the 28mm objective is still gathering light at dusk
- Shooting into shadow or at first light, with the Red MRAD Crosshair Dot reticle illuminated
- Holdover and ranging at any magnification, since the reticle scales with the image
Key Features
- Magnification / Objective: 1-8x
- Objective: 28mm

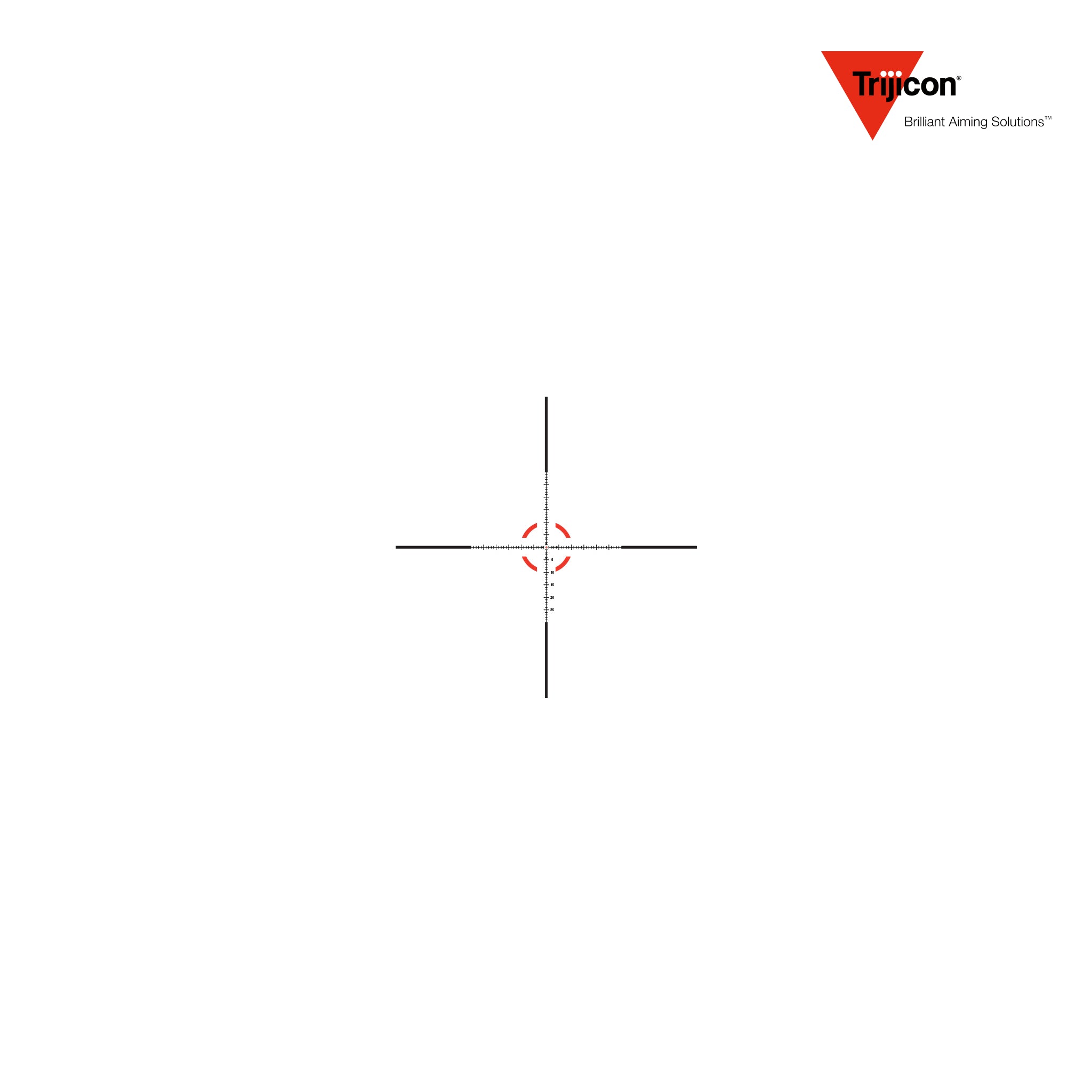

- Reticle: Red MRAD Crosshair Dot (universal segmented circle/MRAD crosshair dot)
- Illumination: LED, 11 total brightness settings: 2 night-vision, 8 day, 1 super-bright; 'off' positions between settings. Powered by single AA battery, lithium or alkaline (lithium AA included). Battery life 633 hours (26.4 days) continuous at setting 6 (lithium).
- Focal Plane: First Focal Plane (FFP)
- Click Value: 0.1 MRAD per click
- Adjustment Range: 35 MRAD
- Field of View: 109.2 - 13.1 ft @ 100 yds (20-2.5 deg)
About This Model
- Reticle: Red MRAD Crosshair Dot (universal segmented circle/MRAD crosshair dot)
- Illumination: LED, 11 total brightness settings: 2 night-vision, 8 day, 1 super-bright; 'off' positions between settings. Powered by single AA battery, lithium or alkaline (lithium AA included). Battery life 633 hours (26.4 days) continuous at setting 6 (lithium).
- Turrets: 0.1 MRAD per click
- Warranty: Trijicon Limited Lifetime Warranty
What's Included
- Q-LOC quick-release mount
- lithium AA battery
- lenspen (TA56)
- Trijicon logo sticker (PR15)
Technical Specifications
Magnification / Objective |
1-8x |
Objective |
28mm |
Focal Plane |
First Focal Plane (FFP) |
Reticle |
Red MRAD Crosshair Dot (universal segmented circle/MRAD crosshair dot) |
Reticle Color |
Red (day and night) |
Illumination |
LED, 11 total brightness settings: 2 night-vision, 8 day, 1 super-bright; 'off' positions between settings. Powered by single AA battery, lithium or alkaline (lithium AA included). Battery life 633 hours (26.4 days) continuous at setting 6 (lithium). |
Click Value |
0.1 MRAD per click |
Adjustment Range |
35 MRAD |
Eye Relief |
4.0 - 3.9 in, near-constant |
Exit Pupil |
10.16 - 3.56 mm (0.40-0.14 in) |
Field of View |
109.2 - 13.1 ft @ 100 yds (20-2.5 deg) |
Length |
10.8 in (10.8 x 2.8 x 3.3 in) |
Weight |
28.9 oz (819.3 g) per product |
Housing |
Forged 7075-T6 aircraft-grade aluminum |
Water Resistance |
Waterproof to 66 ft (20 m) submersion; dry-nitrogen filled; MIL-std-810G tested |
SKU / MPN / UPC |
VC18-C-2400014 / VC18-C-2400014 / 719307617148 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is it first or second focal plane?
First Focal Plane (FFP). Because the reticle scales with the image, holdovers are correct at any magnification.
Which reticle does it have?
Red MRAD Crosshair Dot (universal segmented circle/MRAD crosshair dot).
Is the reticle illuminated?
LED, 11 total brightness settings: 2 night-vision, 8 day, 1 super-bright; 'off' positions between settings. Powered by single AA battery, lithium or alkaline (lithium AA included). Battery life 633 hours (26.4 days) continuous at setting 6 (lithium).
What are the turret adjustments?
0.1 MRAD per click.
Is this a genuine Trijicon product?
Yes — factory-new Trijicon, supplied through US distribution. The part number is VC18-C-2400014 and the barcode is 719307617148.
What warranty does it carry?
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
Technical Specifications
- SKU
- VC18-C-2400014
- UPC
- 719307617148
- Magnification / Objective
- 1-8x
- Objective
- 28mm
- Focal Plane
- First Focal Plane (FFP)
- Reticle
- Red MRAD Crosshair Dot (universal segmented circle/MRAD crosshair dot)
- Reticle Colour
- Red (day and night)
- Click Value
- 0.1 MRAD per click
- Adjustment Range
- 35 MRAD
- Eye Relief
- 4.0 - 3.9 in, near-constant
- Exit Pupil
- 10.16 - 3.56 mm (0.40-0.14 in)
- Field of View
- 109.2 - 13.1 ft @ 100 yds (20-2.5 deg)
- Length
- 10.8 in (10.8 x 2.8 x 3.3 in)
- Weight
- 28.9 oz (819.3 g) per product
- Housing
- Forged 7075-T6 aircraft-grade aluminum
- Water Resistance
- Waterproof to 66 ft (20 m) submersion; dry-nitrogen filled; MIL-std-810G tested
- What's Included
- Q-LOC quick-release mount, lithium AA battery, lenspen (TA56), Trijicon logo sticker (PR15)
