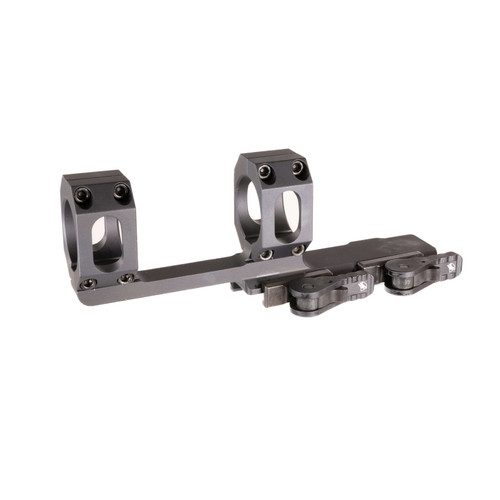

The American Defense AD-RECON-X 30mm Extended Cantilever Scope Mount is an American Defense Mfg. extended cantilever quick-detach scope mount, with 30mm rings, a 3in / 76 mm forward offset and a 1.472in / 37.4 mm centerline, weighing about 8.5 oz. It clamps with ADM's patented Auto Lock quick-detach lever, which self-adjusts to in-spec and out-of-spec Picatinny rails without tools and returns to zero when refitted.
How It Compares

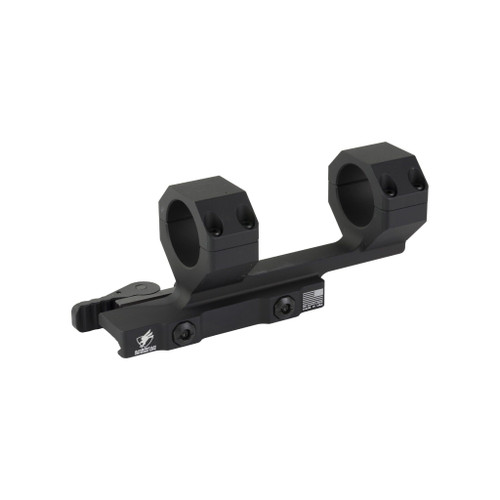

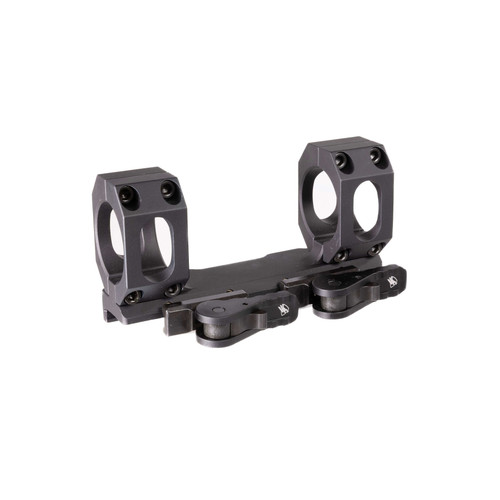

The X is the long one. Three inches of forward offset moves the scope far enough back over the receiver to get correct eye relief on a semi-automatic rifle where a standard cantilever runs out of room. If you do not need that reach, the AD-RECON cantilever mount is the standard cantilever and the AD-DELTA-C lightweight cantilever mount is the lighter version of it. For a rear-set mount with no offset at all, see the AD-RECON-SL super low mount. Note this is the AD-RECON-X, a different mount from the AD-RECON. Browse all rifle scope mounts.
Ideal For
- Practical and competition rifle, where the optic must come off and back on without losing zero
- Quick-detach removal for travel, transit cases and barrel cleaning
- Deer hunting and night predator hunting rifles that share one optic between platforms
Key Features
- Type: Extended cantilever quick-detach scope mount
- Offset: 3in / 76 mm forward
- Rings: 30mm
- Centerline: 1.472in / 37.4 mm above the rail
- Weight: Around 8.5 oz
- Mount: Picatinny, using ADM's patented Auto Lock quick-detach lever
- Material: 6061-T6 aluminum, hardcoat anodized
What's Included
- 1 × American Defense AD-RECON-X Extended Cantilever Scope Mount 30mm
- Mounting hardware
Technical Specifications
Ring Size | 30mm |
Mount | Picatinny (Auto Lock QD) |
Material | 6061-T6 aluminum, hardcoat anodized |
Height | 1.472in / 37.4 mm centerline |
Type | Extended cantilever QD scope mount (3in / 76 mm offset) |
Weight | ~8.5 oz / 241 g |
Brand | American Defense Mfg. (USA) |
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
What is the offset on this mount?
The rings sit 3in / 76 mm forward of the clamp, which lets the scope be positioned further back over the receiver for correct eye relief on semi-automatic rifles.
Which scope tube does this mount take?
It takes a 30mm scope tube.
How high does this mount sit?
The optical centerline sits 1.472in / 37.4 mm above the top of the Picatinny rail.
Does this mount return to zero after removal?
Yes. It uses American Defense Mfg.'s patented Auto Lock quick-detach lever, which self-adjusts to the rail and returns the optic to zero when refitted, so it can be taken off for travel or cleaning and put straight back on.
Is this mount the same as the AD-RECON?
No. The AD-RECON-X is the extended 3in-offset mount; the AD-RECON is the standard cantilever. They are separate products and are not interchangeable.
