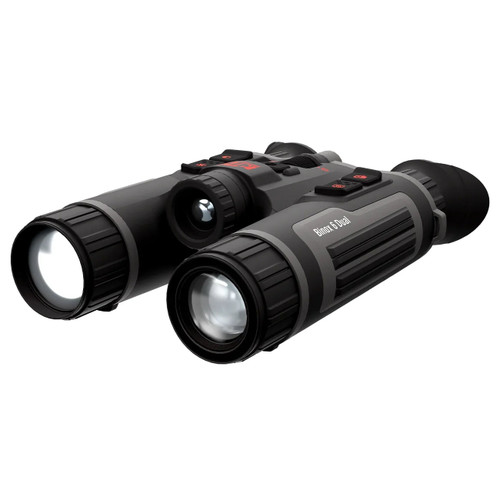

The ATN Binox-6 Dual 384x288 Thermal Binoculars 5.5-44x is an ATN Corp pair of thermal binoculars with 5.5-44x magnification and Thermal 35 mm F/0.9 objective.
How It Compares
Compare with the ATN Binox-6 Dual 256x192 6-48x. Browse all thermal optics or the full ATN Corp range. Covered by the ATN factory warranty — check the current term with us before you buy.
Ideal For
- Night work where you need to see heat, not reflected light
- Picking up targets at distance — 2,750 m
- Separating an animal from cold ground: Thermal 384x288 @ 12 µm VOx uncooled sensor at ≤15 mK
- Tracking something that is moving, at 50 Hz
Key Features
- Magnification: 5.5-44x
- Objective Lens: Thermal 35 mm F/0.9; day 55 mm F/2.0
- Sensor: Thermal 384x288 @ 12 µm VOx uncooled; day/night 1.8" CMOS 3840x2160
- NETD: ≤15 mK
- Detection Range: 2,750 m
- Refresh Rate: 50 Hz
- Display: 0.49" 1920x1080 OLED
- Onboard Storage: 64 GB
About This Model
- Sensor: Thermal 384x288 @ 12 µm VOx uncooled; day/night 1.8" CMOS 3840x2160
- NETD: ≤15 mK
- Objective Lens: Thermal 35 mm F/0.9; day 55 mm F/2.0
- Magnification: 5.5-44x
- Refresh Rate: 50 Hz
- Four vision modes: day, night, thermal, twilight
- Magnesium alloy body, IP67 rated
Technical Specifications
Type | Thermal Binoculars |
Sensor | Thermal 384x288 @ 12 µm VOx uncooled; day/night 1.8" CMOS 3840x2160 |
NETD | ≤15 mK |
Objective Lens | Thermal 35 mm F/0.9; day 55 mm F/2.0 |
Magnification | 5.5-44x |
Refresh Rate | 50 Hz |
Detection Range | 2,750 m |
Display | 0.49" 1920x1080 OLED |
Onboard Storage | 64 GB |
Laser Rangefinder | Yes, up to 1,000 yd, ±1 m, 905 nm Class 1 |
Power | 2x 18650, approx. 8 h |
Weight | 1.59 lb |
SKU / MPN / UPC | MSBNB6335A / MSBNB6335A / 658175928799 |
Warranty
Covered by the ATN factory warranty — check the current term with us before you buy.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
What sensor does it use?
ATN Corp publishes the sensor as Thermal 384x288 @ 12 µm VOx uncooled; day/night 1.8" CMOS 3840x2160. NETD is ≤15 mK — a lower figure means the sensor resolves smaller temperature differences, which shows as more detail.
How far can it detect?
ATN Corp states a detection range of 2,750 m. That is a detection figure for a large object, not a recognition or identification distance.
Does it have a rangefinder?
Yes — a built-in laser rangefinder rated to Yes, up to 1,000 yd, ±1 m, 905 nm Class 1.
What battery does it take?
2x 18650, approx. 8 h.
Is this a genuine ATN Corp product?
Yes — factory-new ATN Corp, supplied through US distribution. The part number is MSBNB6335A and the barcode is 658175928799.
What warranty does it carry?
Covered by the ATN factory warranty — check the current term with us before you buy.
