The EOTech Vudu 1-10x28 LPVO Rifle Scope FFP SR-5 MRAD Tan is an EOTech lpvo rifle scope with 1-10x magnification and 28 mm objective.
How It Compares

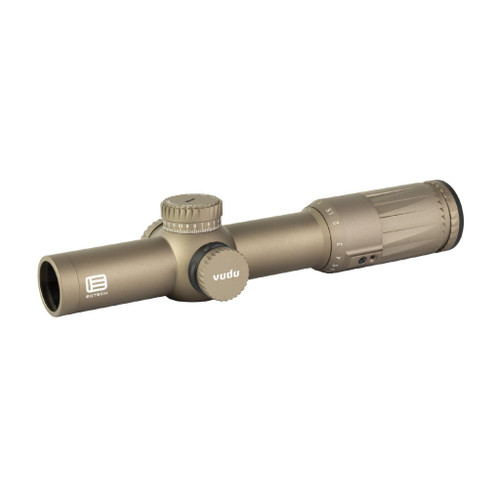

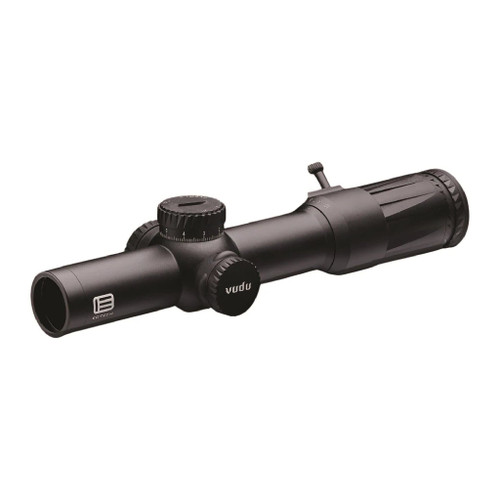

Close alternatives: EOTech Vudu 1-10x28 LPVO Rifle Scope FFP SR-5 MRAD. Also consider EOTech Vudu 1-10x28 LPVO Rifle Scope FFP LE-5 MRAD, EOTech Vudu 1-10x28 LPVO Rifle Scope FFP SR-4 MOA. Browse all LPVO Rifle Scopes or read our buying guide.
Ideal For
- Shooters who want the reach of 1-10x on one rifle without swapping optics
- Low-light work, where the 28 mm objective is still gathering light at dusk
- Rifles set up with 34 mm rings
Key Features
- Magnification: 1-10x
- Objective Lens: 28 mm
- Illumination: 10 operator-controlled brightness levels; push-button; auto-shutdown after ~2 hrs inactivity
- Tube Diameter: 34 mm
- Click Value: 0.1 MRAD
- Elevation Travel: 29 MRAD
- Field of View at 100 yds: 1x: 116.6 ft (35.5 m); 10x: 11.7 ft (3.6 m)
- Eye Relief: 1x: 3.27-3.90" (83-99 mm); 10x: 3.35-3.62" (85-92 mm)
About This Model
- Magnification — 1-10x
- Focal plane — First focal plane
- Reticle — Illuminated SR-5 (MRAD)
- Click value — 0.1 MRAD
- Turrets — Low-profile elevation turret with integrated locking short-throw push/pull mechanism; CAPPED windage turret
- Waterproof — Fog, Water, Shock Resistant Design; nitrogen gas purged, single-piece tube with O-ring seals
Technical Specifications
Magnification | 1-10x |
Objective Lens | 28 mm |
Tube Diameter | 34 mm |
Click Value | 0.1 MRAD |
Adjustment per Rotation | 15 MRAD |
Elevation Travel | 29 MRAD |
Windage Travel | 23 MRAD |
Turrets | Low-profile elevation turret with integrated locking short-throw push/pull mechanism; CAPPED windage turret. Both re-indexable (zero-resettable). |
Illumination | 10 operator-controlled brightness levels; push-button; auto-shutdown after ~2 hrs inactivity |
Eye Relief | 1x: 3.27-3.90" (83-99 mm); 10x: 3.35-3.62" (85-92 mm) |
Field of View at 100 yds | 1x: 116.6 ft (35.5 m); 10x: 11.7 ft (3.6 m) |
Length | 10.63" (270 mm) |
Weight | 21.3 oz (603 g) |
Battery | CR2032 |
Waterproof / Fogproof | Fog, Water, Shock Resistant Design; nitrogen gas purged, single-piece tube with O-ring seals |
Finish | Tan |
Country of Origin | Made in Japan |
SKU / MPN / UPC | VDU1-10FFSR5TAN / VDU1-10FFSR5TAN / 672294110255 |
Warranty
Covered by the EOTech factory warranty — check the current term with us before you buy.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is the reticle illuminated?
10 operator-controlled brightness levels; push-button; auto-shutdown after ~2 hrs inactivity.
What size rings or mount does it need?
It has a 34 mm main tube, so it takes 34 mm rings.
What are the turret adjustments?
0.1 MRAD.
How much eye relief does it give?
1x: 3.27-3.90" (83-99 mm); 10x: 3.35-3.62" (85-92 mm).
Is this a genuine EOTech product?
Yes — factory-new EOTech, supplied through US distribution. The part number is VDU1-10FFSR5TAN and the barcode is 672294110255.
What warranty does it carry?
Covered by the EOTech factory warranty — check the current term with us before you buy.
