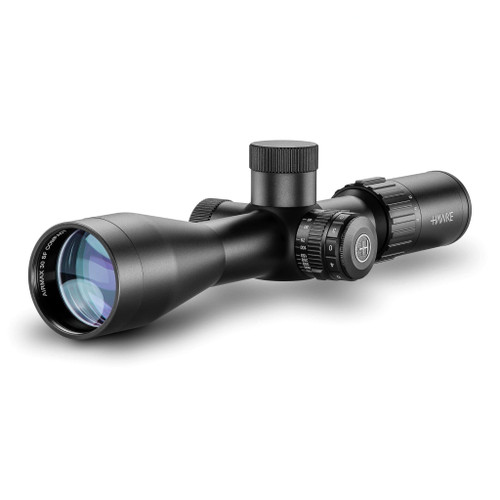

The Hawke Airmax 30 Compact 4-16x44 Rifle Scope SFP IR AMX IR Reticle is a Hawke Sport Optics rifle scope with 4 - 16x magnification and 44mm objective.
How It Compares
Compare with the Airmax 30 SF Compact 3-12x40 AMX IR and Airmax 30 SF Compact 6-24x50 AMX IR. Browse all rifle scopes or the full Hawke range.
Ideal For
- One rifle, 4-16x — field ranges and a bit beyond
- A reticle that stays fine and uncluttered at the top end — second focal plane
- Shooting into shadow or at first light, with the AMX IR reticle lit
- Side focus — adjust the picture without reaching over the objective
Key Features
- Magnification: 4 - 16x
- Objective: 44mm
- Reticle: AMX IR
- Illumination: 6 Levels (Red)
- Focal Plane: SFP (Second Focal Plane)
- Tube: 30mm
- Click Value: 1/10 MRAD
- Parallax: Side Focus
About This Model
- Reticle: AMX IR
- Illumination: 6 Levels (Red)
- Optical System: System H2
- Warranty: Hawke No-Fault Lifetime Warranty
What's Included
- Box
- Instruction Manual
- Reticle Booklet
- Lens Cloth
- Lens Covers
- 3" Sidewheel
- CR2032 Battery
Technical Specifications
Magnification | 4 - 16x |
Objective | 44mm |
Tube | 30mm |
Focal Plane | SFP (Second Focal Plane) |
Reticle | AMX IR |
Illumination | 6 Levels (Red) |
Illumination Control | Stepped Rheostat with Off Positions In-between |
Parallax | Side Focus |
Parallax Distance | 10 - ∞ |
Click Value | 1/10 MRAD |
Eye Relief | 3 |
Field of View | 32.8 - 8.2 |
Length | 11.7 |
Weight | 21.9 |
Lens Coating | Fully Multi-Coated - 16 Layers |
Optical System | H2 |
Construction | 30mm Mono-tube chassis, Nitrogen purged. Shockproof. Waterproof. Fog proof. | Elevation turret: Target. Capped. Resettable | Windage turret: Target. Capped. Resettable | Ocular: Fast Focus |
Airgun Rating | All caliber rated - Airmax is Hawke's dedicated airgun line: rated for spring/gas-ram airgun double recoil as well as rimfire and centerfire |
Battery | CR2032 Battery |
SKU / MPN / UPC | 13210 / 13210 / 5054492132102 |
Warranty
Hawke back this with their No-Fault Lifetime Warranty — if it is ever faulty they repair or replace it, no receipt or registration needed, for the original owner.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is it first or second focal plane?
SFP (Second Focal Plane). The reticle stays the same visual size as you zoom, so holdovers are calibrated at one magnification.
Which reticle does it have?
AMX IR.
Is the reticle illuminated?
6 Levels (Red).
What is the parallax setting?
Side Focus.
Is this a genuine Hawke Sport Optics product?
Yes — factory-new Hawke Sport Optics, supplied through US distribution. The part number is 13210 and the barcode is 5054492132102.
What warranty does it carry?
Hawke back this with their No-Fault Lifetime Warranty — if it is ever faulty they repair or replace it, no receipt or registration needed, for the original owner.
