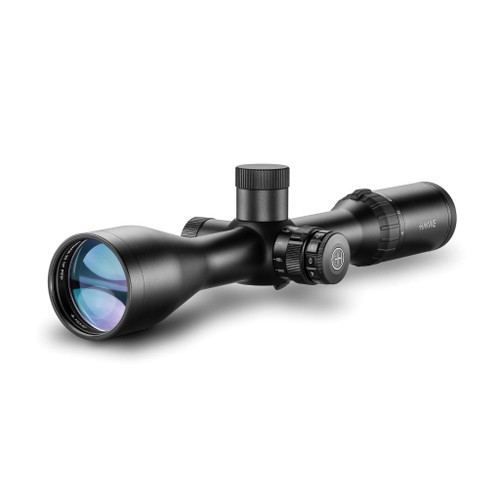

The Hawke Airmax 30 FFP 4-16x50 Rifle Scope FFP IR FFP AMX IR Reticle is a Hawke Sport Optics rifle scope with 4 - 16x magnification and 50mm objective.
How It Compares
Compare with the Airmax 30 FFP SF 6-24x50 AMX IR. Browse all rifle scopes or the full Hawke range.
Ideal For
- Shooters who want 4-16x so they are not swapping optics between jobs
- Dawn and dusk, where the 50mm objective is doing the work
- First focal plane, so a hold worked out at 8x is still right at 20x
- Shooting into shadow or at first light, with the FFP AMX IR (16x) reticle lit
Key Features
- Magnification: 4 - 16x
- Objective: 50mm
- Reticle: FFP AMX IR (16x)
- Illumination: 6 Levels (Red)
- Focal Plane: FFP (First Focal Plane)
- Tube: 30mm
- Click Value: 1/10 MRAD
- Parallax: Side Focus
About This Model
- Reticle: FFP AMX IR (16x)
- Illumination: 6 Levels (Red)
- Optical System: System H2
- Warranty: Hawke No-Fault Lifetime Warranty
What's Included
- Box
- Instruction Manual
- Lens Cloth
- 4" Sunshade
- Metal Flip-Up Lens Covers
- Flip-Up Removal Tool
- 4" Sidewheel
- Hex Key
- CR2032 Battery
Technical Specifications
Magnification | 4 - 16x |
Objective | 50mm |
Tube | 30mm |
Focal Plane | FFP (First Focal Plane) |
Reticle | FFP AMX IR (16x) |
Illumination | 6 Levels (Red) |
Illumination Control | Stepped Rheostat with Off Positions In-between |
Parallax | Side Focus |
Parallax Distance | 10 - ∞ |
Click Value | 1/10 MRAD |
Eye Relief | 3.5 |
Field of View | 32.5 - 8.1 |
Length | 13.7 |
Weight | 26.6 |
Lens Coating | Fully Multi-Coated - 16 Layers |
Optical System | H2 |
Construction | 30mm Mono-tube chassis, Nitrogen purged. Shockproof. Waterproof. Fog proof. | Elevation turret: Target. Capped. Resettable | Windage turret: Target. Capped. Resettable | Ocular: Fast Focus |
Airgun Rating | All caliber rated - Airmax is Hawke's dedicated airgun line: rated for spring/gas-ram airgun double recoil as well as rimfire and centerfire |
Battery | CR2032 Battery |
SKU / MPN / UPC | 13350 / 13350 / 5054492133505 |
Warranty
Hawke back this with their No-Fault Lifetime Warranty — if it is ever faulty they repair or replace it, no receipt or registration needed, for the original owner.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is it first or second focal plane?
FFP (First Focal Plane). Because the reticle scales with the image, holdovers are correct at any magnification.
Which reticle does it have?
FFP AMX IR (16x).
Is the reticle illuminated?
6 Levels (Red).
What is the parallax setting?
Side Focus.
Is this a genuine Hawke Sport Optics product?
Yes — factory-new Hawke Sport Optics, supplied through US distribution. The part number is 13350 and the barcode is 5054492133505.
What warranty does it carry?
Hawke back this with their No-Fault Lifetime Warranty — if it is ever faulty they repair or replace it, no receipt or registration needed, for the original owner.
