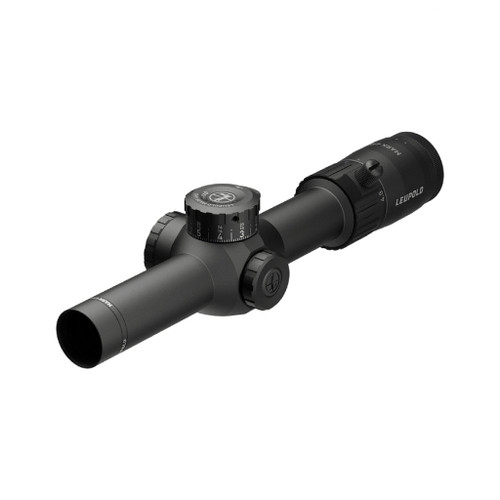

The Leupold Mark 4HD 1-4.5x24 LPVO Rifle Scope M5C3 Illuminated SFP FireDot TMR is a Leupold lpvo rifle scope with 1-4.5x magnification and 24mm objective.
The Leupold Mark 4HD 1-4.5x24 LPVO Rifle Scope pairs a second focal plane illuminated FireDot TMR reticle with Leupold's Professional-Grade Optical System, delivering bright, high-contrast images and repeatable adjustments in a rugged 30mm maintube — designed, machined and assembled in the USA.
How It Compares
Want a different reticle or magnification? Compare the 1-4.5x24 HPR-1, 1-4.5x24 FireDot BDC Illuminated, 2.5-10x42 TMR Illuminated. Browse all LPVO scopes, Leupold rifle scopes, the full rifle scopes range.
Ideal For
- Shooters who want the reach of 1-4.5x on one rifle without swapping optics
- Low-light work, where the 24mm objective is still gathering light at dusk
- Shooting into shadow or at first light, with the FireDot TMR reticle illuminated
- Hunters who want the reticle to stay the same size as they zoom
Key Features
- Magnification: 1-4.5x
- Objective Lens: 24mm
- Reticle: FireDot TMR
- Illumination: Yes
- Focal Plane: Second Focal Plane (SFP)
- Tube Diameter: 30mm
- Click Value: 0.1 MRAD
- Elevation Adjustment: 48 MIL / 165 MOA
About This Model
- Illuminated FireDot TMR reticle with Motion Sensor Technology (CR2032)
- Professional-Grade Optical System with industry-leading glare reduction
- M5C3 ZeroLock turrets (0.1 MRAD clicks, three-revolution elevation)
- 48 MIL / 165 MOA elevation adjustment range
- 100% waterproof, fogproof and shockproof
- Backed by Leupold's Full Lifetime Guarantee
What's Included
- Riflescope
- Scope cover
- Lens cloth
- CR2032 battery
- Leupold guarantee card
Technical Specifications
Magnification | 1-4.5x |
Objective Lens | 24mm |
Tube Diameter | 30mm |
Reticle | FireDot TMR |
Focal Plane | Second Focal Plane (SFP) |
Illumination | Yes |
Turret System | M5C3 |
Click Value | 0.1 MRAD |
Elevation Adjustment | 48 MIL / 165 MOA |
Windage Adjustment | 29 MRAD |
Zoom Ratio | 4.5:1 |
Parallax | Fixed 150 yd |
Eye Relief | 3.7-3.9 in |
Field of View @ 100 yds | 118.8-25.2 ft |
Length | 10.7 in |
Weight | 18 oz |
Finish | Matte Black |
SKU / MPN / UPC | 183316 / 183316 / 030317036324 |
Warranty
Leupold Full Lifetime Guarantee
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is it first or second focal plane?
Second Focal Plane (SFP). The reticle stays the same visual size as you zoom, so holdovers are calibrated at one magnification.
Which reticle does it have?
FireDot TMR.
Is the reticle illuminated?
Yes.
What is the parallax setting?
Fixed 150 yd.
Is this a genuine Leupold product?
Yes — factory-new Leupold, supplied through US distribution. The part number is 183316 and the barcode is 030317036324.
What warranty does it carry?
Leupold Full Lifetime Guarantee
