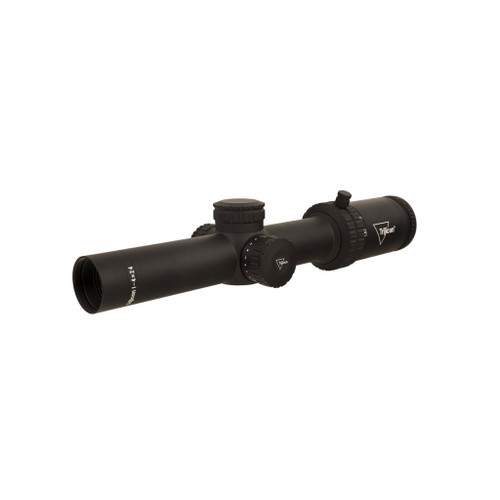

The Trijicon Credo 1-4x24 LPVO Rifle Scope SFP Illuminated Red BDC Segmented Circle .223 55gr is a Trijicon lpvo rifle scope with 1-4x magnification and 24mm objective.
How It Compares

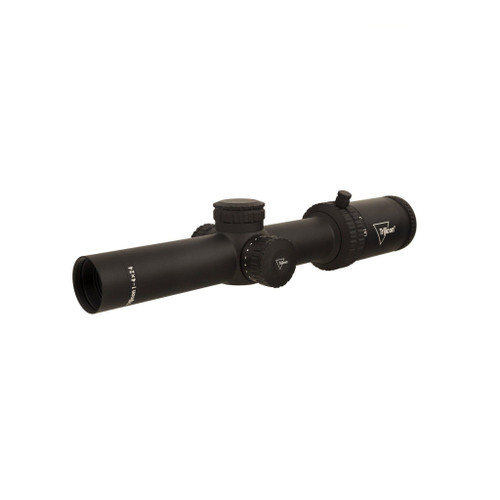

Compare with the Trijicon Credo 1-4x24 LPVO Rifle Scope SFP Illuminated MRAD Ranging and Trijicon Credo 1-4x24 LPVO Rifle Scope SFP Illuminated BDC Segmented Circle .223 / 55gr. Browse all LPVO rifle scopes or Trijicon rifle scopes.
Ideal For
- Shooters who want the reach of 1-4x on one rifle without swapping optics
- Low-light work, where the 24mm objective is still gathering light at dusk
- Shooting into shadow or at first light, with the BDC Segmented Circle .223/55gr reticle illuminated
- Hunters who want the reticle to stay the same size as they zoom
Key Features
- Magnification / Objective: 1-4x
- Objective: 24mm
- Reticle: BDC Segmented Circle .223/55gr
- Illumination: LED, 10 brightness settings with 'off' between each; 1x CR2032 battery (included). Battery life Red: 68 hrs at mid-high setting (7/10). No auto battery saver stated.
- Focal Plane: Second Focal Plane (SFP)
- Click Value: 1/4 MOA per click
- Adjustment Range: 100 MOA total travel
- Parallax: Fixed; distance
About This Model
- Reticle: BDC Segmented Circle .223/55gr
- Illumination: LED, 10 brightness settings with 'off' between each; 1x CR2032 battery (included). Battery life Red: 68 hrs at mid-high setting (7/10). No auto battery saver stated.
- Turrets: 1/4 MOA per click
- Warranty: Trijicon Limited Lifetime Warranty
What's Included
- Bikini caps
- Scopecoat
- 3mm hex key
- repositionable magnification knob + replacement screw
- 1 CR2032 battery
- quick reference guide
- warranty card
- vinyl logo sticker. no scope mount/rings included.
Technical Specifications
Magnification / Objective | 1-4x |
Objective | 24mm |
Focal Plane | Second Focal Plane (SFP) |
Reticle | BDC Segmented Circle .223/55gr |
Reticle Color | Red |
Illumination | LED, 10 brightness settings with 'off' between each; 1x CR2032 battery (included). Battery life Red: 68 hrs at mid-high setting (7/10). No auto battery saver stated. |
Click Value | 1/4 MOA per click |
Adjustment Range | 100 MOA total travel |
Parallax | Fixed; distance |
Eye Relief | 2.6 - 3.9 in (66-99mm) |
Exit Pupil | 17.5 - 5.1 mm (0.69-0.2 in) |
Field of View | 95 - 24.2 ft @ 100 yds (18.0-4.6 deg) |
Length | 10.5 in (L x W x H: 10.5 x 2.7 x 1.9 in) |
Weight | 17.1 oz (484.78 g) |
Housing | 6061 aircraft grade aluminum, matte black |
Water Resistance | Waterproof/fogproof |
SKU / MPN / UPC | CR424-C-2900013 / CR424-C-2900013 / 719307403000 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is it first or second focal plane?
Second Focal Plane (SFP). The reticle stays the same visual size as you zoom, so holdovers are calibrated at one magnification.
Which reticle does it have?
BDC Segmented Circle .223/55gr.
Is the reticle illuminated?
LED, 10 brightness settings with 'off' between each; 1x CR2032 battery (included). Battery life Red: 68 hrs at mid-high setting (7/10). No auto battery saver stated.
What is the parallax setting?
Fixed; distance.
Is this a genuine Trijicon product?
Yes — factory-new Trijicon, supplied through US distribution. The part number is CR424-C-2900013 and the barcode is 719307403000.
What warranty does it carry?
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
