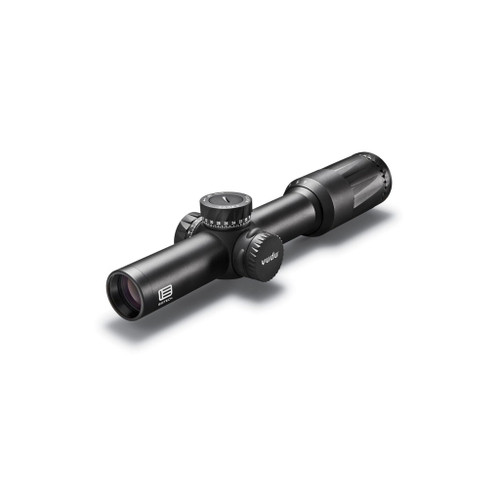

The EOTech Vudu 1-6x24 LPVO Rifle Scope FFP SR-3 MOA is an EOTech lpvo rifle scope with 1-6x magnification and 24 mm objective.
How It Compares
Close alternatives: EOTech Vudu 1-6x24 LPVO Rifle Scope FFP SR-1 MRAD. Also consider EOTech Vudu 1-8x24 LPVO Rifle Scope SFP HC3 MOA, EOTech Vudu 1-10x28 LPVO Rifle Scope FFP LE-5 MRAD. Browse all LPVO Rifle Scopes or read our buying guide.
Ideal For
- Shooters who want the reach of 1-6x on one rifle without swapping optics
- Low-light work, where the 24 mm objective is still gathering light at dusk
- Rifles set up with 30 mm rings
Key Features
- Magnification: 1-6x
- Objective Lens: 24 mm
- Illumination: 10 operator-controlled brightness levels; push-button; auto-shutdown after ~2 hrs inactivity
- Tube Diameter: 30 mm
- Click Value: 0.5 MOA
- Elevation Travel: 100 MOA
- Field of View at 100 yds: 1x: 102.4 ft (31.2 m); 6x: 16.7 ft (5.09 m)
- Eye Relief: 1x: 3.27-3.94" (83-100 mm); 6x: 3.23-3.94" (82-100 mm)
About This Model
- Magnification — 1-6x
- Focal plane — First focal plane
- Reticle — Illuminated SR-3 (MOA)
- Click value — 0.5 MOA
- Turrets — Tool-less adjustable, re-indexable (zero-resettable) elevation and windage turret dials
- Waterproof — Fog, Water, Shock Resistant Design; nitrogen gas purged, single-piece tube with O-ring seals
Technical Specifications
Magnification | 1-6x |
Objective Lens | 24 mm |
Tube Diameter | 30 mm |
Click Value | 0.5 MOA |
Adjustment per Rotation | 40 MOA |
Elevation Travel | 100 MOA |
Windage Travel | 80 MOA |
Turrets | Tool-less adjustable, re-indexable (zero-resettable) elevation and windage turret dials. Manual does not describe them as capped, exposed-tactical, or zero-stop equipped. |
Illumination | 10 operator-controlled brightness levels; push-button; auto-shutdown after ~2 hrs inactivity |
Eye Relief | 1x: 3.27-3.94" (83-100 mm); 6x: 3.23-3.94" (82-100 mm) |
Field of View at 100 yds | 1x: 102.4 ft (31.2 m); 6x: 16.7 ft (5.09 m) |
Length | 10.63" (270 mm) |
Weight | 20.1 oz (570 g) |
Battery | CR2032 |
Waterproof / Fogproof | Fog, Water, Shock Resistant Design; nitrogen gas purged, single-piece tube with O-ring seals. EOTECH wording is 'resistant', not an IP/'waterproof' rating. |
Finish | Black (anodized); 1-6x24 offered in Black only |
Country of Origin | Made in Japan |
SKU / MPN / UPC | VUDU1-6FFPSR3 / VDU1-6FFSR3 / 672294110026 |
Warranty
Covered by the EOTech factory warranty — check the current term with us before you buy.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is the reticle illuminated?
10 operator-controlled brightness levels; push-button; auto-shutdown after ~2 hrs inactivity.
What size rings or mount does it need?
It has a 30 mm main tube, so it takes 30 mm rings.
What are the turret adjustments?
0.5 MOA.
How much eye relief does it give?
1x: 3.27-3.94" (83-100 mm); 6x: 3.23-3.94" (82-100 mm).
Is this a genuine EOTech product?
Yes — factory-new EOTech, supplied through US distribution. The part number is VUDU1-6FFPSR3 and the barcode is 672294110026.
What warranty does it carry?
Covered by the EOTech factory warranty — check the current term with us before you buy.
