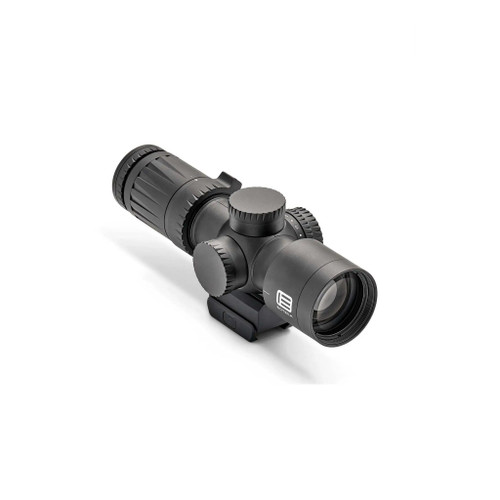

The EOTech Vudu 4-12x36 Rifle Scope FFP MR5 MRAD is an EOTech rifle scope with 4-12x magnification and 36 mm objective.
How It Compares
Close alternatives: EOTech Vudu 4-12x36 Rifle Scope FFP MD5 MRAD. Also consider EOTech Vudu 4-12x36 Rifle Scope FFP MR5 MRAD, EOTech Vudu 4-12x36 Rifle Scope FFP MD5 MRAD. Browse all EOTech Vudu Rifle Scopes or read our buying guide.
Ideal For
- 4-12x on one rifle, for ordinary field ranges
- Keeping the rifle handy — a 36 mm objective sits low and adds little bulk
Key Features
- Magnification: 4-12x
- Objective Lens: 36 mm
- Tube Diameter: 30 mm
- Click Value: 0.1 MRAD
- Elevation Travel: 20 MRAD
- Field of View at 100 yds: 4x: 28.5 ft (8.6 m); 12x: 9.5 ft (2.9 m)
- Eye Relief: 4x: 2.5-3.1 in (65-80 mm); 12x: 2.4-3.0 in (61-77 mm)
- Mount: Integrated base, compatible with aftermarket mini-ACOG mounts
About This Model
- Magnification — 4-12x
- Focal plane — First focal plane
- Reticle — Illuminated MR5 (MRAD)
- Click value — 0.1 MRAD
- Turrets — Capped windage & elevation turrets; easy zero-reset after sighting in. No zero-stop claimed by EOTECH for this model.
- Waterproof — Nitrogen purged; fog, water and shock resistant; single-piece tube with O-ring seals
What's Included
- Riflescope, CR2032 battery, operator manual, reticle manual, lens cloth, lens covers
Technical Specifications
Magnification | 4-12x |
Objective Lens | 36 mm |
Tube Diameter | 30 mm |
Click Value | 0.1 MRAD |
Elevation Travel | 20 MRAD |
Windage Travel | 13 MRAD |
Turrets | Capped windage & elevation turrets; easy zero-reset after sighting in. No zero-stop claimed by EOTECH for this model. |
Eye Relief | 4x: 2.5-3.1 in (65-80 mm); 12x: 2.4-3.0 in (61-77 mm) |
Field of View at 100 yds | 4x: 28.5 ft (8.6 m); 12x: 9.5 ft (2.9 m) |
Mount | Integrated base, compatible with aftermarket mini-ACOG mounts |
Length | 7.1 in (180.3 mm) |
Weight | 16.9 oz (479 g) |
Battery | (1) CR2032; ~300 hours at brightness level 5; 10 brightness settings via rotary dial |
Waterproof / Fogproof | Nitrogen purged; fog, water and shock resistant; single-piece tube with O-ring seals |
Country of Origin | Made in Japan |
SKU / MPN / UPC | VDU4-12FFMR5 / VDU4-12FFMR5 / 672294110408 |
Warranty
Covered by the EOTech factory warranty — check the current term with us before you buy.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
What size rings or mount does it need?
It has a 30 mm main tube, so it takes 30 mm rings. Integrated base, compatible with aftermarket mini-ACOG mounts.
What are the turret adjustments?
0.1 MRAD.
How much eye relief does it give?
4x: 2.5-3.1 in (65-80 mm); 12x: 2.4-3.0 in (61-77 mm).
What is the field of view?
4x: 28.5 ft (8.6 m); 12x: 9.5 ft (2.9 m).
Is this a genuine EOTech product?
Yes — factory-new EOTech, supplied through US distribution. The part number is VDU4-12FFMR5 and the barcode is 672294110408.
What warranty does it carry?
Covered by the EOTech factory warranty — check the current term with us before you buy.
