Hawke AIRMAX 30 WA SF 4–16×50 Rifle Scope AMX IR Reticle
Features
-

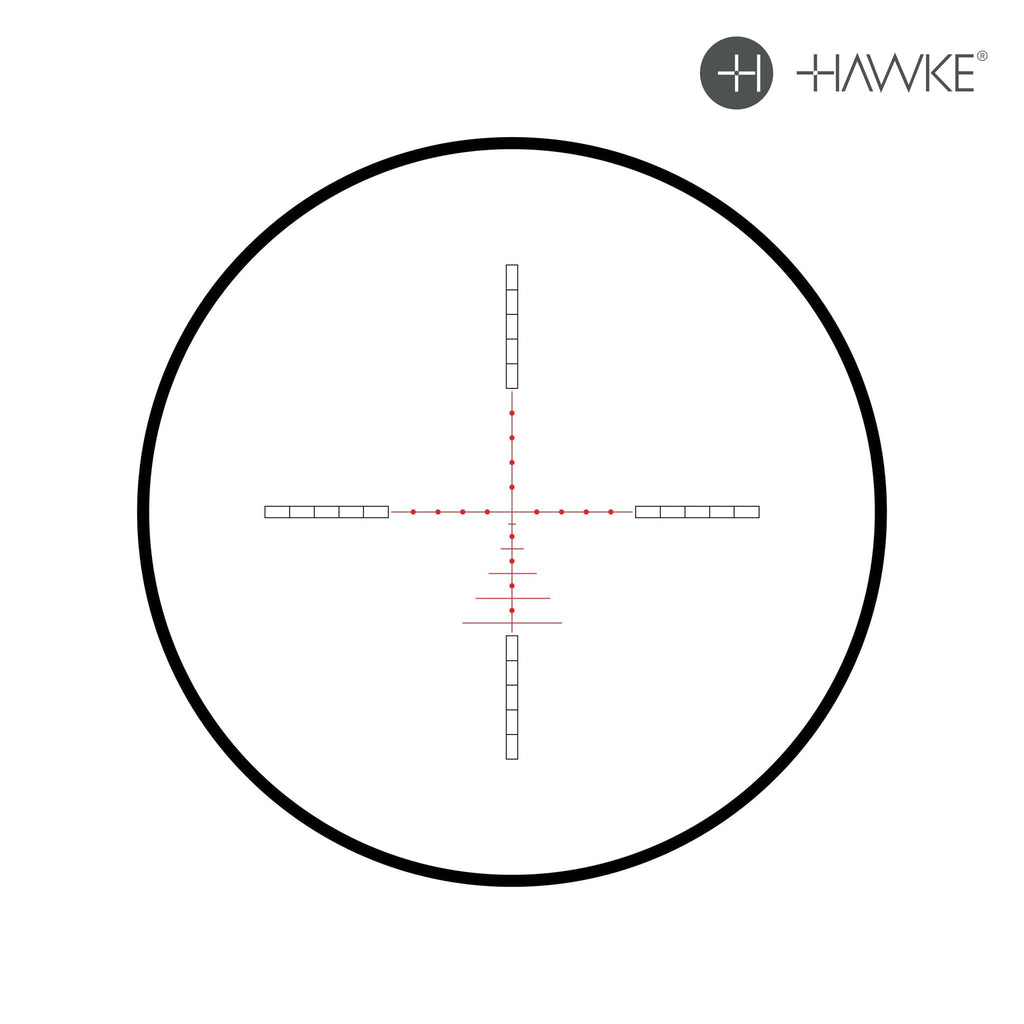

First Focal Plane AMX IR Reticle: Glass-etched mil-dot AMX pattern in the first focal plane maintains true subtensions at any magnification; red LED illumination with six daylight-bright levels (plus off-positions) for precise ranging and hold-overs.
-
Wide 4–16× Zoom Range: High-torque zoom ring and removable throw-lever enable rapid transitions between close-quarters and extended-range shooting.
-
30 mm Mono-Tube Chassis: Forged aluminium tube provides exceptional rigidity, shockproof and fog-proof performance, and all-calibre rating.
-
Side-Focus Parallax Correction: Side-wheel adjustment from 10 yd to ∞ delivers pin-sharp, parallax-free clarity at any distance.
-
Capped Target Turrets: Resettable 0.1 MRAD per-click windage and elevation turrets with 27 MRAD total travel; protective caps prevent accidental shifts.
-
16-Layer Fully Multi-Coated Optics: Anti-reflective coatings on every air-to-glass surface maximize light transmission, contrast, and edge-to-edge sharpness.
-
Fast-Focus Eyebell: Quick diopter adjustment for a crisp sight picture without tools.
-
Weatherproof Design: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog-proof and shock-proof for reliable operation in all conditions.
-
Included Accessories: Removable throw-lever; 3″ side-focus wheel; sunshade; metal flip-up lens covers; lens cloth; CR2032 battery; instruction manual.
Technical Specifications for Hawke AIRMAX 30 WA SF 4–16×50 Rifle Scope AMX IR Reticle
|
Specification
|
Details
|
|
Model / MPN
|
Airmax 30 WA SF 4–16×50 AMX IR (13311)
|
|
SKU
|
AMXFFP41650
|
|
UPC
|
5054492133116
|
|
Magnification Range
|
4–16×
|
|
Objective Lens Diameter
|
50 mm
|
|
Tube Diameter
|
30 mm
|
|
Focal Plane
|
First Focal Plane
|
|
Reticle
|
AMX IR: glass-etched mil-dot, illuminated (6 levels)
|
|
Illumination Control
|
Red LED; 6 brightness settings (with off-positions)
|
|
Parallax Adjustment
|
Side focus, 10 yd–∞
|
|
Turret Graduation
|
0.1 MRAD per click
|
|
Total Windage / Elevation
|
27 MRAD each
|
|
Eye Relief
|
4.0″ (102 mm) constant
|
|
Field of View @ 100 yd
|
30.7–7.7 ft (9.4–2.4 m)
|
|
Exit Pupil
|
12.5–3.1 mm
|
|
Length
|
13.7″ (348 mm)
|
|
Weight
|
26.8 oz (760 g)
|
|
Optical Coatings
|
16-layer fully multi-coated
|
|
Chassis Material / Finish
|
Forged aluminium, matte-black anodized
|
|
Weatherproof Rating
|
IP67 (submersible to 1 m); fog-proof; shock-proof
|
|
All-Calibre Rated
|
Yes
|
|
Warranty
|
Hawke No-Fault Lifetime Warranty
|
