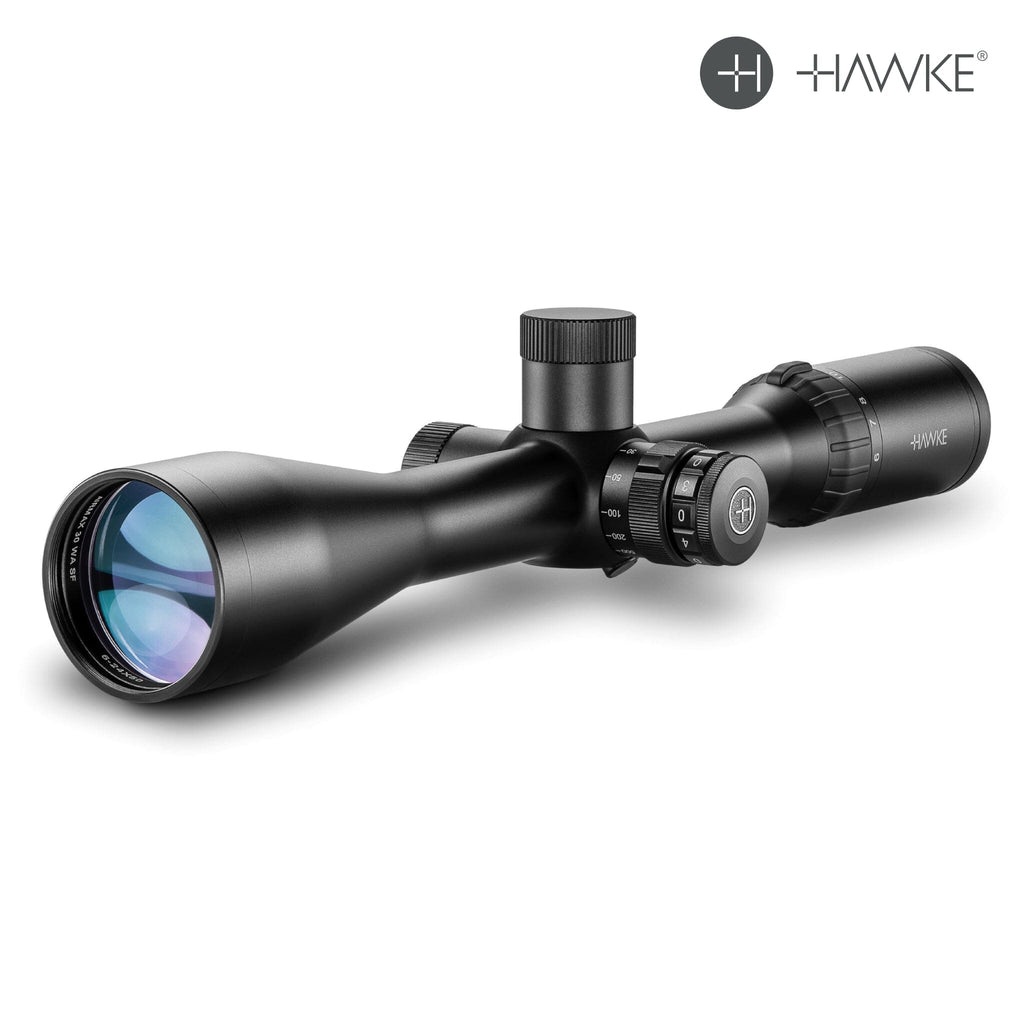

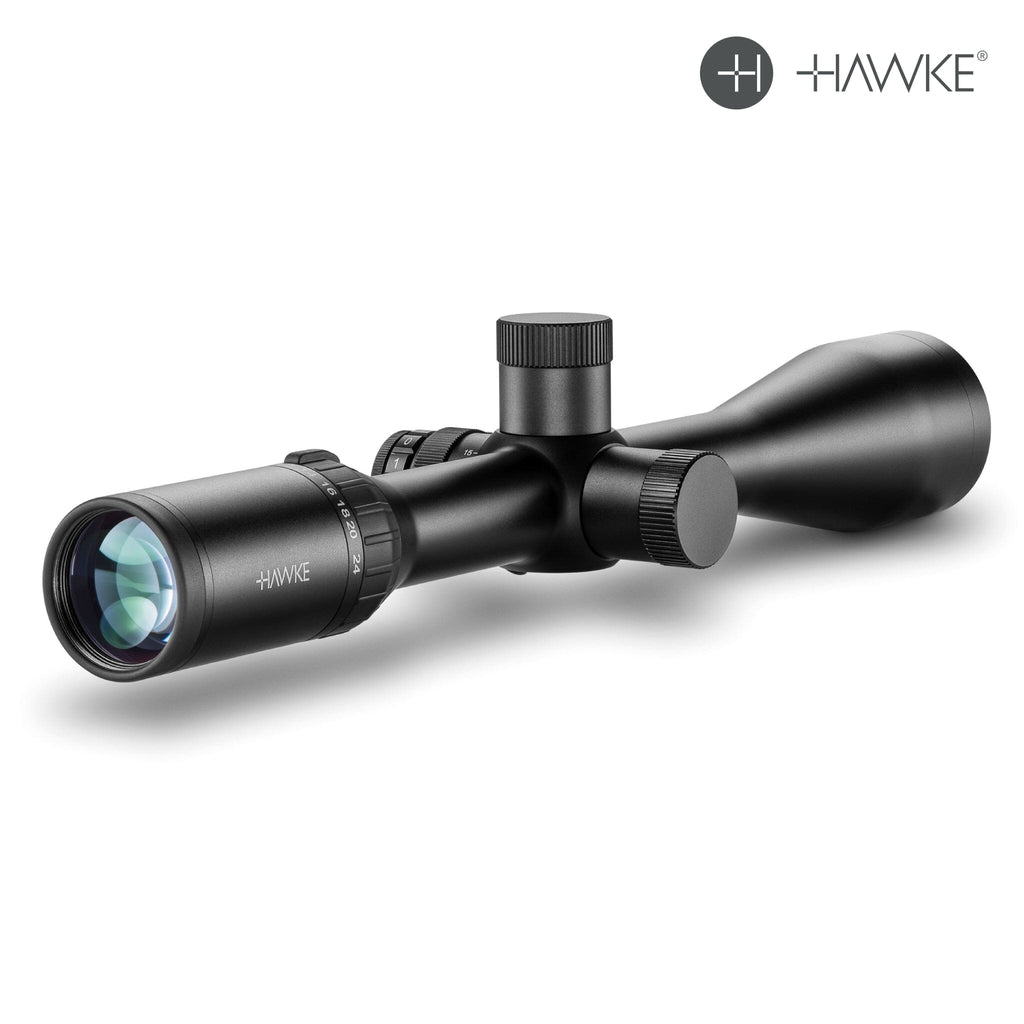

Hawke AIRMAX 30 WA SF 6–24×50 Rifle Scope AMX IR Reticle
Features
-

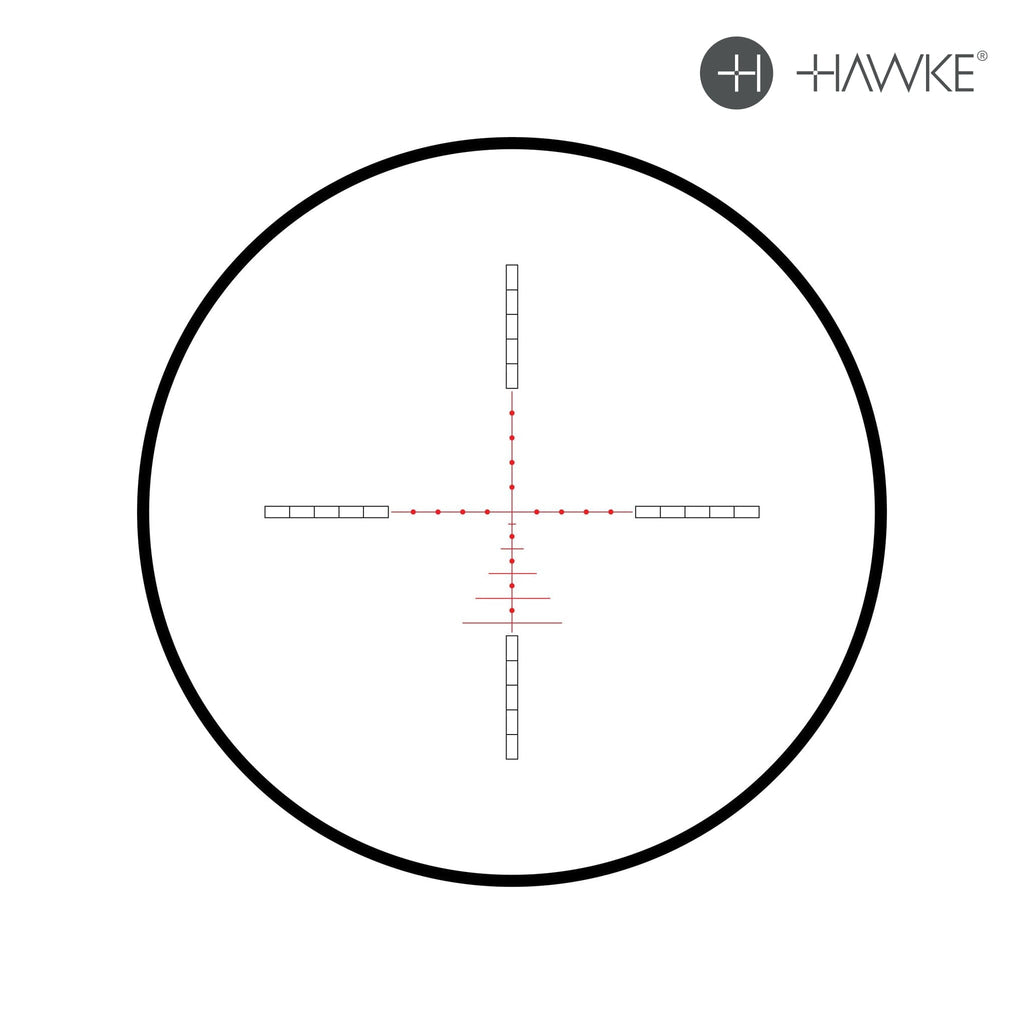

First Focal Plane AMX IR Reticle: Glass-etched mil-dot AMX pattern in the first focal plane for true subtensions at all magnifications; illuminated by a red LED with six daylight-bright levels (plus off-positions) for precise ranging and hold-overs.
-
Wide-Angle 6–24× Zoom: High-torque zoom ring with removable throw-lever enables rapid transitions between close-quarters and extended-range engagements.
-
30 mm Mono-Tube Chassis: One-piece forged aluminum tube offers exceptional rigidity, shock- and fog-proof performance, and all-calibre rating.
-
Side-Focus Parallax Correction: Side-wheel adjustment from 10 yd to ∞ ensures pin-sharp, parallax-free clarity at any distance.
-
Capped Target Turrets: Resettable windage & elevation knobs with 0.1 MRAD per-click graduation and ±17 MRAD total travel; protective caps prevent accidental shifts.
-
16-Layer Fully Multi-Coated Optics: Anti-reflective coatings on every air-to-glass surface maximize light transmission, contrast, and edge-to-edge sharpness.
-
Fast-Focus Eyebell: Rapid diopter adjustment for a crisp sight picture without tools.
-
Weatherproof Construction: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog- and shock-proof for reliable performance in all conditions.
-
Included Accessories: Removable throw-lever; 3″ side-focus wheel; 4″ sunshade; metal flip-up lens covers; lens cloth; CR2032 battery; instruction manual.
Technical Specifications for Hawke AIRMAX 30 WA SF 6–24×50 Rifle Scope AMX IR Reticle
|
Specification
|
Details
|
|
Product Title
|
Hawke AIRMAX 30 WA SF 6–24×50 Rifle Scope
|
|
Model / MPN
|
13321
|
|
SKU
|
13321
|
|
UPC
|
5054492133215
|
|
Magnification Range
|
6–24×
|
|
Objective Lens Diameter
|
50 mm
|
|
Tube Diameter
|
30 mm
|
|
Focal Plane
|
First Focal Plane
|
|
Reticle
|
AMX IR (glass-etched mil-dot; illuminated, 6 levels)
|
|
Illumination Control
|
Red LED; 6 brightness settings (with off-positions)
|
|
Parallax Adjustment
|
Side focus, 10 yd–∞
|
|
Turret Graduation
|
0.1 MRAD per click
|
|
Total Windage / Elevation
|
±17 MRAD each
|
|
Eye Relief
|
4.0″ (102 mm) constant
|
|
Field of View @ 100 yd
|
20.3–5.1 ft (6.2–1.6 m)
|
|
Exit Pupil
|
8.3–2.1 mm
|
|
Length
|
14.9″ (378 mm)
|
|
Weight
|
27.2 oz (770 g)
|
|
Optical Coatings
|
16-layer fully multi-coated
|
|
Chassis Material / Finish
|
Forged aluminum, matte-black anodized
|
|
Weatherproof Rating
|
IP67 (submersible to 1 m); fog-/shock-proof
|
|
All-Calibre Rated
|
Yes
|
|
Included Accessories
|
Throw-lever; side-focus wheel; sunshade; flip-up covers; lens cloth; battery; manual
|
