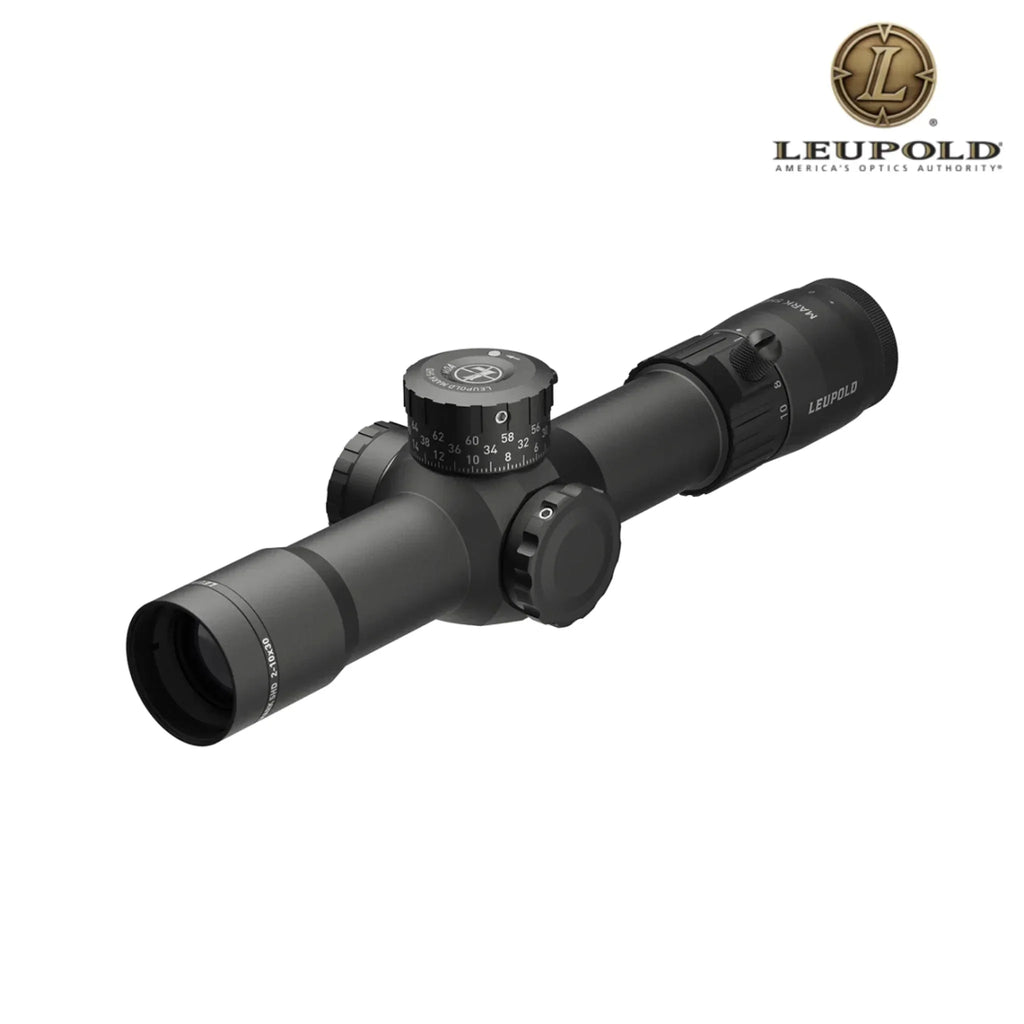

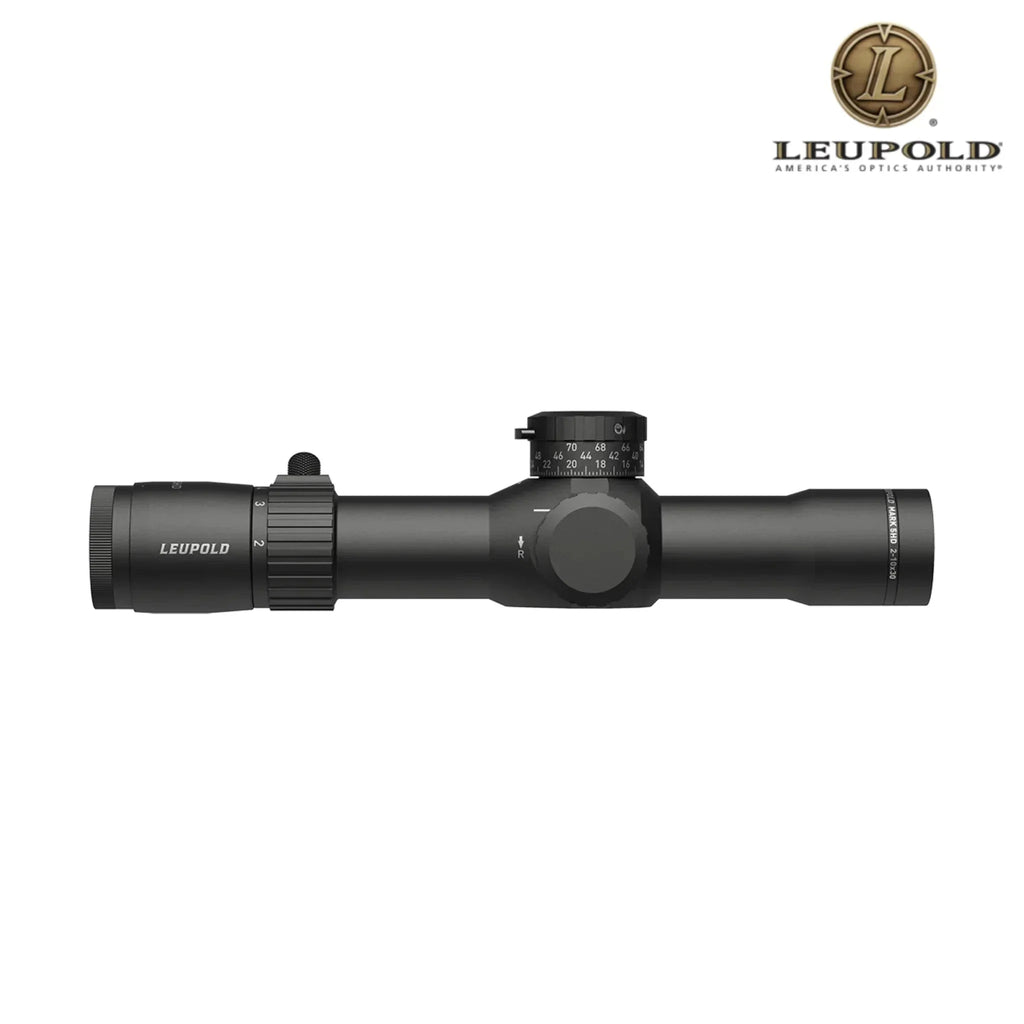

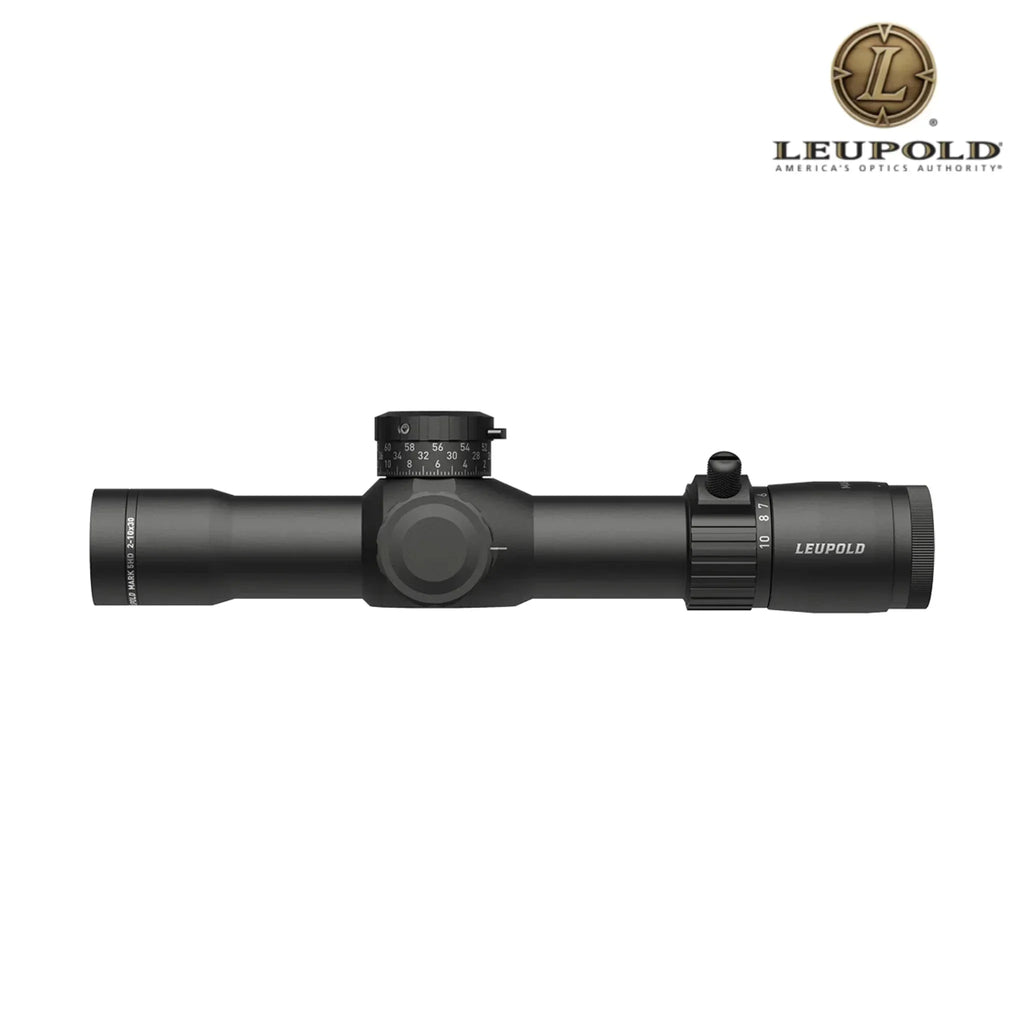

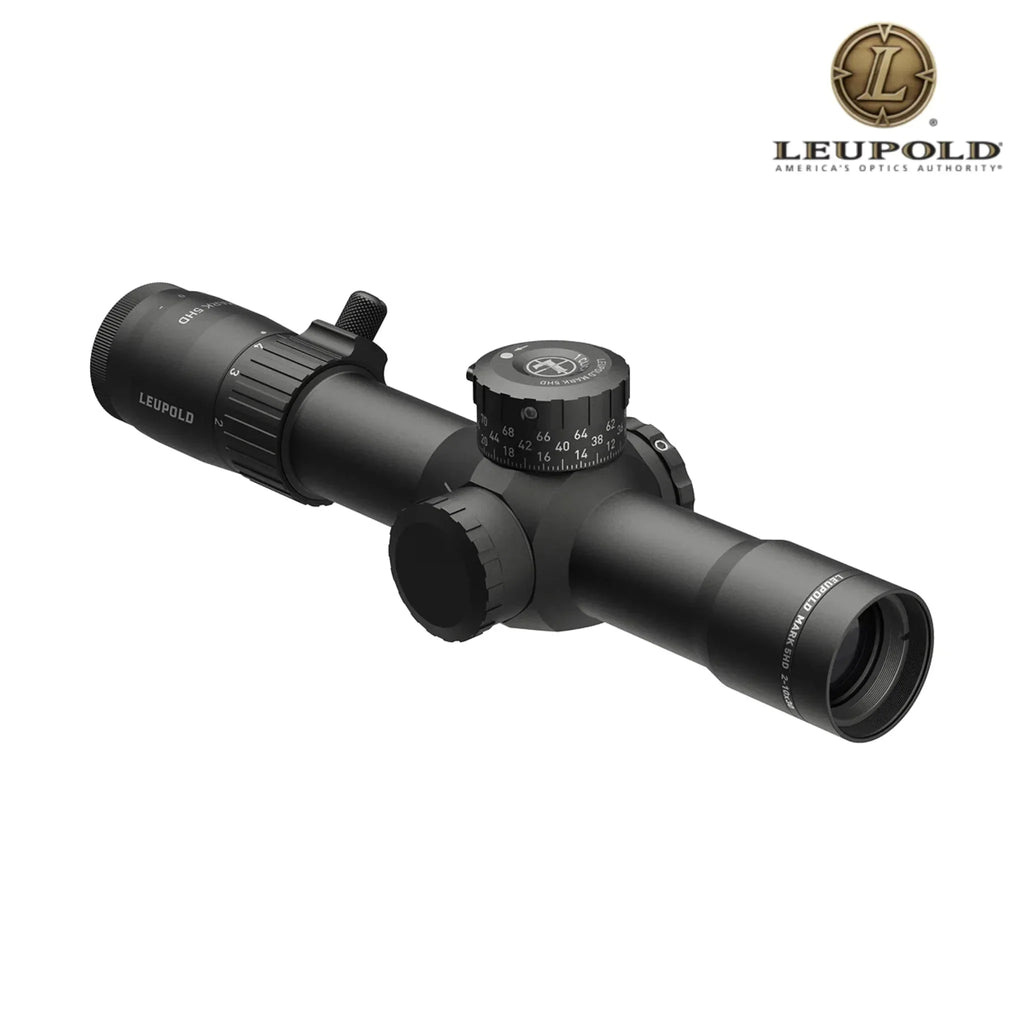

Leupold Mark 5HD 2–10×30 Rifle Scope M1C3 FFP PR1-MOA Reticle
(Model 179704)
Features
-
5:1 Zoom Ratio: Low-profile throw-lever for fast transitions between 2× (wide field) and 10× (precision).
-
First-Focal-Plane PR1-MOA Reticle: Glass-etched MOA-based hold-over/hold-off reticle remains true at all magnifications; non-illuminated to conserve weight and complexity.
-
M1C3 Turret System:
-
Elevation: Exposed, three-turn turret with 0.1 MIL (≈0.34 MOA) clicks; 34.9 MIL total travel; patented ZeroLock® eliminates accidental shifts.
-
Windage: Under a lockable cap, 0.1 MIL clicks; 34.9 MIL total travel.
-
Side Focus Parallax: Fixed at 100 yd for a crisp, stationary reticle without extra knobs.
-
Professional-Grade Optics: Xtended Twilight® system with fully multi-coated lenses and prisms for maximum light transmission, contrast, and edge-to-edge clarity.
-
Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; waterproof, fog-proof (IPX7), and shock-proof to .50 BMG recoil.
-
Extended Eye Relief: 3.6″–3.7″ (92–94 mm) constant for comfortable positioning and rapid target acquisition.
-
Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 2–10×30 Rifle Scope M1C3 FFP PR1-MOA Reticle
|
Specification
|
Details
|
|
Model / MPN
|
179704
|
|
SKU
|
179704
|
|
UPC
|
030317026455
|
|
Country of Origin
|
USA
|
|
Magnification Range
|
2 × ⇄ 10 ×
|
|
Objective Lens Diameter
|
30 mm
|
|
Main Tube Diameter
|
35 mm
|
|
Reticle
|
PR1-MOA (FFP, glass-etched; non-illuminated)
|
|
Elevation Adjustment
|
M1C3; 0.1 MIL/click; 34.9 MIL total; ZeroLock®
|
|
Windage Adjustment
|
0.1 MIL/click under cap; 34.9 MIL total
|
|
Parallax Focus
|
Fixed at 100 yd
|
|
Eye Relief
|
3.6″–3.7″ (92–94 mm)
|
|
Field of View @ 100 yd
|
52.9 ft (low) ⇄ 10.5 ft (high)
|
|
Overall Length
|
11.2″ (284 mm)
|
|
Weight
|
24 oz (680 g)
|
|
Housing Material / Finish
|
6061-T6 aluminum; matte-black hard-coat anodize
|
|
Waterproof / Fog-Proof
|
Yes (IPX7)
|
|
Shock Resistance
|
Rated to withstand .50 BMG recoil
|
Included Accessories
-
Removable throw lever
-
ZeroLock® windage cap
-
Flip-up lens covers
-
User manual
