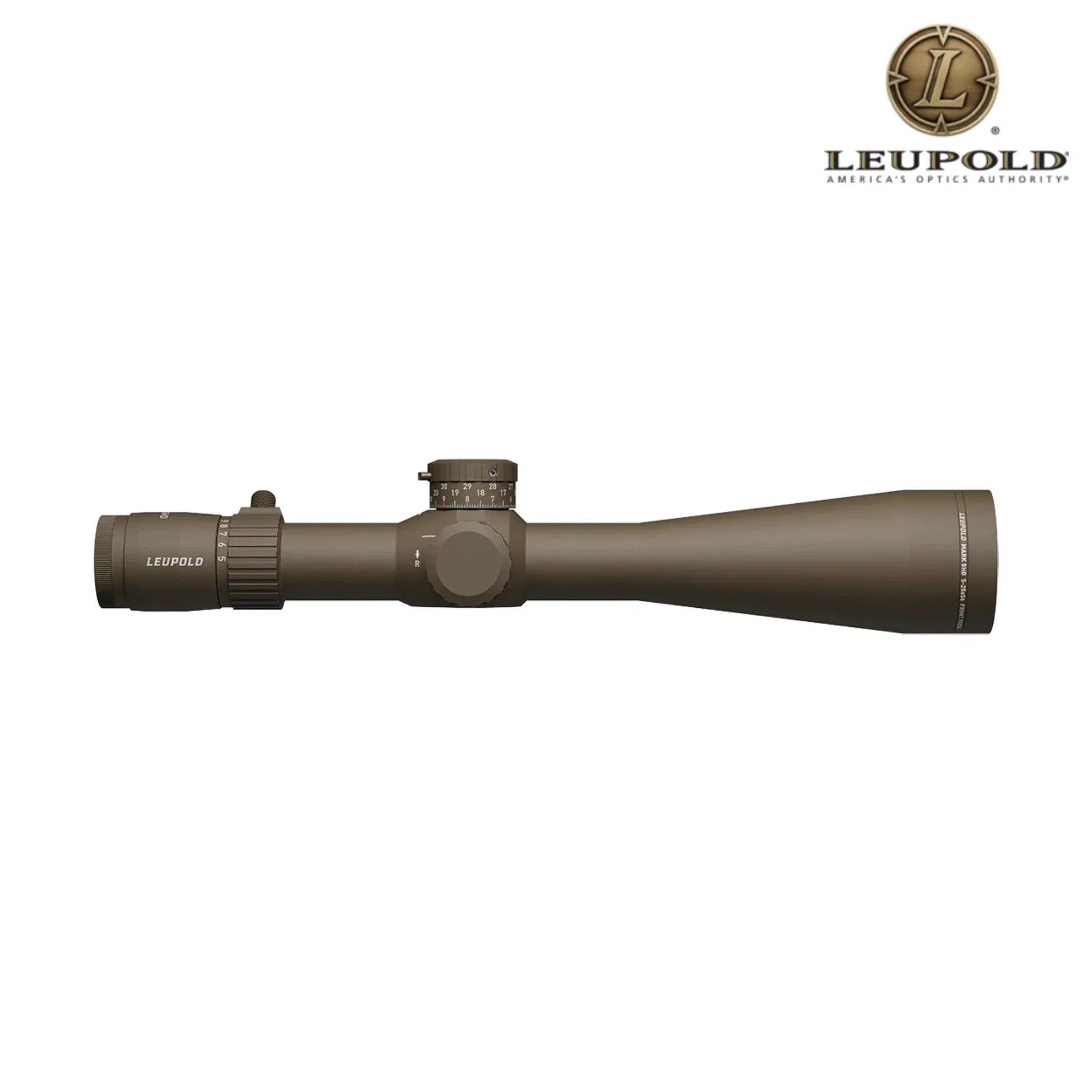

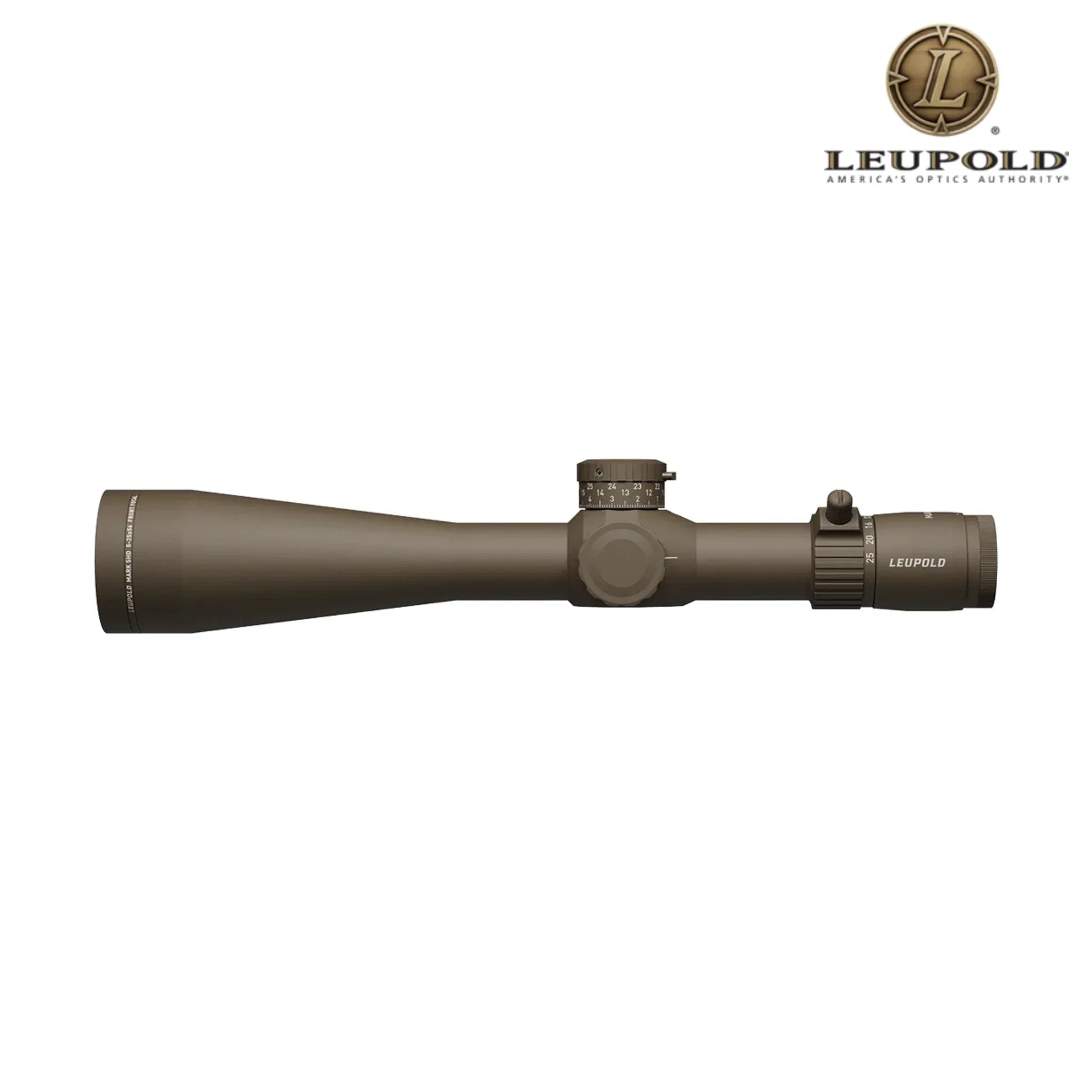

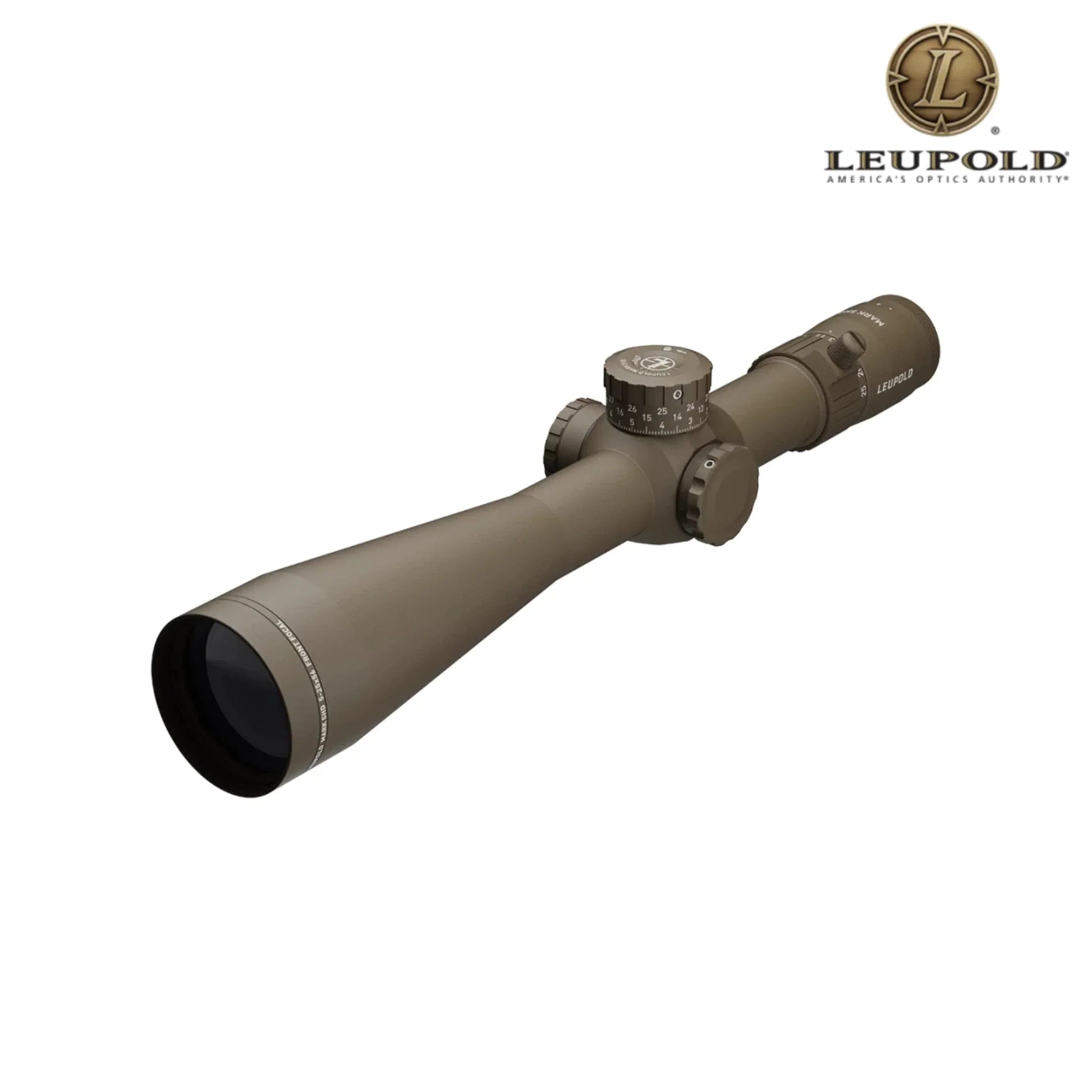

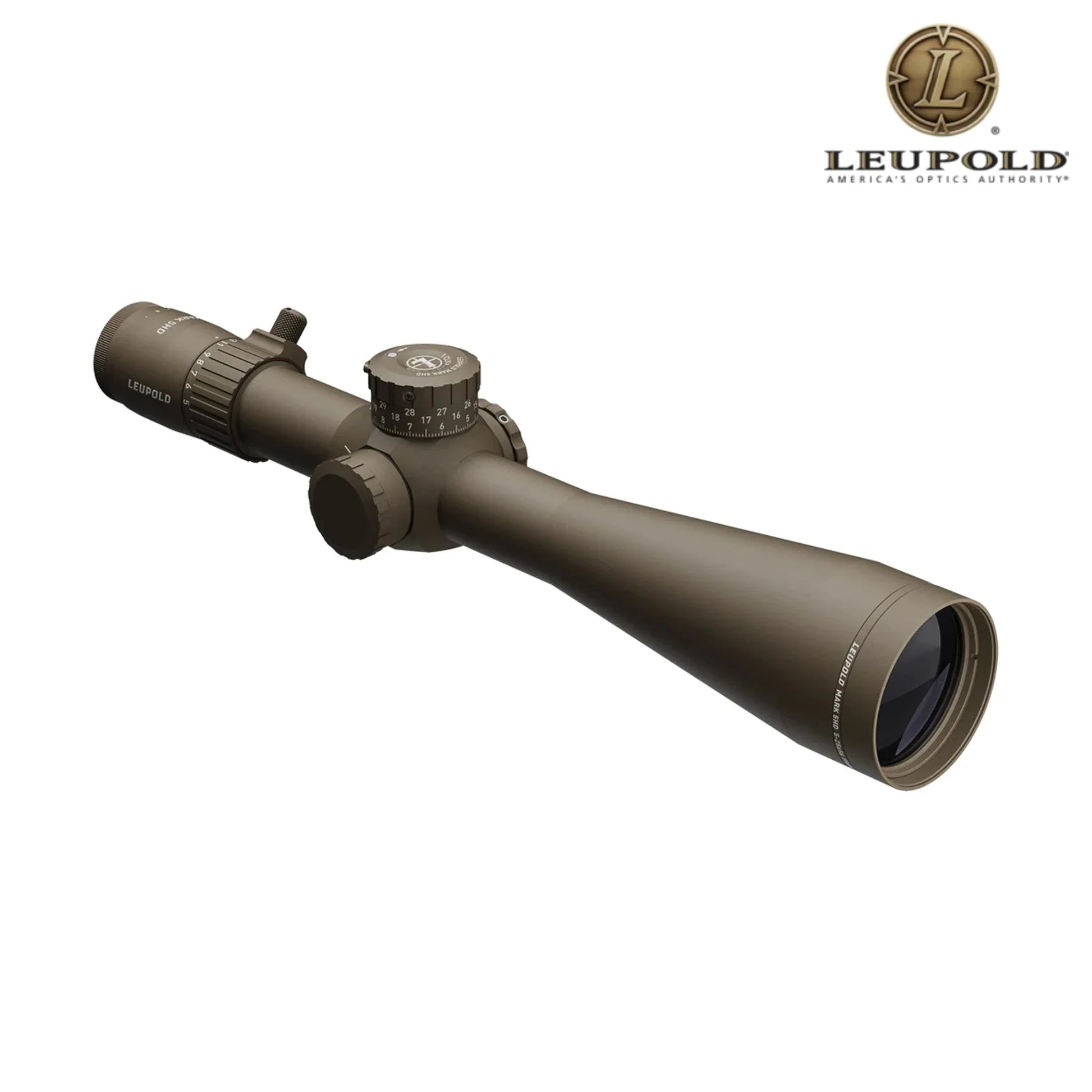

Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP PR2-MIL Reticle Dark Earth
(Model 185071)
Features
-
5:1 Zoom Ratio: High-speed throw-lever for smooth transitions between 5× (close-to-mid range) and 25× (long-range precision).
-

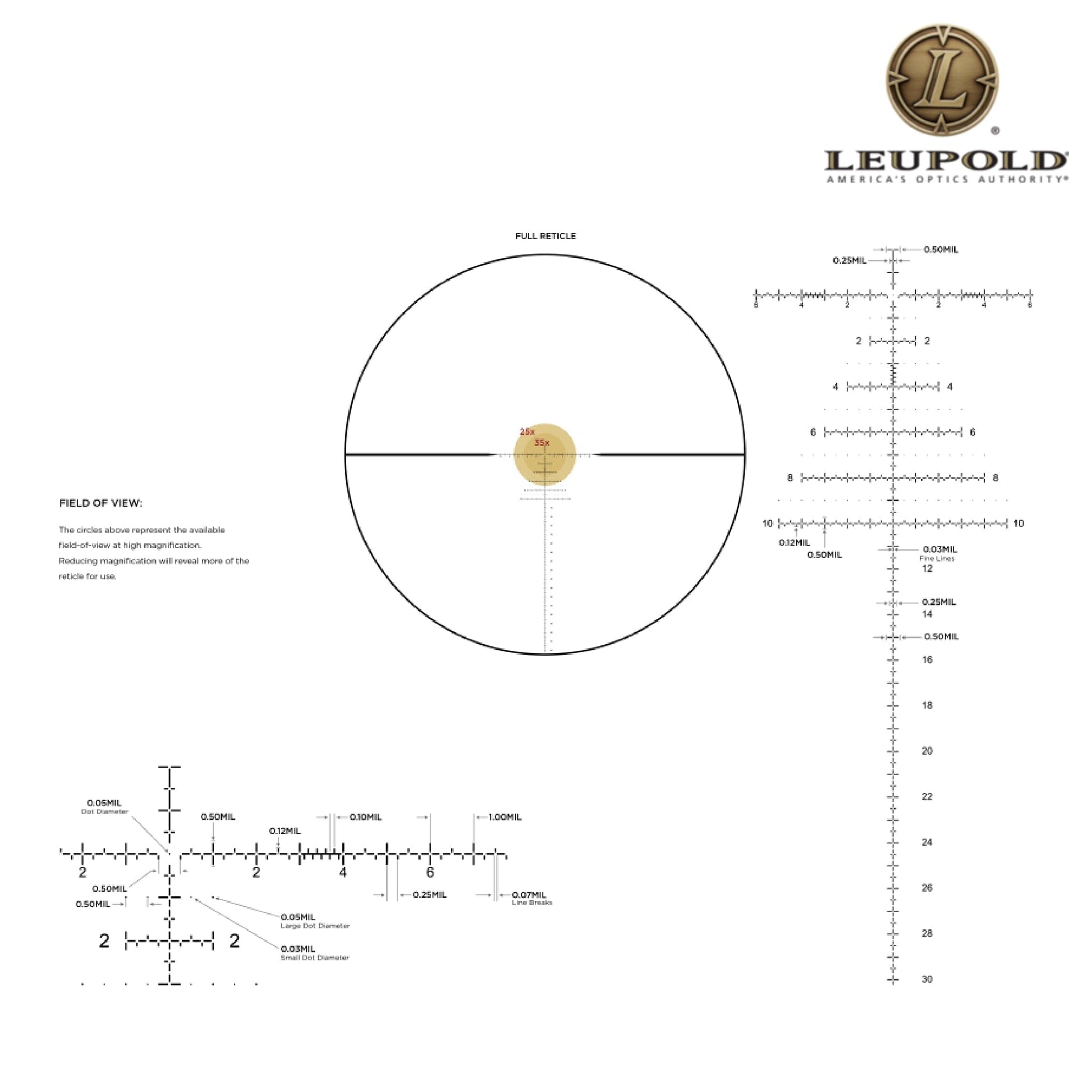

First-Focal-Plane PR2-MIL™ Reticle: Glass-etched 2 mrad subtension grid with integrated ranging tree—true hold-over/hold-off at any magnification; non-illuminated for an uncluttered sight picture.
-

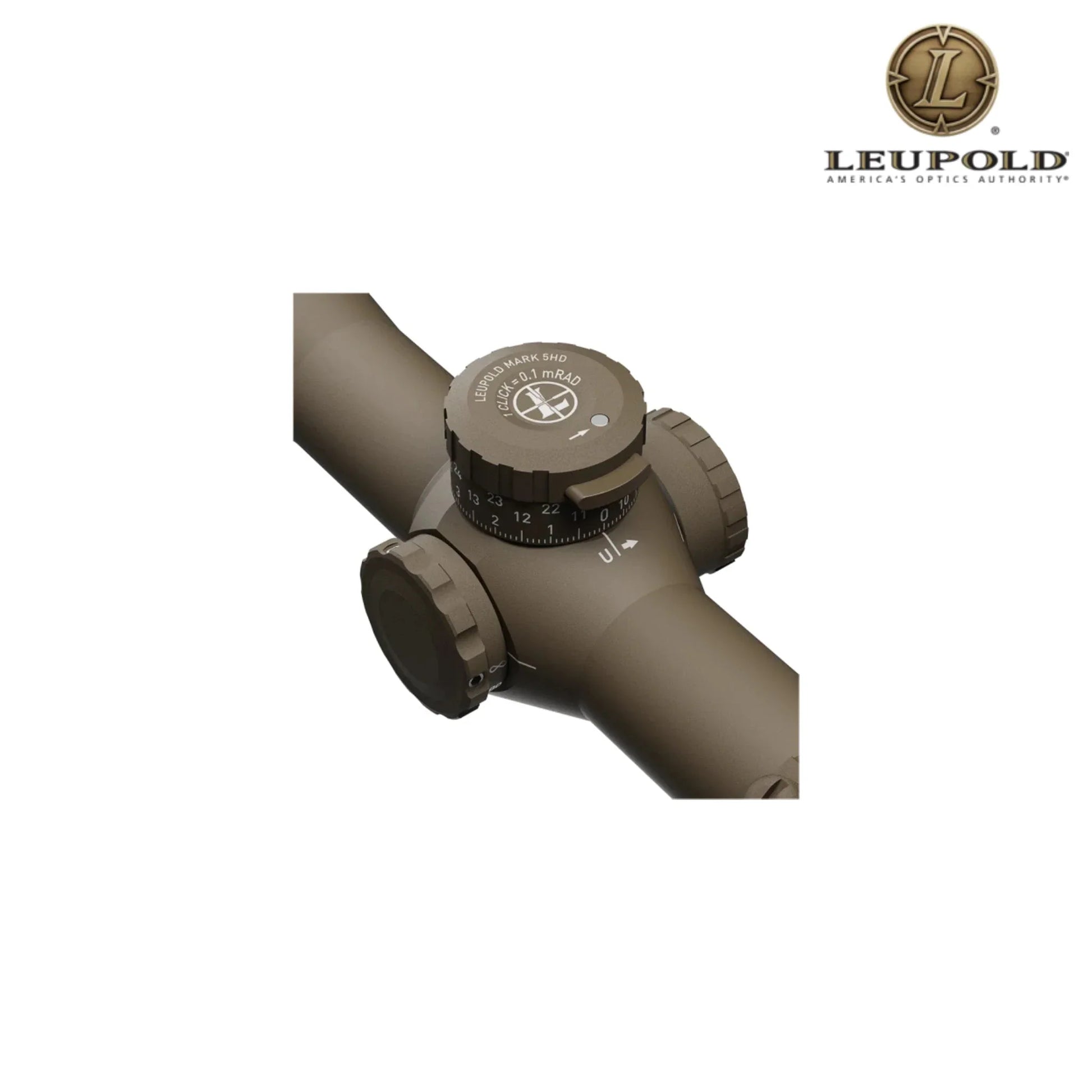

M5C3 ZeroLock® Turret System:
-
Elevation: Exposed, lockable turret; 0.1 mrad per click; 10 mrad per revolution; 30 mrad total travel; positive ZeroStop™ for instant, repeatable return to zero.
-
Windage: Low-profile capped turret; 0.1 mrad per click; 24 mrad total travel; visual/tactile revolution indicator under cap.
-
Precision Side Focus Parallax: Quick-set adjustment from 50 yd to ∞ for tack-sharp reticle alignment.
-
Professional-Grade Optics: Xtended Twilight® fully multi-coated lenses and extra-low dispersion glass for exceptional resolution, contrast, and edge-to-edge clarity.
-
Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum with Flat Dark Earth hard-coat anodize; IPX7 waterproof/fog-proof; nitrogen-purged; rated to withstand .50 BMG recoil.
-
Extended Eye Relief: 3.5″ (89 mm) at low magnification → 3.8″ (97 mm) at high for comfortable, repeatable head positioning.
-
Lightweight Design: 30 oz (850 g) for easy mounting and carry without sacrificing durability.
-
Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP PR2-MIL Reticle Dark Earth
|
Specification
|
Details
|
|
Model / MPN
|
185071
|
|
SKU
|
LEU-185071
|
|
UPC
|
030317040317
|
|
Country of Origin
|
USA
|
|
Magnification Range
|
5 × ⇄ 25 ×
|
|
Objective Lens Diameter
|
56 mm
|
|
Main Tube Diameter
|
35 mm
|
|
Reticle
|
PR2-MIL™ (FFP, glass-etched)
|
|
Illumination Settings
|
None
|
|
Elevation Adjustment
|
M5C3; 0.1 mrad/click; 10 mrad/rev; 30 mrad total; ZeroStop™
|
|
Windage Adjustment
|
0.1 mrad/click; 24 mrad total; capped turret
|
|
Parallax Focus
|
Side focus, 50 yd → ∞
|
|
Eye Relief
|
3.5″ (89 mm) ⇄ 3.8″ (97 mm)
|
|
Field of View @ 100 yd
|
20.4 ft (low) ⇄ 4.2 ft (high)
|
|
Overall Length
|
15.67″ (398 mm)
|
|
Weight
|
30 oz (850 g)
|
|
Housing Material / Finish
|
6061-T6 aluminum; Flat Dark Earth hard-coat anodize
|
|
Waterproof / Fog-Proof
|
Yes (IPX7)
|
|
Shock Resistance
|
Rated to withstand .50 BMG recoil
|
Included Accessories
-
Removable throw-lever
-
Fast-focus eyepiece
-
Flip-up lens covers
-
Lens shade
-
Lens cloth & adjustment wrench
-
User manual
