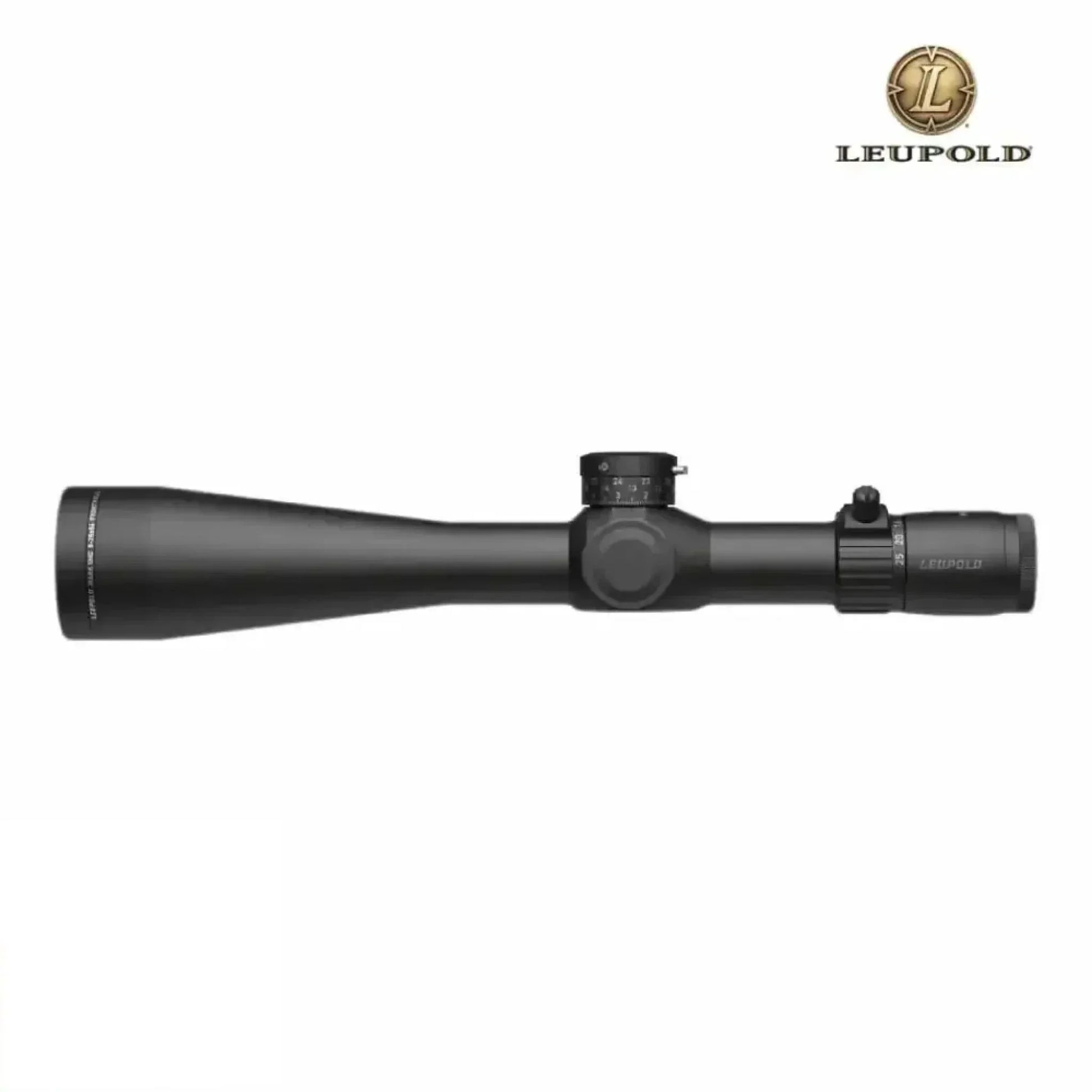

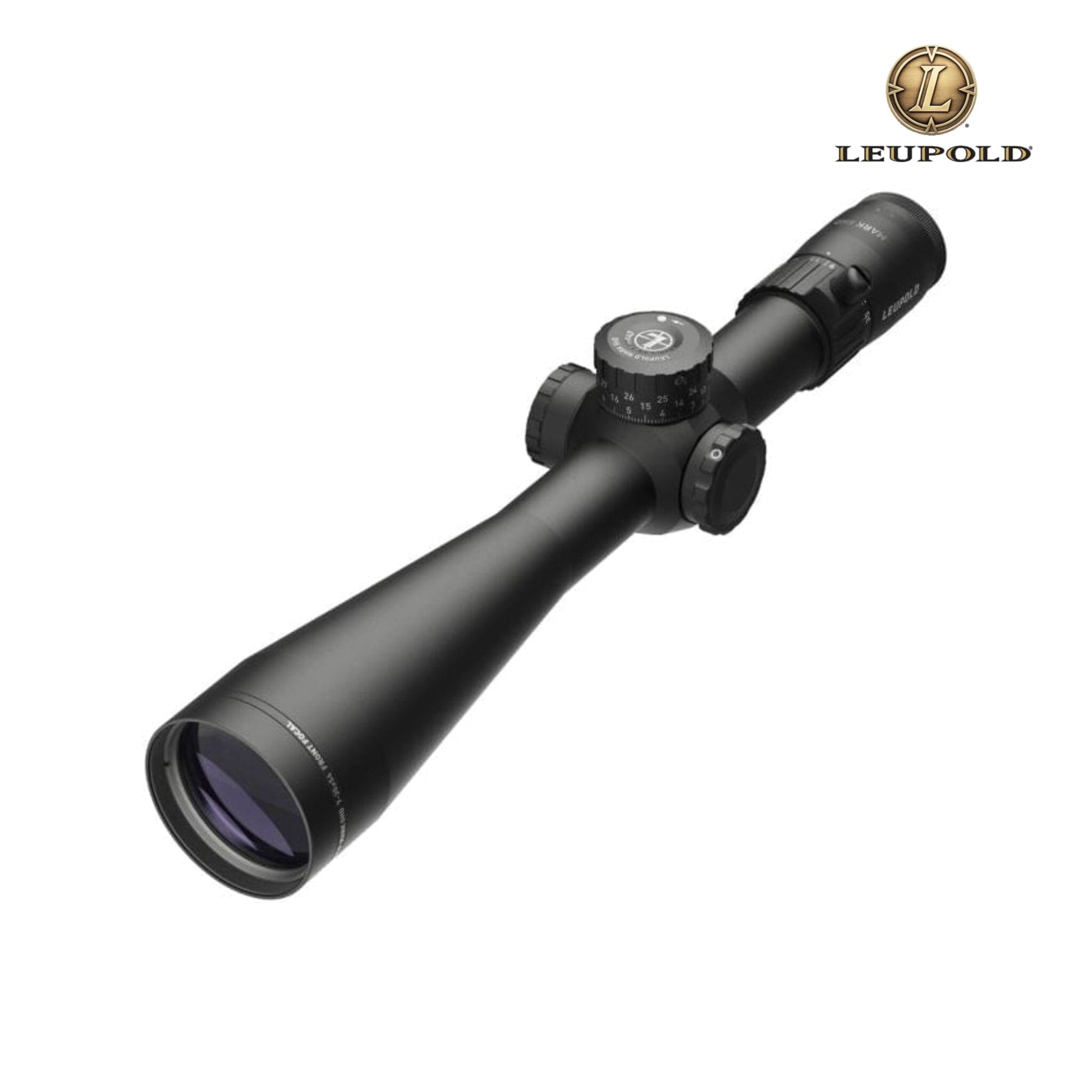

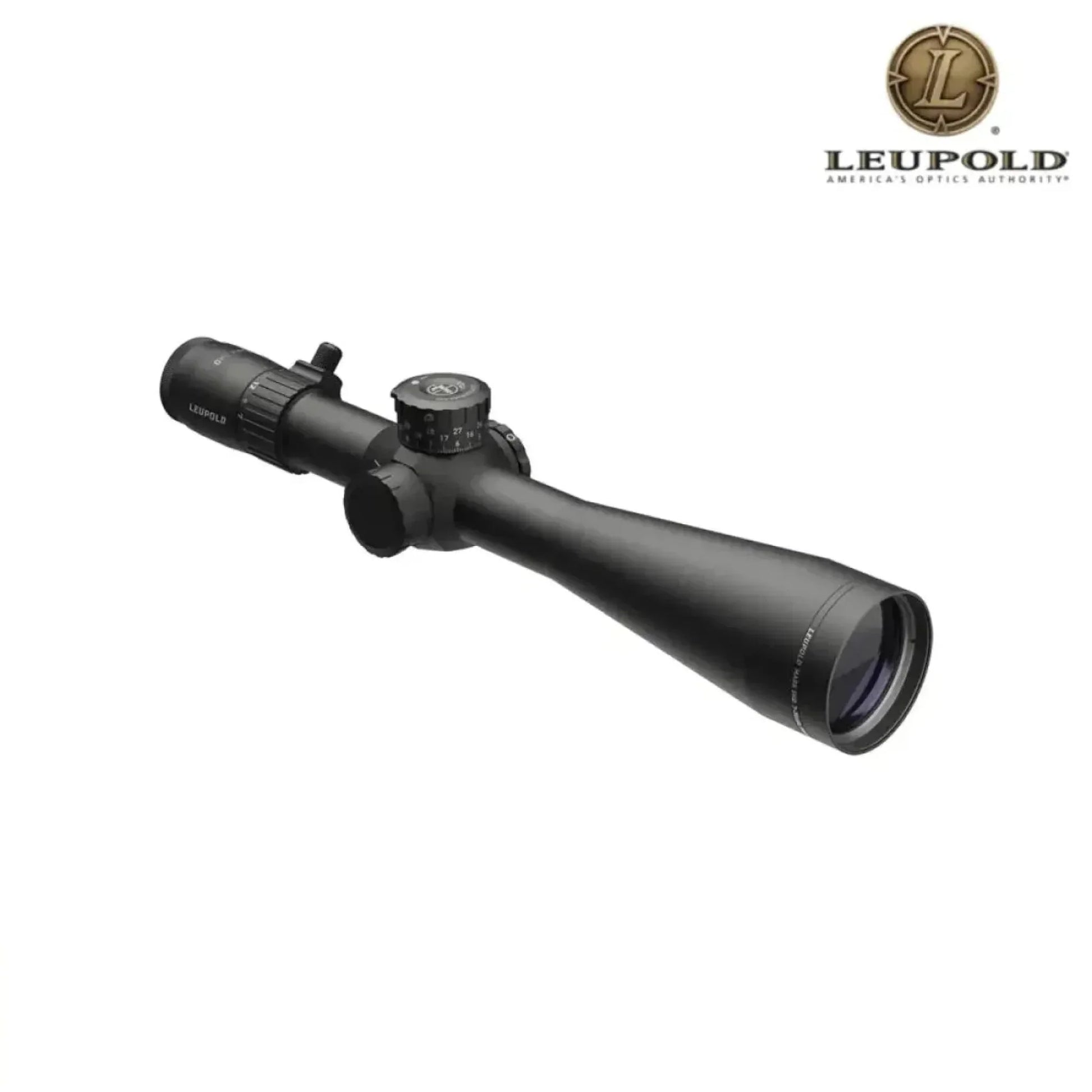

Leupold MARK 5HD 7–35×56 Rifle Scope M5C3 FFP CCH Reticle
(Model 174546)
Features
-
5:1 Zoom Ratio: Low-profile reversible throw-lever for rapid changes between 7× (wide field) and 35× (long-range precision).
-

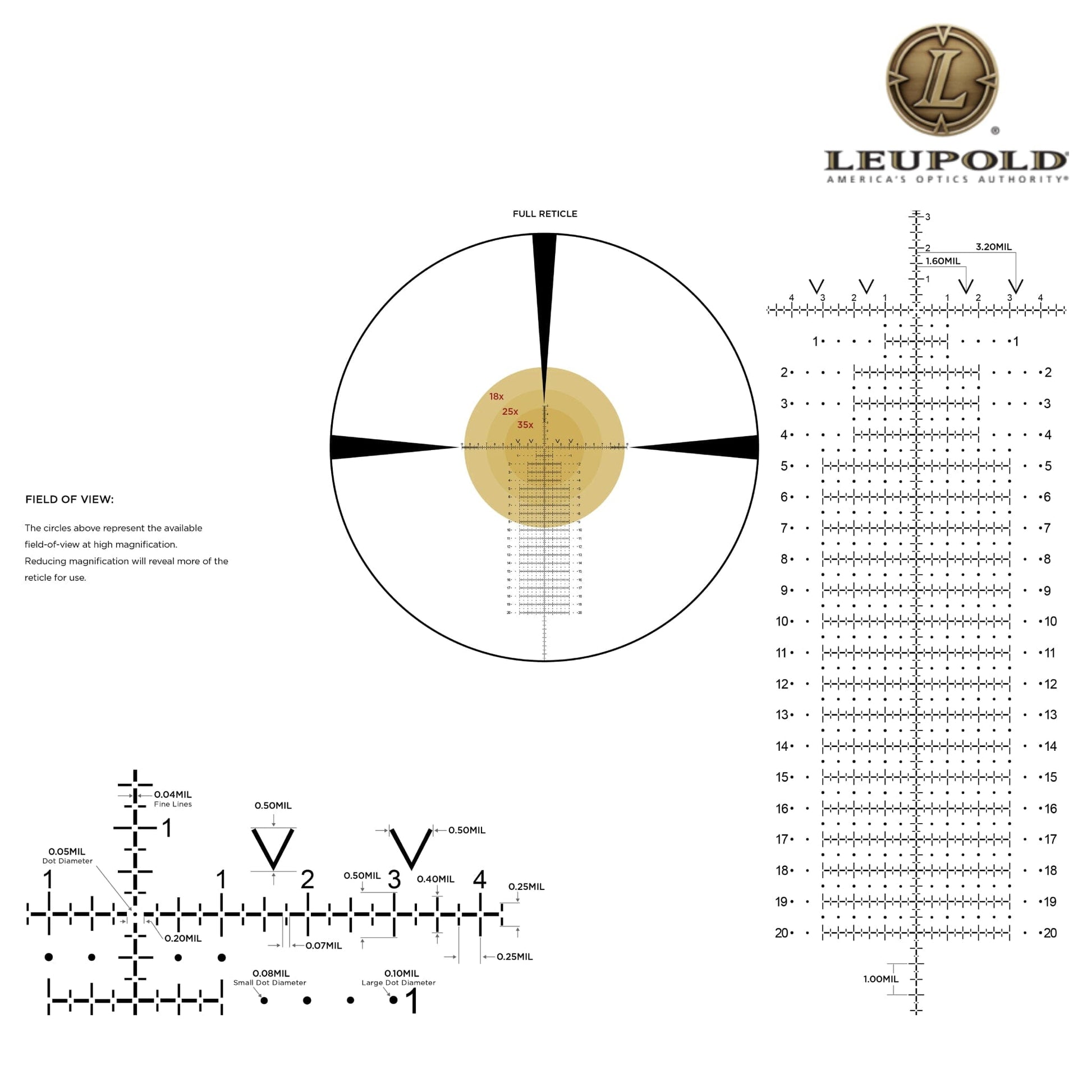

First-Focal-Plane CCH™ Reticle: Glass-etched Combat Competition Hunter MIL-based grid with patent-pending open-intersection aiming points, moving-target holds, and integrated measurement tool; scales true at any magnification; non-illuminated for a clean sight picture
-
M5C3 ZeroLock® Turret System:
-
Elevation: Exposed, lockable turret; 0.1 mrad (¼ MOA) per click; 10 mrad (40 MOA) per revolution; 30 mrad (120 MOA) total travel; positive ZeroStop™ for instant, repeatable return to zero.
-
Windage: Low-profile capped turret; 0.1 mrad per click; 24 mrad (96 MOA) total travel; visual and tactile revolution indicator under cap.
-
Side Focus Parallax: Quick-set adjustment from 50 yd to ∞ for tack-sharp reticle alignment.
-
Professional-Grade Optics: Built around Leupold’s Professional-Grade Optical System with Xtended Twilight® fully multi-coated lenses and DiamondCoat 2 scratch-resistant treatment for unmatched light transmission, edge-to-edge clarity, and glare reduction.
-
Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; IPX7 waterproof/fog-proof; nitrogen-purged; rated to withstand .50 BMG recoil.
-
Extended Eye Relief: 3.6″ (91 mm) constant across zoom range for comfortable, repeatable head positioning.
-
Compact & Balanced: Only 33 oz (936 g)—just 3 oz more than the 5–25×56 model for no weight penalty on extra magnification.
-
Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 7–35×56 Rifle Scope M5C3 FFP CCH Reticle
|
Specification
|
Details
|
|
Model / MPN
|
174546
|
|
SKU
|
LEU-174546
|
|
UPC
|
030317018405
|
|
Country of Origin
|
USA
|
|
Magnification Range
|
7 × ⇄ 35 ×
|
|
Objective Lens Diameter
|
56 mm
|
|
Main Tube Diameter
|
35 mm
|
|
Reticle
|
CCH™ (FFP, glass-etched)
|
|
Illumination Settings
|
None
|
|
Elevation Adjustment
|
M5C3; 0.1 mrad/click; 10 mrad/rev; 30 mrad total; ZeroStop™
|
|
Windage Adjustment
|
0.1 mrad/click; 24 mrad total; capped turret
|
|
Parallax Focus
|
Side focus, 50 yd → ∞
|
|
Eye Relief
|
3.6″ (91 mm) constant
|
|
Field of View @ 100 yd
|
14.7 ft (low) ⇄ 3.0 ft (high)
|
|
Overall Length
|
15.7″ (398 mm)
|
|
Weight
|
33 oz (936 g)
|
|
Housing Material / Finish
|
6061-T6 aluminum; matte-black anodize
|
|
Waterproof / Fog-Proof
|
Yes (IPX7)
|
|
Shock Resistance
|
Rated to withstand .50 BMG recoil
|
Included Accessories
-
High-speed reversible throw-lever
-
Fast-focus eyepiece
-
Flip-up lens covers
-
Lens shade
-
Lens cloth & turret adjustment wrench
-
User manual
