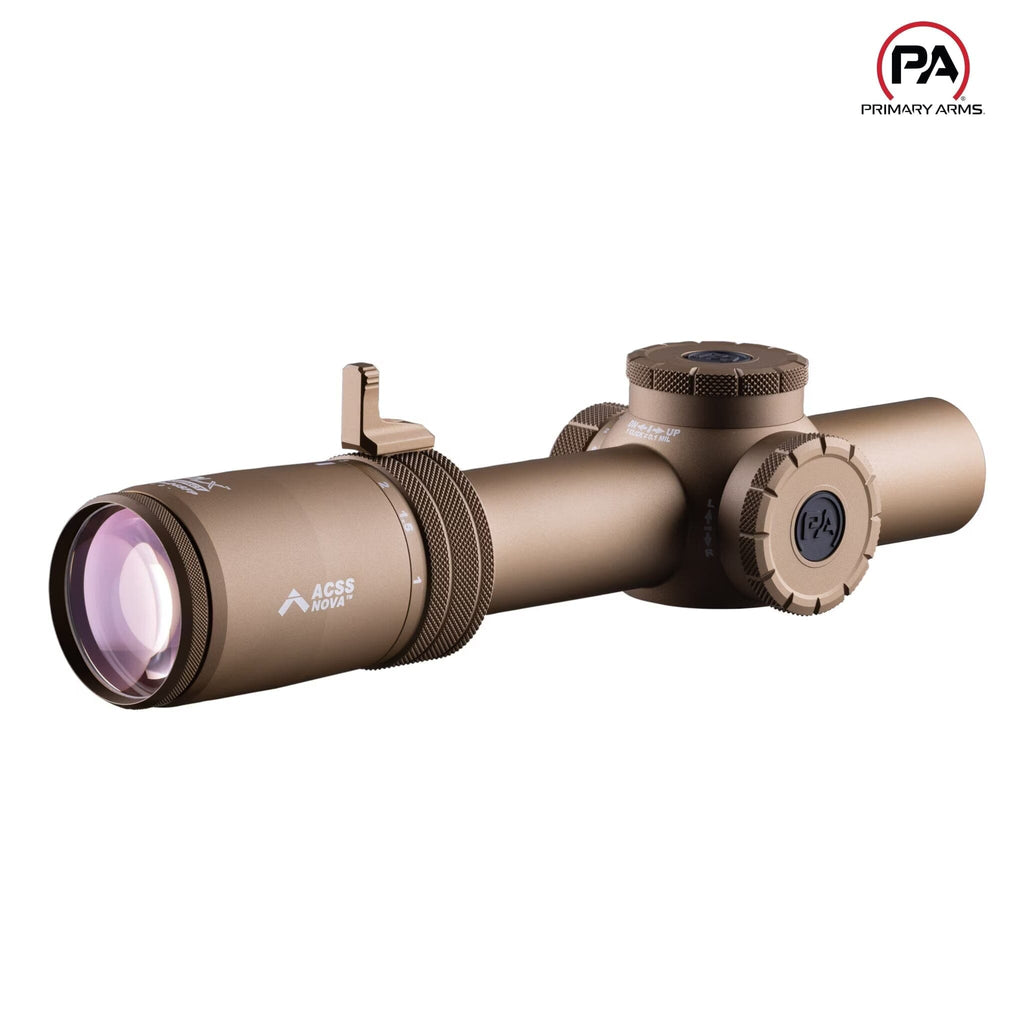

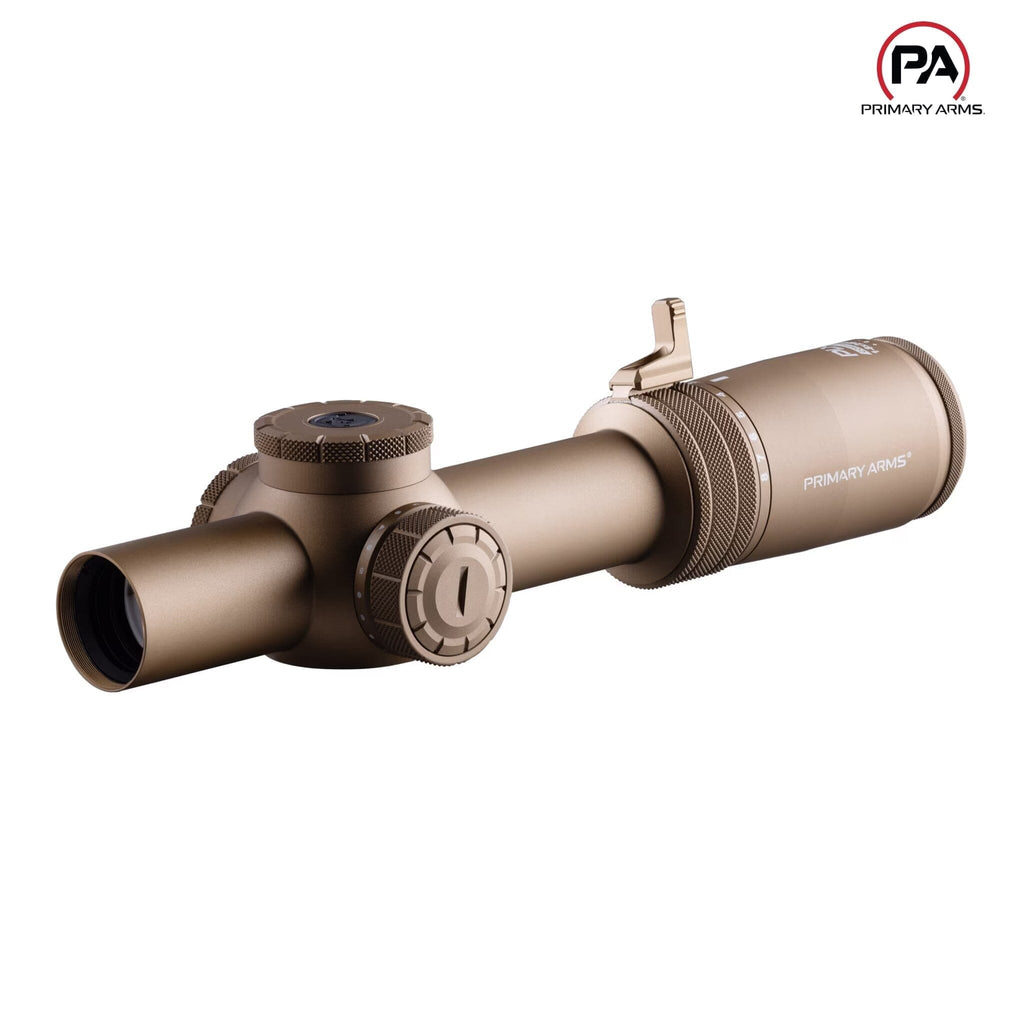

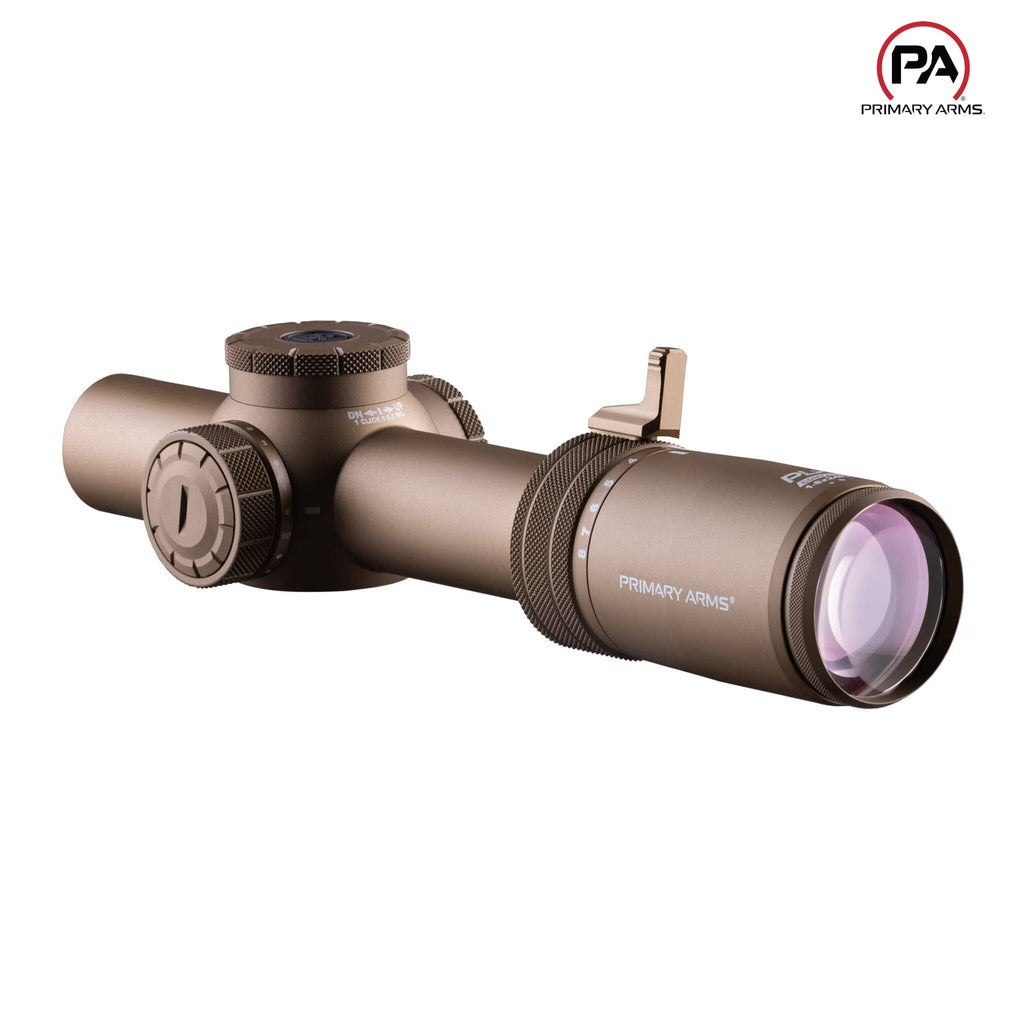

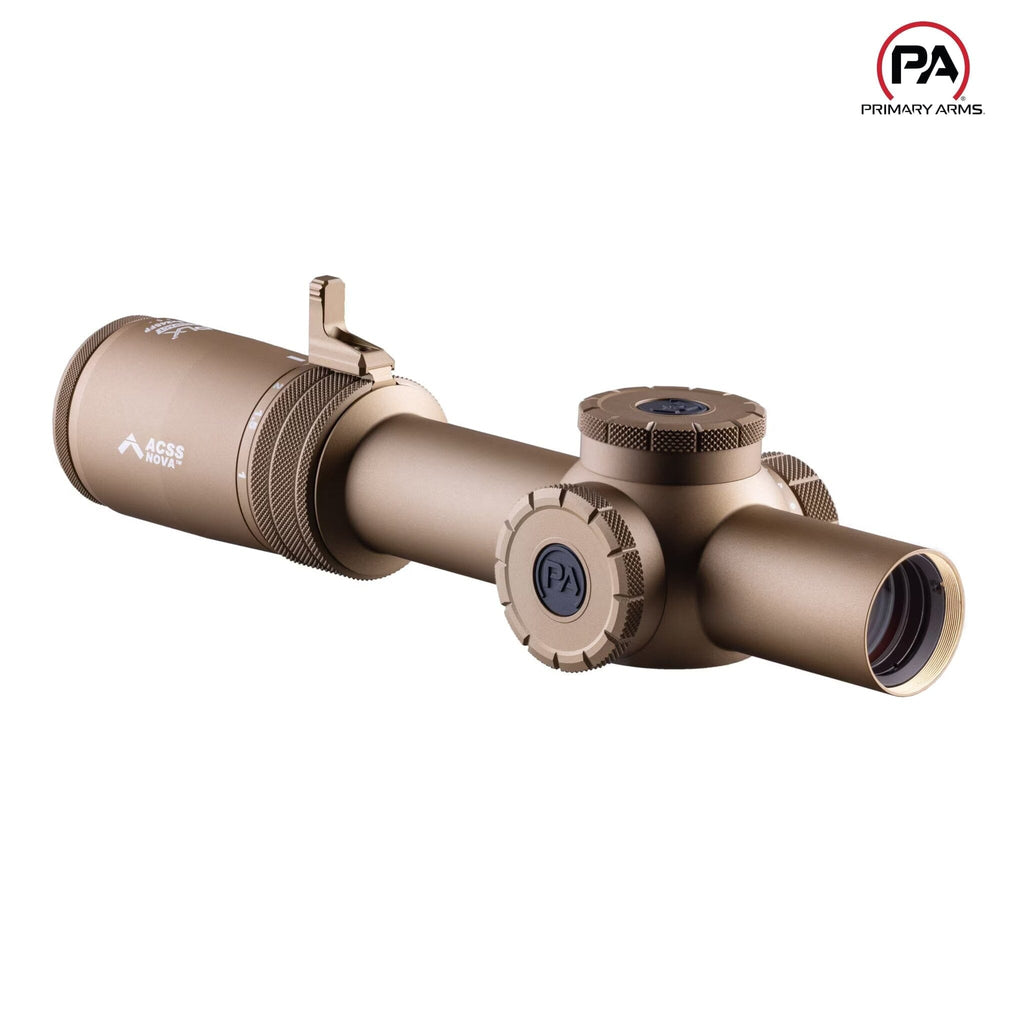

Primary Arms Compact PLxC 1‑8×24 SFP Riflescope - ACSS NOVA Fiber Wire Reticle - FDE
Features
-

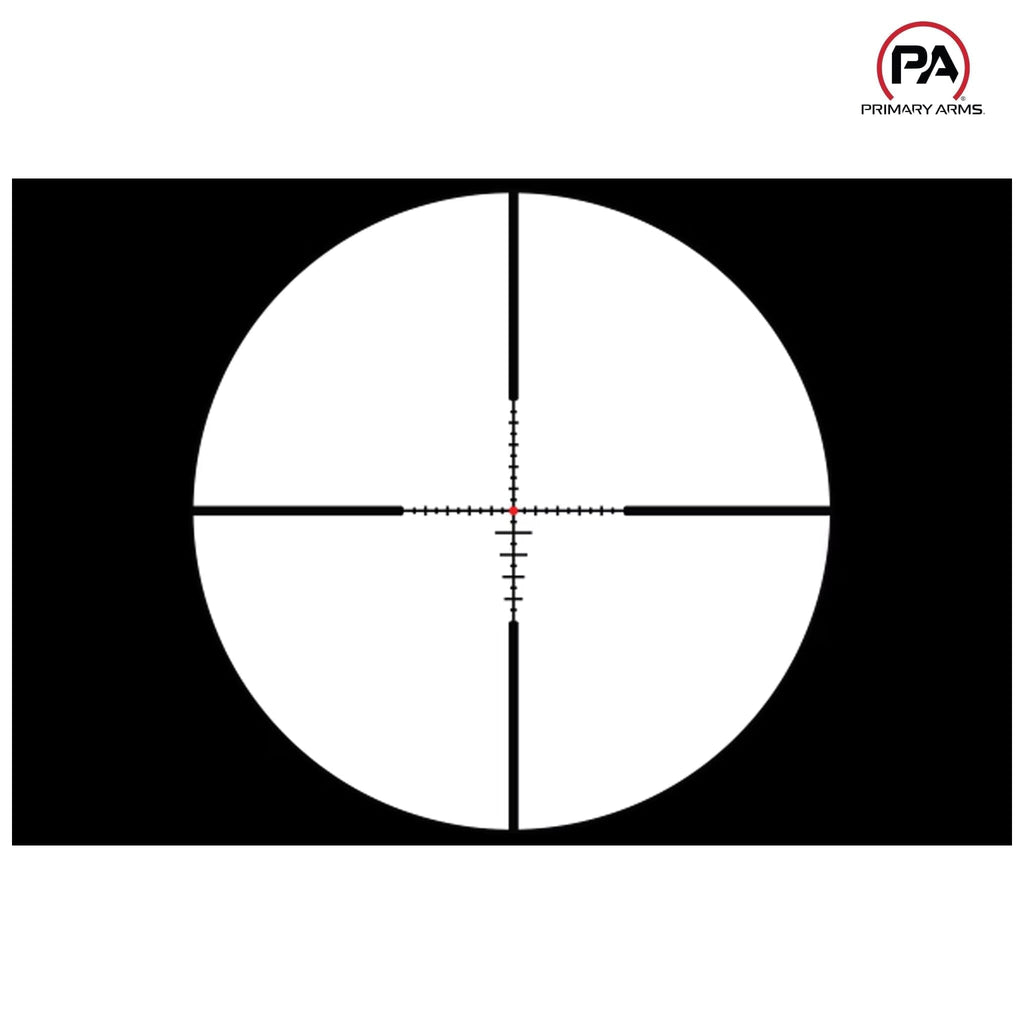

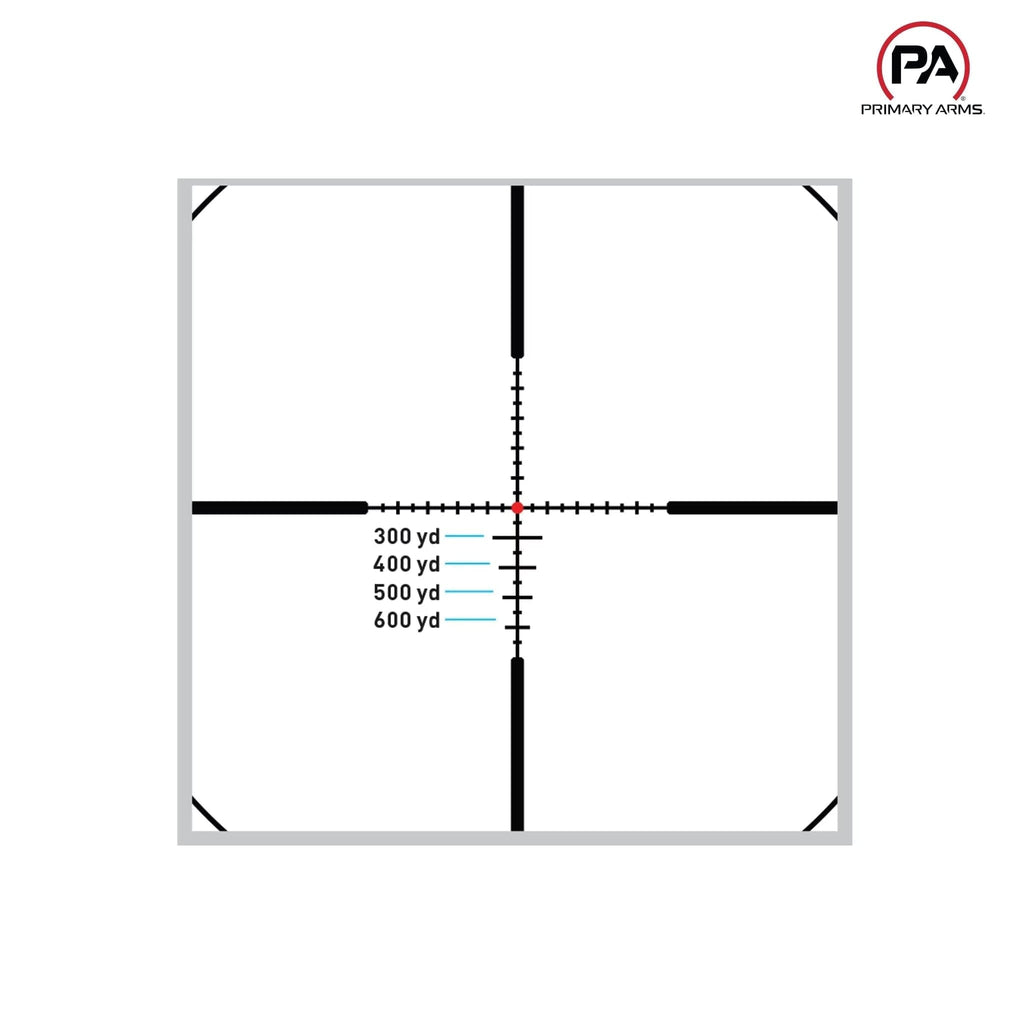

ACSS NOVA Fiber Wire Reticle – Second‑focal‑plane ACSS NOVA MRAD reticle leverages a high‑efficiency fiber‑optic wire for bright‑red dot illumination, with built‑in 5.56 /.308 BDC subtensions, moving‑target leads, and rapid‑range bars.
-
Premium Japanese ED Glass – Fully multi‑coated extra‑low dispersion lenses deliver superior light transmission, color fidelity, and edge‑to‑edge sharpness from dawn to dusk.
-
Ultra‑Wide Field of View – 121 ft at 100 yd when set to 1× magnification provides exceptional situational awareness in close quarters; narrows to 15 ft at 8× for precision engagements.
-
Forgiving Eye Relief – Generous eye relief ranges from 3.2 in at 1× to 3.7 in at 8×, ensuring comfortable, consistent cheek weld across the zoom spectrum.
-
Compact & Lightweight – Measures just 9.2 in overall and weighs only 16.8 oz, making it ideal for lightweight builds and rapid target transitions.
-
SOS® Steel‑on‑Steel Adjustable Turrets – Precision 0.1 mrad (¼ MIL) clicks with clear tactile feedback; 100 MOA total adjustment per axis.
-
AutoLive Motion‑Sensing Illumination – Automatically adjusts reticle brightness based on ambient light and motion, preserving battery life while ensuring reticle visibility in dynamic conditions.
Technical Specifications for Primary Arms Compact PLxC 1‑8×24 SFP Riflescope - ACSS NOVA Fiber Wire Reticle - FDE
|
Specification
|
Details
|
|
Manufacturer
|
Primary Arms
|
|
Model / Part Number
|
Compact PLxC 1‑8×24 SFP / 610203
|
|
SKU / MPN
|
610203
|
|
UPC
|
818500019503
|
|
Magnification Range
|
1 × – 8 ×
|
|
Objective Lens Diameter
|
24 mm
|
|
Tube Diameter
|
30 mm
|
|
Reticle
|
ACSS NOVA MRAD, fiber‑wire illuminated (second focal plane)
|
|
Field of View
|
121 ft @ 100 yd (1 ×); 15 ft @ 100 yd (8 ×)
|
|
Eye Relief
|
3.2 in (1 ×); 3.7 in (8 ×)
|
|
Exit Pupil
|
8 mm @ 1×; 3 mm @ 8×
|
|
Diopter Adjustment
|
± 2 dpt
|
|
Turret Adjustment
|
0.1 mrad (¼ MIL) per click; 100 MOA total (per axis)
|
|
Parallax
|
Fixed at 100 yd
|
|
Illumination Power
|
CR2032 3 V lithium coin (included)
|
|
Length
|
9.2 in (234 mm)
|
|
Weight
|
16.8 oz (476 g)
|
|
Finish
|
Flat Dark Earth anodize
|
|
Waterproof / Fogproof
|
IP67 (1 m submersion; fog‑proof)
|
|
Warranty
|
Lifetime warranty
|
Included Accessories
-
Throw‑lever magnification ring
-
Flip‑up lens covers
-
CR2032 battery (installed)
-
Instruction manual & warranty documentation
