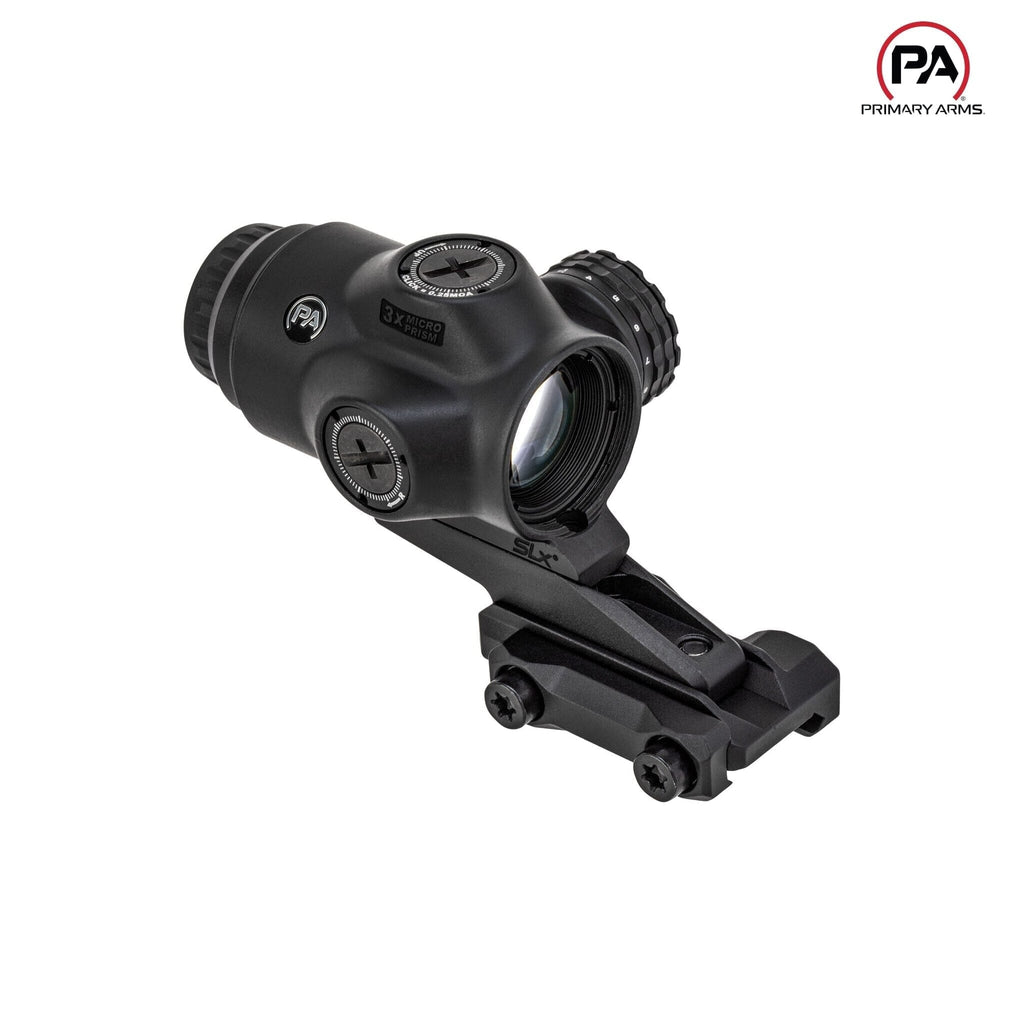

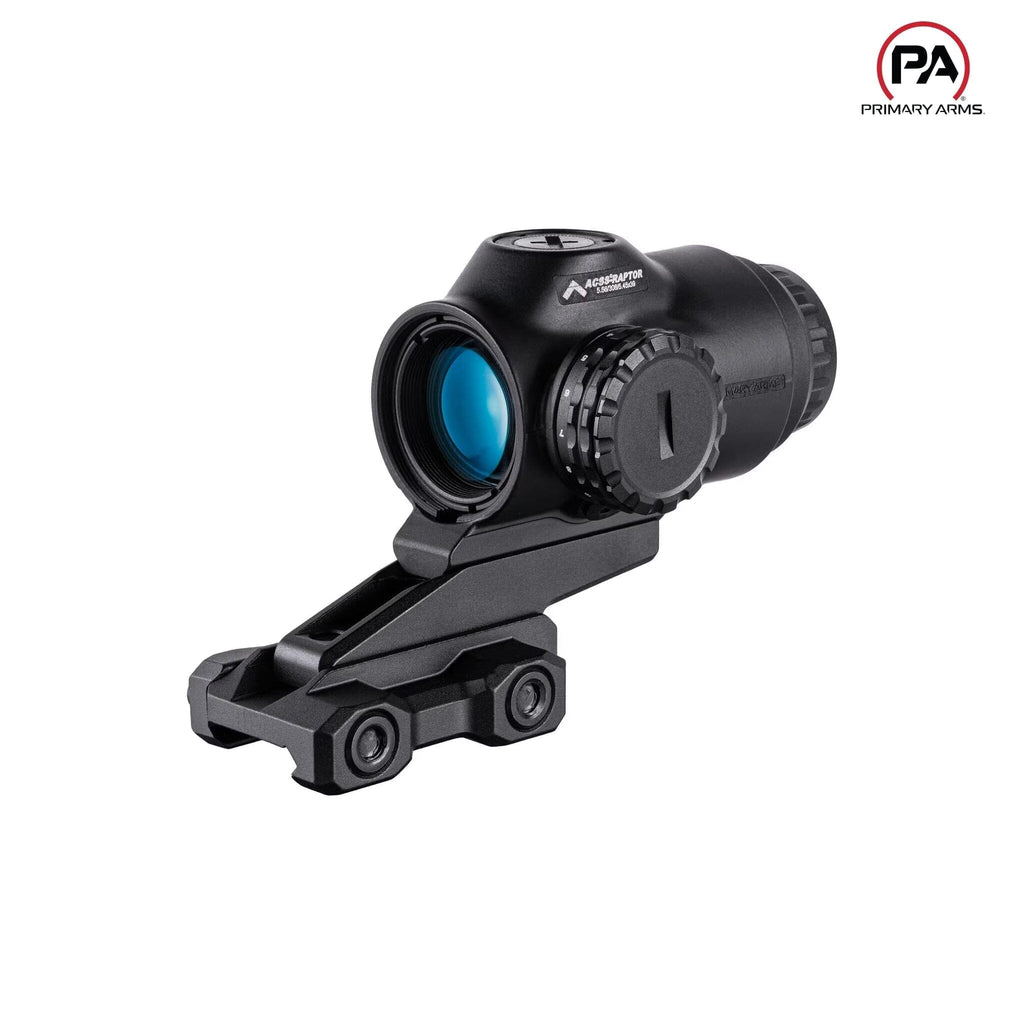

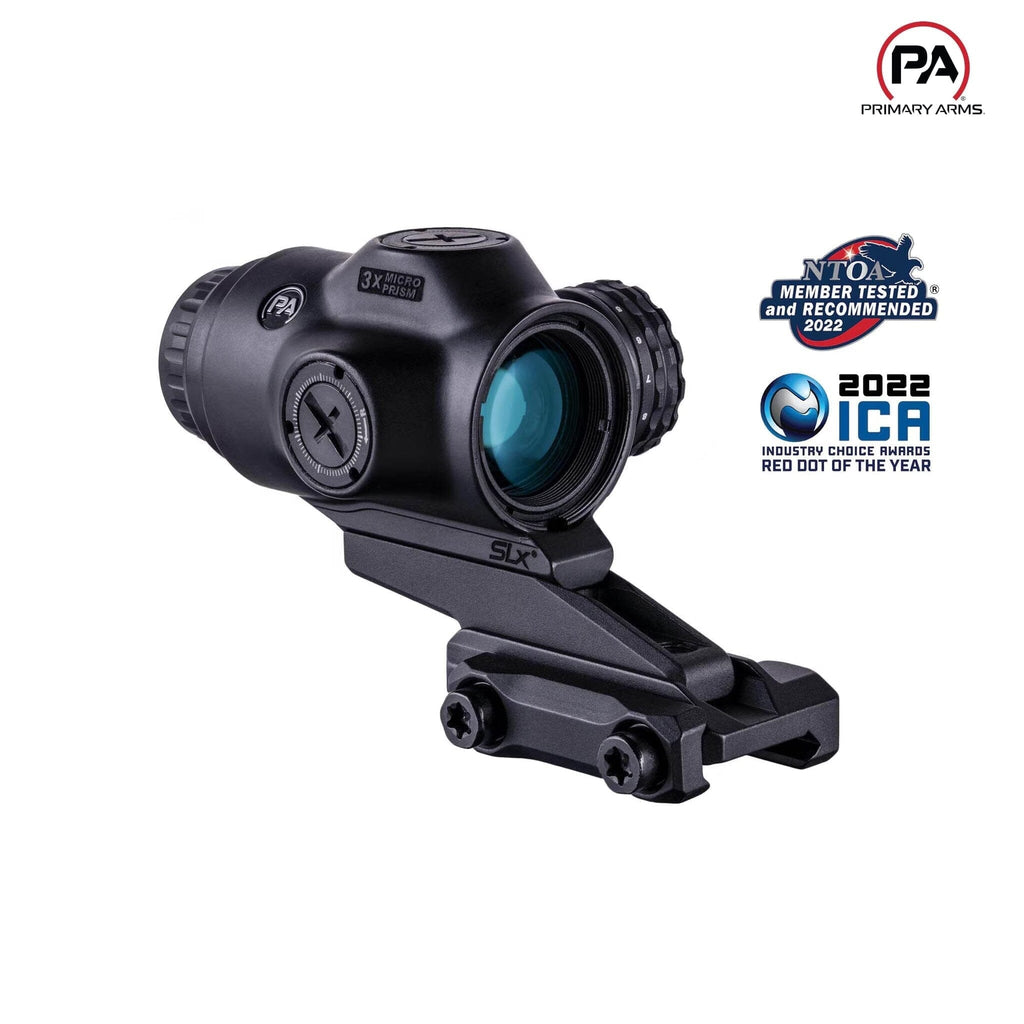

Primary Arms SLx 3x MicroPrism Scope - Red ACSS Raptor 5.56/.308 Yard Reticle
(Model PA-SLX-3XMP-RAPTOR-5YP)
Features
-
Fixed 3× Magnification: Prism-based optic for rapid target acquisition at close to medium ranges.
-

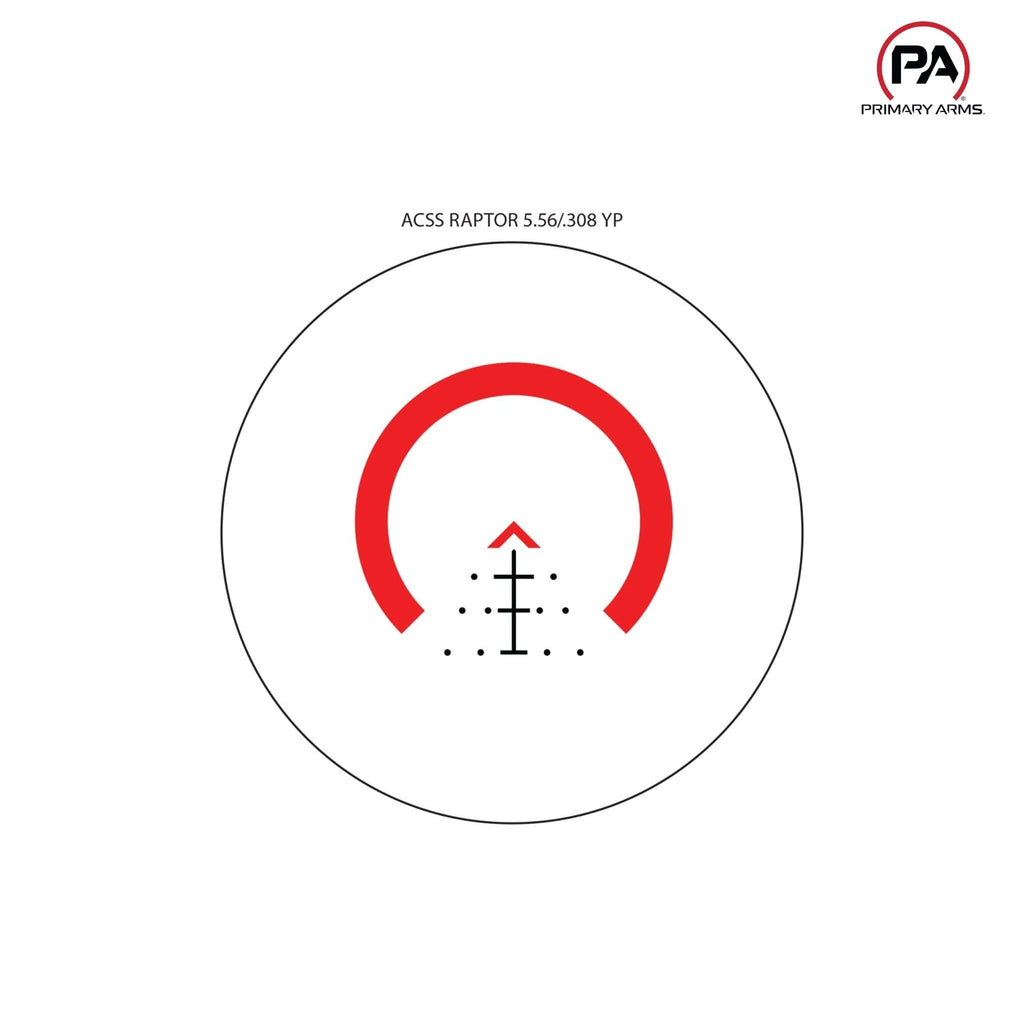

ACSS Raptor 5.56/.308 Yard Reticle: Glass-etched first-focal-plane reticle with horseshoe and chevron; auto-ranging ballistic holdovers at 100 yd increments and 5 / 10 mph wind holds for both 5.56 and .308 calibers.
-
Illuminated Reticle: Red-LED illumination with 13 brightness settings (10 daylight + 3 NV-compatible); AutoLive™ motion-activated on/off conserves battery life.
-
Wide Field of View: 38 ft @ 100 yd for exceptional situational awareness.
-
Exposed, Low-Profile Turrets: ¼ MOA click value; 80 MOA total windage and elevation adjustment; tool-adjustable and capped for snag-free operation.
-
Constant Eye Relief: 2.70″ (69 mm) for quick, forgiving cheek weld.
-
Rugged Construction: CNC-machined aluminum housing; waterproof, fog-proof, and shock-proof.
-
Mount Compatibility: Built to fit Primary Arms MicroPrism and Trijicon Mini-ACOG footprints.
-
Battery Powered: Single CR2032; up to 20,000 hr run time.
Technical Specifications for Primary Arms SLx 3x MicroPrism Scope - Red ACSS Raptor 5.56/.308 Yard Reticle
Specification
|
Details
|
Model / MPN
|
710036
|
SKU
|
PA-SLX-3XMP-RAPTOR-5YP
|
UPC
|
818500015673
|
Country of Origin
|
China
|
Magnification
|
3×
|
Objective Lens Diameter
|
Prism (no separate objective)
|
Reticle
|
ACSS Raptor 5.56 Y (FFP, glass-etched)
|
Reticle Color
|
Red
|
Illumination Settings
|
13 (10 DL + 3 NV-compatible)
|
Click Value
|
0.25 MOA
|
Total Elevation Adjustment
|
80 MOA
|
Total Windage Adjustment
|
80 MOA
|
Eye Relief
|
2.70″ (69 mm)
|
Field of View @ 100 yd
|
38 ft
|
Exit Pupil Diameter
|
7.4 mm
|
Turret Features
|
Exposed, low-profile, tool-adjustable
|
Mount Footprint
|
Primary Arms MicroPrism, Trijicon Mini-ACOG
|
Battery Type & Life
|
CR2032; up to ~20,000 hr
|
Weight
|
7.95 oz (225 g)
|
Housing Material
|
CNC-machined aluminum
|
Waterproof / Fog-Proof
|
Yes
|
Shock-Proof
|
Yes
|
Included Accessories
-
Lens covers
-
CR2032 battery
-
Turret adjustment tool
-
User manual
