Primary Arms SLx 5× MicroPrism Scope - ACSS Aurora 5.56/.308 Yard Reticle
Features
-

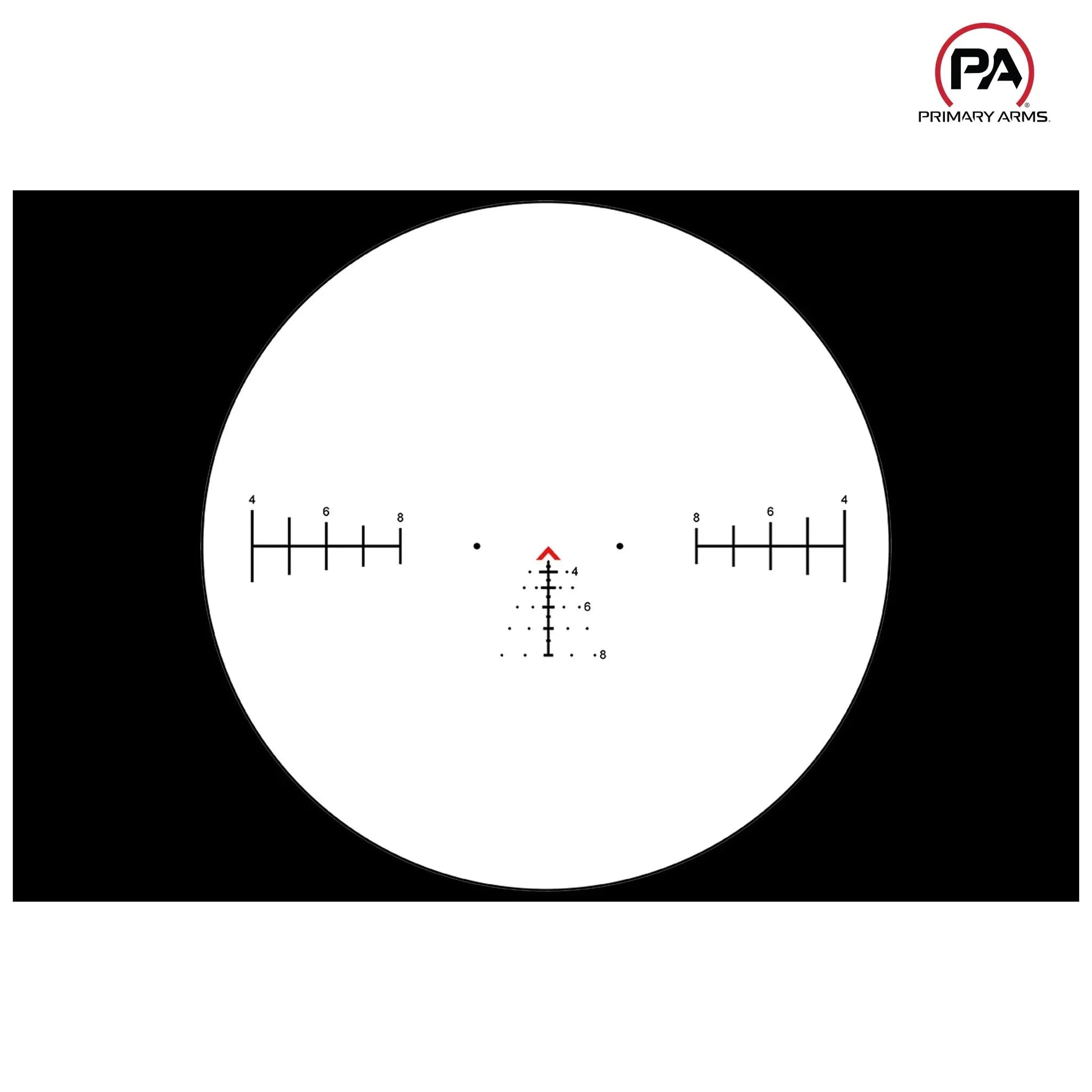

ACSS Aurora 5.56/.308 Yard Reticle – First-focal-plane MRAD reticle calibrated in 100 yd increments for 5.56 NATO and .308 Win; features integrated ranging stadia (100–600 yd), hold-over hashmarks, wind-age brackets, and moving-target leads; fiber-optic–illuminated red reticle with 13 brightness levels, 3 NV modes, and AutoLive® motion-sensing on/off.
-
True 5× Prism Design – Dedicated 5× magnification prism optic provides enhanced mid-range target identification while retaining a wide field of view and unlimited eye relief.
-
Wide Field of View & Forgiving Eye Relief – 21 ft @ 100 yd field of view combined with a generous, forgiving eye box (≈ 2.70 in) for rapid target acquisition.
-
SOS® Steel-on-Steel Turrets – Capped, exposed turrets with .25 MOA tactile clicks; 50 MOA total windage & elevation adjustment for dialing extended ranges.
-
Premium Optical System – Fully multi-coated extra-low-dispersion Japanese glass delivers excellent light transmission, contrast, and edge-to-edge clarity.
-
Rugged Chassis – CNC-machined 30 mm 6061-T6 aluminum tube in matte-black Type III hard-anodize; O-ring sealed and nitrogen-purged for IP67 waterproof and fog-proof reliability.
-
Compact & Lightweight – Measures 3.31 in overall and weighs 8.5 oz, comparable to many red-dot sights but with 5× precision.
Technical Specifications for Primary Arms SLx 5× MicroPrism Scope - ACSS Aurora 5.56/.308 Yard Reticle
Specification
|
Details
|
Manufacturer
|
Primary Arms
|
Model / Part Number
|
SLx 5× MicroPrism / PA-SLX-5XMP-AUR-5Y
|
SKU / MPN
|
PA-SLX-5XMP-AUR-5Y / 710042
|
UPC
|
818500018544
|
Magnification
|
Fixed 5×
|
Objective Lens Diameter
|
20 mm
|
Tube Diameter
|
30 mm
|
Reticle
|
ACSS Aurora 5.56/.308 Yard (FFP), fiber-optic illuminated
|
Field of View
|
21 ft @ 100 yd
|
Eye Relief
|
≈ 2.70 in
|
Exit Pupil
|
4 mm
|
Diopter Adjustment
|
Adjustable, fast-focus eyepiece
|
Elevation Total Adjustment
|
50 MOA
|
Windage Total Adjustment
|
50 MOA
|
Click Value
|
0.25 MOA per click
|
Illumination Settings
|
13 levels + 3 NV; AutoLive® motion-sensing
|
Length
|
3.31 in (84 mm)
|
Weight
|
8.5 oz (241 g)
|
Finish
|
Matte-black Type III hard-anodize
|
Waterproof / Fog-Proof
|
IP67 (1 m submersion; fog-proof)
|
Warranty
|
Lifetime warranty
|
Included Accessories
-
Flip-up lens covers
-
Lens cleaning cloth
-
Instruction manual & warranty documentation
