Trijicon 30mm High Scope Rings with Q-LOC - AC22066 Rifle Scope Rings Trijicon

Trijicon 30mm High Scope Rings with Q-LOC Technology

Name: Trijicon 30mm High Scope Rings with Q-LOC Technology
Brand: Trijicon
SKU: AC22066
Availability: InStock

$219.99

SKU AC22066

UPC 719307618947

In stock

Reliable shipping

Flexible returns

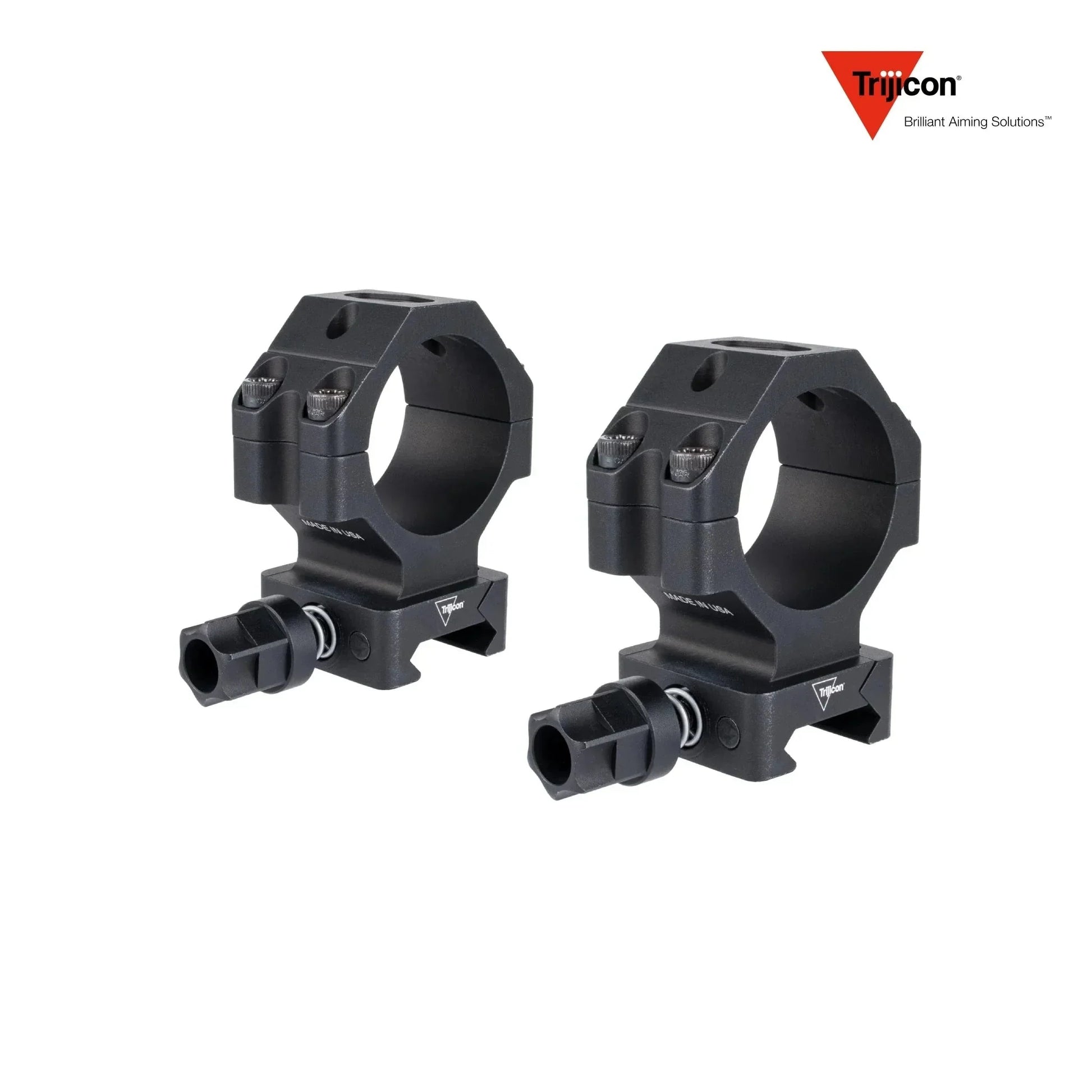

Trijicon 30mm High Scope Rings with Q-LOC Technology (Model AC22066)

Features

One‐Hand, Tool‐Free Mounting: Spring-loaded dovetail clamps engage MIL-STD-1913 (Picatinny) rails with 12–16 in·lb of spring tension—secure retention and repeatable zero even if knobs aren’t tightened.
Quick-Detach Q-LOC™ System: Rock-touch lever for ultra-fast attachment/removal without tools; repeatable zero with every re-mount.
High Configuration: Positions a 30 mm scope tube to clear objective lenses up to 50 mm while minimizing overall height for optimal cheek weld and sight alignment.
Rugged Construction: CNC-machined from 6061-T6 aluminum with matte-black hard-coat anodize; MIL-SPEC drop-test rated for combat environments.
Made in USA

Technical Specifications for Trijicon 30mm High Scope Rings with Q-LOC Technology

Specification	Details
Manufacturer	Trijicon
Model / MPN	AC22066
SKU	AC22066
UPC	719307618947
Material	6061-T6 aluminum
Finish	Matte-black hard-coat anodize
Scope Tube Diameter	30 mm
Objective Lens Max Diameter	50 mm
Mount Height (rail to optical axis)	1.30″ (33 mm)
Center-to-Center Length	1.25″ (31.8 mm)
Clamp Spring Tension	12–16 in·lb
Maximum Knob Torque (optional)	30–38 in·lb
Rail Compatibility	MIL-STD-1913 Picatinny / NATO STANAG 4694
Weight (pair)	3.0 oz (85 g)
Made in USA	Yes

Included Accessories

Two Q-LOC™ high scope rings (30 mm)
Four ring caps
Eight mounting screws & one hex key
User manual
