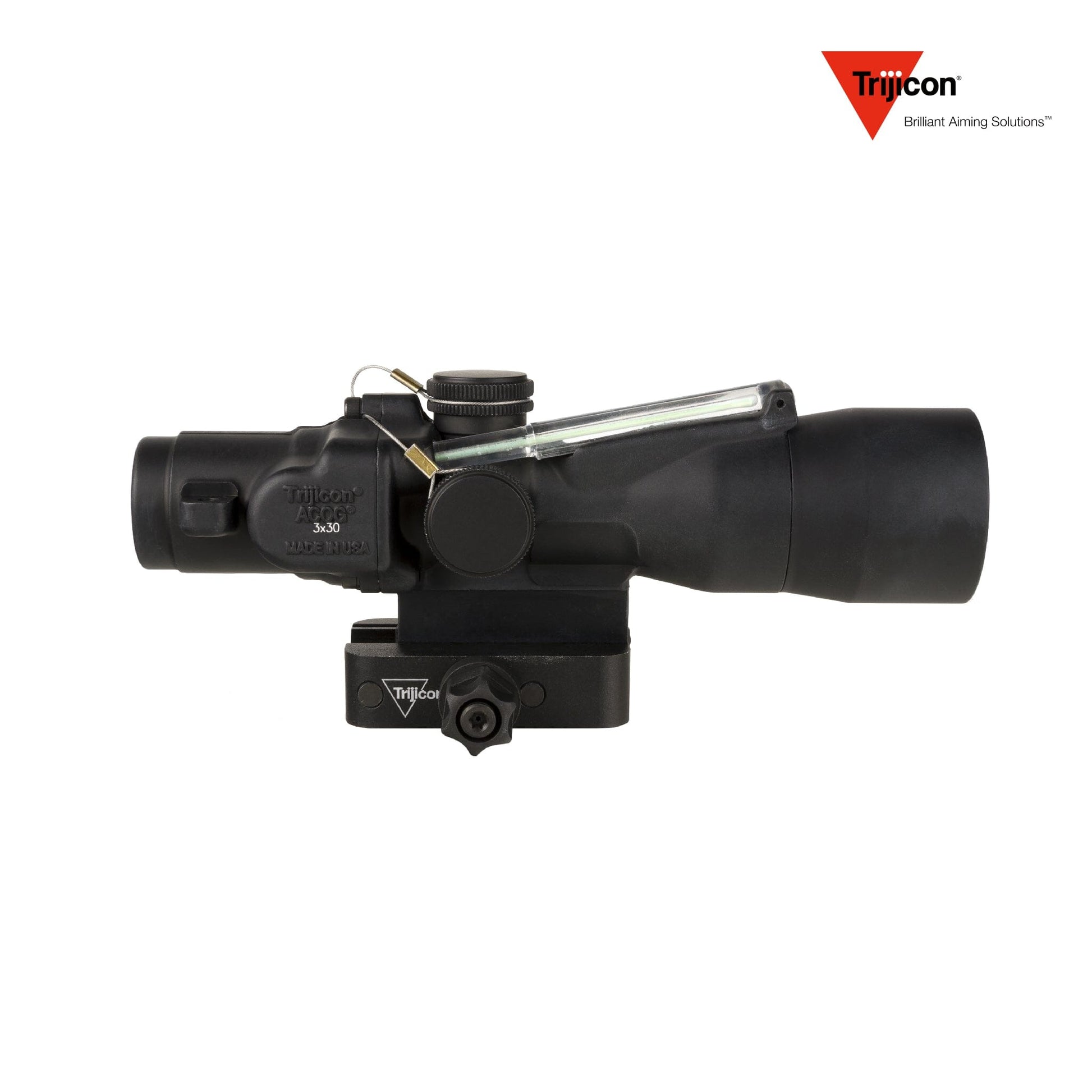

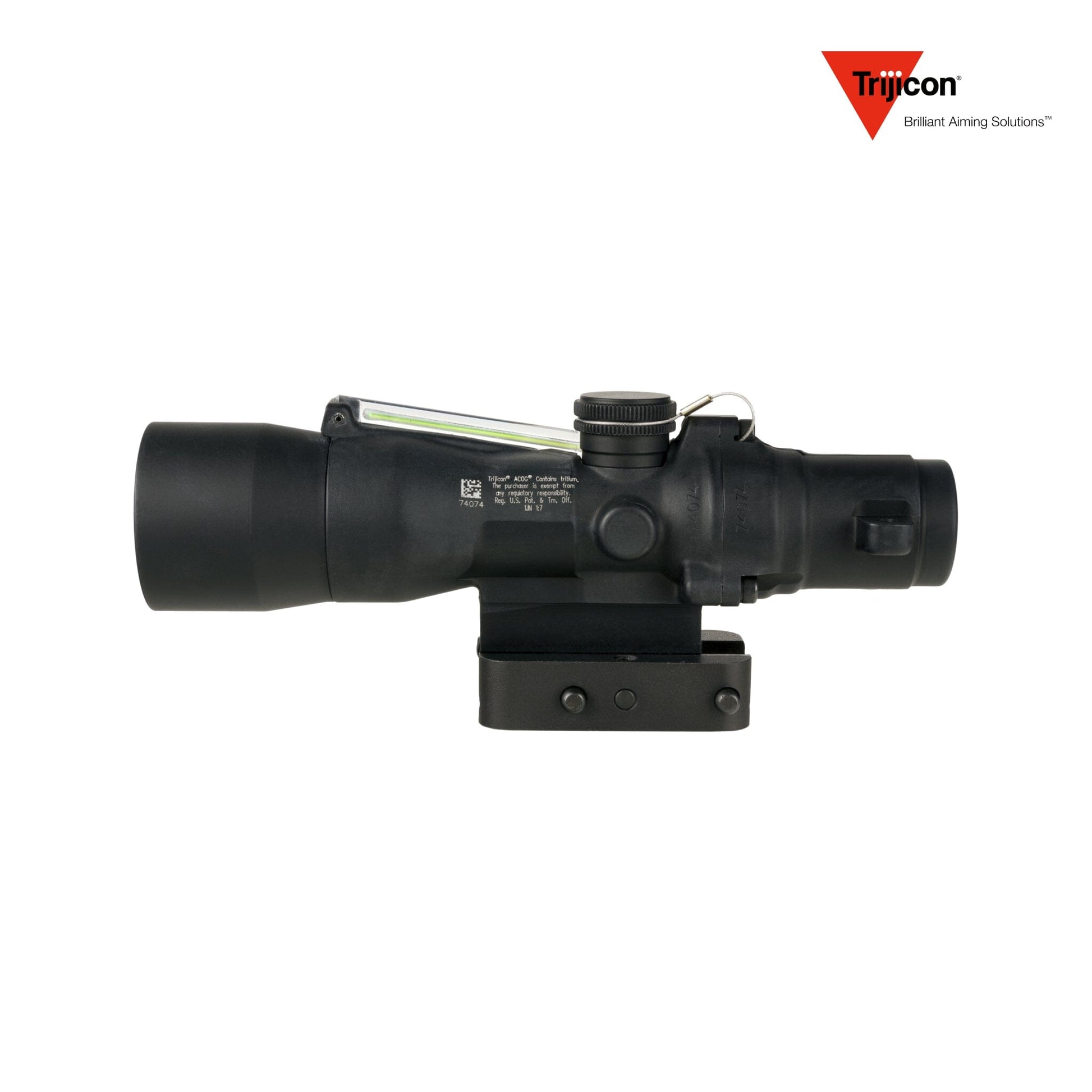

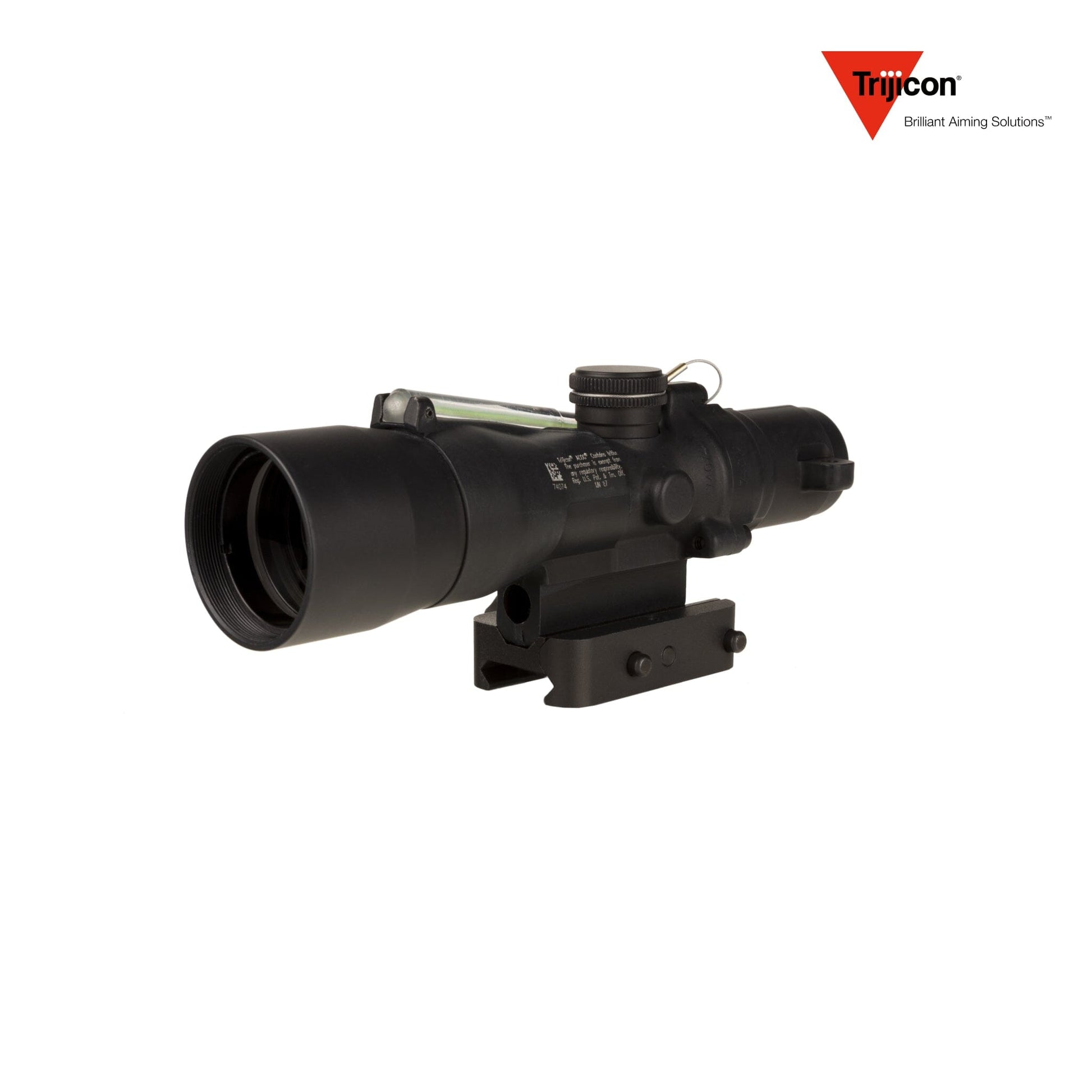

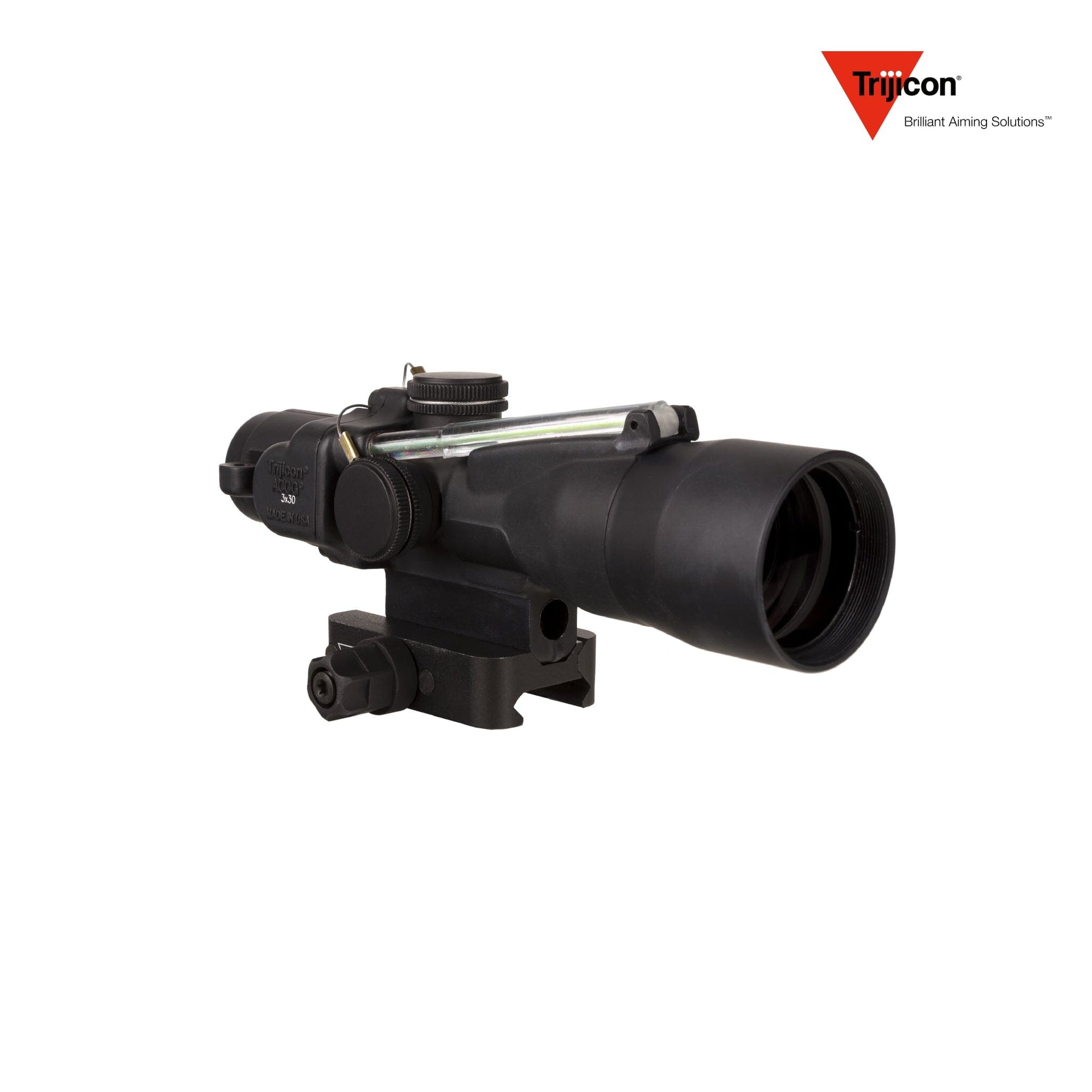

Trijicon 3×30 Compact ACOG Riflescope Green Chevron .223/62gr. Reticle
(Model TA33-C-400371)
Features
-
Dual-Source Illumination: Fiber-optic daytime brightness combined with tritium night illumination—battery-free, always-on; optimized for both-eyes-open Bindon Aiming Concept™ engagement.
-
Fixed 3× Magnification: Provides a versatile mid-range power with a wide field of view for rapid target acquisition.
-

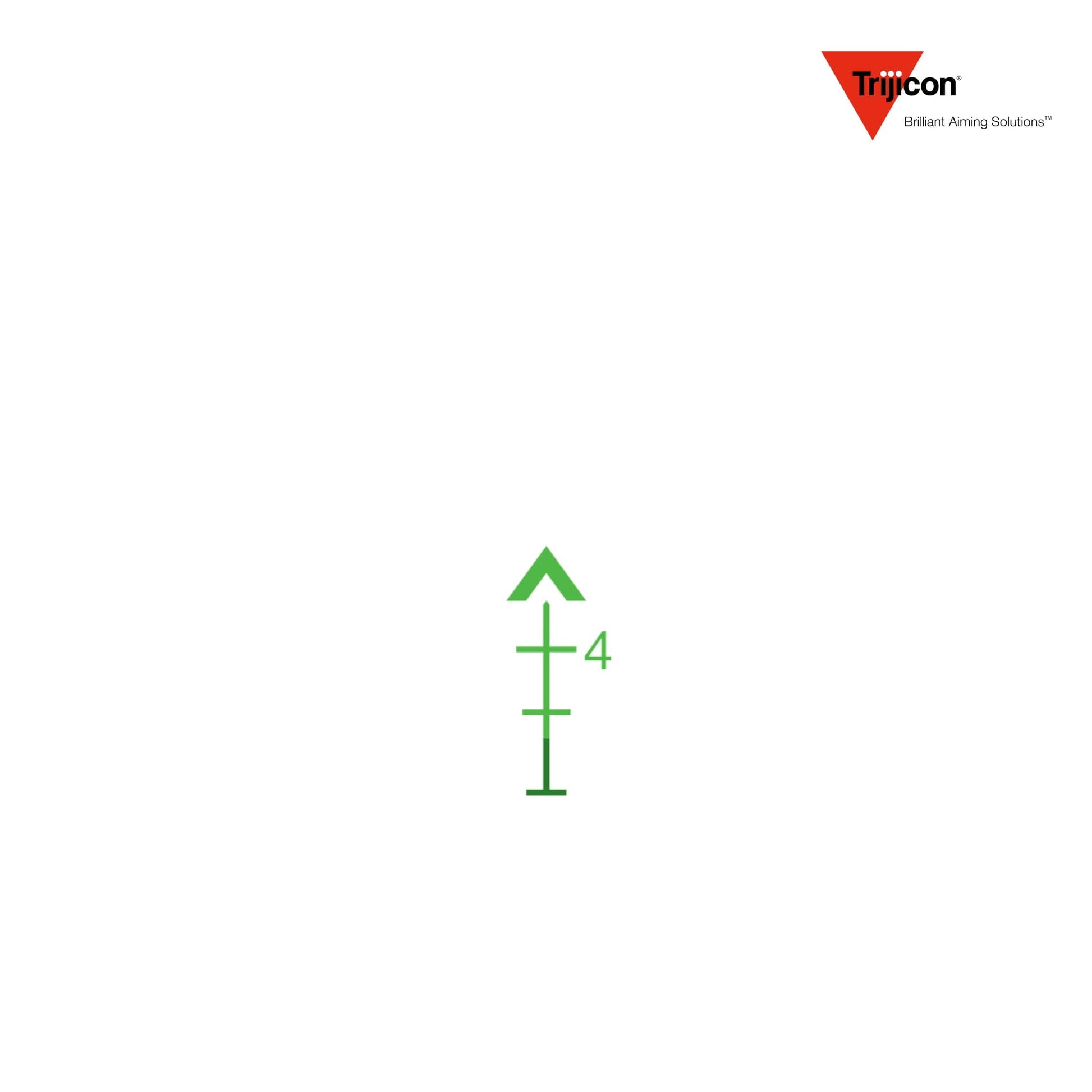

Green Chevron .223 62 gr Ballistic Reticle (Second Focal Plane): Illuminated chevron calibrated to .223 / 62 gr trajectories; holds and subtensions are precise at 3×.
-
Trijicon Q-LOC™ Mounting System: One-hand, tool-free attachment and removal with spring-loaded clamps; maintains repeatable zero even if levers aren’t tightened.
-
Robust Construction: CNC-machined 30 mm maintube of 6061-T6 aluminum with matte-black hard-coat anodize; nitrogen-purged, fog-proof, and waterproof to 10 ft; shock-rated to withstand .22 LR through .50 BMG recoil.
Technical Specifications for Trijicon 3×30 Compact ACOG Riflescope Green Chevron .223/62gr. Reticle
|
Specification
|
Details
|
|
Manufacturer
|
Trijicon
|
|
Model / MPN
|
TA33-C-400371
|
|
SKU
|
TA33-C-400371
|
|
UPC
|
719307313774
|
|
Country of Origin
|
USA
|
|
Magnification
|
3×
|
|
Objective Lens Diameter
|
30 mm
|
|
Maintube Diameter
|
30 mm
|
|
Reticle
|
Green Chevron .223 62 gr (SFP, illuminated)
|
|
Illumination Source
|
Fiber-optic (day) + tritium (night)
|
|
Exit Pupil
|
8.4 mm
|
|
Eye Relief
|
1.9″ (48.3 mm) constant
|
|
Field of View @ 100 yd
|
19.3 ft (5.9 m) / 3.7°
|
|
Parallax
|
Fixed at 100 yd
|
|
Adjustment Click Value
|
¼ MOA per click
|
|
Total Adjustment (Windage & Elevation)
|
110 MOA total travel
|
|
Length
|
6.2″ (157.5 mm)
|
|
Width
|
2.2″ (55.9 mm)
|
|
Height
|
2.6″ (66.0 mm)
|
|
Weight
|
9.8 oz (278 g)
|
|
Finish
|
Matte-black hard-coat anodize
|
|
Waterproof / Fog-Proof
|
Yes (IPX7 to 10 ft; nitrogen-purged)
|
|
Shock-Proof
|
Yes (tested .22 LR – .50 BMG)
|
Included Accessories
-
Q-LOC™ quick-detach mount
-
Scopecoat® lens cover
-
LensPen® cleaning tool
-
Trijicon logo sticker
-
Limited Lifetime Warranty & user manual
