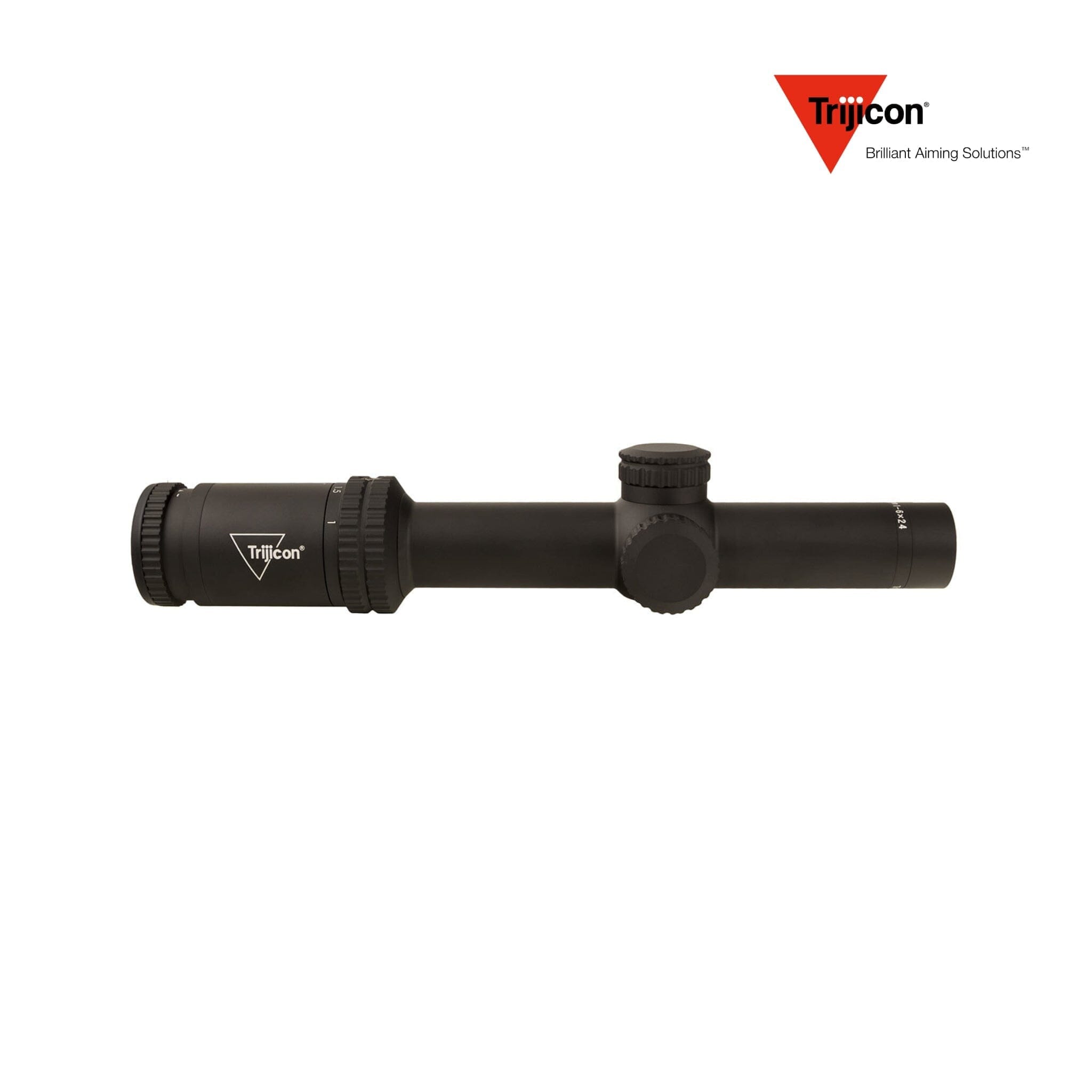

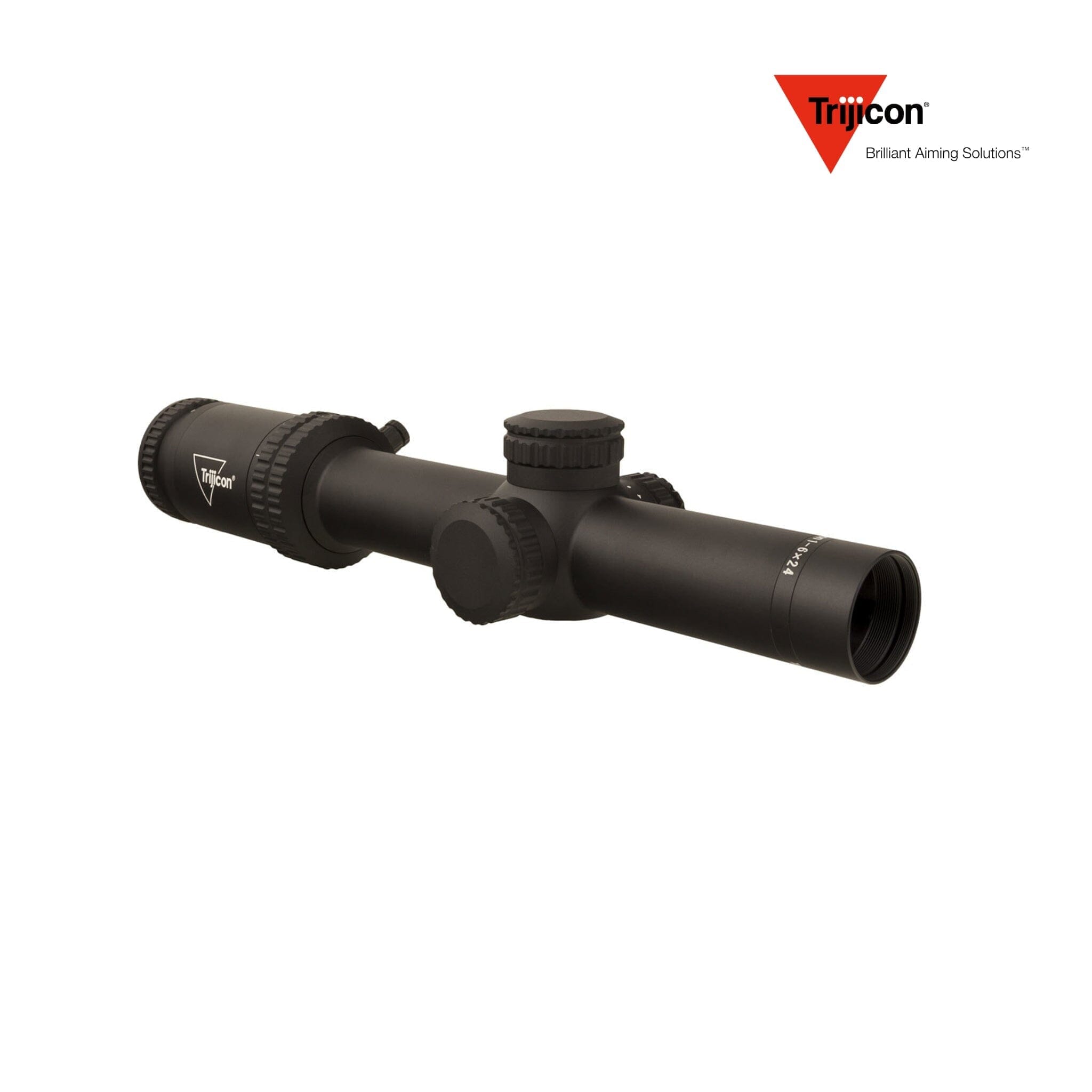

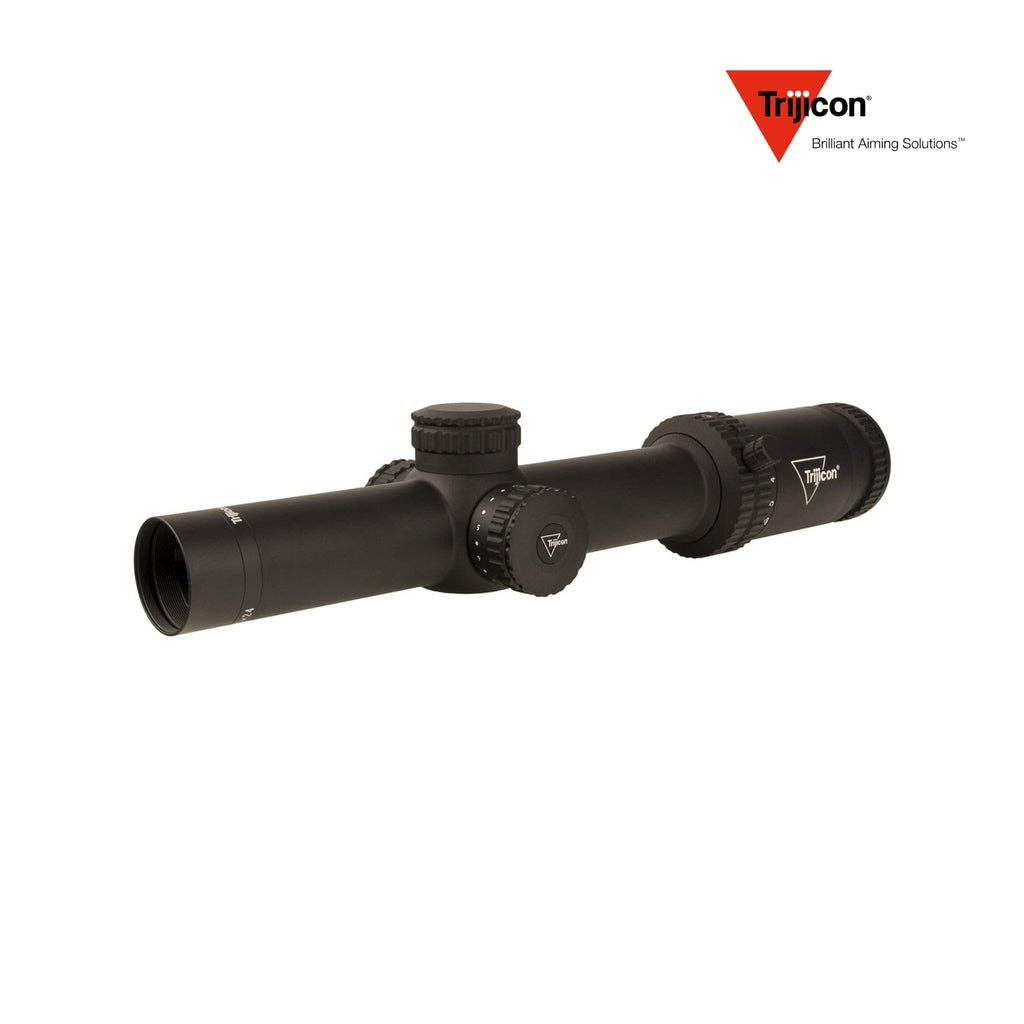

Trijicon Credo 1-6x24 Riflescope Green MRAD Segmented Circle Reticle
Features
-
True 1–6× First Focal Plane (FFP): Reticle scales accurately with magnification, enabling precise holdovers at any zoom level.
-

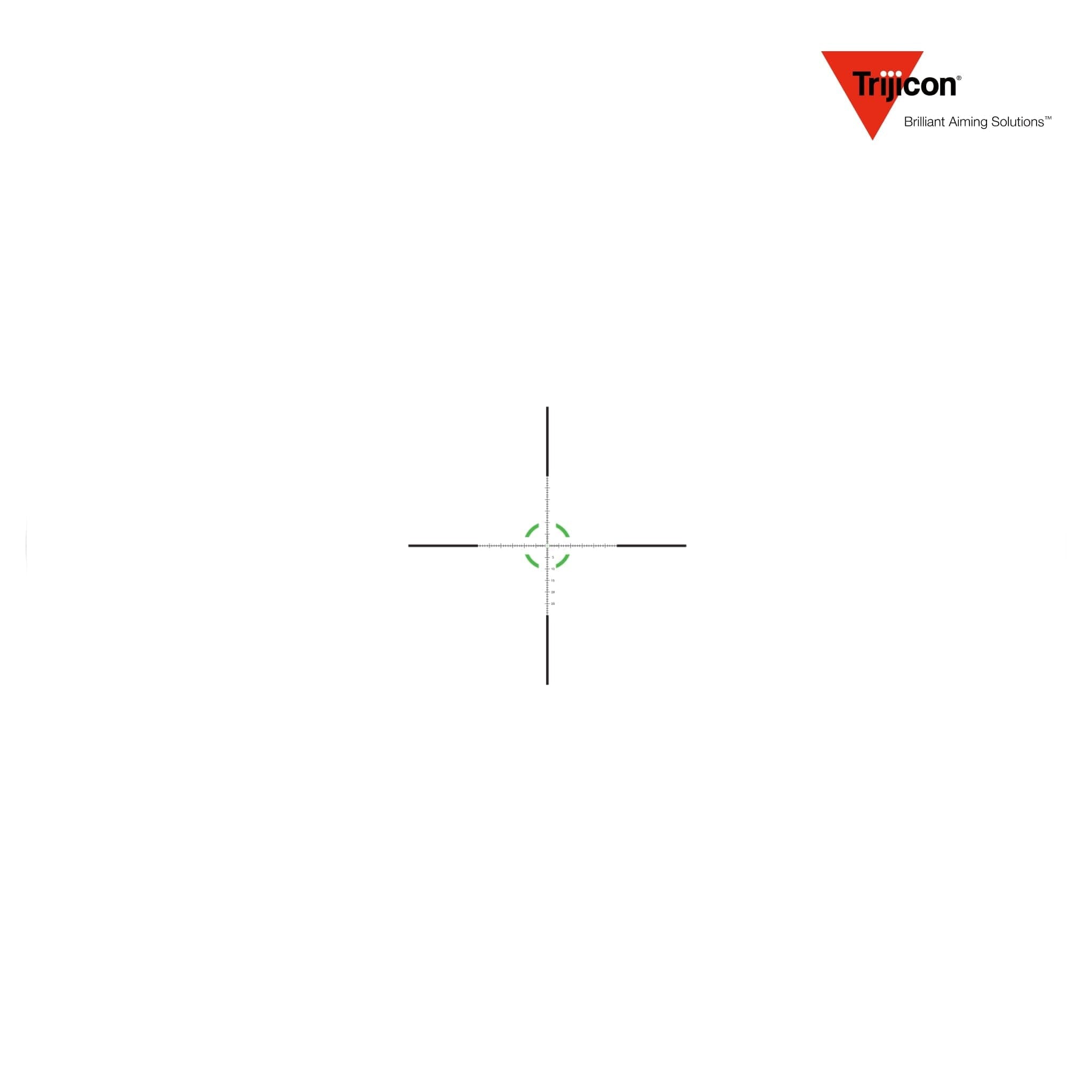

Green MRAD Segmented Circle Reticle: LED-illuminated for fast target acquisition and accurate ranging with 0.1 MRAD graduations.
-
10 Illumination Settings with OFF Detents: Easy-to-access brightness settings with OFF positions between levels to prevent accidental activation.
-
Wide Field of View: Approximately 113 feet at 1× and 18.8 feet at 6×, ideal for both situational awareness and longer-range precision.
-
Rugged 30 mm Main Tube: Constructed from 6061-T6 aircraft-grade aluminum, built to be waterproof, fog-proof, and shock-resistant.
-
Low-Profile Turrets: 0.1 MRAD per click with capped windage and elevation turrets, offering up to ±29.1 MRAD of total travel.
-
Fast-Focus Eyepiece: Allows quick diopter adjustment for individual shooters.
-
Bindon Aiming Concept (BAC): Supports both-eyes-open shooting for rapid engagement at low magnification.
-
Built for Durability: Made in Japan and tested to meet Trijicon’s rugged performance standards.
Technical Specifications for Trijicon Credo 1-6x24 Riflescope Green MRAD Segmented Circle Reticle
Specification
|
Details
|
Manufacturer
|
Trijicon
|
Model / MPN
|
CR624-C-2900024
|
UPC
|
719307403680
|
Country of Origin
|
Japan
|
Magnification
|
1–6× variable (First Focal Plane)
|
Objective Lens Diameter
|
24 mm
|
Tube Diameter
|
30 mm
|
Reticle
|
Green MRAD Segmented Circle (FFP, LED-illuminated)
|
Illumination
|
LED, 10 brightness levels with OFF detents
|
Eye Relief
|
3.5″–3.9″ (approx. 89–99 mm)
|
Field of View @ 100 yd
|
113 ft (1×) – 18.8 ft (6×)
|
Exit Pupil
|
12.0–4.1 mm
|
Adjustment Click Value
|
0.1 MRAD per click
|
Total Adjustment Range
|
±29.1 MRAD windage and elevation
|
Parallax Setting
|
Fixed at 100 yd
|
Overall Length
|
10.9″ (276.9 mm)
|
Weight
|
18.9 oz (535 g)
|
Housing Material / Finish
|
6061-T6 aluminum, matte black anodized
|
Optical Coatings
|
Fully multi-coated, anti-reflective broadband glass
|
Waterproof / Fog-Proof
|
Nitrogen-purged, O-ring sealed
|
Mount Compatibility
|
Fits standard 30 mm scope rings (not included)
|
Included Accessories
-
Trijicon Credo 1-6x24 Riflescope – CR624-C-2900024
-
Flip-up lens covers
-
Scopecoat soft cover
-
3 mm hex key
-
CR2032 battery
-
Lens cleaning cloth
-
Owner’s manual and warranty card
-
Trijicon logo sticker
