BCM MCMR M-LOK Free-Float Handguard for AR-15

The BCM MCMR is a free-float M-LOK handguard for AR-15 and M4 rifles, clamping to a mil-spec barrel nut and carrying a continuous 1913 Picatinny top rail.

MCMR stands for M-LOK Compatible Modular Rail, and the name is the whole design brief. The tube is machined from 6061-T6 aluminum and hard-coat anodized to Mil-A-8625F Type III Class 2, then locked to a steel barrel nut by BCM's patented indexing and lock-up system (US Patent 8904691) so the top rail stays in line with the receiver rail under heat and under load.

Because it free-floats, nothing you bolt to the handguard touches the barrel. A bipod, a sling under tension, a hand pulled hard into a barricade — none of it deflects the barrel or moves the group.

The profile is slim — M-LOK slots sit at 3, 6 and 9 o'clock with an uninterrupted Picatinny rail along the top, so backup sights, night vision and lights index off one continuous plane. An M-LOK sling mount is supplied with the handguard.

Key Features

• Free-float tube — loads from the sling, bipod or support hand never reach the barrel
• Continuous 1913 top rail — one unbroken plane from receiver to muzzle for sights and night vision
• Patented lock-up and indexing — the top rail stays aligned under heat and recoil
• Six lengths, 7" to 15" — match the tube to the barrel and gas system you actually have
• Light for its size — 4.8 oz (135 g) at 7", 9.2 oz (260 g) at 15", plus 2.3 oz (65 g) of hardware

Compatibility & Fitment

Fits AR-15/M4 upper receivers, and clears barrels up to 1.0" (25.4 mm) in diameter. The supplied steel barrel nut replaces your existing nut, so the handguard is a barrel-off or at least a barrel-nut-off job — not a slip-on swap. Shorter tubes suit pistol- and carbine-length gas systems with a low-profile gas block; longer tubes cover mid-length systems and can be run over a fixed front sight base where the length allows. Measure from the receiver face to the gas block before choosing a length, because the handguard must clear the block, not sit on it.

Technical Specifications

US Shipping & Support

Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.

Frequently Asked Questions

Which MCMR length should I choose?
Measure from the upper receiver face to the front of your gas block and pick the longest tube that still clears it. On a carbine-gas 16" barrel with a low-profile gas block, 9" to 13" is the usual answer; 15" suits mid-length gas on a 16" or longer barrel. The 7" and 8" tubes are for short barrels or where you want a lot of exposed barrel. If the handguard would sit over the gas block, go one size shorter.

Does the MCMR free-float the barrel?
Yes. The handguard clamps to a steel barrel nut at the receiver and touches nothing else, so the barrel hangs free inside it. Anything you load the handguard with — a bipod, a sling pulled tight, a hand braced on a barricade — puts no bending force into the barrel.

What is included, and do I need special tools?

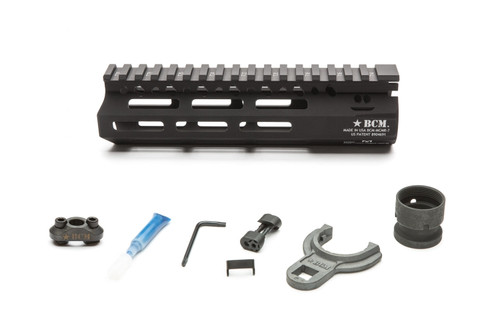

The handguard ships with its steel barrel nut and mounting hardware, plus a BCM M-LOK sling mount. Fitting means removing the existing handguard and barrel nut and torquing the new nut, so you need an armorer's wrench, a vise block and a torque wrench. If you are not set up for that, have a gunsmith fit it.

Will my M-LOK accessories fit?
Any M-LOK-standard accessory bolts straight to the 3, 6 and 9 o'clock slots — rail sections, light mounts, hand stops, QD sling mounts. Picatinny accessories mount on the top rail, or on an M-LOK Picatinny rail section fitted to the side or bottom. KeyMod accessories do not fit; the MCMR is M-LOK only.
