Understanding Reticles: Duplex, BDC, Mil-Dot and Trees

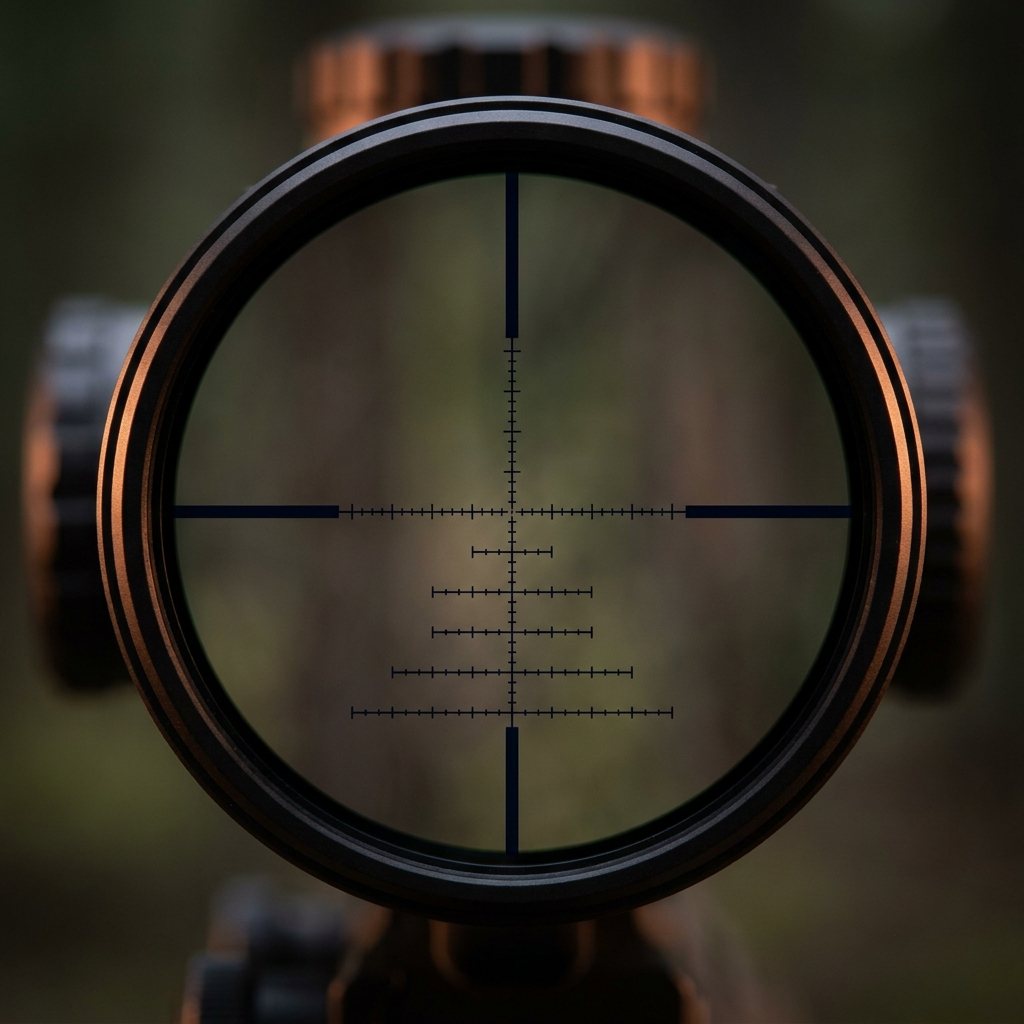

View through a scope showing a mil-dot and holdover tree reticle

The reticle is your aiming system, and the right pattern depends on one question: do you hold over, do you dial, or do you just put the center on the target and press? Answer that and the families below sort themselves out. All of these appear across our rifle scopes.

Duplex

The classic hunting reticle: four thick outer posts that taper to a fine crosshair in the middle. The thick-to-thin transition is not decoration — it draws your eye to the center automatically and keeps the reticle visible against dark timber and brush, where a uniformly fine crosshair disappears.

A duplex is fast, clean and uncluttered, which is exactly what you want when you aim with the center and either dial the turrets or hold by experience. It has no built-in ranging or holdover references, so it asks nothing of you and offers nothing in return. For a general-purpose hunting rifle inside 300 yards, that is usually the right trade.

BDC (bullet drop compensating)

A BDC reticle adds holdover points — dots, circles or hash marks — below center, spaced to match a cartridge's trajectory so you can aim with a lower mark rather than dialing a turret.

The convenience is real and so is the catch: those marks are calibrated to a specific muzzle velocity, bullet, zero distance, sight height and atmosphere. Change the load, shoot at a different altitude, or shoot in much colder air and the spacing drifts. Treat the printed yardages as a starting point, then confirm each mark on paper or steel with your own rifle and ammunition, and write the true distances on a card. Done that way, a BDC is genuinely useful for hunting at known ranges. Taken on faith, it produces confident misses.

Mil-dot and MOA hash reticles

These place evenly spaced marks in a defined angular unit — milliradians or minutes of angle — along the vertical and horizontal crosshairs. Because the spacing is angular rather than ballistic, they work with any cartridge: you can range a target of known size, hold a measured amount of elevation, correct for wind in the same unit, and call your own misses precisely.

That last point is the real argument for them. "Low and left" is a guess; "0.4 mil low, 0.2 mil left" is a correction. A spotter with the same reticle can call it for you.

The one rule that must not be broken: keep the reticle and the turrets in the same unit. A MIL reticle with MOA turrets forces a conversion on every shot and it will eventually cost you. See MOA vs MIL for how to pick one and stay with it.

Christmas tree reticles

A tree reticle extends the hash marks into a full grid below center, with horizontal wind references at each elevation level. The point is to hold a complete firing solution — elevation and wind together — at a single intersection, without touching a turret.

This is the PRS and practical long-range standard because it is fast. In a stage with targets at five distances and a crosswind, holding off a grid is seconds quicker per target than dialing, and it leaves your zero untouched.

The cost is visual clutter. A tree is busy, and in dim light or on a cluttered background it can obscure a small target. Trees also belong almost exclusively in first focal plane scopes, because the grid is only correct if it scales with magnification — which also means it shrinks to near-invisibility at the bottom of the magnification range.

German, illuminated and dot reticles

A few patterns sit outside these families. German #4 and similar designs use three thick posts and leave the top of the field clear, which is excellent in low light and popular on European hunting optics. Fine crosshairs with a floating center dot are a target-shooting staple, precise and nearly useless in poor light. Illuminated center dots and horseshoes add a glowing aiming point for dawn, dusk and LPVO work at 1x, where an illuminated reticle effectively lets the scope behave like a red dot.

Illumination is worth paying for on a low-power variable and genuinely optional on a high-magnification precision scope, where you are usually shooting in good light at a target you can see.

Choosing one

Hunting inside 300 yards, one load, no dialing: duplex, with illumination if you hunt low light. Hunting at longer known distances without wanting turrets: BDC, verified on paper. Precision, competition or any shooting where you call and correct: a MIL or MOA hash reticle, matched to your turrets. Competition where speed between varied distances decides the stage: a tree, in first focal plane.

And subtension matters as much as pattern — a reticle whose finest lines cover six inches at 600 yards cannot aim more precisely than that, however many marks it has. New to the spec sheet? Start with how to read riflescope numbers.
