EOTech Vudu 1-6x24 FFP Rifle Scope SR1 MRAD Reticle
$1,329.00
Shipping calculated at checkout.
EOTech Vudu 1–6×24 FFP Rifle Scope SR1 MRAD Reticle
Features

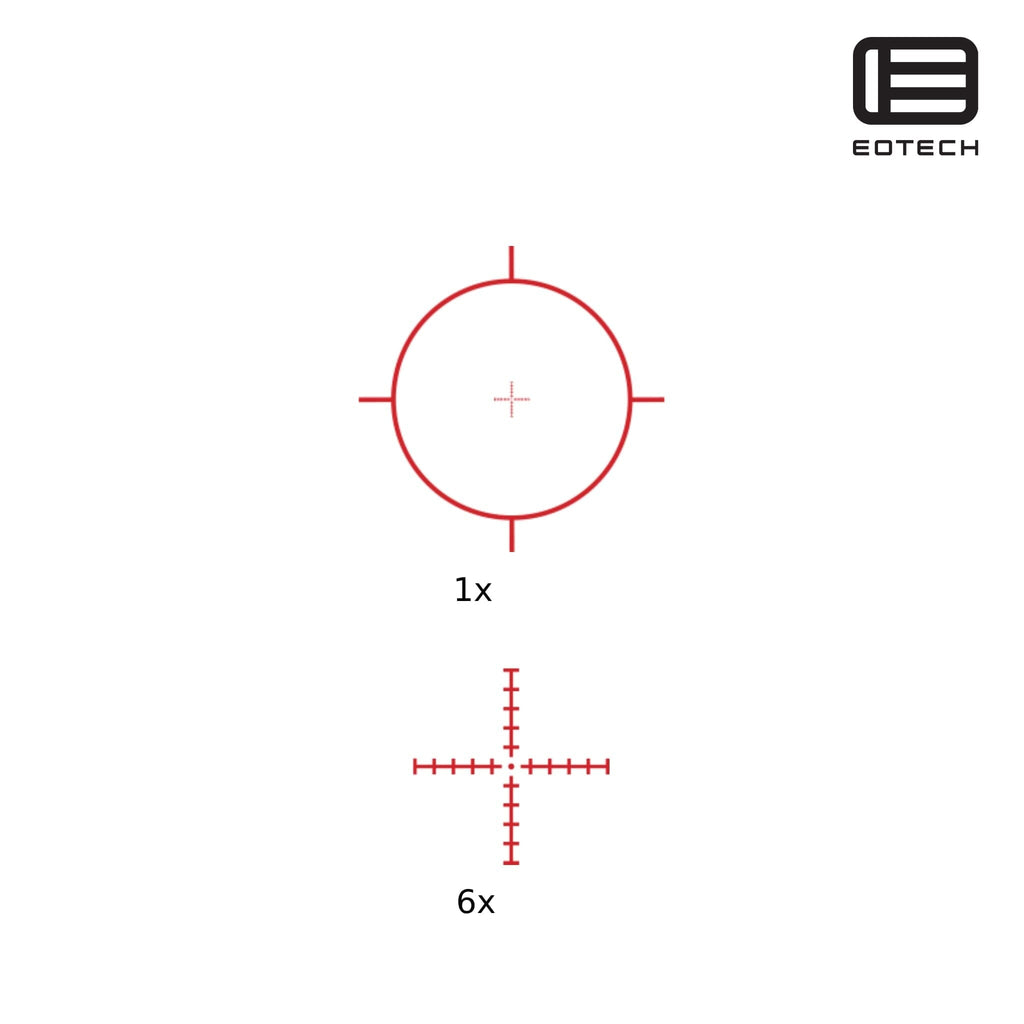

- SR1 Illuminated MRAD Reticle: First-focal-plane “speed-ring” with hash-marked inner crosshair and MRAD subtensions for ranging, hold-over, and windage compensation at all magnifications.
- Variable 1–6× Zoom with Throw Lever: Rapid magnification changes via removable, low-profile throw lever—ideal for transitions from CQB to medium ranges.
- Aircraft-Grade Construction: One-piece 30 mm tube forged from 6061-T6 aluminum with hard-anodized matte-black finish for durability and corrosion resistance.
- Fog-, Shock- & Water-Resistant: O-ring and nitrogen-sealed to IP67 (submersible to 10 m); reliable from –40 °F to +140 °F.
- Precision Turrets: Low-profile push/pull locking elevation turret (0.2 MRAD per click; 15 MRAD per revolution) and capped windage turret (0.2 MRAD per click; 15 MRAD per revolution) prevent accidental adjustments.
- Optimized Optics: XC™ high-density, low-dispersion glass with anti-reflective coatings delivers edge-to-edge clarity and high light-transmission.
Technical Specifications for EOTech Vudu 1–6×24 FFP Rifle Scope SR1 MRAD Reticle
|
Specification |
Details |
|
Product Title |
EOTech Vudu 1–6×24 FFP Rifle Scope (SR1 MRAD Reticle) |
|
Model / MPN |
VDU1-6FFSR1 |
|
SKU |
VDU1-6FFSR1 |
|
UPC |
672294110002 |
|
Magnification Range |
1–6× |
|
Objective Lens Diameter |
24 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
SR1 MRAD: illuminated speed-ring with hash-marked inner crosshair |
|
Reticle Focal Plane |
First Focal Plane |
|
Illumination |
LED-powered; 10 daylight-bright levels |
|
Adjustment Graduation (Click) |
0.2 MRAD per click |
|
Adjustment Graduation (Rev.) |
15 MRAD per revolution |
|
Total Elevation Travel |
29 MRAD |
|
Total Windage Travel |
23 MRAD |
|
Eye Relief |
1×: 3.27–3.94 in (83–100 mm); 6×: 3.23–3.94 in (82–100 mm) |
|
Field of View @ 100 yds |
1×: 102.4 ft (31.2 m); 6×: 16.7 ft (5.1 m) |
|
Parallax |
Fixed at 100 yds |
|
Length |
10.63 in (270 mm) |
|
Weight |
20.1 oz (570 g) |
|
Power Source |
(1) CR2032 battery |
|
Waterproof Rating |
IP67 (submersible to 10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
|
Housing Material / Finish |
Forged 6061-T6 aluminum, matte-black hard-anodized |
|
Country of Origin |
Made in Japan |
