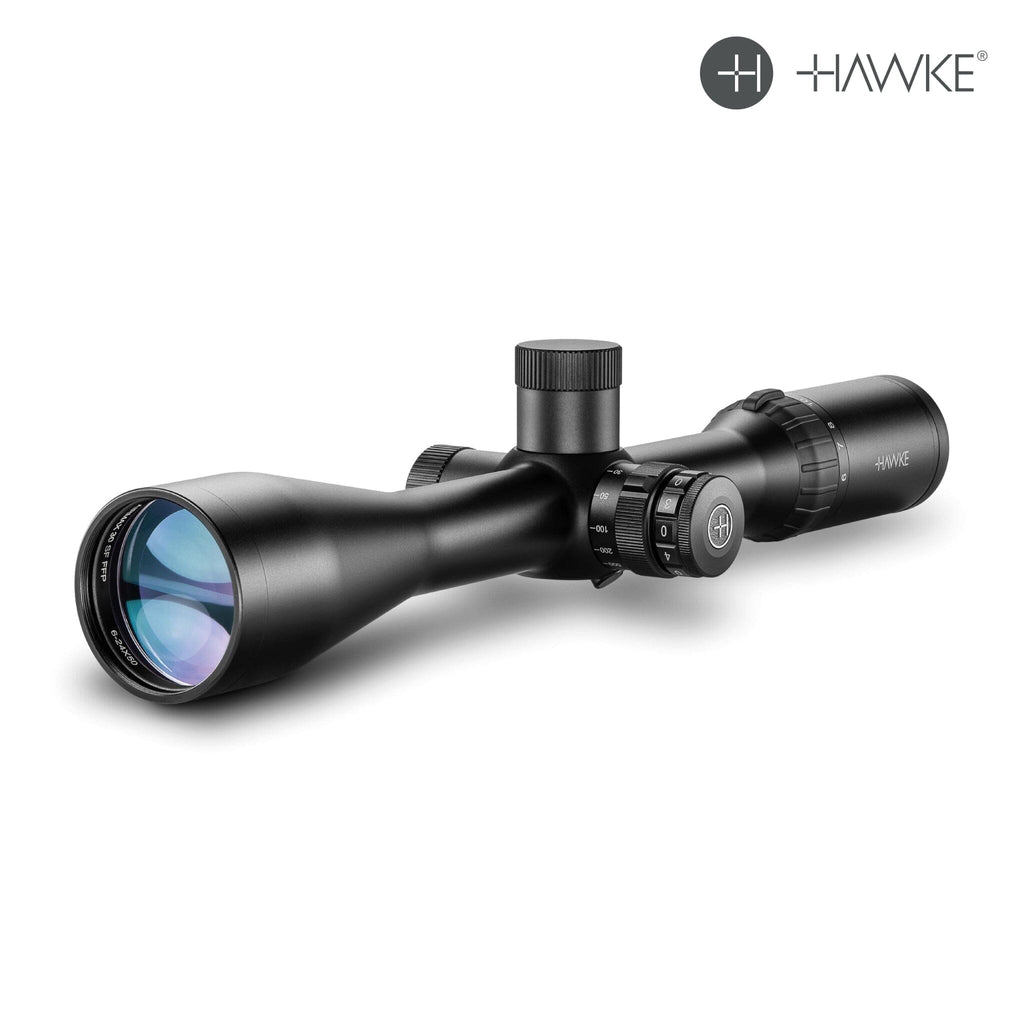

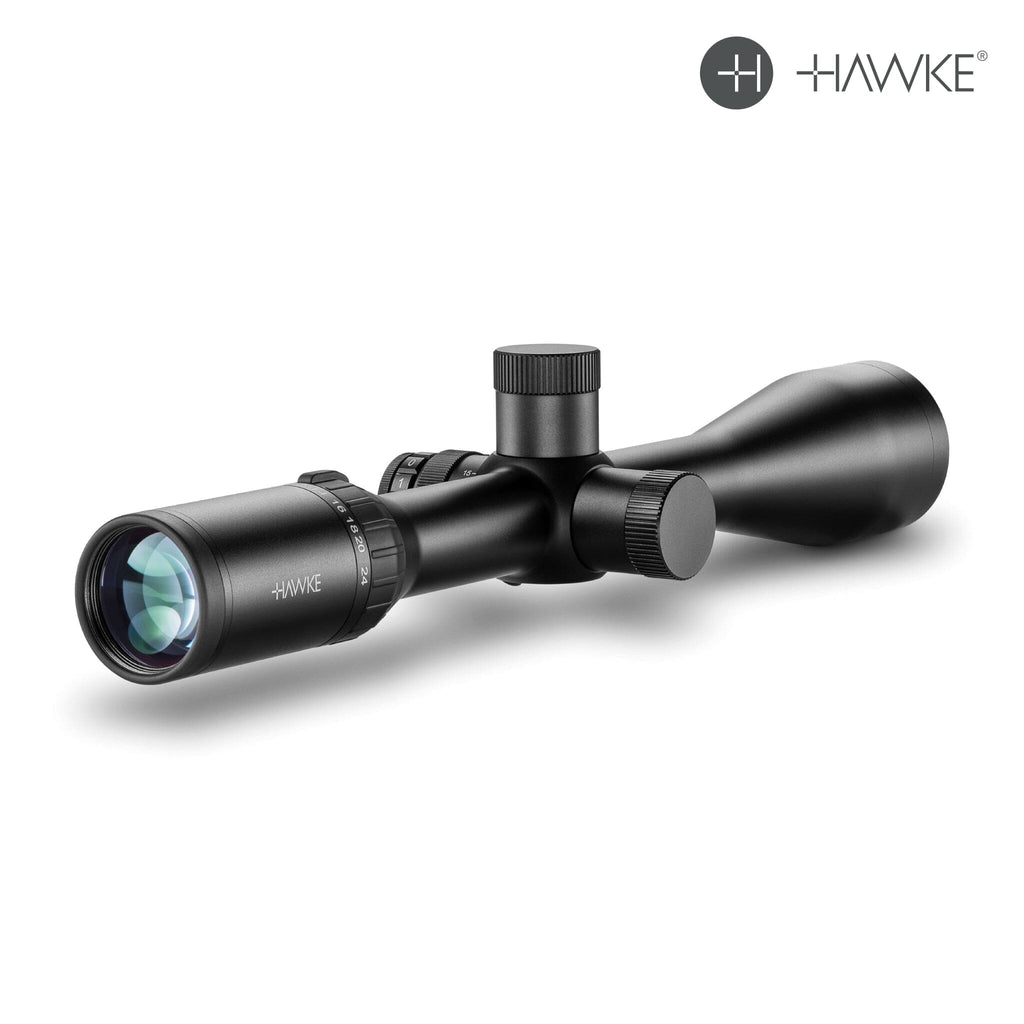

Hawke AIRMAX 30 FFP SF 6–24×50 Rifle Scope AMX IR Reticle
Features
-

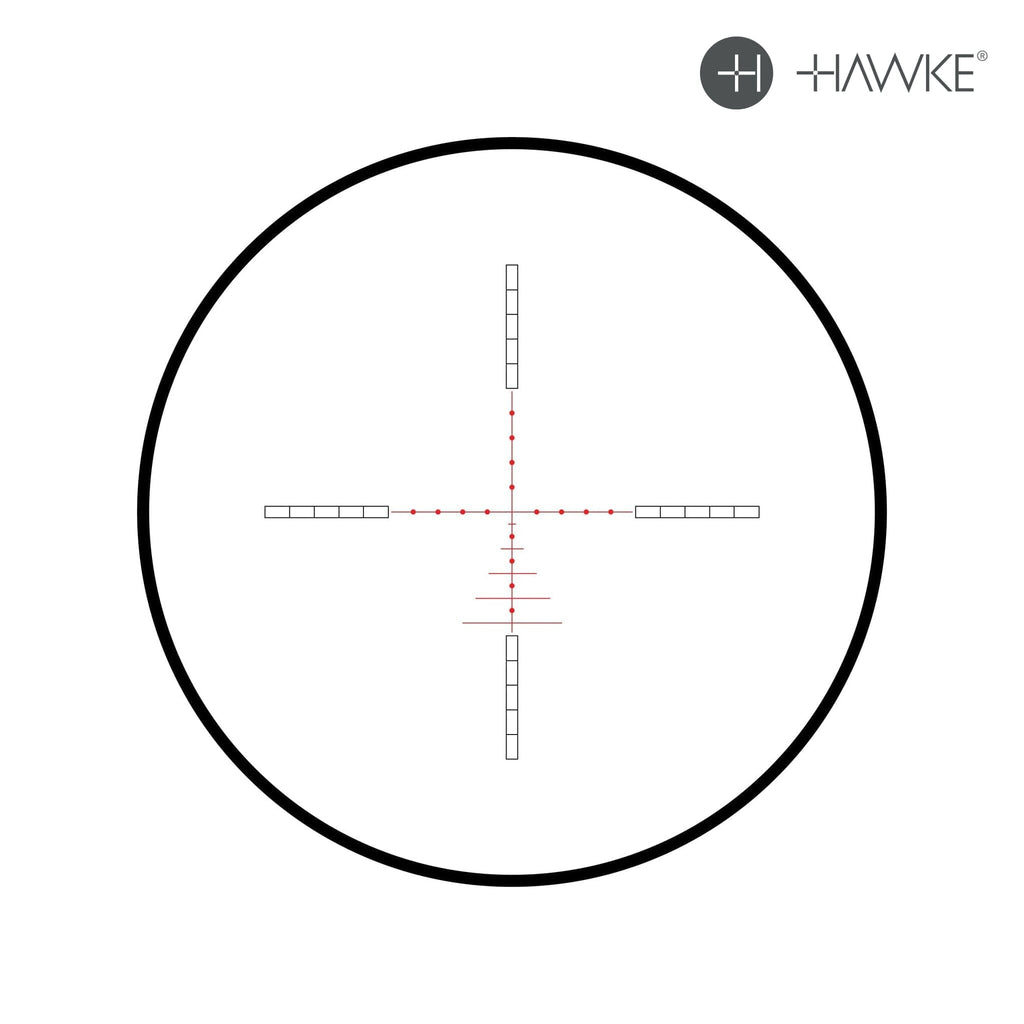

First Focal Plane AMX IR Reticle: Glass-etched mil-based AMX pattern in the first focal plane for true subtensions at all magnifications; red LED illumination with six daylight-bright levels (plus off-positions) for precise ranging and hold-overs.
-
Wide 6–24× Zoom Range: High-torque zoom ring and removable throw lever enable rapid transitions from close-quarters to extended-range engagements.
-
30mm Mono-Tube Chassis: One-piece forged aluminium tube offers exceptional rigidity, consistent zero retention under recoil, and all-calibre rating.
-
Side-Focus Parallax Correction: Side-wheel adjustment from 10 yd to ∞ ensures pin-sharp, parallax-free clarity at any distance.
-
Capped Target Turrets: Resettable windage & elevation knobs with 0.1 MRAD per-click graduation and ±16 MRAD total travel; protective caps prevent accidental shifts.
-
16-Layer Fully Multi-Coated Optics: Anti-reflective coatings on every air-to-glass surface maximize light transmission, contrast, and edge-to-edge sharpness.
-
Fast-Focus Eyebell: Rapid diopter adjustment for a crisp sight picture without tools.
-
Rugged, Weather-Resistant Design: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog-proof and shock-proof for reliable performance in all conditions.
Technical Specifications for Hawke AIRMAX 30 FFP SF 6–24×50 Rifle Scope AMX IR Reticle
|
Specification
|
Details
|
|
Product Title
|
Hawke AIRMAX 30 FFP SF 6–24×50 Rifle Scope (AMX IR Reticle)
|
|
Model / MPN
|
13352
|
|
SKU
|
13352
|
|
UPC
|
5054492133529
|
|
Magnification Range
|
6–24×
|
|
Objective Lens Diameter
|
50 mm
|
|
Tube Diameter
|
30 mm
|
|
Focal Plane
|
First focal plane
|
|
Reticle
|
AMX IR: glass-etched mil pattern, illuminated (6 levels)
|
|
Illumination Control
|
Red LED; 6 brightness settings (with off-positions)
|
|
Parallax Adjustment
|
Side focus, 10 yd–∞
|
|
Turret Graduation
|
0.1 MRAD per click
|
|
Total Windage / Elevation
|
±16 MRAD each
|
|
Eye Relief
|
3.0″ (76 mm) constant
|
|
Field of View @ 100 yd
|
21.9 ft (6.7 m) @ 6×; 5.5 ft (1.7 m) @ 24×
|
|
Exit Pupil
|
8.3–2.1 mm
|
|
Length
|
13.0″ (329 mm)
|
|
Weight
|
23.6 oz (670 g)
|
|
Optical Coatings
|
16-layer fully multi-coated
|
|
Chassis Material / Finish
|
Forged aluminium, matte-black anodized
|
|
Weatherproof Rating
|
IP67 (submersible to 1 m); fog- and shock-proof
|
|
All-Calibre Rated
|
Yes
|
|
Included Accessories
|
Removable throw lever; side-focus wheel; sunshade; flip-up covers; lens cloth; instruction manual
|
