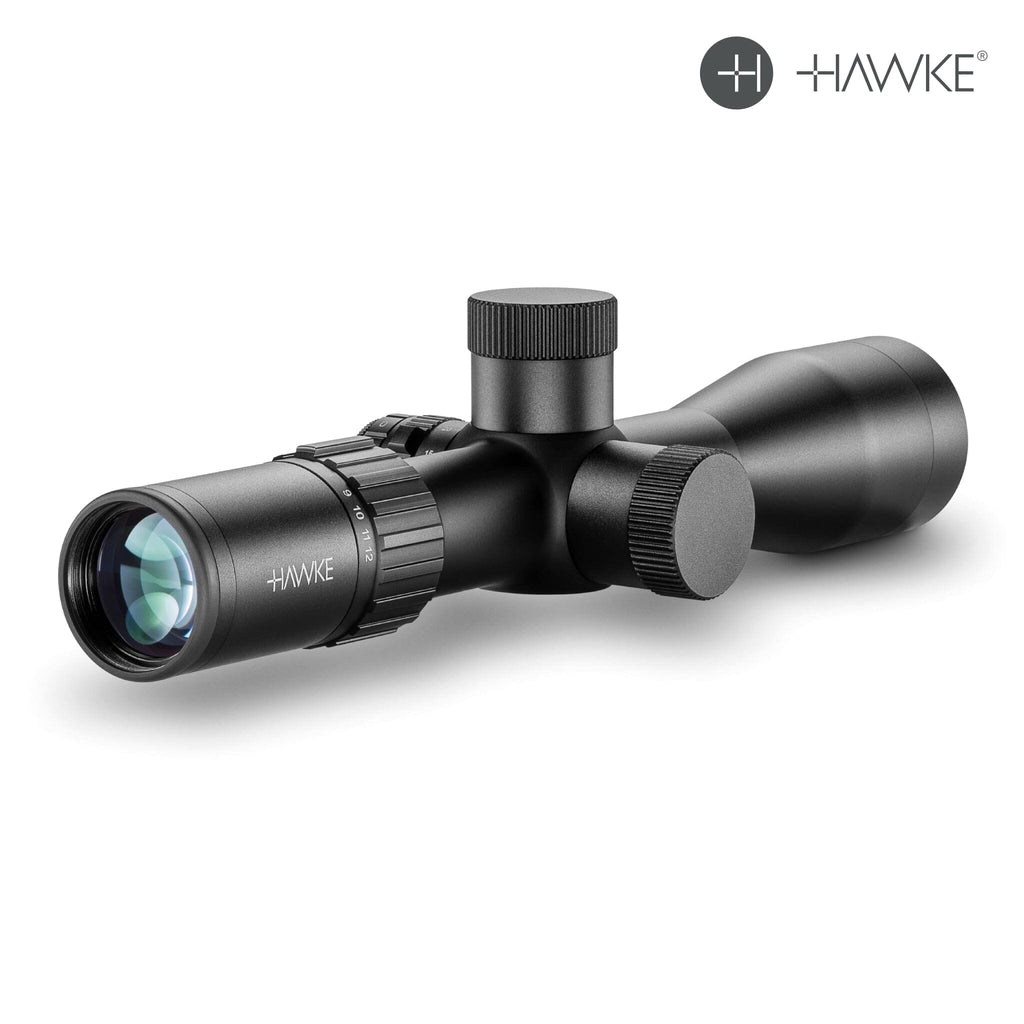

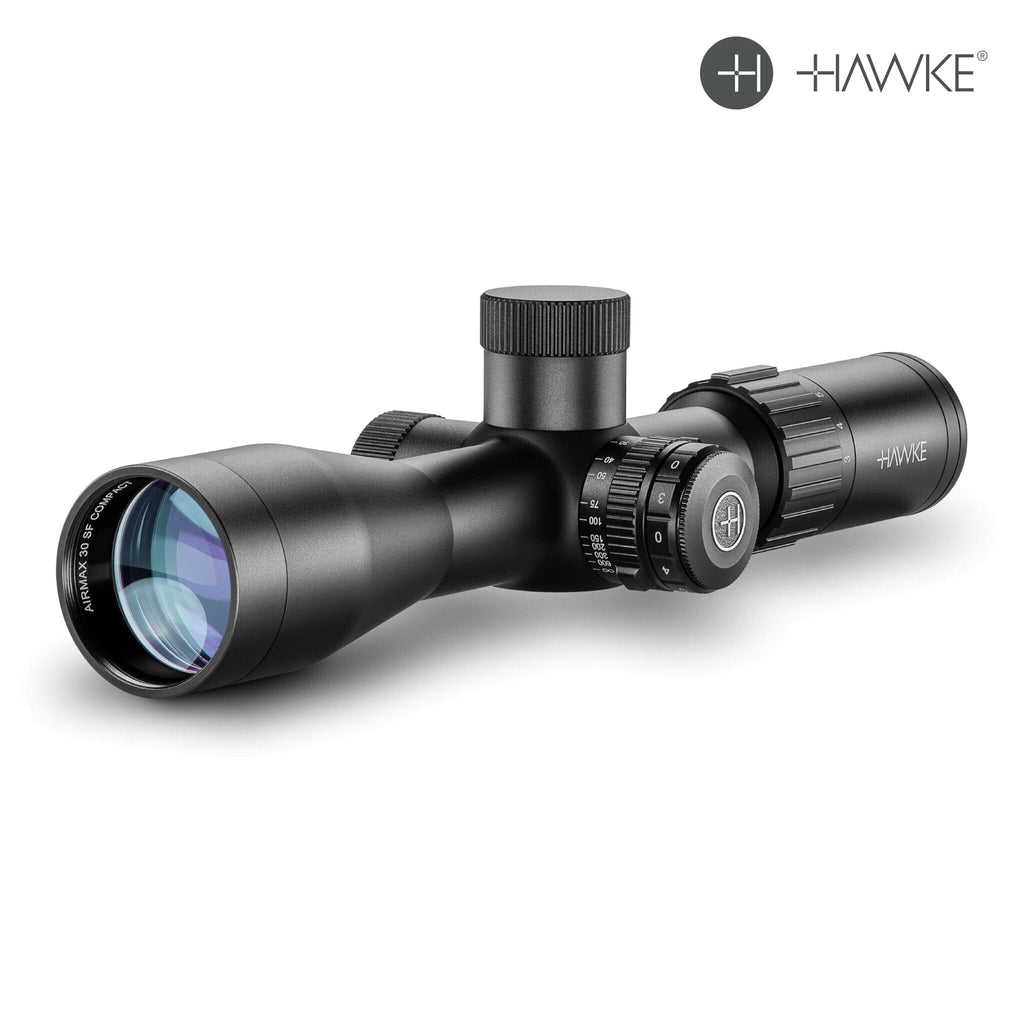

Hawke AIRMAX 30 SF COMPACT 3–12×40 Rifle Scope AMX IR Reticle
Features
-

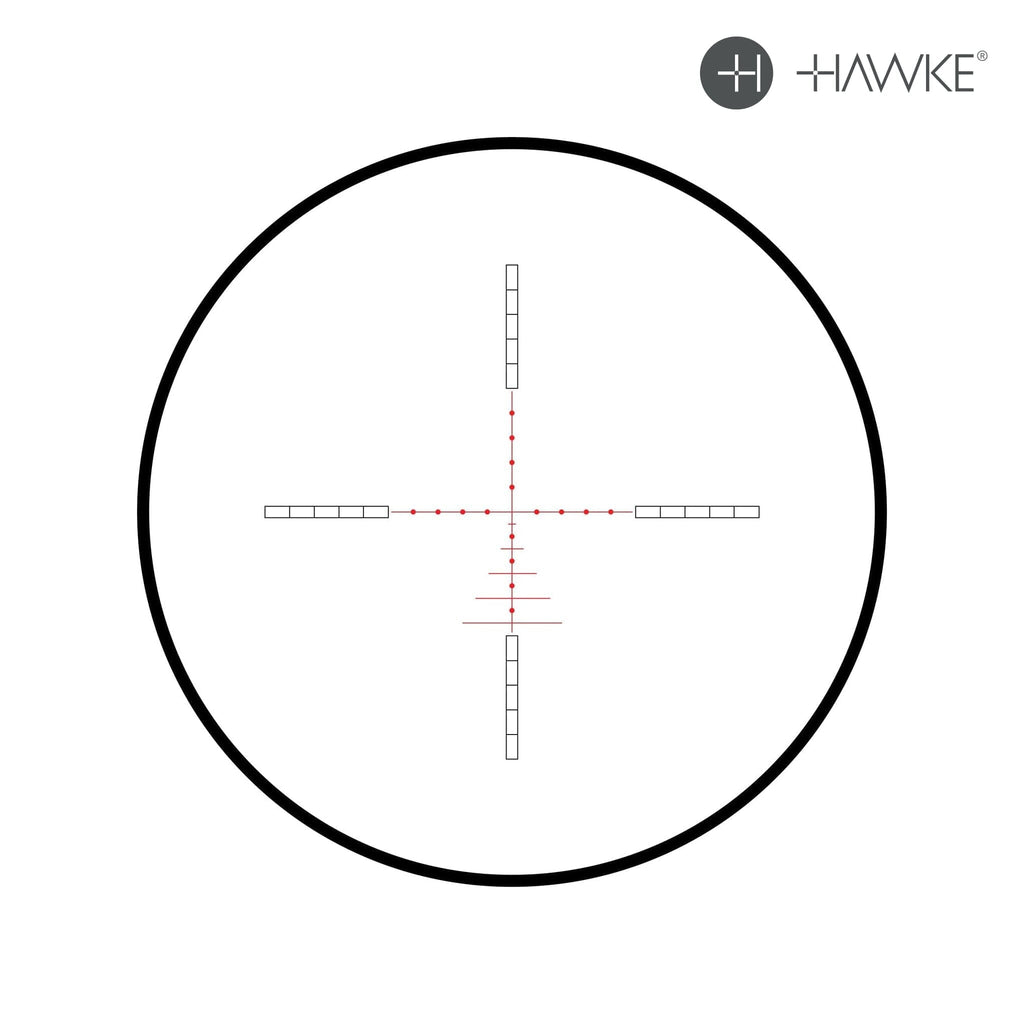

First Focal Plane AMX IR Reticle: Glass-etched, mil-based pattern with red LED illumination and six daylight-bright levels (with off-positions) for accurate ranging and hold-overs at any magnification.
-
Compact 30 mm Mono-Tube Chassis: Forged aluminum construction for superior strength and stability under recoil.
-
Wide 3–12× Zoom Range: High-torque zoom ring with removable throw-lever enables rapid magnification changes.
-
Side-Focus Parallax Adjustment: 10 yd–∞ side wheel for parallax-free clarity at all distances.
-
Capped Target Turrets: Resettable windage and elevation knobs, 0.1 MRAD per click with 17 MRAD total travel, prevent accidental shift of zero.
-
Fully Multi-Coated Optics: 16-layer anti-reflective coatings for edge-to-edge clarity and high light transmission.
-
Weatherproof Design: O-ring and nitrogen sealed to IP67 (submersible to 1 m), fog-proof, shock-proof.
-
Fast-Focus Eyebell: Rapid diopter adjustment for a crisp sight picture.
-
Included Accessories: Removable throw-lever, flip-up lens covers, sunshade, lens cloth, instruction manual.
Technical Specifications for Hawke AIRMAX 30 SF COMPACT 3–12×40 Rifle Scope AMX IR Reticle
|
Specification
|
Details
|
|
Product Title
|
Hawke AIRMAX 30 SF COMPACT 3–12×40 Rifle Scope (AMX IR Reticle)
|
|
Model / MPN
|
Airmax 30 SF Compact 3–12×40 AMX IR (13200)
|
|
SKU
|
HAW-13200
|
|
UPC
|
5054492132003
|
|
Magnification Range
|
3–12×
|
|
Objective Lens Diameter
|
40 mm
|
|
Tube Diameter
|
30 mm
|
|
Reticle
|
AMX IR, FFP; glass-etched mil-based pattern, 6 red illumination levels
|
|
Focal Plane
|
First focal plane
|
|
Illumination
|
Red LED; 6 brightness levels
|
|
Eye Relief
|
3.5 in (≈90 mm) constant
|
|
Field of View @ 100 yd
|
24.4 ft (7.4 m) @ 3×; 12.2 ft (3.7 m) @ 12×
|
|
Parallax Adjustment
|
Side focus, 10 yd to ∞
|
|
Turret Graduation
|
0.1 MRAD per click; 17 MRAD total travel
|
|
Optical Coatings
|
16-layer fully multi-coated
|
|
Length
|
14.0 in (≈355 mm)
|
|
Weight
|
23.5 oz (≈665 g)
|
|
Chassis Material / Finish
|
Forged aluminum, matte-black anodized
|
|
Weatherproofing
|
IP67 (submersible to 1 m); fog- & shock-proof
|
|
Included Accessories
|
4″ sunshade; metal flip-up lens covers; throw-lever; lens cloth; manual
|
|
Warranty
|
Hawke Worldwide Warranty
|
