Hawke AIRMAX 30 SF COMPACT 4–16×44 Rifle Scope AMX IR Reticle
Features
-

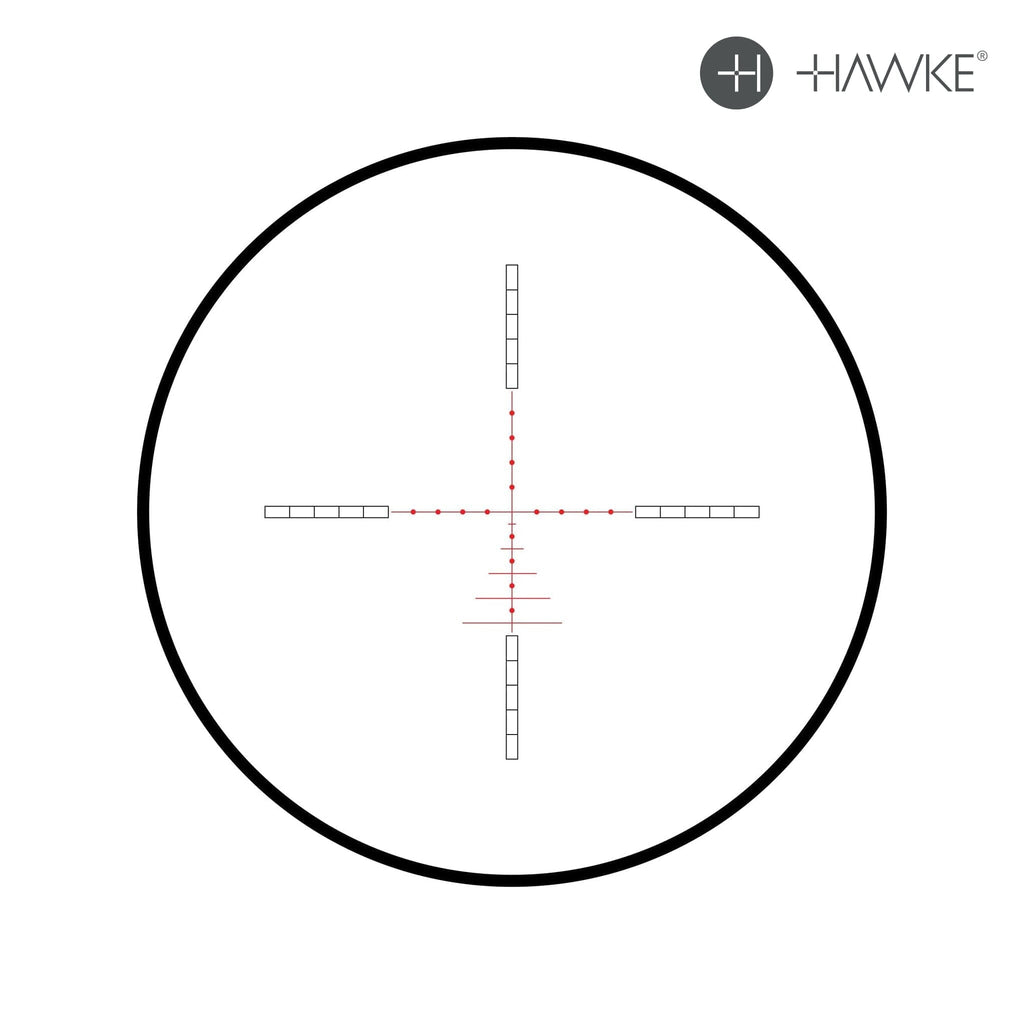

First Focal Plane AMX IR Reticle: Glass-etched, mil-based pattern with red LED illumination and six daylight-bright levels (with off-positions) for accurate ranging and hold-overs at any magnification.
-
30 mm Mono-Tube Chassis: Forged aluminium body for superior strength, stability, and consistent zero retention under recoil.
-
Wide 4–16× Zoom Range: High-torque zoom ring with removable throw-lever enables rapid magnification changes between close-quarters and extended-range engagements.
-
Side-Focus Parallax Adjustment: Side-wheel focuses from 10 yd to ∞ for parallax-free clarity at all distances.
-
Capped Target Turrets: Resettable 0.1 MRAD per-click windage and elevation turrets with 20 MRAD total travel—capped to prevent accidental shifts.
-
16-Layer Fully Multi-Coated Optics: High-density, anti-reflective coatings deliver exceptional light transmission and edge-to-edge clarity.
-
Fast-Focus Eyebell: Quick diopter adjustment for a sharp sight picture without tools.
-
Weatherproof Construction: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog-proof and shock-proof for reliable performance.
-
Included Accessories: Removable throw-lever, 4″ side-wheel, flip-up lens covers, sunshade, lens cloth, and instruction manual.
Technical Specifications for Hawke AIRMAX 30 SF COMPACT 4–16×44 Rifle Scope AMX IR Reticle
|
Specification
|
Details
|
|
Model / MPN
|
Airmax 30 SF Compact 4–16×44 AMX IR (13210)
|
|
SKU
|
AMXFFP41644
|
|
Magnification Range
|
4–16×
|
|
Objective Lens Diameter
|
44 mm
|
|
Tube Diameter
|
30 mm
|
|
Focal Plane
|
First focal plane
|
|
Reticle
|
AMX IR: glass-etched mil-based with 6 red illumination levels (off-positions between)
|
|
Illumination Control
|
LED-powered, 6 brightness settings
|
|
Eye Relief
|
3″ (76 mm) constant
|
|
Field of View @ 100 yd
|
32.8 ft @ 4×; 8.2 ft @ 16×
|
|
Parallax Adjustment
|
Side focus, 10 yd – ∞
|
|
Turret Graduation
|
0.1 MRAD per click
|
|
Total Windage / Elevation
|
20 MRAD each
|
|
Optical Coatings
|
16-layer fully multi-coated
|
|
Length
|
11.7″ (296 mm)
|
|
Weight
|
21.9 oz (621 g)
|
|
Chassis Material / Finish
|
Forged aluminium, matte-black anodized
|
|
Weatherproof Rating
|
IP67 (submersible to 1 m); fog-/shock-proof
|
|
Mounts Supplied
|
Yes (integrated clamp for Picatinny/Weaver rails)
|
|
Included Accessories
|
Throw-lever; side-wheel; sunshade; lens covers; lens cloth; manual
|
|
Warranty
|
Hawke Worldwide Warranty
|
