Hawke Airmax 4-12x40 AO Rifle Scope SFP AMX Reticle – 13130
Hawke Sport Optics
Hawke Airmax 4-12x40 AO Rifle Scope SFP AMX Reticle – 13130
Shipping Information
Orders ship within the United States only and are typically processed in 1–2 business days. Delivery estimates and any free-shipping offers are shown at checkout. We do not ship internationally. Read our full Shipping Policy.
Returns
Unused items in their original packaging may be returned within 30 days of delivery. Optics that have been mounted or used may be inspected. Email support@dnrsports.com to start a return. Read our full Return & Refund Policy.
Warranty Information
Products are covered by their manufacturer's warranty; coverage and length vary by brand. We'll help you start a claim if needed — email support@dnrsports.com. Read our Warranty page.
The D&R Standard
- Secure Online Ordering
- Carefully Selected Equipment
- Knowledgeable Product Support
- Manufacturer Warranty Information Available
Overview

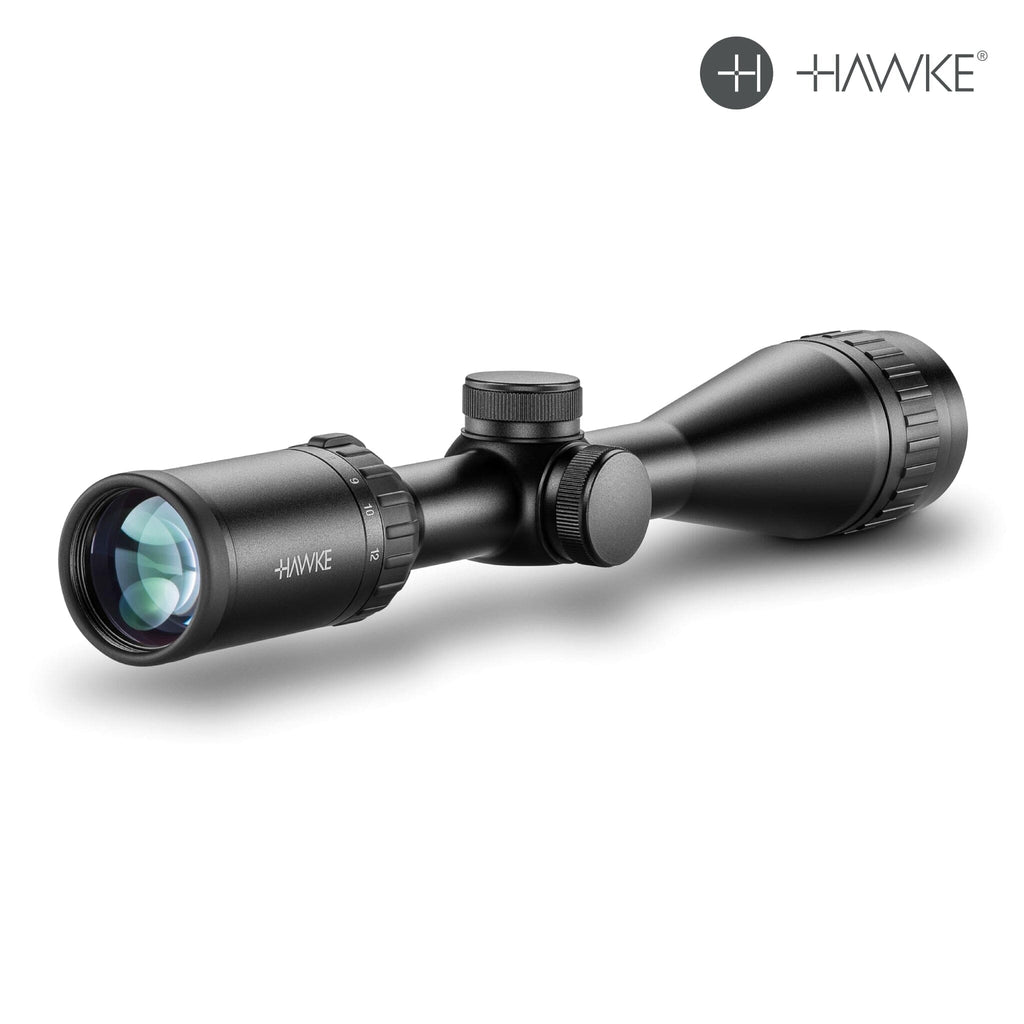

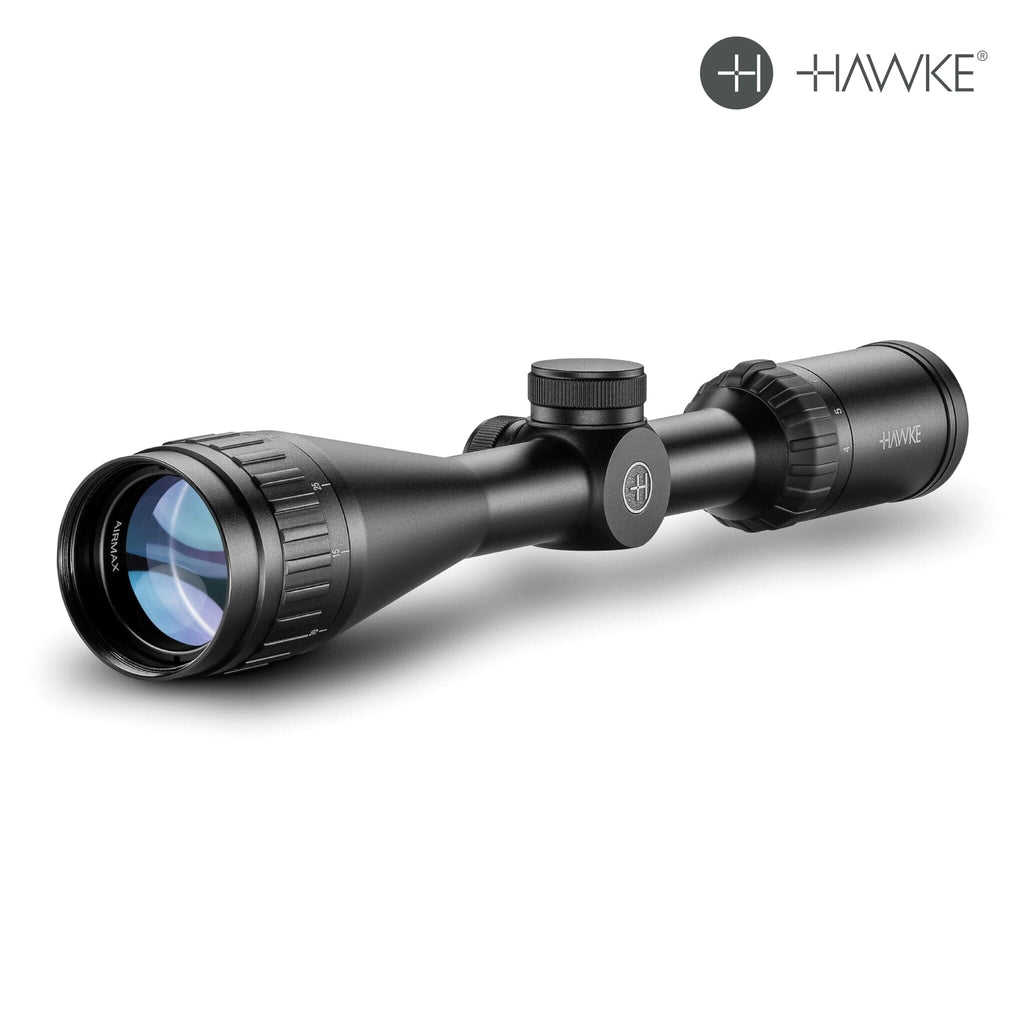

The Hawke Airmax 4-12x40 AO Rifle Scope SFP AMX Reticle is a Hawke Sport Optics rifle scope with 4 - 12x magnification and 40mm objective.
How It Compares
Compare with the Airmax 2-7x32 AO AMX, Airmax 3-9x40 AO AMX and Airmax 4-12x50 AO AMX. Browse all rifle scopes or the full Hawke range.
Ideal For
- 4-12x on one rifle, for ordinary field ranges
- Shooters who hold off rather than dial, with subtensions set at one magnification
- Shooting into shadow or at first light, with the AMX reticle lit
- Rimfire and target distances, where the adjustable objective lets you kill parallax precisely
Key Features
- Magnification: 4 - 12x
- Objective: 40mm

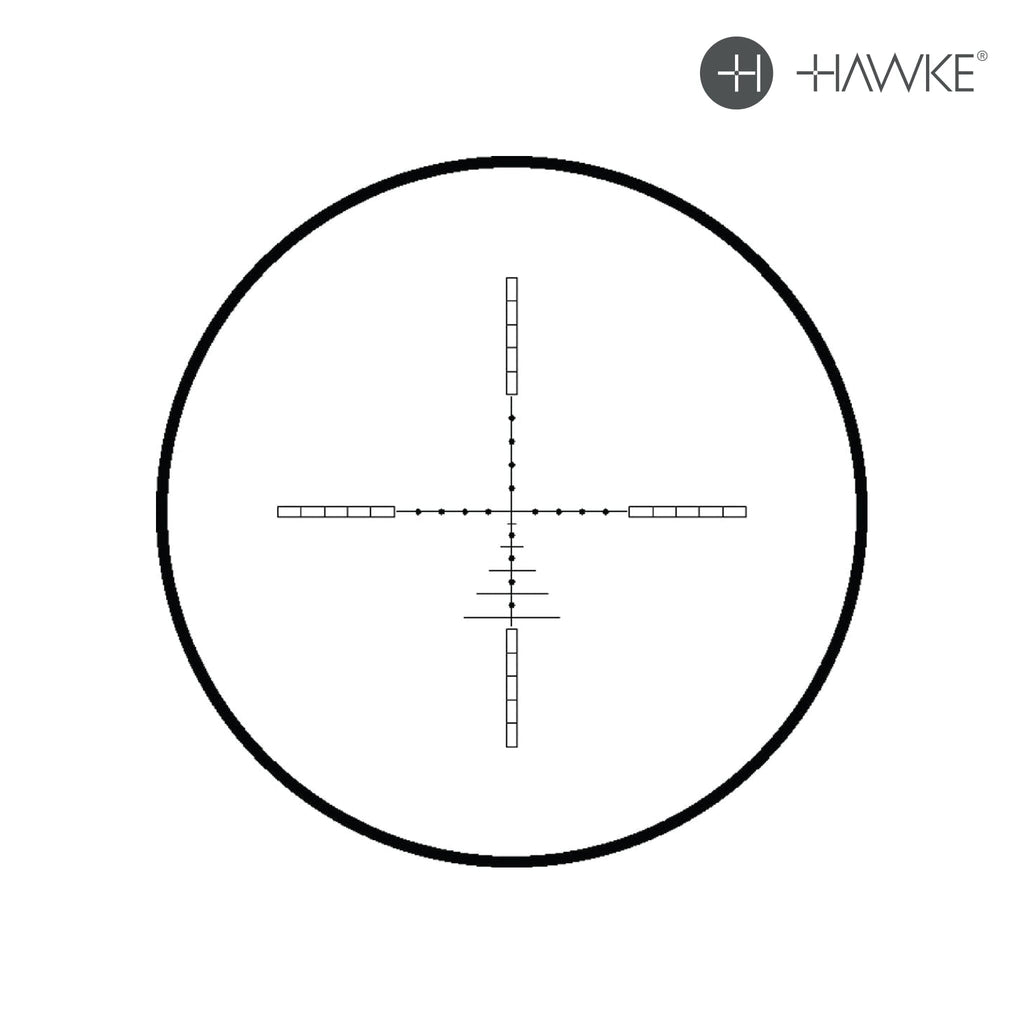

- Reticle: AMX
- Illumination: None - non-illuminated model
- Focal Plane: SFP (Second Focal Plane)
- Tube: 1 Inch
- Click Value: 1/4 MOA
- Parallax: Adjustable Objective
About This Model
- Reticle: AMX
- Illumination: None - non-illuminated model
- Optical System: System H2
- Warranty: Hawke No-Fault Lifetime Warranty
What's Included
- Box, Instruction Manual, Lens Cloth, Lens Covers
Technical Specifications
Magnification |
4 - 12x |
Objective |
40mm |
Tube |
1 Inch |
Focal Plane |
SFP (Second Focal Plane) |
Reticle |
AMX |
Illumination |
None - non-illuminated model |
Parallax |
Adjustable Objective |
Parallax Distance |
10 - ∞ |
Click Value |
1/4 MOA |
Eye Relief |
3.5 |
Field of View |
29.9 - 11 |
Length |
12.9 |
Weight |
18.4 |
Lens Coating |
Fully Multi-Coated - 16 Layers |
Optical System |
H2 |
Construction |
1 Inch Mono-tube chassis, Nitrogen purged. Shockproof. Waterproof. Fog proof. | Elevation turret: Capped. Low-Profile. Resettable | Windage turret: Capped. Low-Profile. Resettable | Ocular: Fast Focus |
Airgun Rating |
All caliber rated - Airmax is Hawke's dedicated airgun line: rated for spring/gas-ram airgun double recoil as well as rimfire and centerfire |
Battery |
None - non-illuminated model, no battery supplied |
SKU / MPN / UPC |
13130 / 13130 / 5054492131303 |
Warranty
Hawke back this with their No-Fault Lifetime Warranty — if it is ever faulty they repair or replace it, no receipt or registration needed, for the original owner.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is it first or second focal plane?
SFP (Second Focal Plane). The reticle stays the same visual size as you zoom, so holdovers are calibrated at one magnification.
Which reticle does it have?
AMX.
Is the reticle illuminated?
None - non-illuminated model.
What is the parallax setting?
Adjustable Objective.
Is this a genuine Hawke Sport Optics product?
Yes — factory-new Hawke Sport Optics, supplied through US distribution. The part number is 13130 and the barcode is 5054492131303.
What warranty does it carry?
Hawke back this with their No-Fault Lifetime Warranty — if it is ever faulty they repair or replace it, no receipt or registration needed, for the original owner.
Technical Specifications
- SKU
- 13130
- UPC
- 5054492131303
- Magnification Range
- 4-12x
- Objective Lens Diameter
- 40 mm
- Reticle
- AMX
- FFP or SFP
- Second Focal Plane (SFP)
- Illumination
- No
- Adjustment Type
- MOA
- Adjustment Click Value
- 1/4 MOA
- Windage Adjustment Range
- 80 MOA
- Elevation Adjustment Range
- 80 MOA
- Parallax Type
- Adjustable Objective (AO)
- Parallax Range
- 10 yds – ∞
- Eye Relief
- 89 mm (3.5 in)
- Field of View
- 29.9 – 11 ft @ 100 yds
- Tube Diameter
- 1 inch (25.4 mm)
- Length
- 322 mm (12.7 in)
- Weight
- 522 g (18.4 oz)
- Material
- Aluminum
- Finish
- Matte Black
- Waterproof / Fogproof / Shockproof
- Yes
- Country of Origin
- China
- Manufacturer Warranty
- Hawke Lifetime Warranty
- SKU / MPN
- 13130
