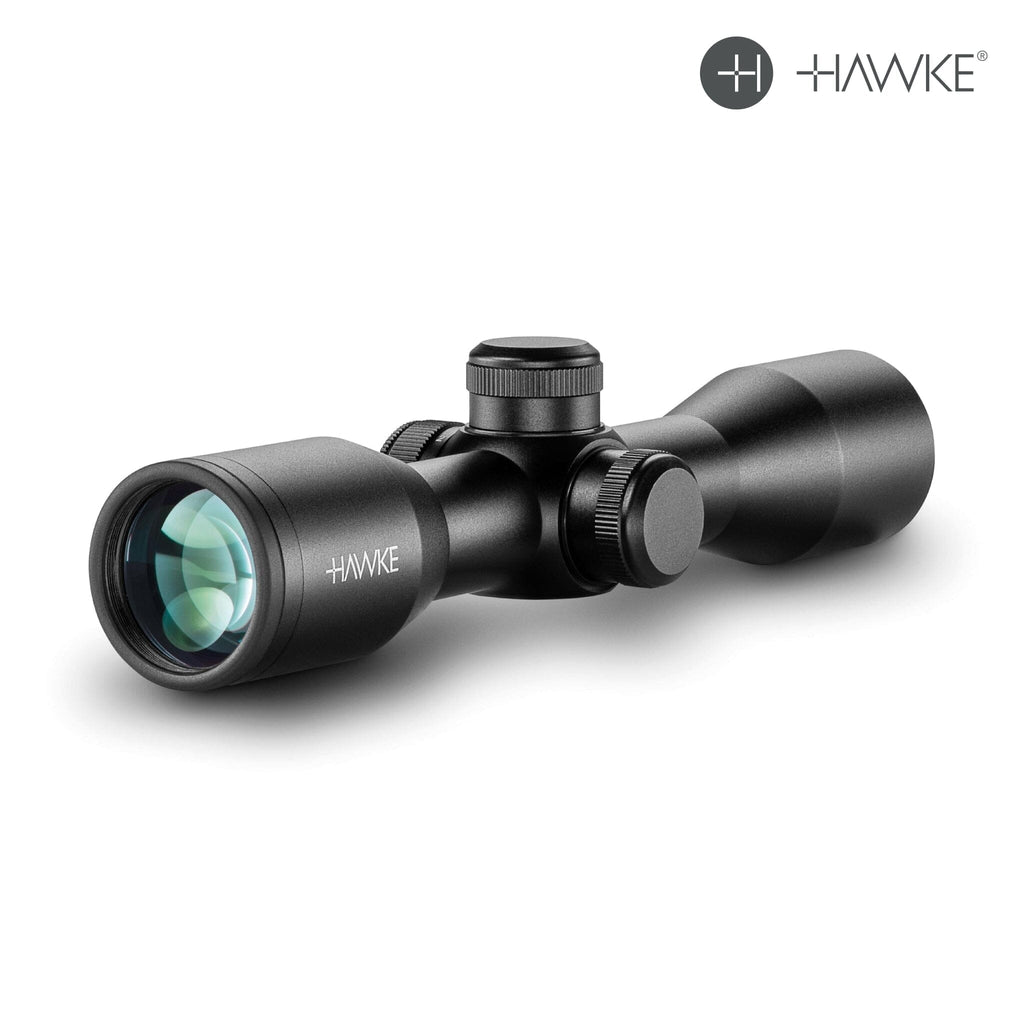

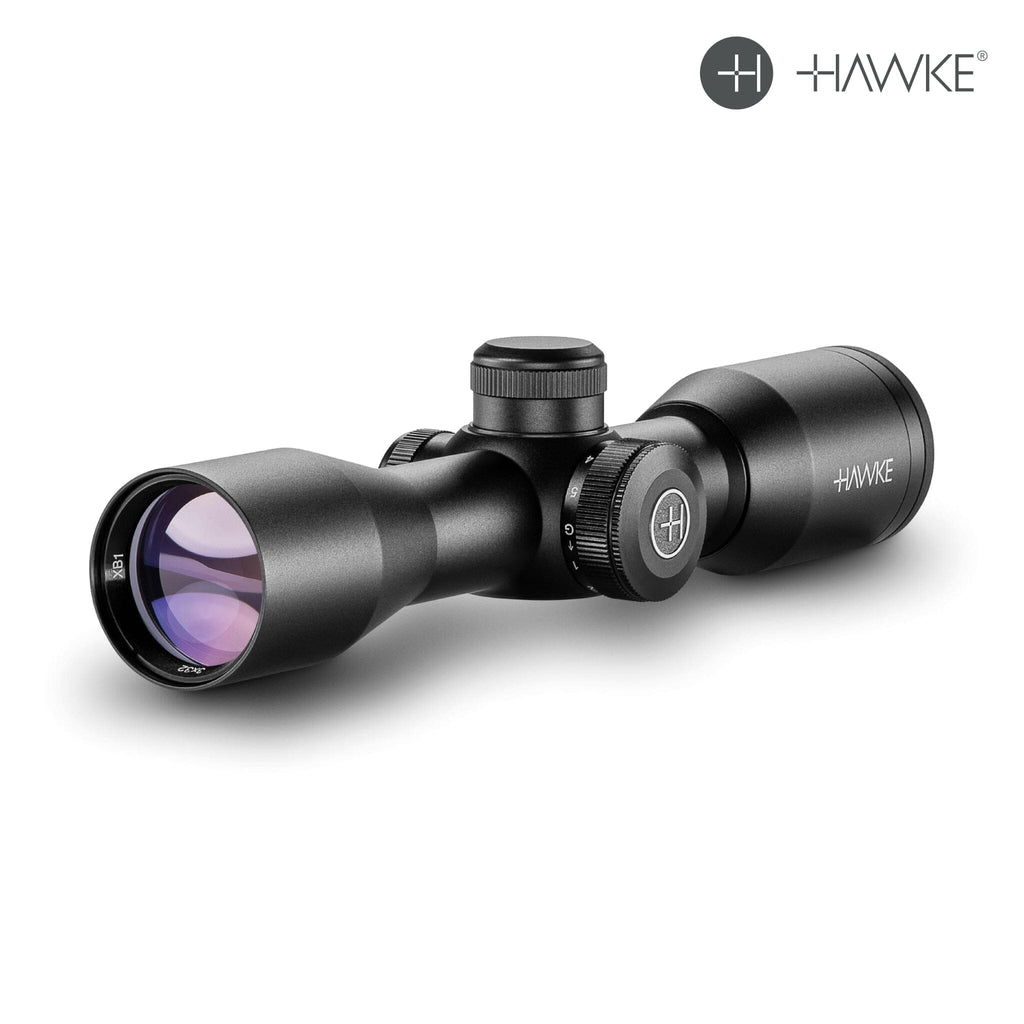

Hawke XB 3×32mm Crossbow Scope SR Reticle
Features
-
XB SR Ballistic Reticle: Glass-etched “SR” multi-line reticle calibrated for 340 fps crossbow bolts; 20 yd zero with 10 yd aim points out to 70 yd.
-
Dual-Color Illumination: Red/green reticle illumination with five brightness levels per color via a saddle-mounted rheostat.
-
Robust 1″ Monotube Chassis: Forged aluminum, nitrogen-purged, O-ring sealed; waterproof, shock- and fog-proof; all-caliber rated.
-
Fully Multi-Coated Optics: 11-layer anti-reflective coatings for excellent clarity and light transmission.
-
Fast-Focus Eyebell & High-Torque Zoom Ring: Quick diopter adjustment and a grippy zoom ring for rapid setup.
-
Low-Profile ½ MOA Turrets: Resettable fingertip-adjustable turrets with protective caps; 120 MOA total windage/elevation travel.
-
Fixed Parallax at 50 yd: Optimized focus for typical crossbow engagement distances.
-
Generous Eye Relief: 102 mm (4″) constant for comfortable shooting posture.
Technical Specifications for Hawke XB 3×32mm Crossbow Scope SR Reticle
Specification
|
Details
|
Model / MPN
|
12211
|
SKU
|
12211
|
UPC
|
5054492122110
|
Magnification
|
3×
|
Objective Lens Diameter
|
32 mm
|
Tube Diameter
|
1″ (25.4 mm)
|
Reticle
|
XB SR multi-line, red/green illuminated
|
Illumination Levels
|
5 red + 5 green
|
Parallax / Focus
|
Fixed at 46 m / 50 yd
|
Field of View
|
11.1 m @ 100 m / 33.3 ft @ 100 yd
|
Eye Relief
|
102 mm (4″)
|
Exit Pupil
|
11 mm / 0.4″
|
Adjustment Graduation
|
½ MOA per click
|
Total Windage / Elevation
|
±120 MOA
|
Turret Type
|
Low-profile, fingertip-adjustable, capped
|
Length
|
216 mm (8.5″)
|
Weight
|
311 g (11 oz)
|
Housing Material / Finish
|
Forged aluminum, matte-black anodized
|
Sealing
|
Nitrogen-purged; waterproof, shock-/fog-proof
|
Warranty
|
Hawke Worldwide Warranty
|
Included Accessories
-
Medium aluminum rings (installed)
-
Flip-up lens covers
-
Cleaning cloth
-
Instruction manual
