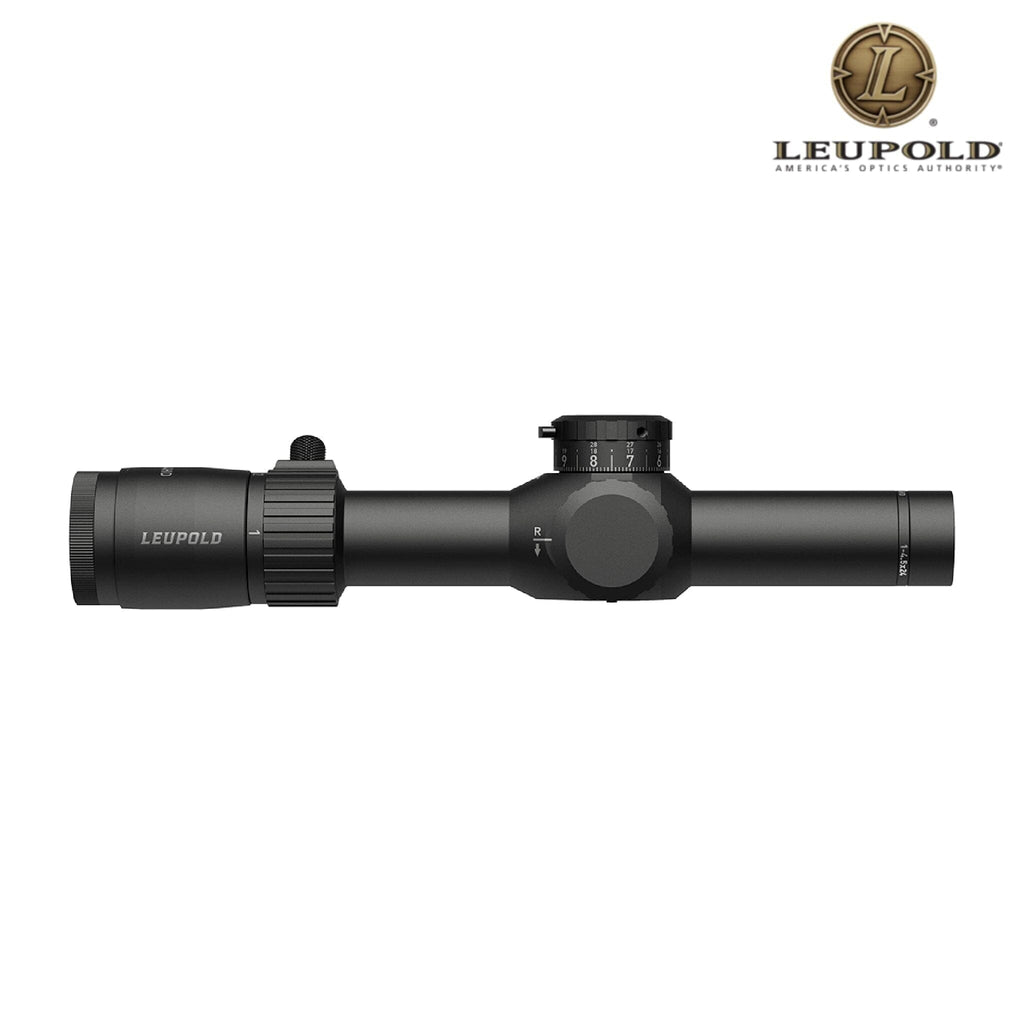

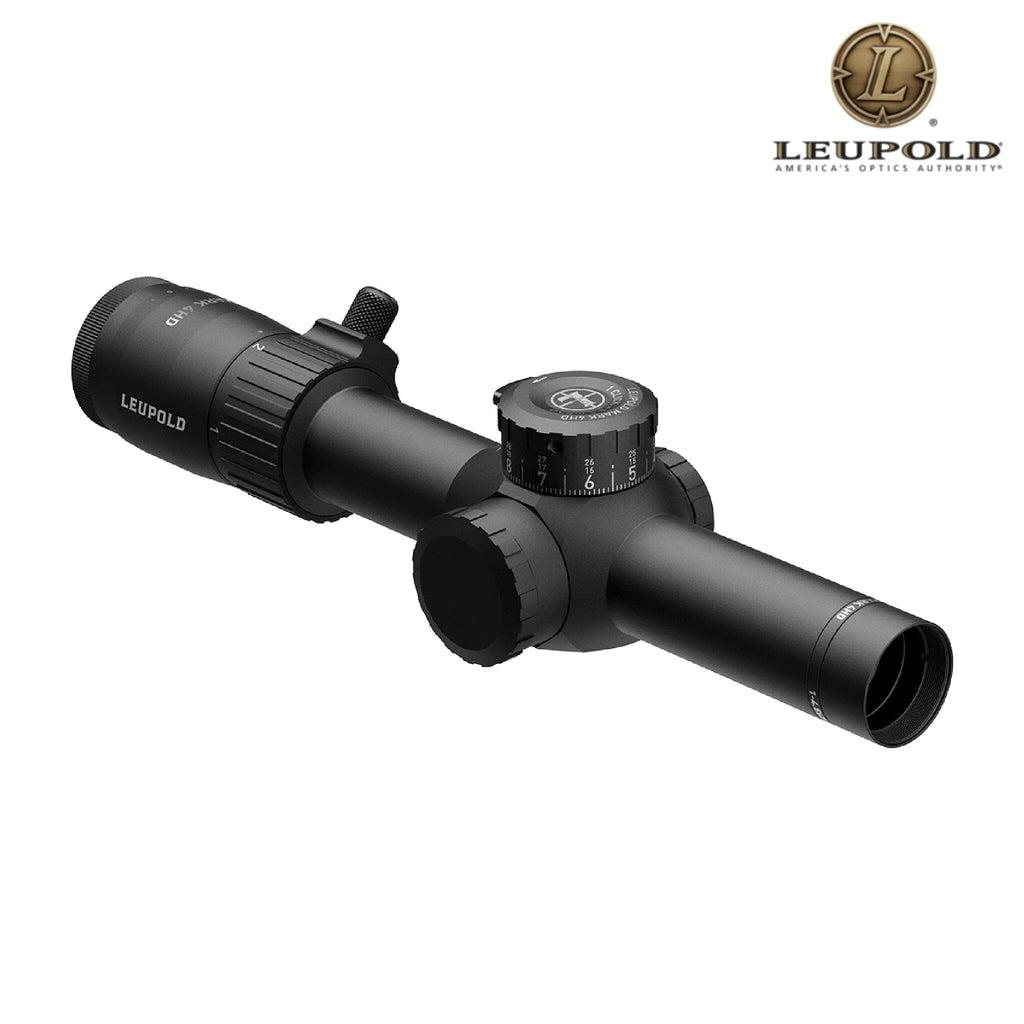

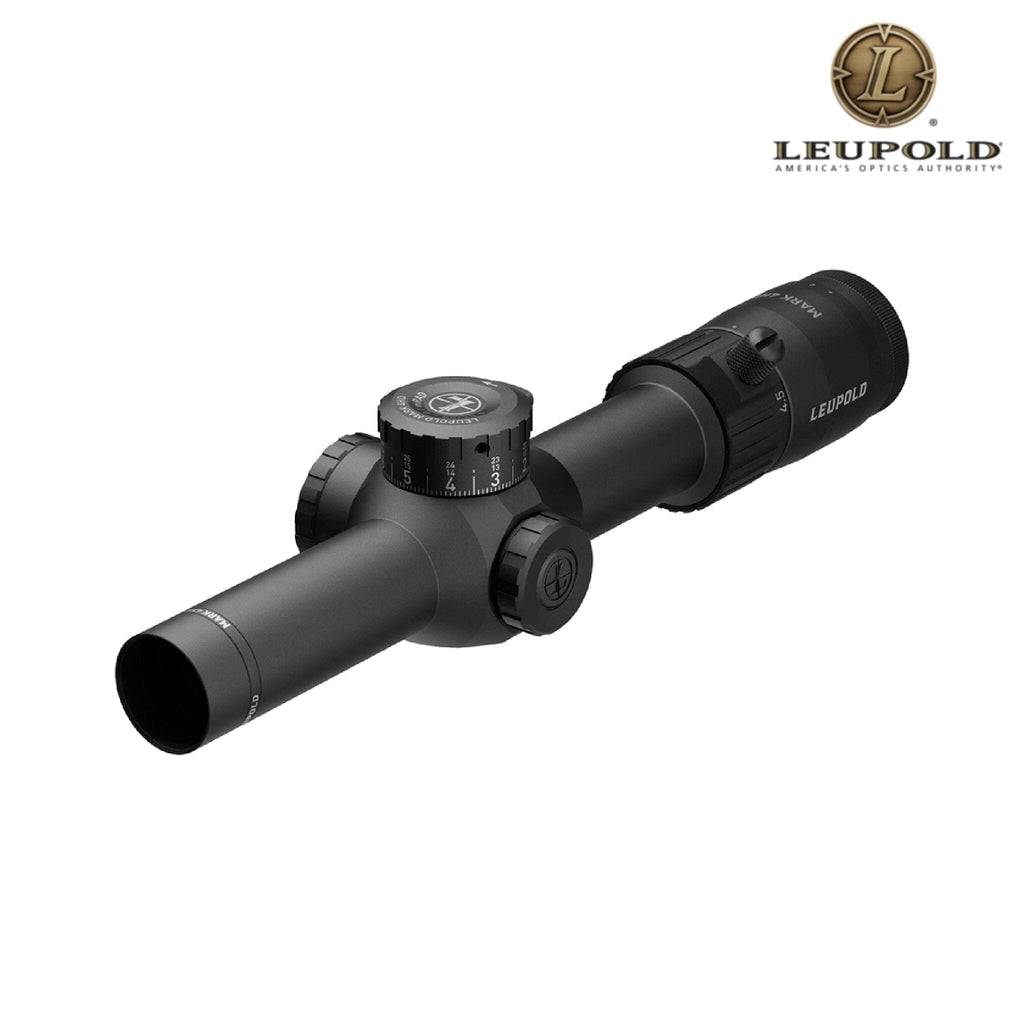

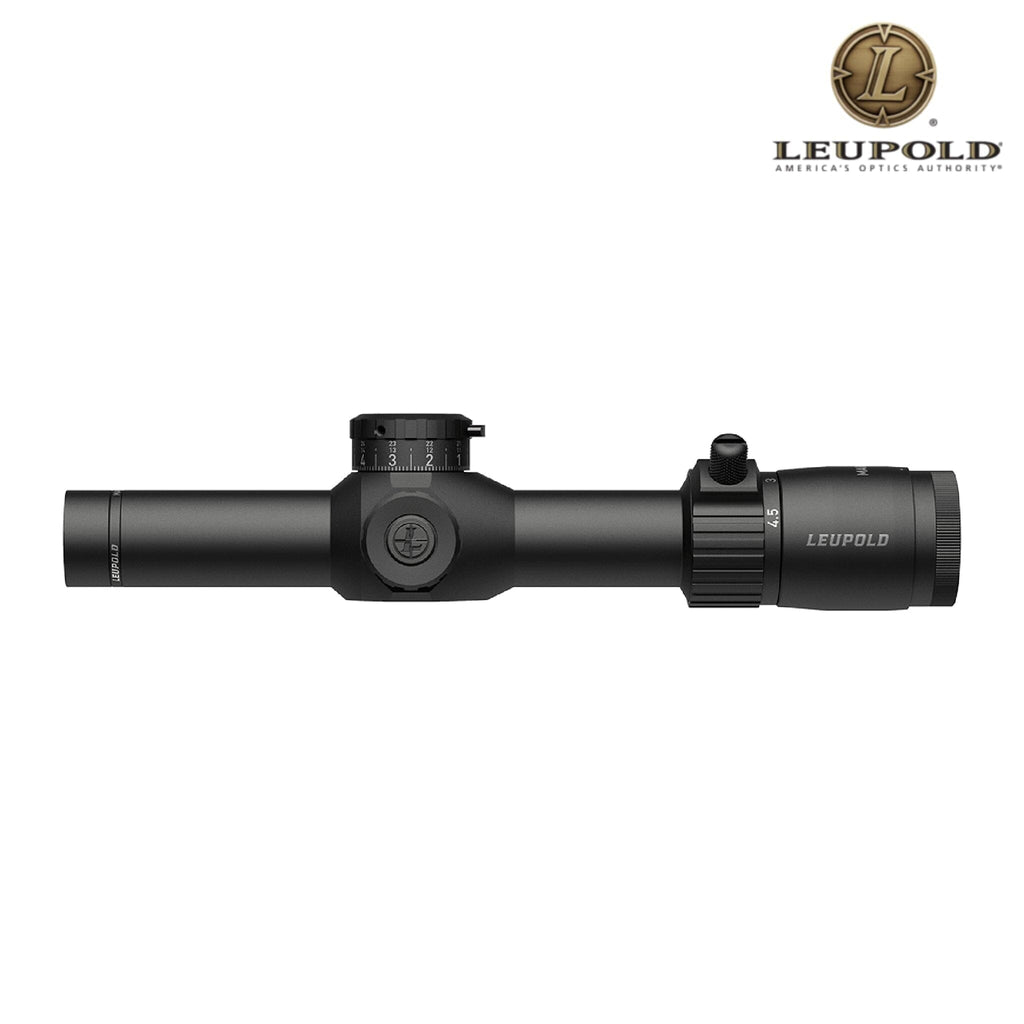

Leupold Mark 4HD 1-4.5x24 LPVO Rifle Scope M5C3 Illuminated SFP FireDot TMR – 183316
Leupold
Leupold Mark 4HD 1-4.5x24 LPVO Rifle Scope M5C3 Illuminated SFP FireDot TMR – 183316
Shipping Information
Add your shipping details here, or link your shipping policy page.
Returns
Add your return policy summary here, or link your returns page.
Warranty Information
Add manufacturer warranty information for this product here.
The D&R Standard
- Secure Online Ordering
- Carefully Selected Equipment
- Knowledgeable Product Support
- Manufacturer Warranty Information Available
Overview
The Leupold Mark 4HD 1-4.5x24 LPVO Rifle Scope pairs a second focal plane illuminated FireDot TMR reticle with Leupold's Professional-Grade Optical System, delivering bright, high-contrast images and repeatable adjustments in a rugged 30mm maintube — designed, machined and assembled in the USA.
How It Compares
Want a different reticle or magnification? Compare the 1-4.5x24 HPR-1, 1-4.5x24 FireDot BDC Illuminated, 2.5-10x42 TMR Illuminated. Browse all LPVO scopes, Leupold rifle scopes, the full rifle scopes range.
Ideal For
- Close-quarters to mid-range shooting
- Tactical carbine and 3-Gun use
- Fast both-eyes-open target acquisition at low power
Key Features

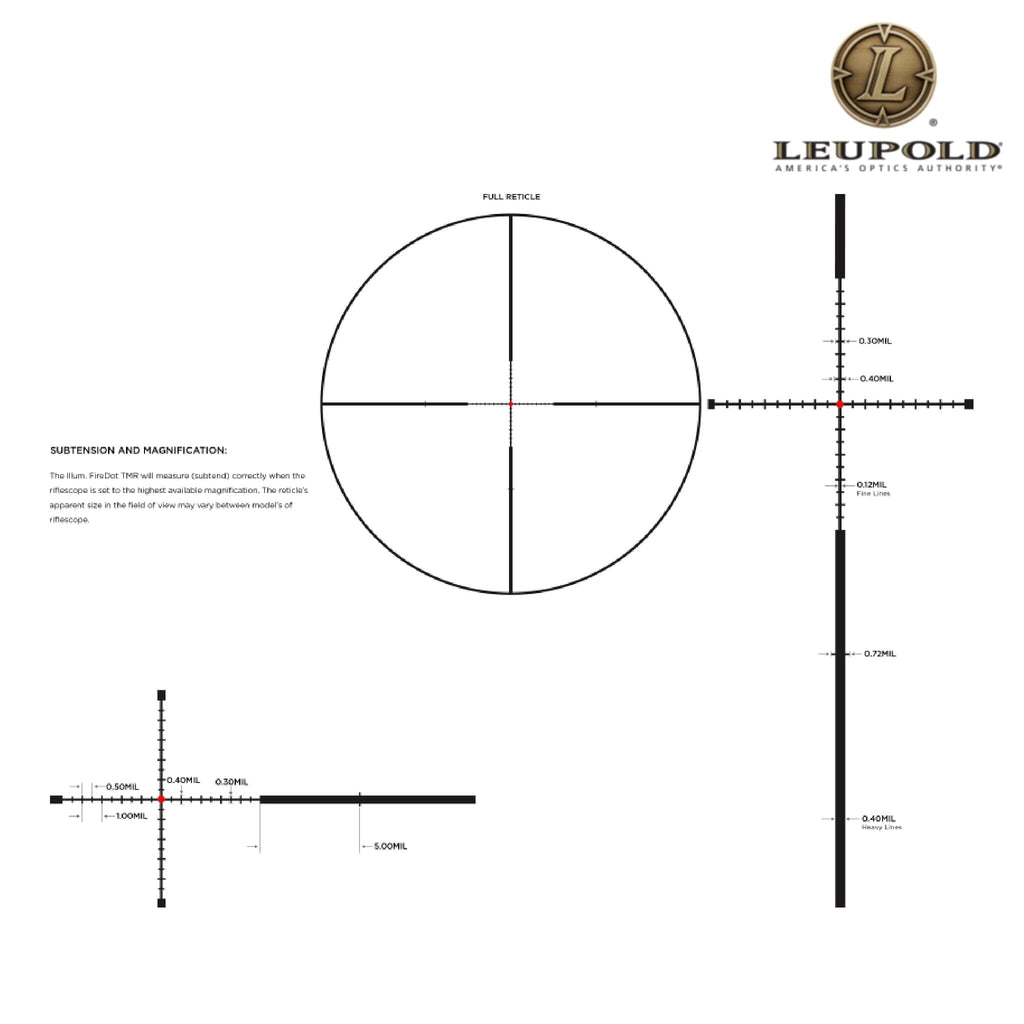

- Illuminated FireDot TMR reticle with Motion Sensor Technology (CR2032)
- Professional-Grade Optical System with industry-leading glare reduction
- M5C3 ZeroLock turrets (0.1 MRAD clicks, three-revolution elevation)
- 48 MIL / 165 MOA elevation adjustment range
- 100% waterproof, fogproof and shockproof
- Backed by Leupold's Full Lifetime Guarantee
Technical Specifications
Magnification |
1-4.5x |
Objective Lens |
24mm |
Tube Diameter |
30mm |
Reticle |
FireDot TMR |
Focal Plane |
Second Focal Plane (SFP) |
Illumination |
Yes |
Turret System |
M5C3 |
Click Value |
0.1 MRAD |
Elevation Adjustment |
48 MIL / 165 MOA |
Windage Adjustment |
29 MRAD |
Zoom Ratio |
4.5:1 |
Parallax |
Fixed 150 yd |
Eye Relief |
3.7-3.9 in |
Field of View @ 100 yds |
118.8-25.2 ft |
Length |
10.7 in |
Weight |
18 oz |
Finish |
Matte Black |
Warranty |
Leupold Full Lifetime Guarantee |
SKU / MPN / UPC |
183316 / 183316 / 030317036324 |
What's Included
- Riflescope
- Scope cover
- Lens cloth
- CR2032 battery
- Leupold guarantee card
US Shipping & Support
In stock and ready to ship from D&R Sports Center with fast, tracked delivery across the USA. Questions on reticle choice or mounting? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is the 1-4.5x24 Mark 4HD first or second focal plane?
It is a second focal plane (SFP) scope, so the FireDot TMR reticle stays a constant visual size while holdovers are true at maximum magnification.
What are the turret adjustments?
M5C3 ZeroLock turrets (0.1 MRAD clicks, three-revolution elevation), giving 48 MIL / 165 MOA of elevation travel with a positive return to zero.
Is the reticle illuminated?
Yes. The FireDot TMR reticle is illuminated with Motion Sensor Technology that puts the sight into standby after five minutes of inactivity and wakes it instantly on movement, running on a CR2032 battery.
What rings or mount do I need?
It uses a 30mm maintube. See our scope mounts & rings in the matching diameter.
Is it covered by warranty?
Yes — the optic is backed by Leupold's Full Lifetime Guarantee; the illumination electronics carry Leupold’s electronics warranty.
Technical Specifications
- SKU
- 183316
- UPC
- 030317036324
