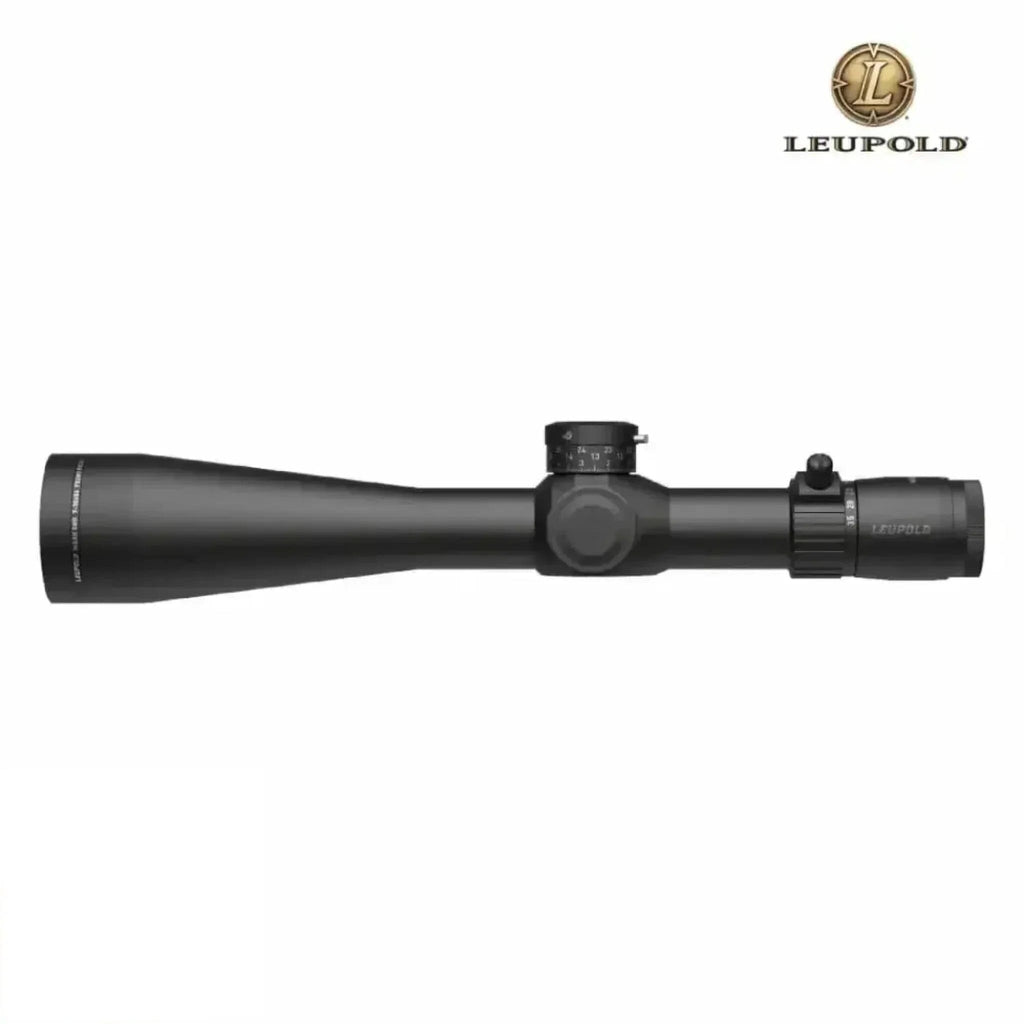

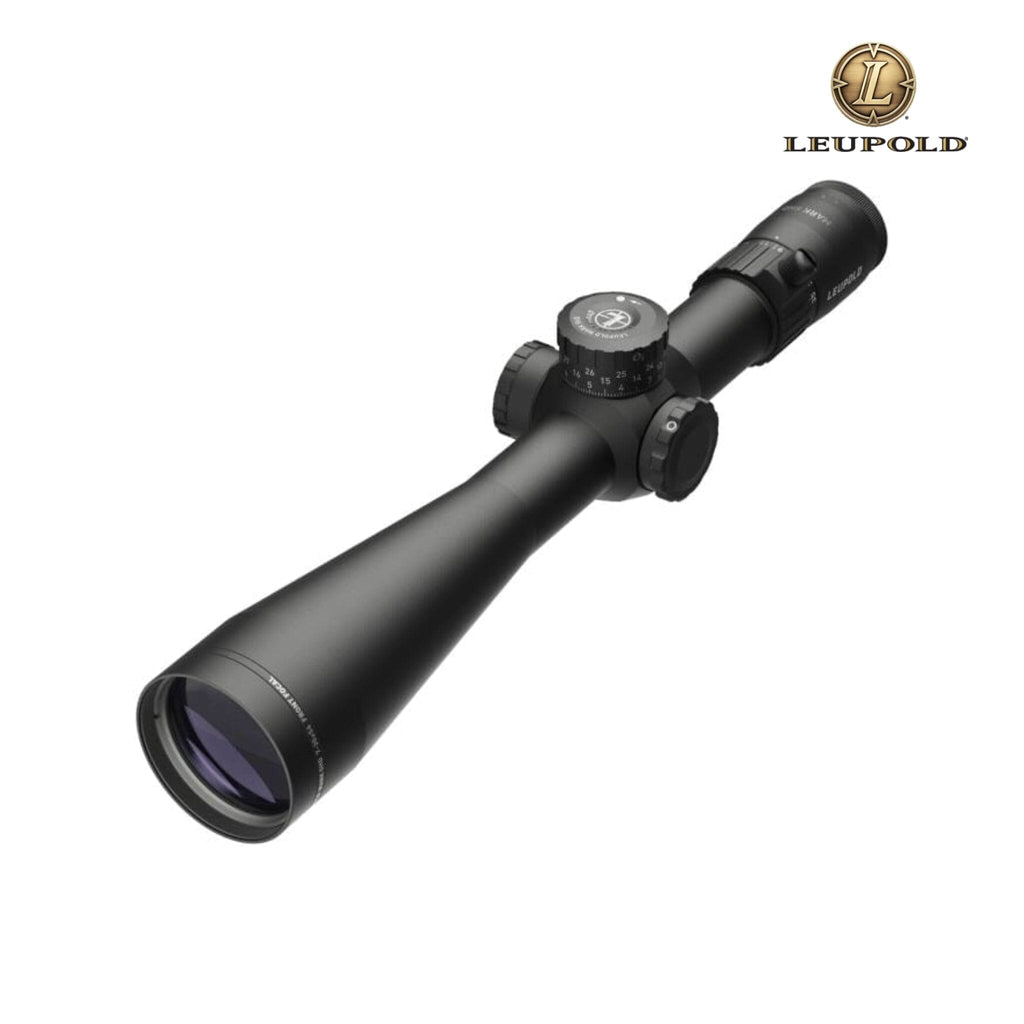

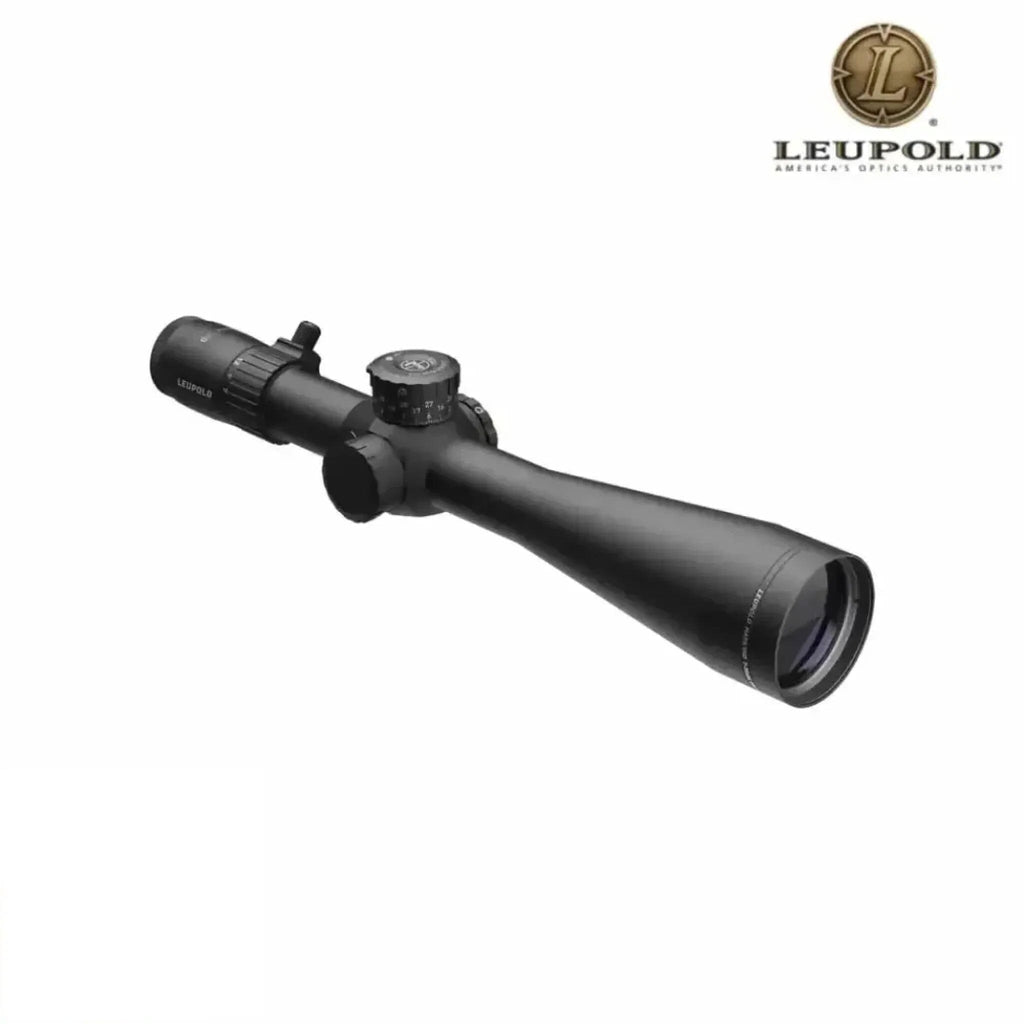

Leupold MARK 5HD 7–35×56 Rifle Scope M5C3 FFP TMR Reticle
(Model 177332)
Features
Technical Specifications for Leupold MARK 5HD 7–35×56 Rifle Scope M5C3 FFP TMR Reticle
|
Specification |
Details |
|
Model / MPN |
177332 |
|
SKU |
LEU-177332 |
|
UPC |
030317022648 |
|
Country of Origin |
USA |
|
Magnification Range |
7 × ⇄ 35 × |
|
Objective Lens Diameter |
56 mm |
|
Main Tube Diameter |
35 mm |
|
Reticle |

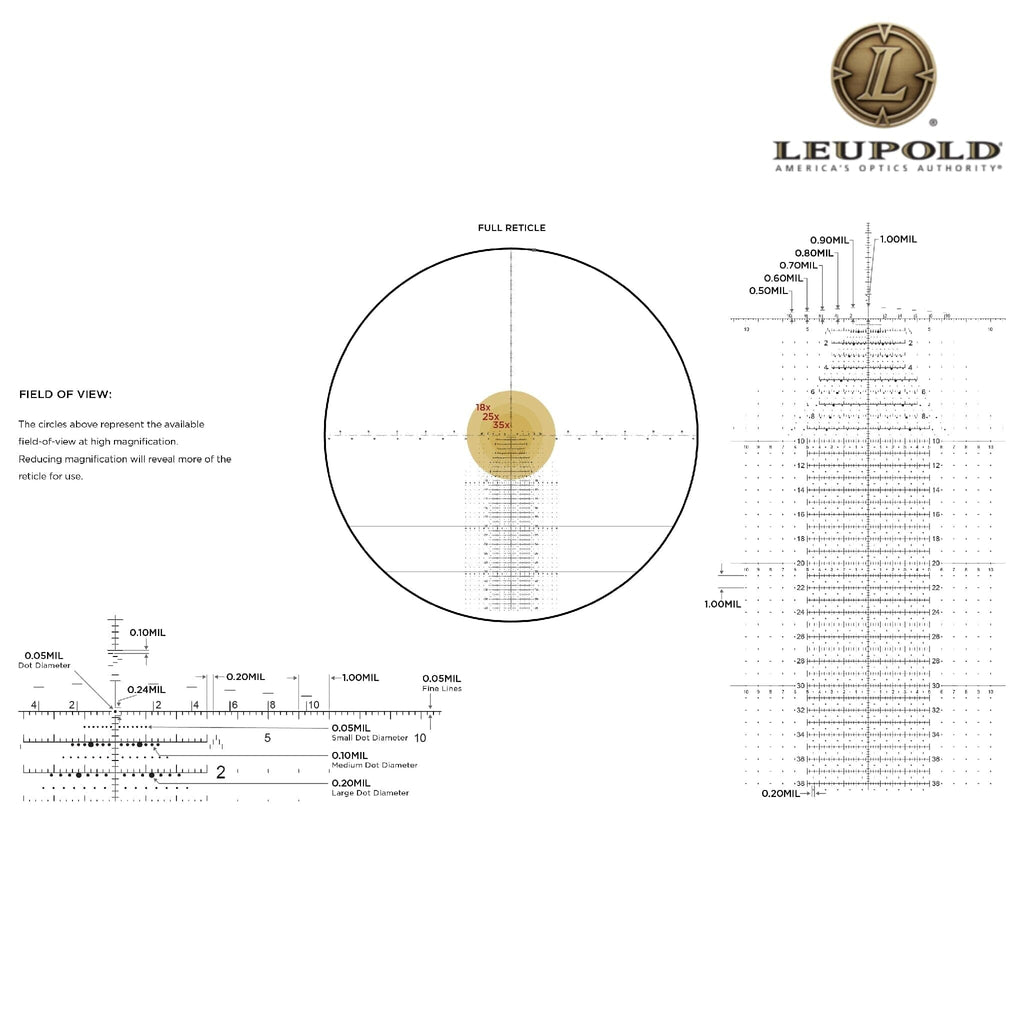

TMR™ (FFP, glass-etched) |
|
Illumination Settings |
None |
|
Elevation Adjustment |
M5C3; 0.1 mrad/click; 10 mrad/rev; 29 mrad total; ZeroStop™ |
|
Windage Adjustment |
0.1 mrad/click; 24 mrad total; capped turret |
|
Parallax Focus |
Side focus, 50 yd → ∞ |
|
Field of View @ 100 yd |
14.7 ft (low) ⇄ 3.0 ft (high) |
|
Eye Relief |
3.6″ (91 mm) constant |
|
Overall Length |
15.7″ (398 mm) |
|
Weight |
33 oz (936 g) |
|
Housing Material/Finish |
6061-T6 aluminum; matte-black hard-coat anodize |
|
Waterproof/Fog-Proof |
Yes (IPX7) |
|
Shock Resistance |
Rated to withstand .50 BMG recoil |
Included Accessories
