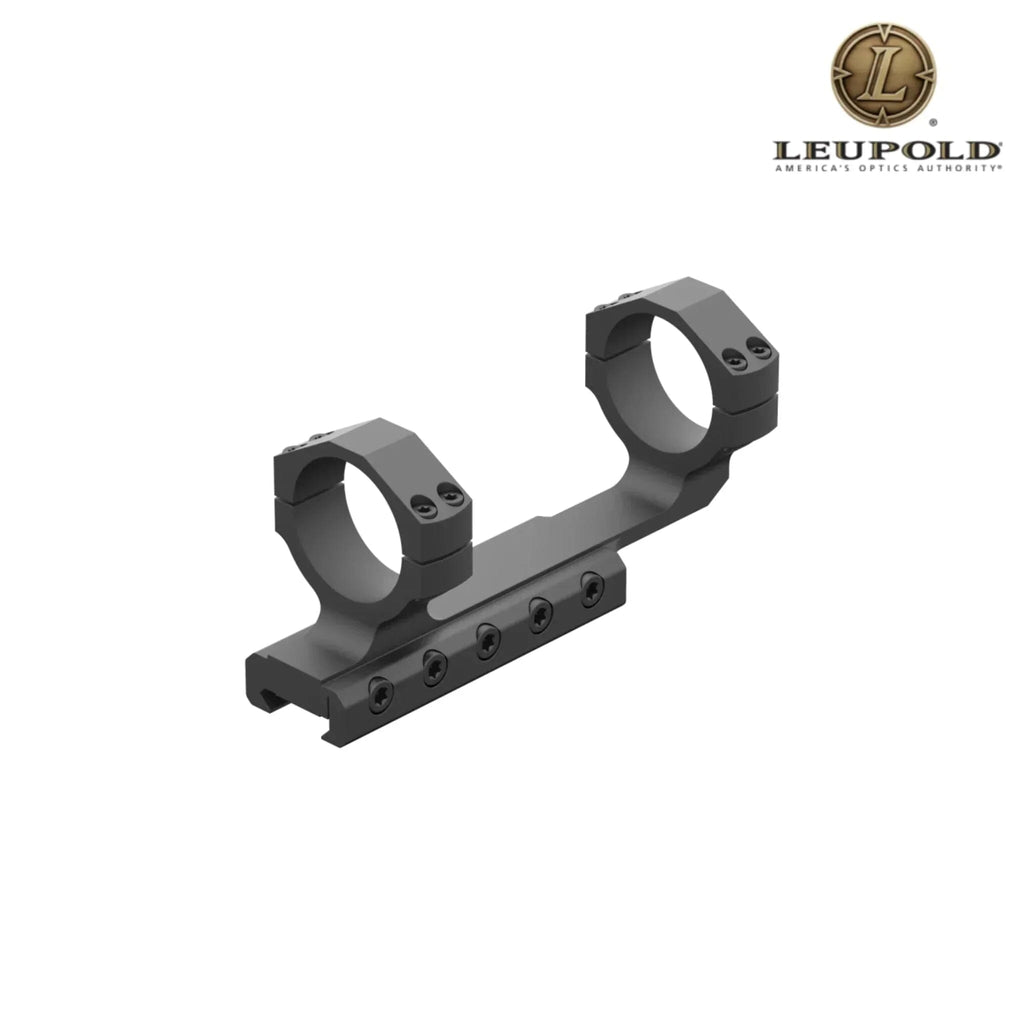

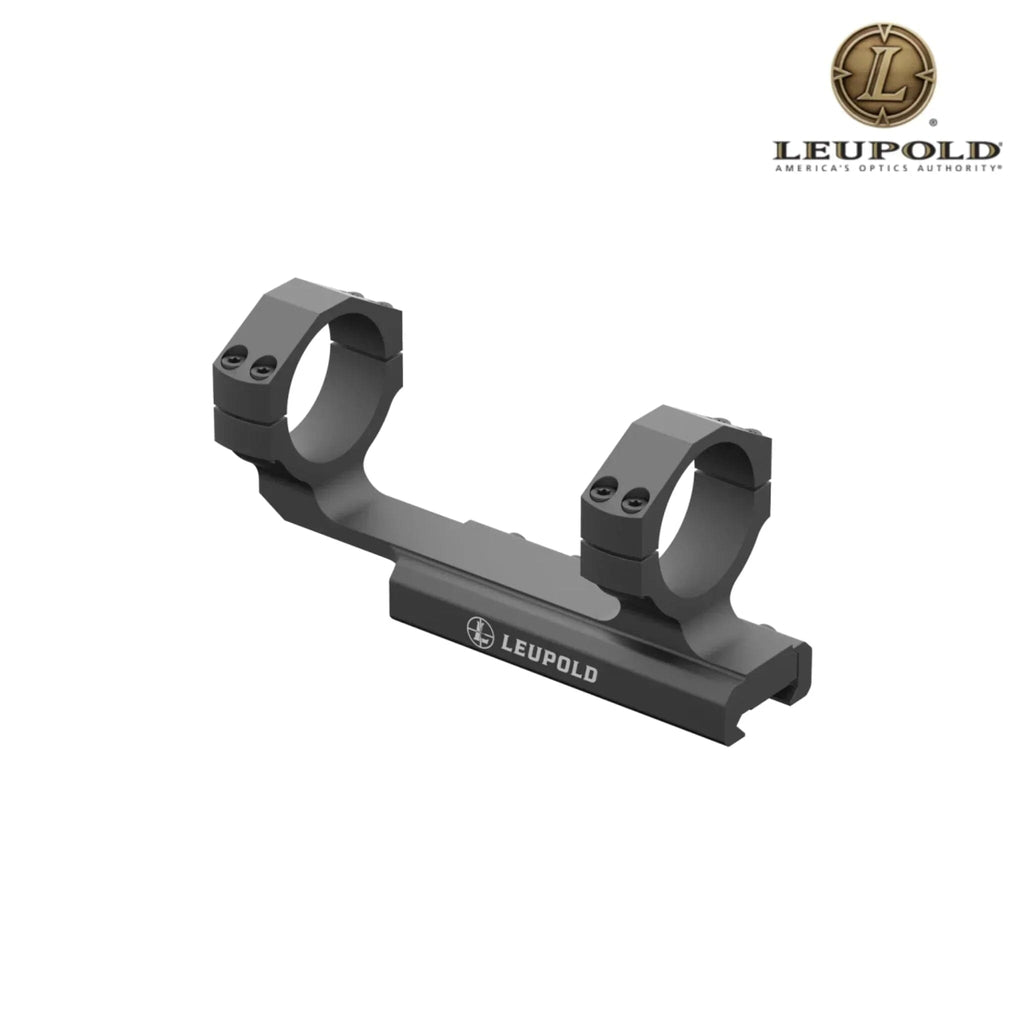

Leupold Mark AR 35mm Integral Scope Mount – One-Piece Aluminum Picatinny Mount | 177096

The Leupold Mark AR 35 mm Integral Scope Mount (MPN 177096 / UPC 030317022136) is a rugged, one-piece integrated base and ring system engineered to securely mount optics with a 35 mm maintube to MIL-spec Picatinny rails — especially on AR-style platforms and precision rifles. Its forward-cantilever design positions the scope for ideal eye relief and comfortable cheek weld, while the 5-bolt ring system and integrated recoil lugs ensure a secure, recoil-resistant connection. Constructed from precision-machined 6061-T6 aluminum with a matte black finish, this mount delivers dependable, repeatable optic alignment for hunting, tactical, and range use.

Key Attributes & Technical Specifications:

• Brand / Series: Leupold Mark AR Scope Mount (one-piece integrated design)
• MPN: 177096
• UPC: 030317022136
• Mount Type: One-piece integrated base + rings (Integral Mounting System)
• Compatibility: Picatinny / MIL-STD-1913 rails (AR-15, other rifles)
• Tube Size Supported: 35 mm main tube optics
• Material: 6061-T6 aircraft-grade aluminum
• Finish / Color: Matte black hard-coat anodized
• Base Cant: 0 MOA (bias neutral) ([turn0search6])
• Ring Height (Centerline): Approximately 1.5 in for proper eye relief on AR platforms
• Weight: ~5.9 oz (lightweight yet rugged)
• Length: ~5.43 in overall mount length
• Rear Offset: ~0.68 in shoulder offset from rail to optic centerline
• Ring Depth: ~0.65 in
• Length Within Rings: ~3.46 in
• Keeper Clamp Torque: ~65 in-lbs recommended
• Ring Top Screw Torque: ~28 in-lbs recommended
• Construction: One-piece integrated base and rings for maximum rigidity and repeatability
• Intended Use: AR-style rifles and other Picatinny rail platforms requiring a secure, high clearance scope mount
• Country of Manufacture: USA quality standards typical of Leupold accessory line
