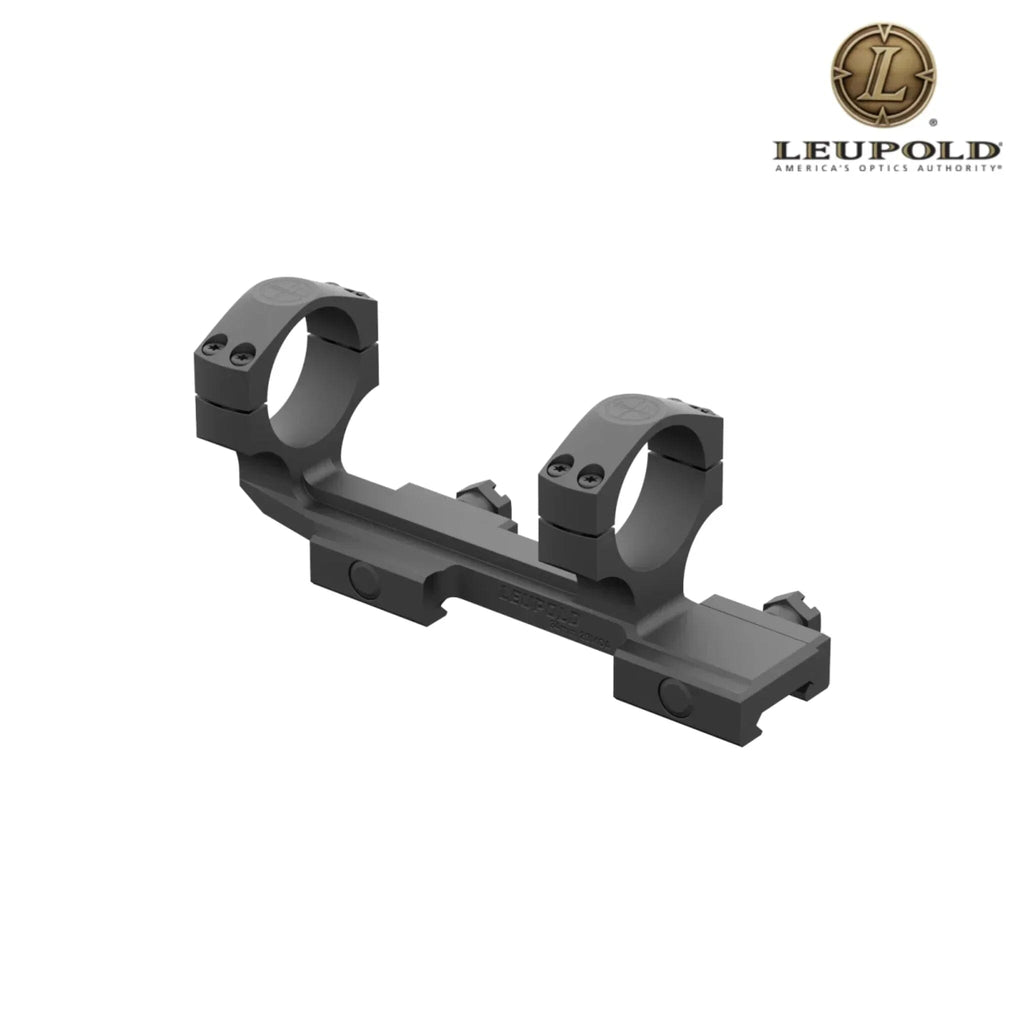

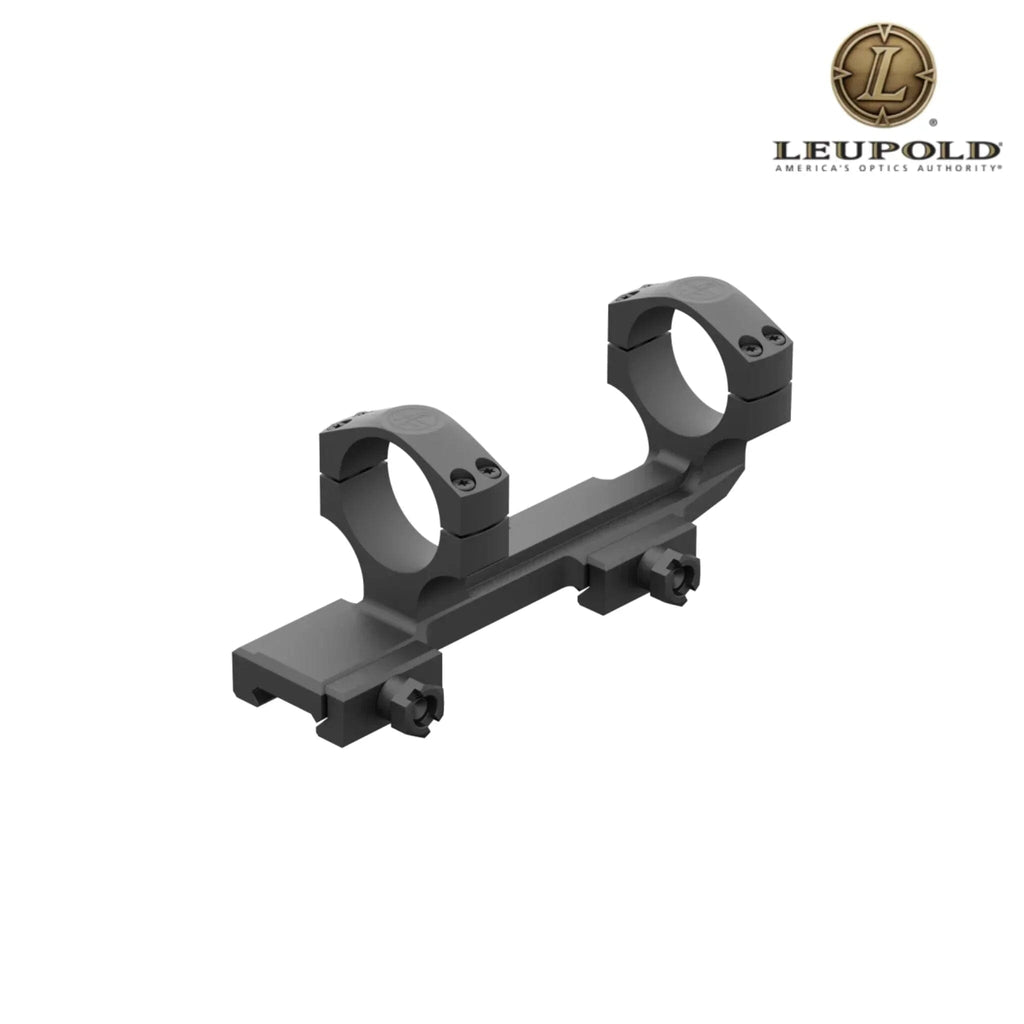

The Leupold Mark IMS 35mm Integral Mounting System (MPN 176886 / UPC 030317021825) is a robust, one-piece scope mount engineered to secure large-tube optics with a 35mm maintube onto MIL-spec Picatinny rails, especially on AR-15 and modern sporting rifles. Its forward cantilever design addresses common scope height and eye-relief issues by positioning the optic forward and elevating the centerline approximately 1.40″ above the rail — matching classic AR sight height and providing a comfortable, natural cheek weld. Precision-machined from 6061-T6 aluminum with a matte black hard-coat anodized finish, this mount combines strength, repeatability, and ease of installation using a durable two-bolt system. Made to withstand recoil and field use, it’s ideal for tactical, precision, and hunting applications.

Key Attributes & Technical Specifications:

  • Brand / Series: Leupold Mark IMS Integral Mounting System (35 mm)
  • MPN: 176886
  • UPC: 030317021825
  • Mount Type: One-piece cantilever integral scope mount (base + rings)
  • Compatibility: MIL-spec 1913 / Picatinny rail platforms (AR-15/M16)
  • Supported Tube Size: 35 mm main tube optics
  • Material: 6061-T6 aircraft-grade aluminum
  • Finish: Matte black hard-coat anodized
  • Mount Height (Centerline): ~1.40 in (35.6 mm) above rail
  • Design: Forward cantilever for optimum eye relief and field of view
  • Installation: Heavy two-bolt design for quick, repeatable install/removal
  • Ring Diameter: 35 mm
  • Optical Centerline: ~1.5″ (~38 mm, typical)
  • Inclination: 0 MOA (zero cant)
  • Weight: ~6 oz (lightweight but rugged)
  • Length: ~6.04 in overall (approx.)
  • Rear Offset: ~1.4 in (provides desired eye relief)
  • Ring Depth: ~0.65 in
  • Front Offset: ~1.09 in (scope forward position)
  • Keeper Clamp Torque: ~65 in-lbs recommended (typical Leupold spec)
  • Ring Top Screw Torque: ~28 in-lbs recommended (typical Leupold spec)
  • Intended Use: Precision rifles, tactical builds, and AR-style setups requiring a secure and ergonomic mount.
  • Country of Manufacture: Engineered to Leupold quality standards (USA).
