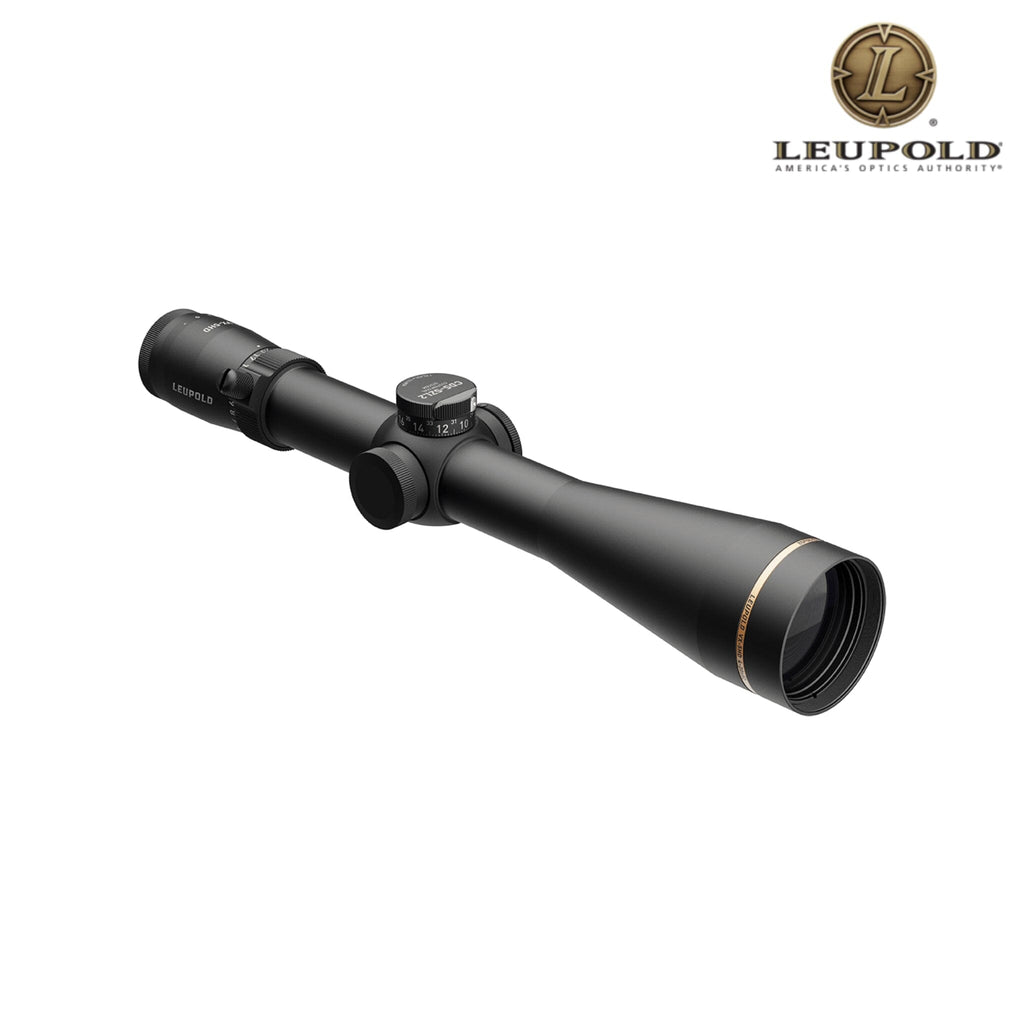

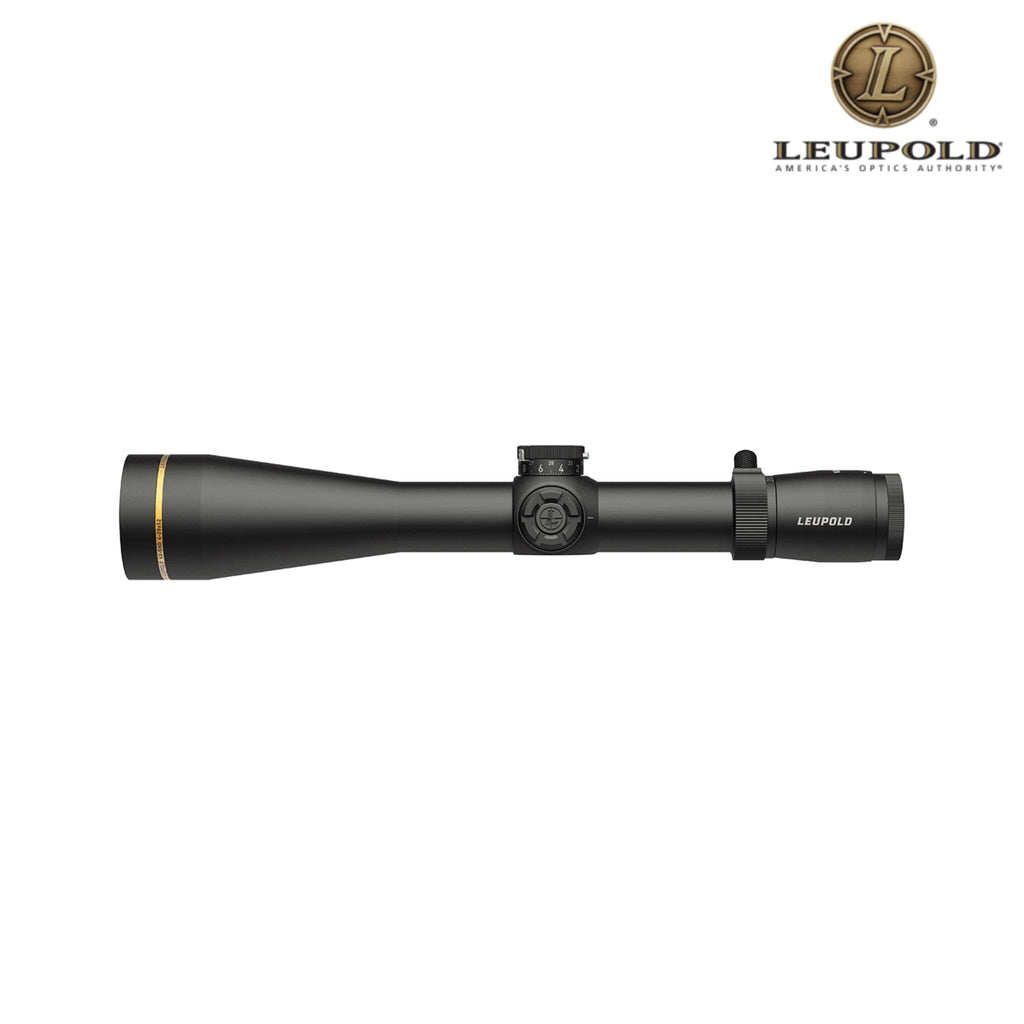

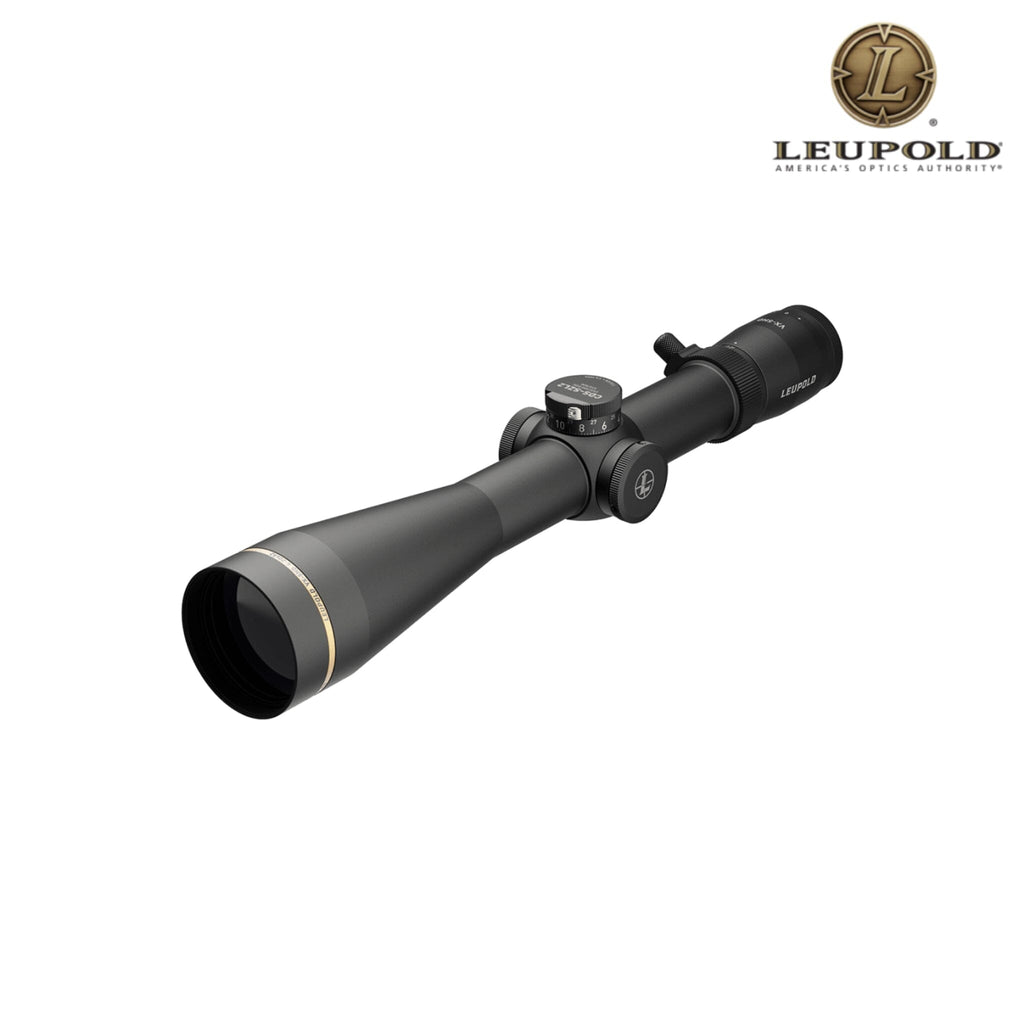

Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - Duplex Reticle
Features
-
Wide 5:1 Zoom Ratio (4–20×) — Offers both rapid target acquisition and precision long-range shooting.
-
Classic Duplex Reticle — Non-illuminated Second Focal Plane reticle with trusted Duplex pattern delivering a clear aiming point.
-
Professional-Grade Optical System — Provides top-level light transmission, sharp edge-to-edge clarity, and extreme glare reduction.
-

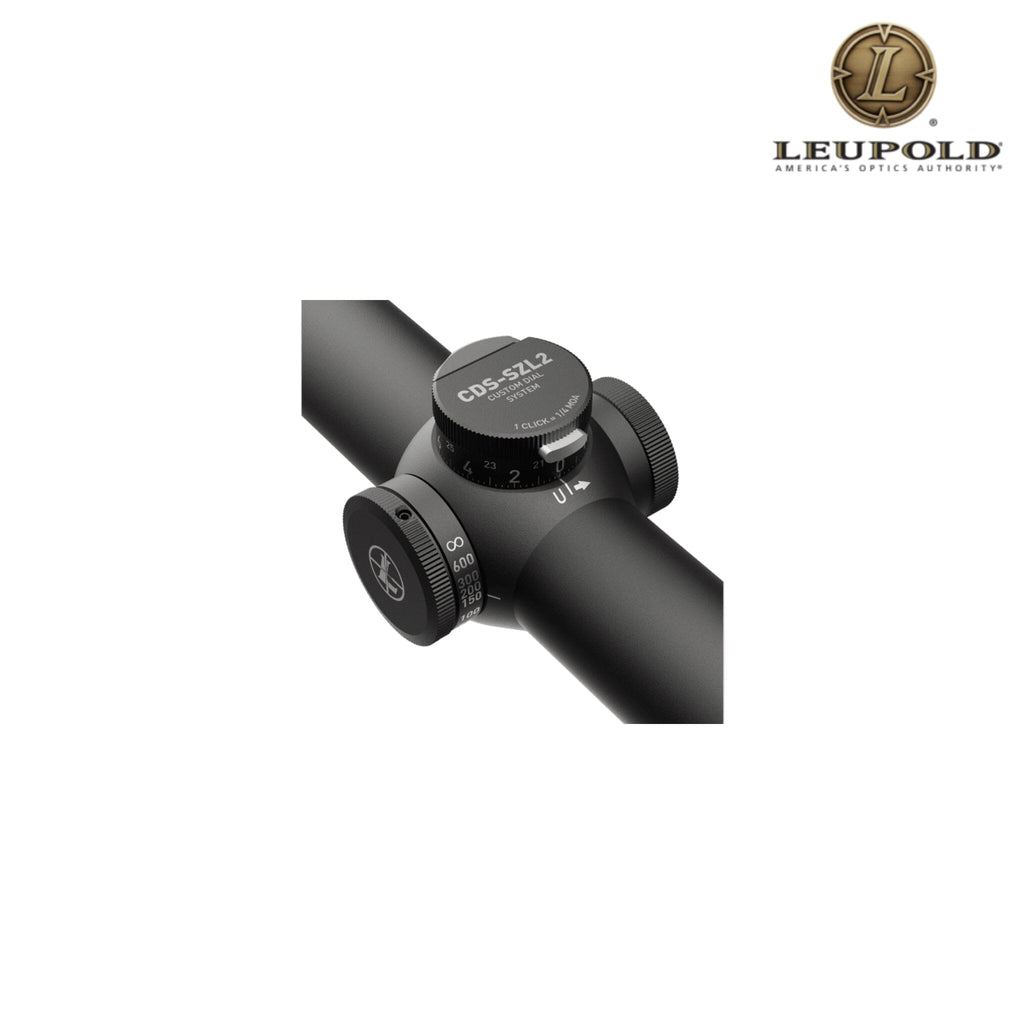

SpeedSet™ CDS Elevation Dial with ZeroLock® — Tool-free elevation adjustment with locking mechanism for quick and reliable ballistic tuning.
-
Side-Focus Parallax Control & Quick-Focus Eyepiece — Enables fine tuning from 50 yards to infinity for crisp reticle clarity.
-
Guard-Ion™ Hydrophobic Coating — Keeps lenses cleaner with dirt and moisture resistance to maintain clarity in all conditions.
-
Built Rugged for the Field — Designed to be waterproof, fogproof, and shockproof, with an integrated throw lever for fast magnification changes.
Technical Specifications for Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - Duplex Reticle
Specification
|
Details
|
Manufacturer
|
Leupold
|
Model / Part Number (MPN)
|
183857
|
SKU
|
183857
|
UPC
|
030317036805
|
Magnification
|
4–20×
|
Objective Lens Diameter
|
52 mm
|
Tube Size
|
34 mm
|
Reticle
|
Duplex (SFP)
|
Field of View (@100 yds)
|
~27.7 ft (4×) → ~5.8 ft (20×)
|
Eye Relief
|
~3.8 in (constant)
|
Elevation Adjustment Range
|
±50 MOA (total ~100 MOA)
|
Windage Adjustment Range
|
±40 MOA (total ~80 MOA)
|
Adjustment Click Value
|
¼ MOA per click
|
Parallax Adjustment
|
Side-focus, 50 yds to ∞
|
Length
|
Approx. length consistent with model line
|
Weight
|
Approx. weight similar to Gen 2 series (not specified)
|
Lens Coating
|
Guard-Ion™ hydrophobic coating
|
Elevation Dial
|
SpeedSet™ CDS with ZeroLock®
|
Environmental Durability
|
Waterproof, fogproof, shockproof
|
Country of Origin
|
USA
|
Warranty
|
Leupold Lifetime Guarantee
|
Included Accessories
-
VX-5HD Gen 2 4–20×52 Riflescope — Duplex Reticle
-
SpeedSet™ ZeroLock elevation dial (factory installed)
-
KillLight® lens caps
-
Integrated throw lever
-
Documentation and warranty paperwork
