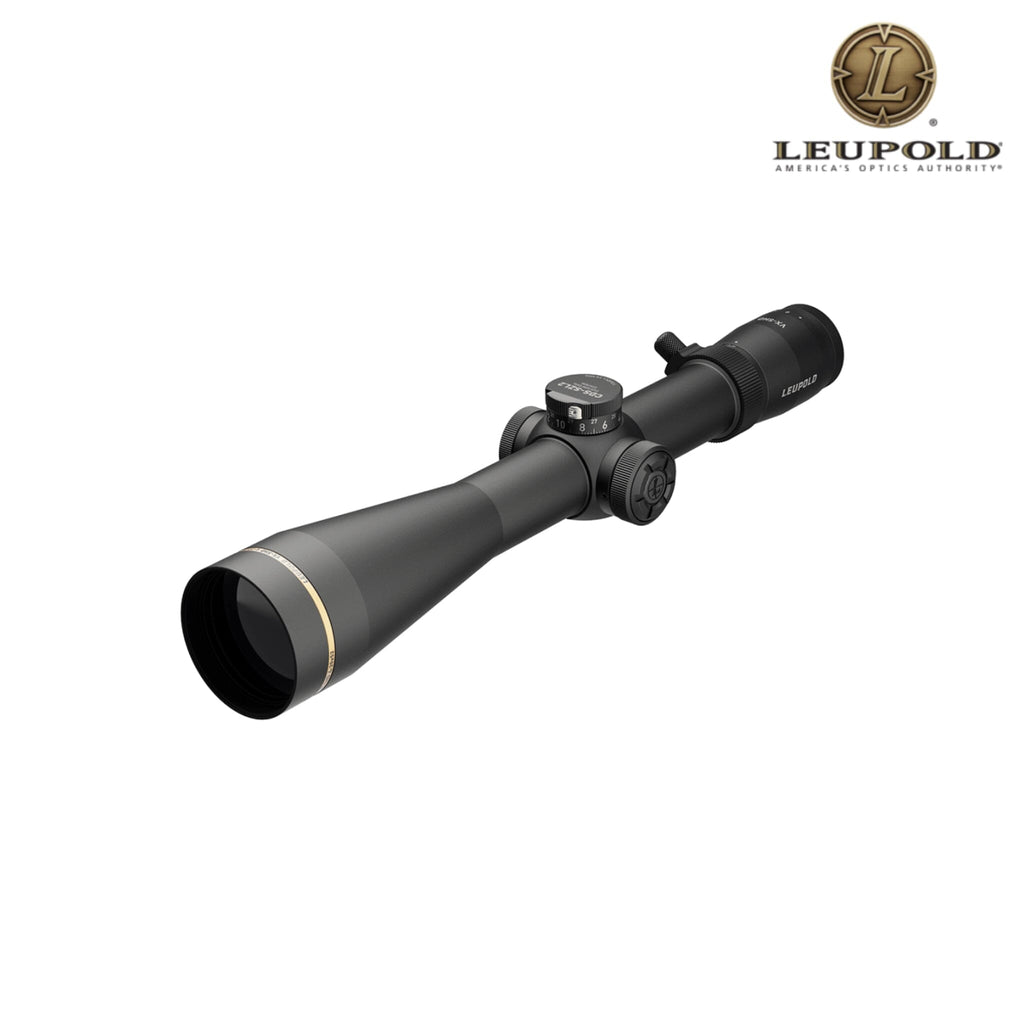

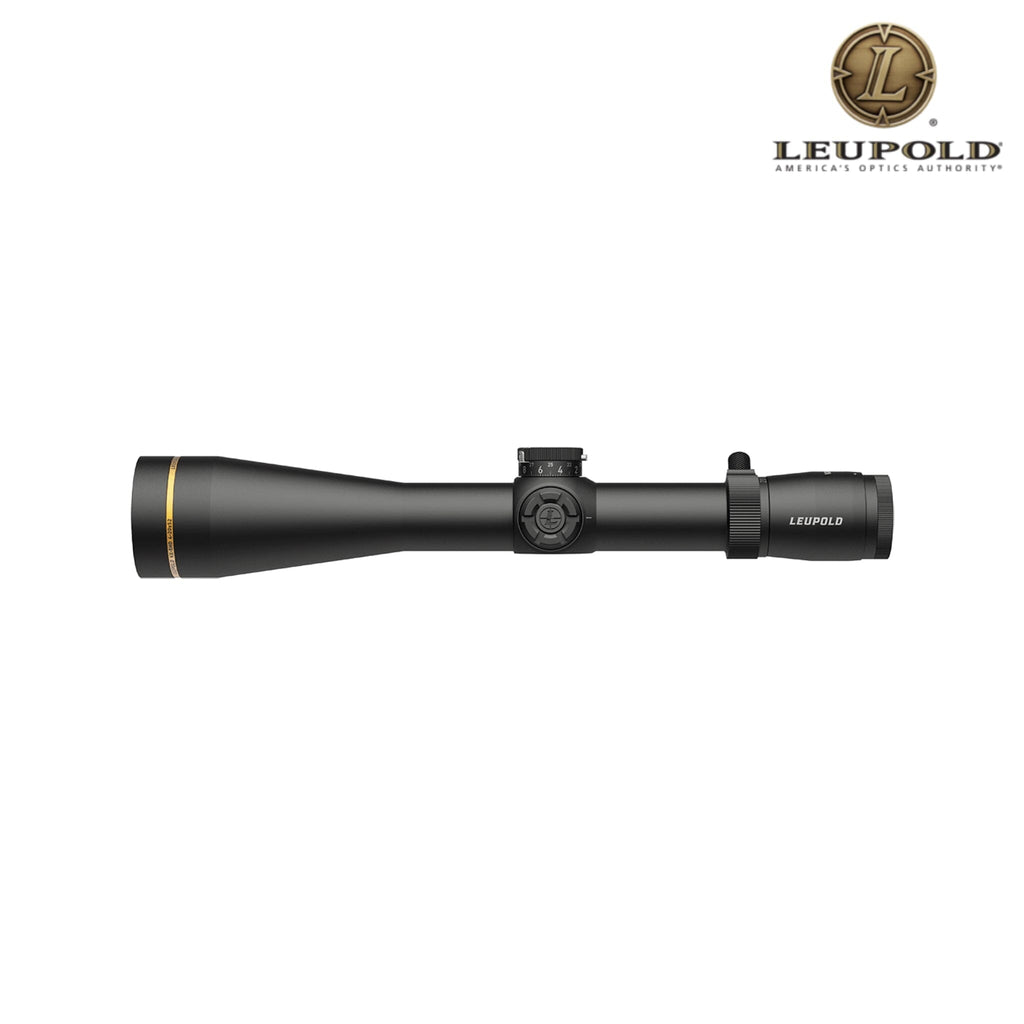

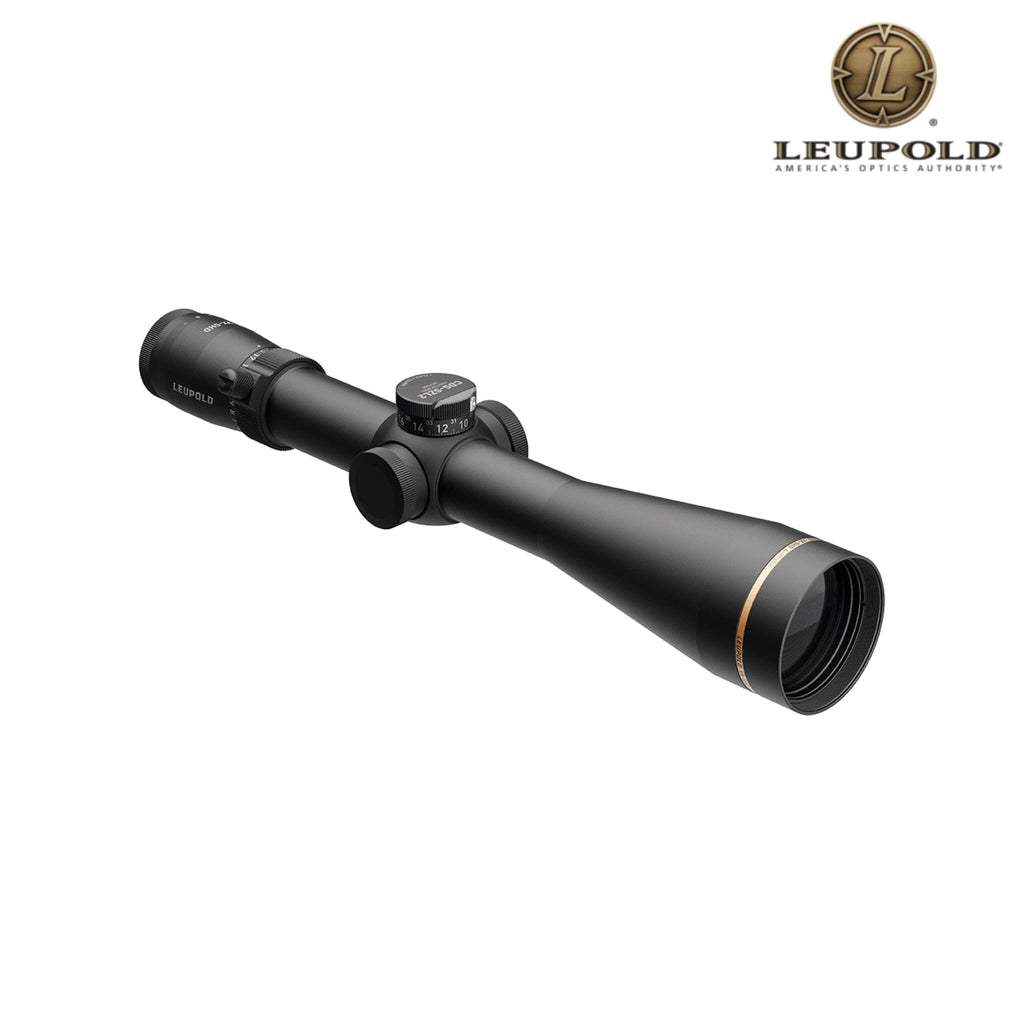

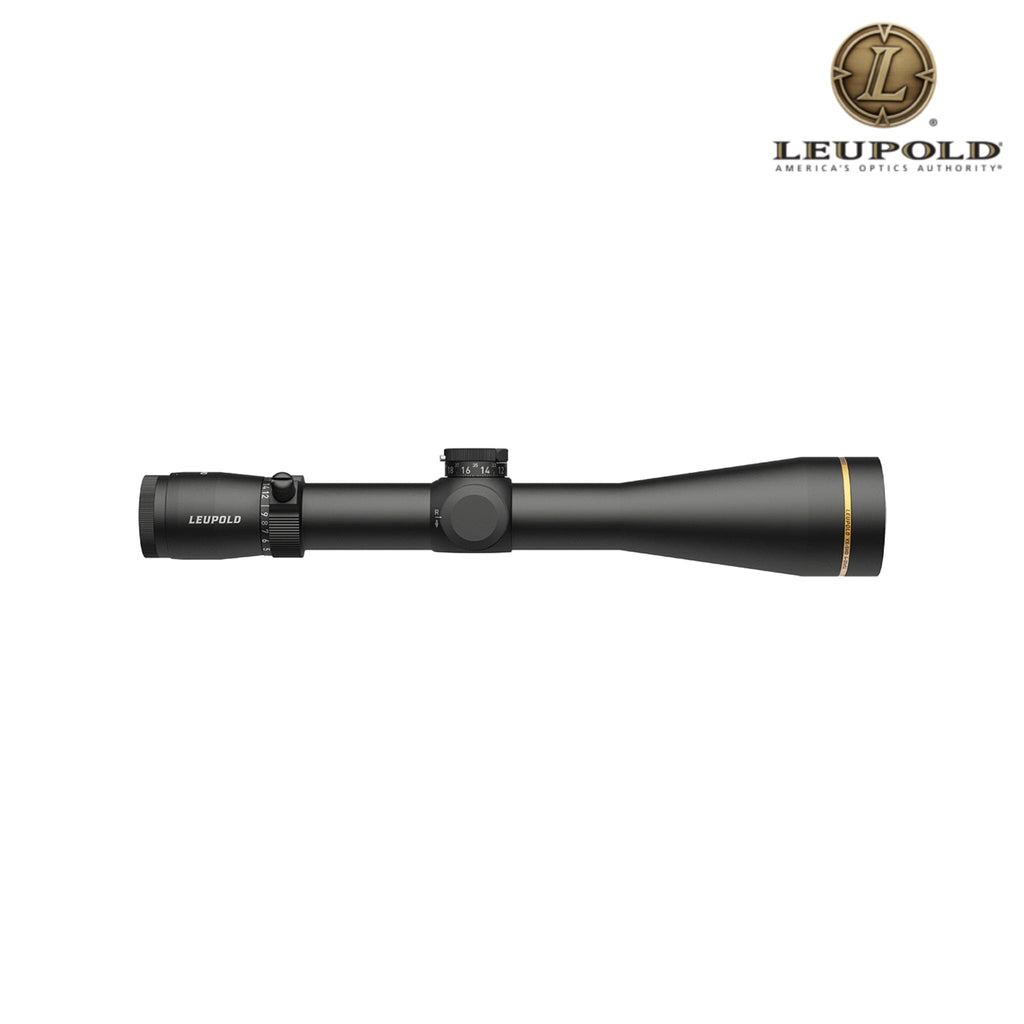

Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - FireDot Duplex Reticle
Features
-
Ultra-Flexible 5:1 Zoom Range – 4–20× magnification delivers close-quarters speed and extreme long-distance precision.
-

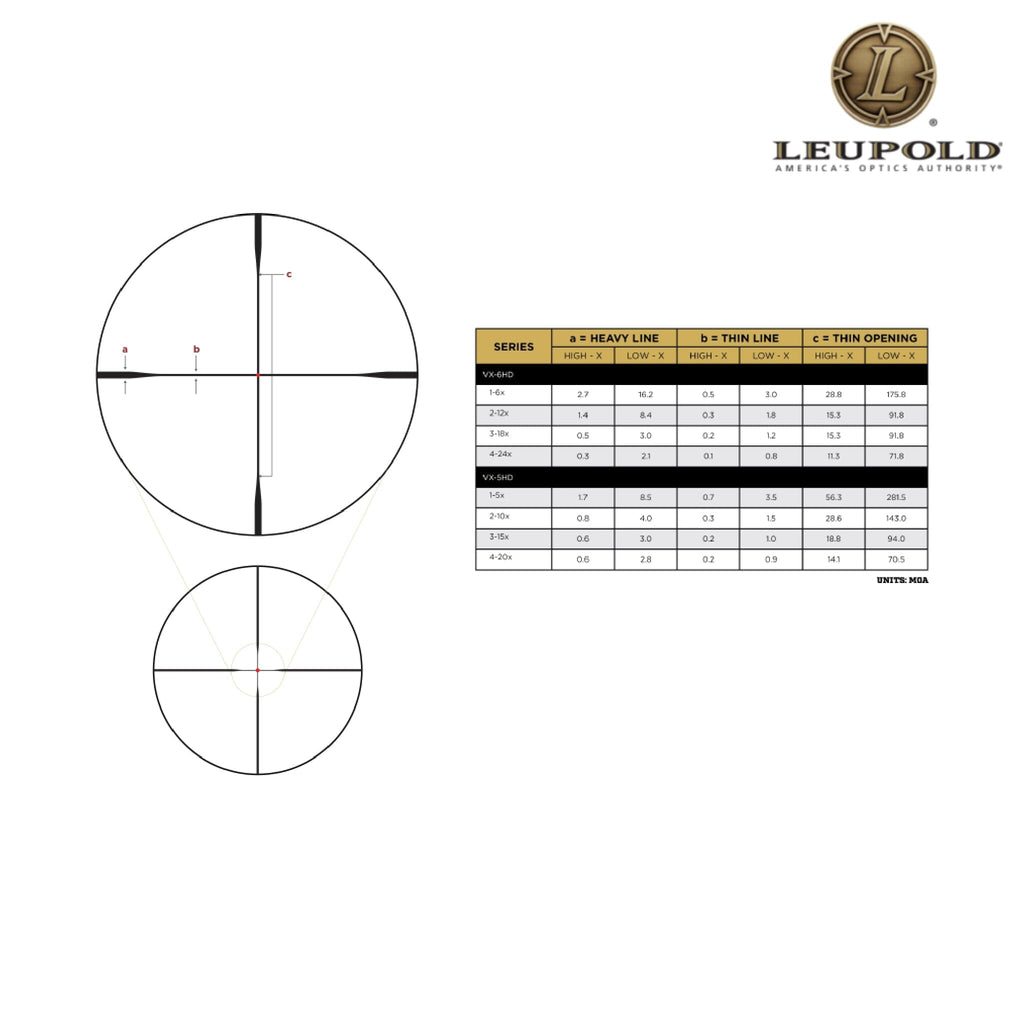

Illuminated FireDot® Duplex Reticle – Combines a crisp center dot with a classic duplex pattern; illumination enhances target acquisition in all light conditions.
-
Professional-Grade Optics – Superior light transmission, edge-to-edge clarity, and aggressive glare reduction for top-tier optical performance.
-

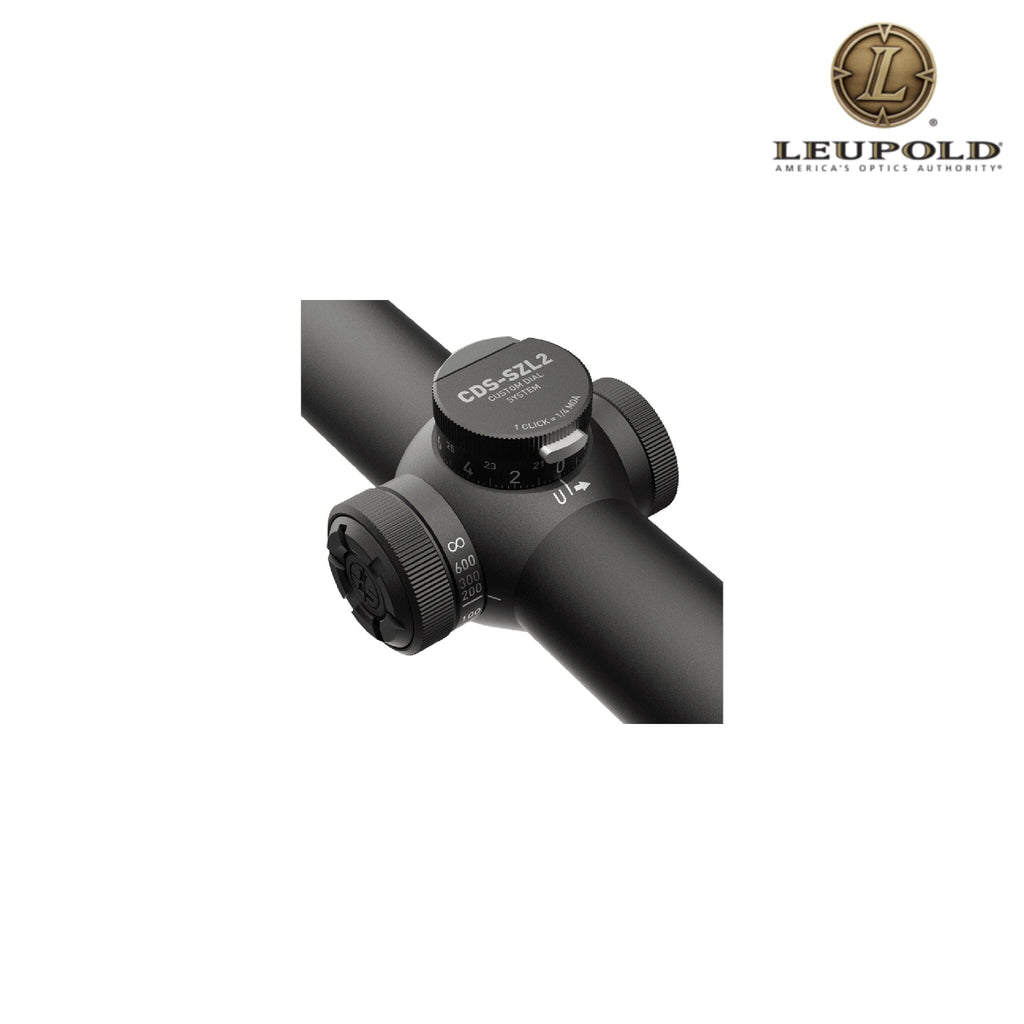

Tool-Free SpeedSet™ CDS Elevation Dial – Enables fast zeroing and custom ballistics dialing without tools. Includes ZeroLock® for secure setting retention.
-
Side Parallax Adjustment & Quick-Focus Eyepiece – Easily fine-tune parallax from 50 yards to infinity and rapidly sharpen your reticle.
-
Guard-Ion™ Lens Coating – Hydrophobic protection resists dirt, water, and scratches for long-lasting clarity.
-
Built for Abuse – Waterproof, fogproof, and shockproof; integrated throw lever for fast magnification shifts in all conditions.
Technical Specifications for Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - FireDot Duplex Reticle
Specification
|
Details
|
Manufacturer
|
Leupold
|
Model / Part Number (MPN)
|
183858
|
SKU
|
183858
|
UPC
|
030317036928
|
Magnification
|
4–20×
|
Objective Lens Diameter
|
52 mm
|
Tube Size
|
34 mm
|
Reticle
|
Illuminated FireDot® Duplex (SFP)
|
Field of View (@100 yds)
|
~27.7 ft @ 4× → ~5.8 ft @ 20×
|
Eye Relief
|
~3.8 in (constant)
|
Elevation Adjustment Range
|
±50 MOA (total ~100 MOA)
|
Windage Adjustment Range
|
±40 MOA (total ~80 MOA)
|
Adjustment Click Value
|
¼ MOA per click
|
Parallax Adjustment
|
Side-focus, 50 yds to ∞
|
Length
|
~24.3 in
|
Weight
|
~14.5 oz
|
Lens Coating
|
Guard-Ion hydrophobic coating
|
Optical System
|
Professional-Grade Optical System (HD clarity, glare reduction)
|
Illumination Power
|
Battery-powered (CR2032), Motion Sensor Technology
|
Zeroing System
|
SpeedSet™ CDS with ZeroLock®
|
Environmental Durability
|
Waterproof, fogproof, shockproof
|
Country of Origin
|
USA
|
Warranty
|
Leupold Full Lifetime Guarantee
|
Included Accessories
-
VX-5HD Gen 2 4–20×52 scope
-
KillLight® lens covers
-
Custom CDS elevation dial (pre-installed)
-
Throw lever (integrated)
-
Battery and documentation
