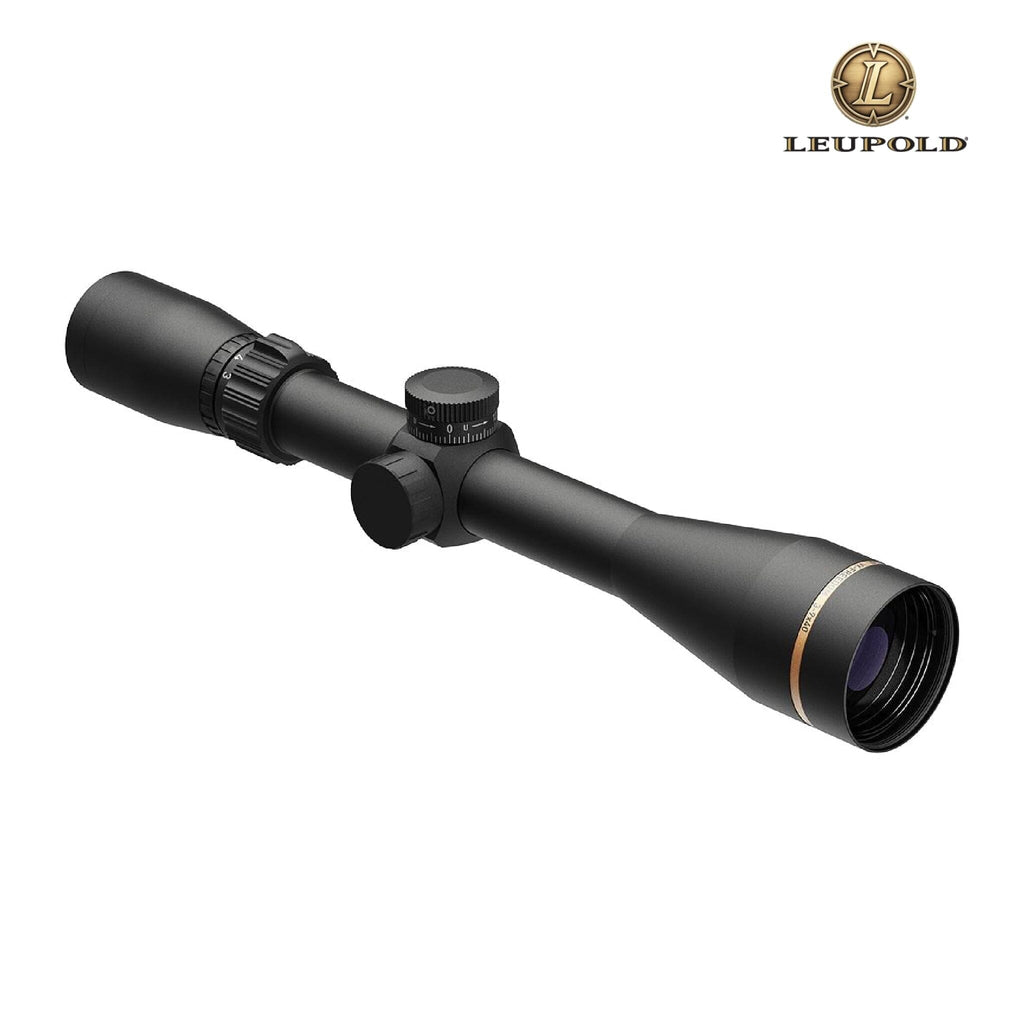

Leupold VX-Freedom 3–9×40 CDS Rifle Scope Tri-MOA Reticle
(Model 180603)
Features
-
3:1 Zoom Ratio: Fast-throw magnification lever for swift changes between 3× (wide field) and 9× (precision).
-
Advanced Optical System: Fully multi-coated, extra-low-dispersion glass with Leupold’s Twilight Light Management System for excellent brightness, glare reduction, and edge-to-edge clarity.
-
Tri-MOA® Reticle (Second Focal Plane): Three-post MOA design with 1 MOA hash-marks—subtends true at maximum magnification for intuitive hold-over and wind-hold.
-
Custom Dial System® (CDS®): Push-button lockable elevation dial with zero-stop return to zero; allows pre-set ballistic drops via optional CDS Custom Dial™ turrets.
-
Precise Adjustments: ¼ MOA per click; 60 MOA total travel each for both windage and elevation.
-
Long Eye Relief: 4.2″ (107 mm) at 3× → 3.7″ (94 mm) at 9× for comfortable, consistent cheek welds.
-
Rugged Construction: CNC-machined 1″ (25.4 mm) main tube of 6061-T6 aluminum; matte-black hard-coat anodize; 100% waterproof, fog-proof, and shock-proof; recoil-rated for heavy calibers.
-
Made in USA & Lifetime Guarantee
Technical Specifications for Leupold VX-Freedom 3–9×40 CDS Rifle Scope Tri-MOA Reticle
Specification
|
Details
|
Model / MPN
|
180603
|
SKU
|
180603–Leupold
|
UPC
|
030317028374
|
Country of Origin
|
USA
|
Tube Diameter
|
1″ (25.4 mm)
|
Magnification Range
|
3 × ⇄ 9 ×
|
Objective Lens Diameter
|
40 mm
|
Reticle
|
Tri-MOA® (SFP, non-illuminated)
|
Focal Plane
|
Second focal plane
|
Parallax Focus
|
Fixed at 100 yd
|
Eye Relief
|
4.2″ (107 mm) @ 3× ⇄ 3.7″ (94 mm) @ 9×
|
Field of View @ 100 yd
|
33.1 ft @ 3× ⇄ 13.6 ft @ 9×
|
Elevation Adjustment
|
¼ MOA/click; 60 MOA total travel
|
Windage Adjustment
|
¼ MOA/click; 60 MOA total travel
|
Length
|
12.39″ (314 mm)
|
Weight
|
12.2 oz (346 g)
|
Finish
|
Matte-black hard-coat anodize
|
Waterproof / Fog-Proof
|
Yes
|
Shock-Proof
|
Yes
|
Included Accessories
-
Removable fast-throw magnification lever
-
Alumina® flip-up lens covers (40 mm)
-
CDS adjustment tool
-
Cleaning cloth
-
User manual
