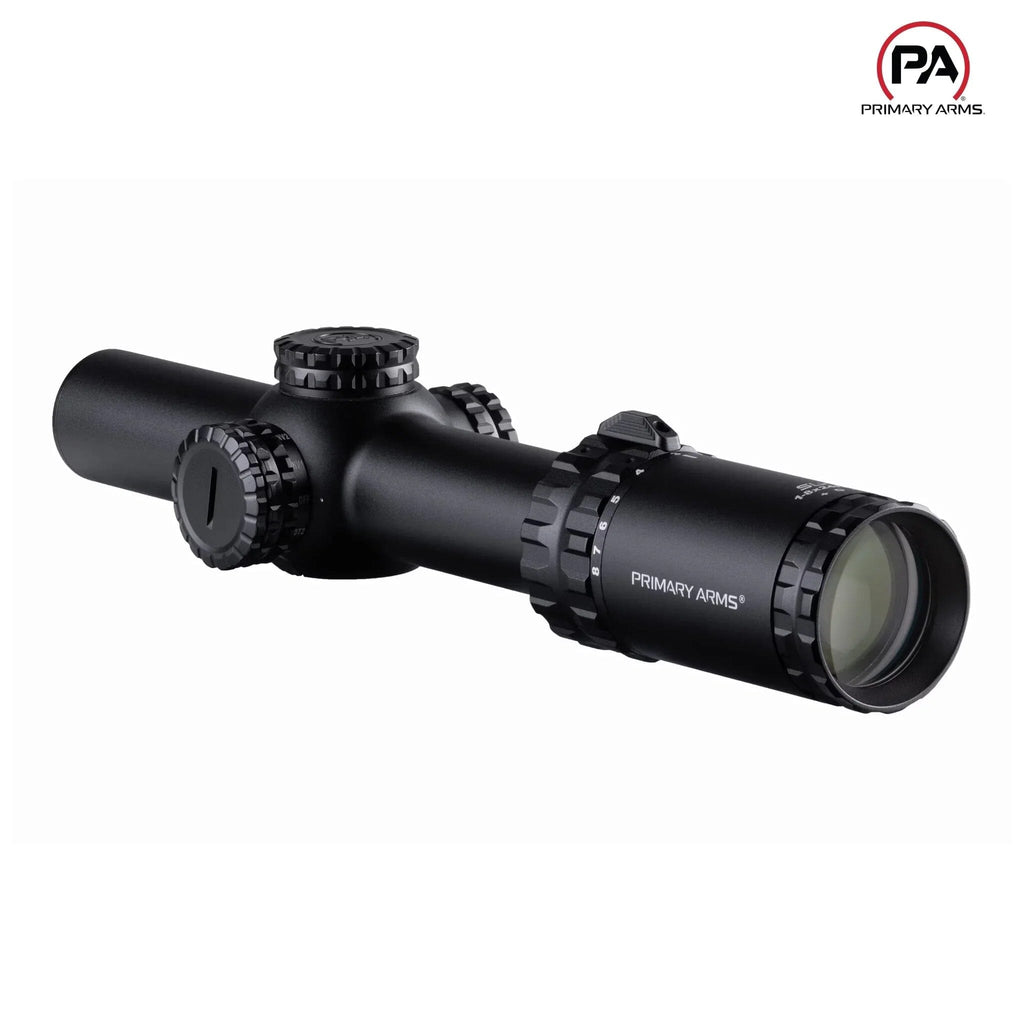

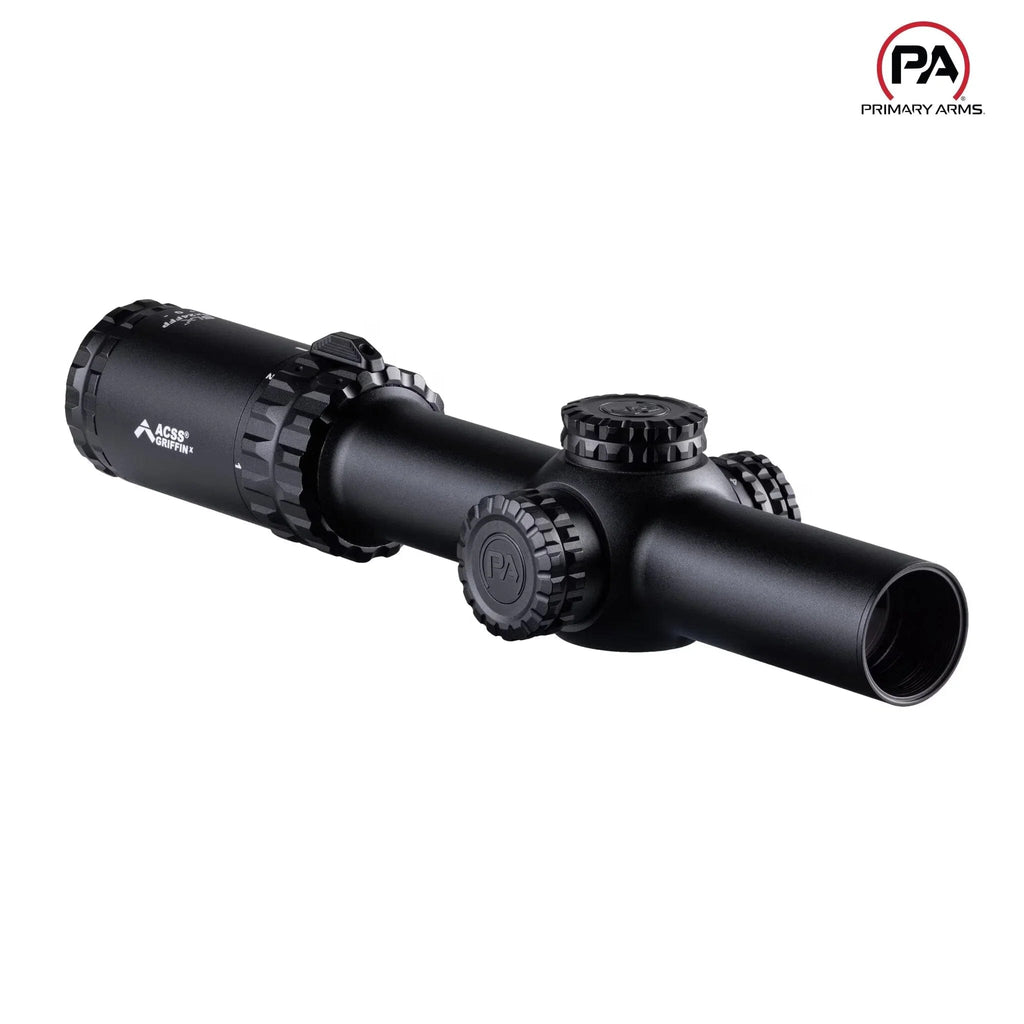

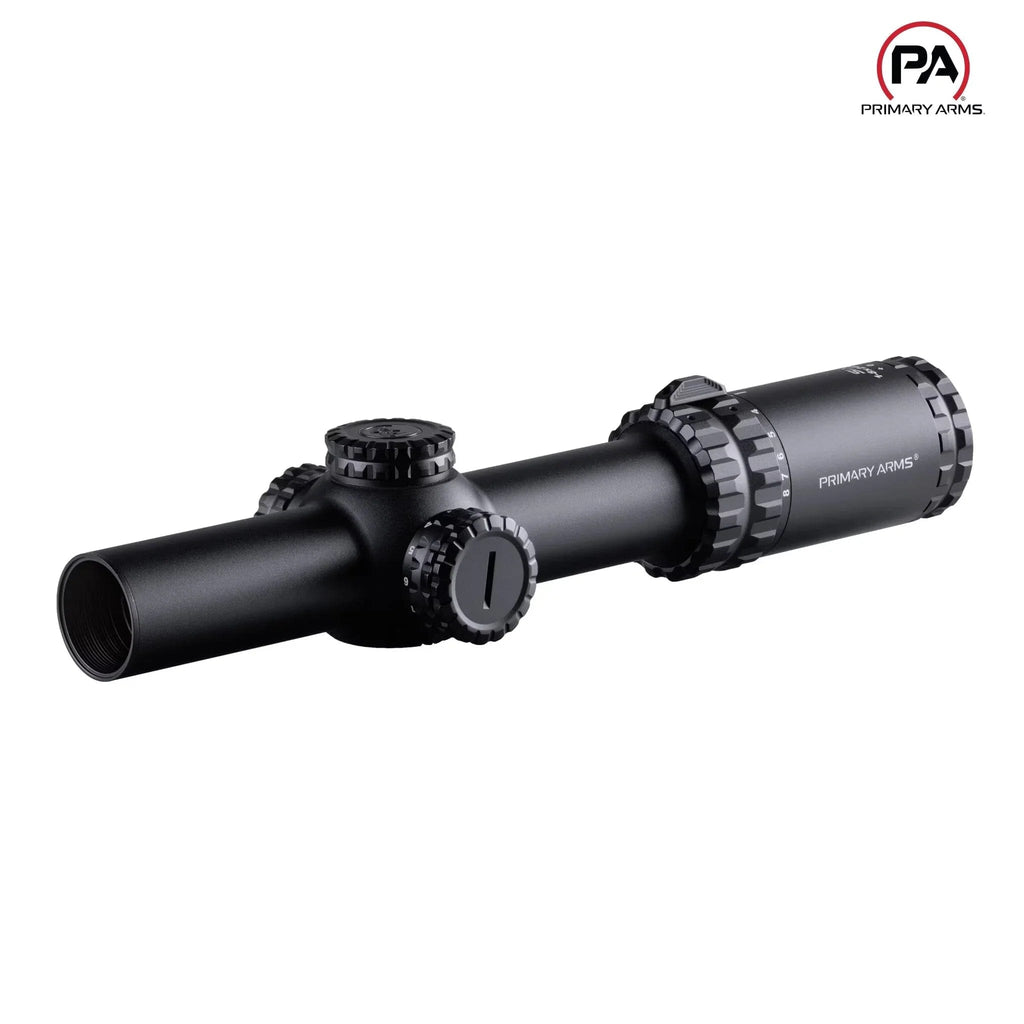

Primary Arms SLx 1-8×24 FFP Riflescope - ACSS Griffin X MIL Reticle
Features
-

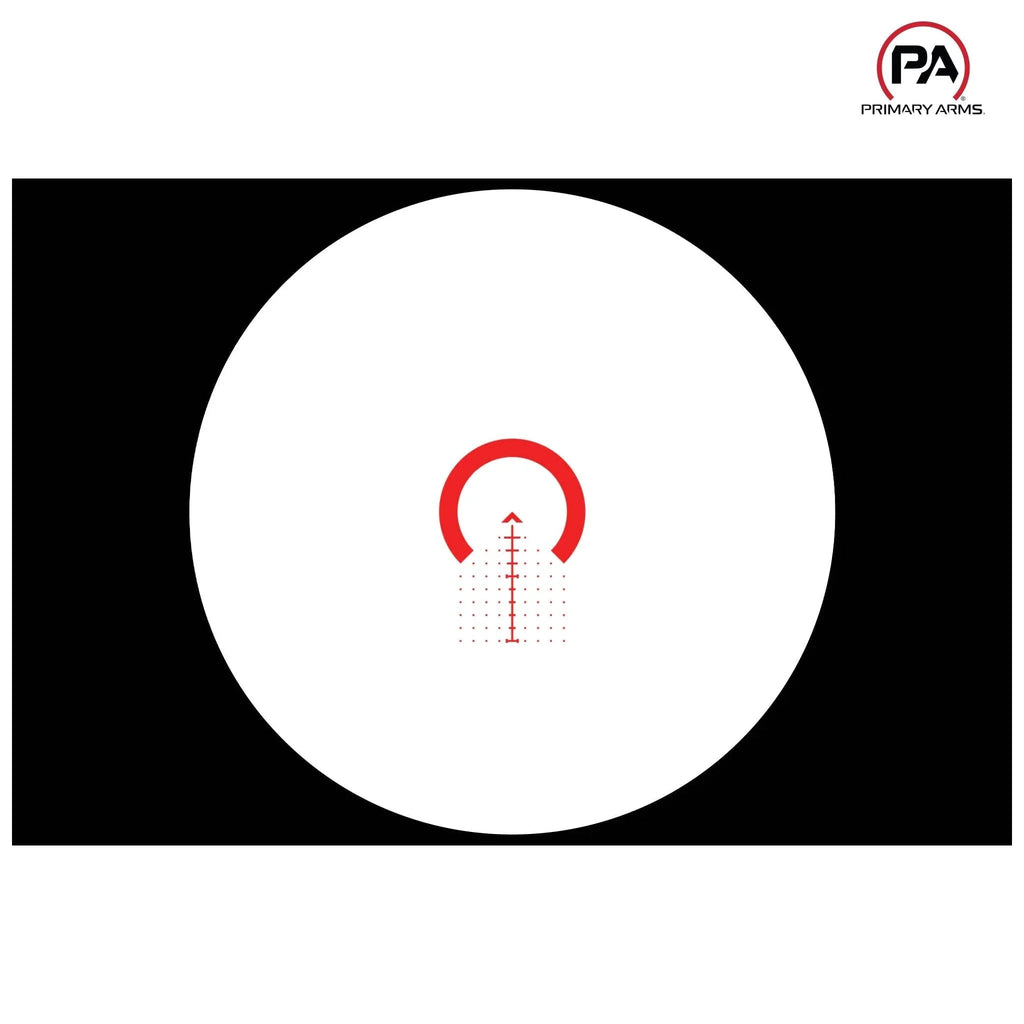

ACSS Griffin X MIL Reticle – First‐focal‐plane MRAD reticle with a central chevron, 0.2 mrad grid, time‐of‐flight wind dots, moving‐target leads, and rapid‐range bars; full‐time true‐subtension for accurate ranging at any magnification; red‐LED illumination with 11 brightness levels and 6 h auto‐off.
-
True 1×–8× Zoom – Expansive magnification range for lightning‐fast 1× close‐quarters work and precise 8× long‐range shots, all in a compact 24 mm objective package.
-
Premium ED Glass & Coatings – Fully multi‐coated Japanese extra‐low dispersion lenses deliver exceptional light transmission, crisp contrast, and edge‐to‐edge clarity in all lighting conditions.
-
SOS® Steel‐on‐Steel Turrets – Exposed, capped turrets with precise 0.1 mrad (¼ MIL) tactile clicks; 20 mrad (69 MOA) total elevation travel and ± 10 mrad (± 34 MOA) windage travel; zero‐resettable but no mechanical zero‐stop.
-
Side Parallax Focus – Side‐mounted parallax dial adjusts from 10 m/yd to ∞, eliminating focal shift and ensuring sharp reticle‐to‐target alignment.
-
Rapid‐Focus Eyepiece & Replaceable Fin – Fast‐focus eyepiece sharpens reticle clarity instantly, and a moveable/replaceable magnification ring fin provides ergonomic zoom control.
-
Durable 30 mm Chassis – One‐piece 6061-T6 aluminum tube with matte‐black Type III hard-anodize; O-ring sealed and nitrogen purged for IP67 waterproofing and fogproof reliability.
-
Generous Eye Relief – 3.2 in at 1× to 3.3 in at 8× for comfortable, both‐eyes‐open shooting.
Technical Specifications for Primary Arms SLx 1-8×24 FFP Riflescope - ACSS Griffin X MIL Reticle
Specification
|
Details
|
Manufacturer
|
Primary Arms
|
Model / Part Number
|
610155
|
SKU
|
PA-SLX-1-8X24F-GRIF-MIL
|
UPC
|
818500015659
|
Magnification Range
|
1 × – 8 ×
|
Objective Lens Diameter
|
24 mm
|
Tube Diameter
|
30 mm
|
Reticle
|
ACSS Griffin X MIL (FFP), illuminated
|
Field of View
|
105 ft @ 100 yd (1×); 14.3 ft @ 100 yd (8×)
|
Eye Relief
|
3.2 in (1×); 3.3 in (8×)
|
Exit Pupil
|
9 mm (1×); 3 mm (8×)
|
Diopter Adjustment
|
± 3 dpt
|
Elevation Total Adjustment
|
20 mrad (69 MOA)
|
Windage Total Adjustment
|
± 10 mrad (± 34 MOA)
|
Click Value
|
0.1 mrad (¼ MIL) per click
|
Parallax Adjustment
|
Side focus, 10 m/yd to ∞
|
Illumination Power
|
CR2032 3 V lithium coin (included)
|
Length
|
11.4 in (290 mm)
|
Weight
|
17.9 oz (507 g)
|
Finish
|
Matte-black Type III hard-anodize
|
Waterproof / Fogproof
|
IP67 (1 m submersion; fog-proof)
|
Warranty
|
Lifetime warranty
|
Included Accessories
-
Flip-up lens covers
-
CR2032 battery (installed)
-
Hex wrench for turret caps
-
Instruction manual & warranty documentation
