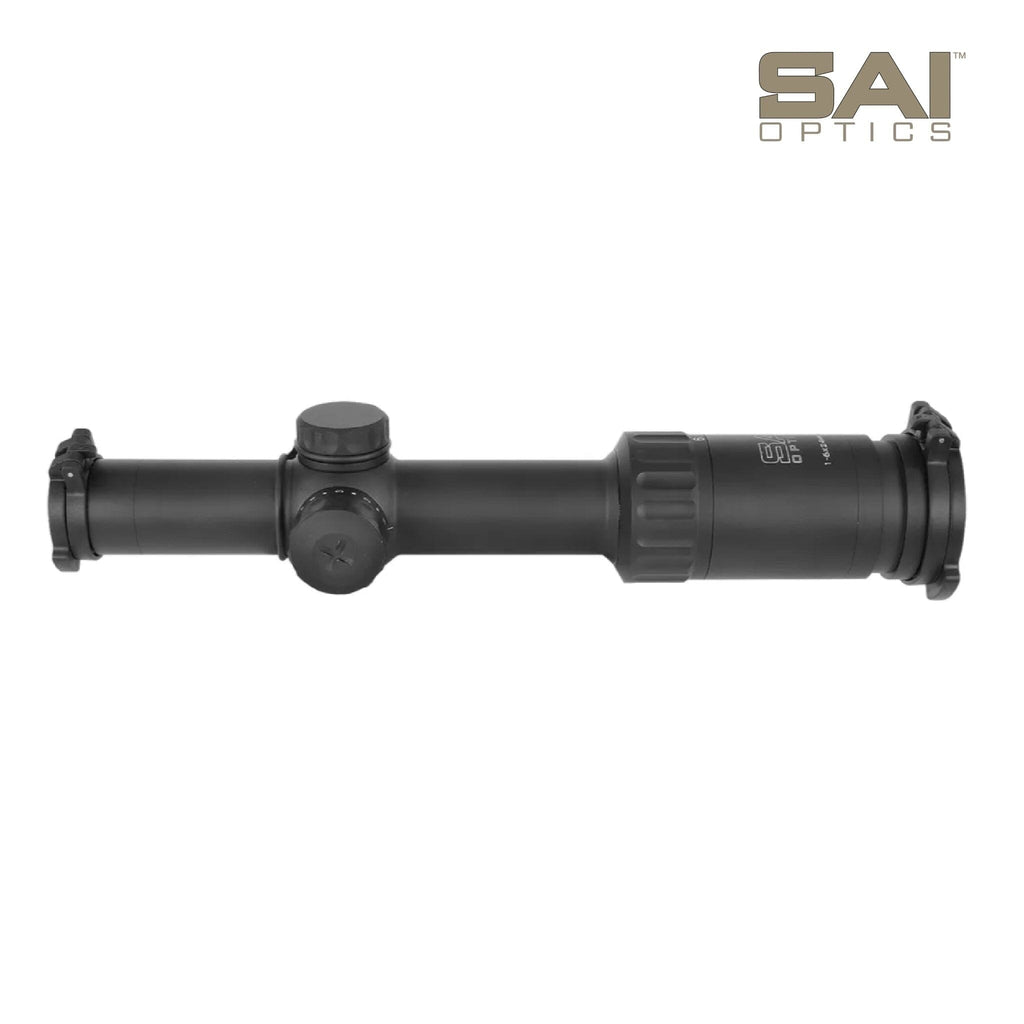

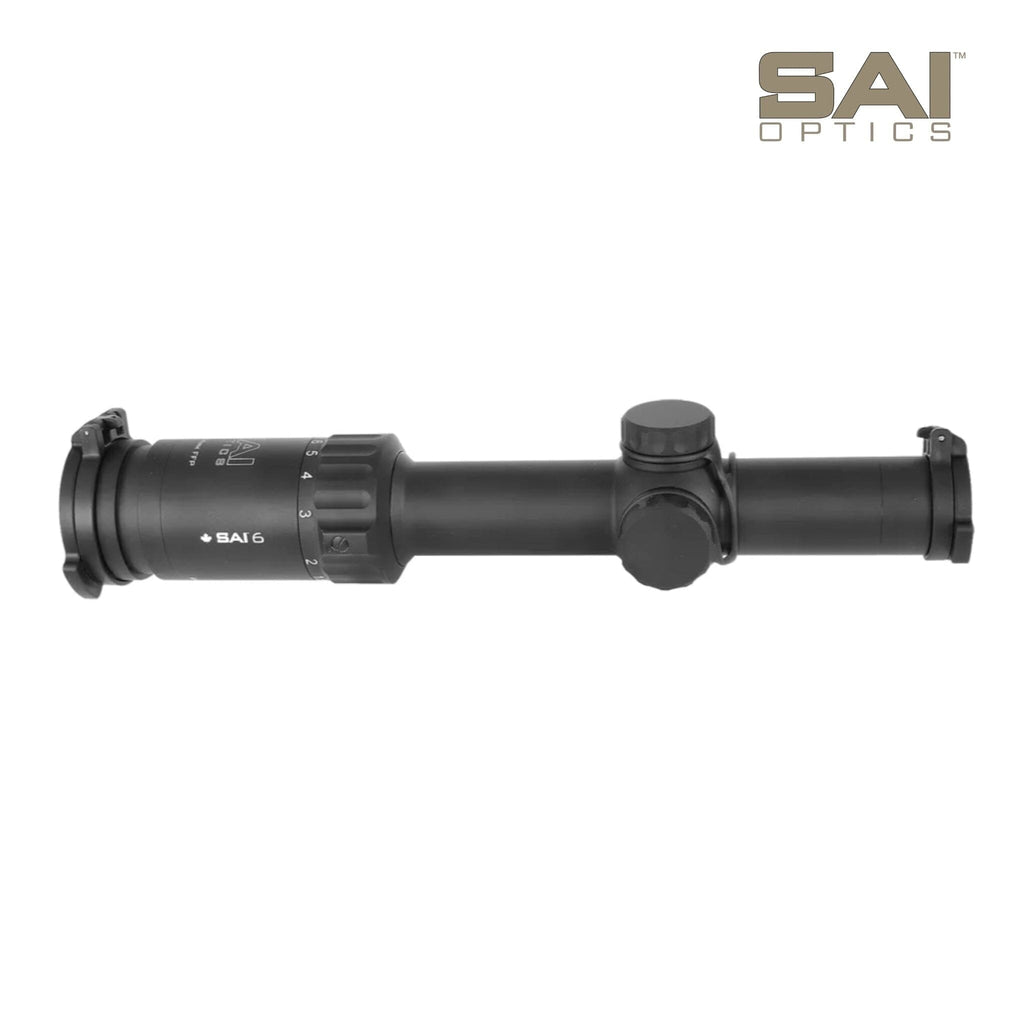

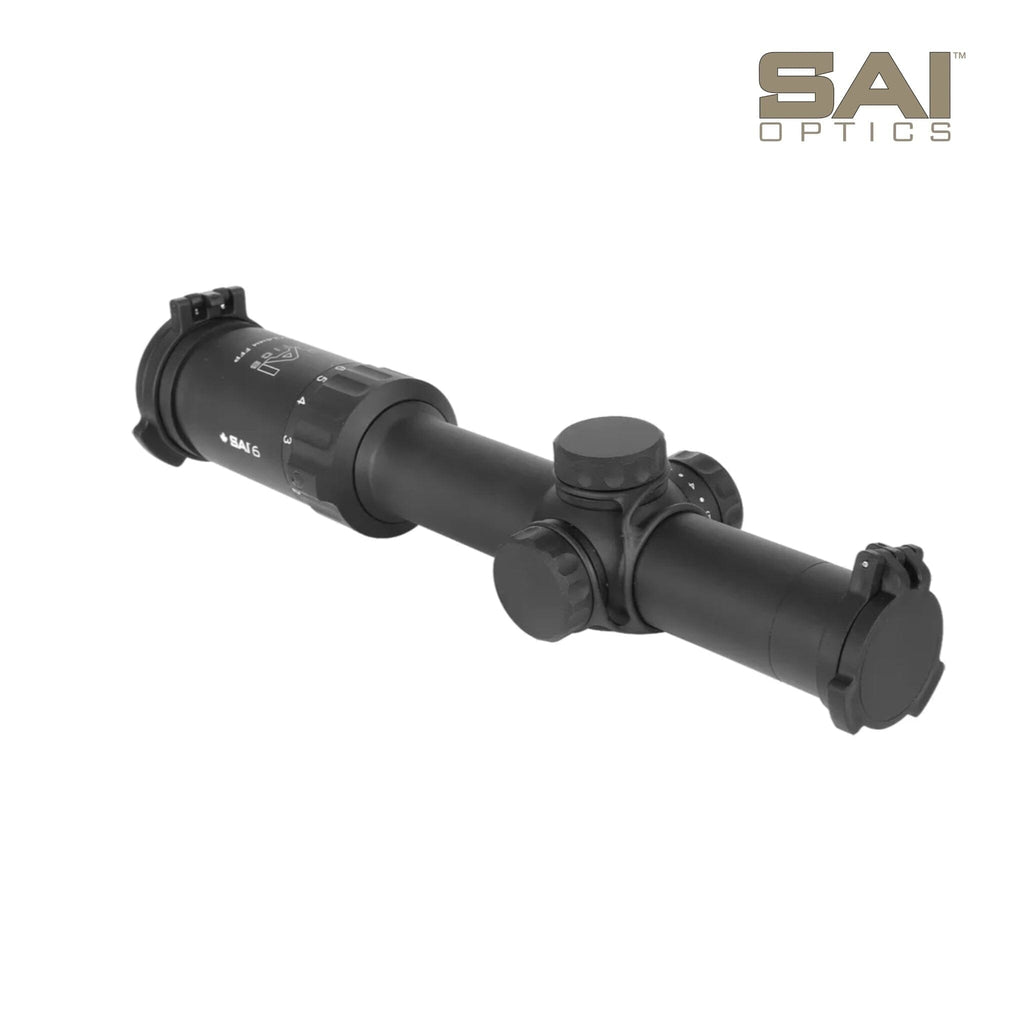

SAI Optics 1-6x24 Riflescope No RAF Reticle
$1,298.00
Shipping calculated at checkout.
SAI Optics 1-6x24 Riflescope No RAF Reticle
Features

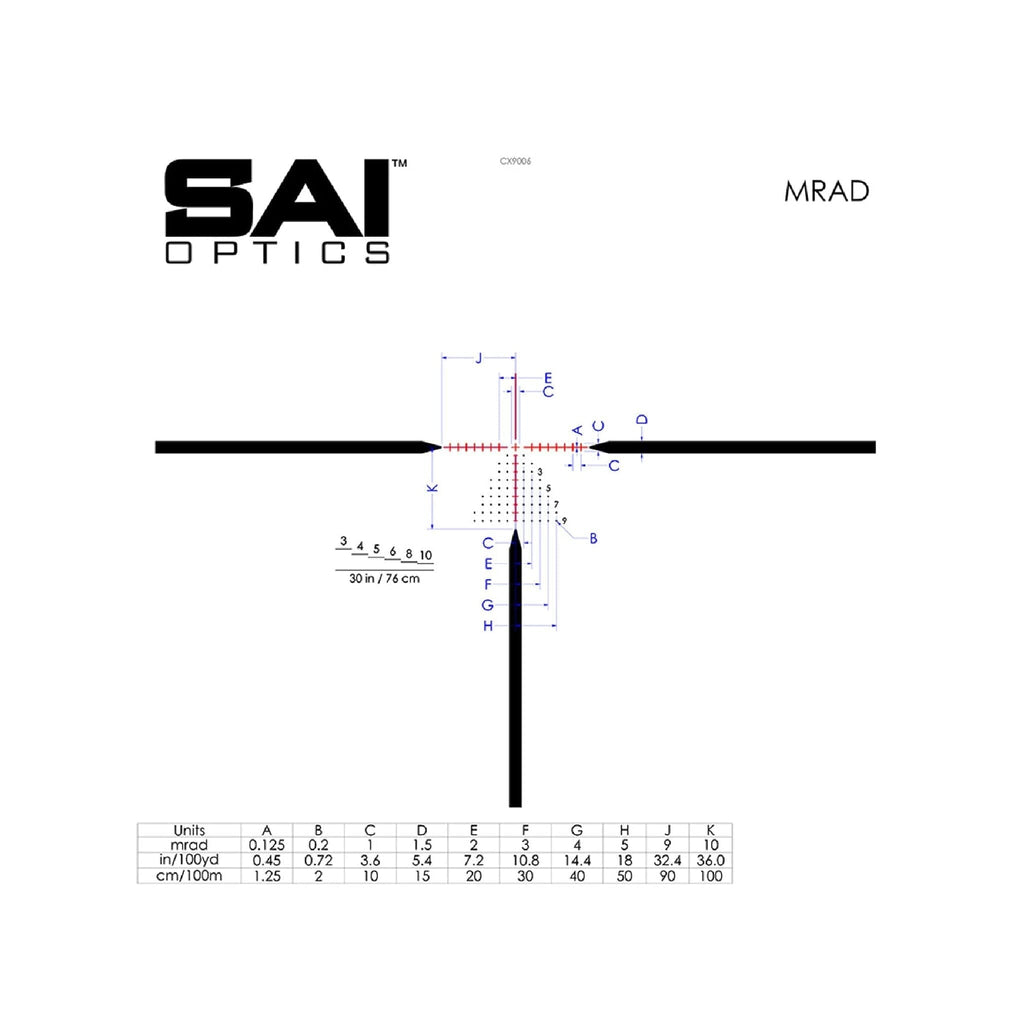

- MRAD BDC Reticle (First Focal Plane) – Fully first focal plane, etched crosshair with VSOR rangefinder lines and windage hold dot grid, calibrated for military precision.
- 1–6× Variable Magnification – Rapid zoom for CQB to mid-range engagements with consistent reticle performance.

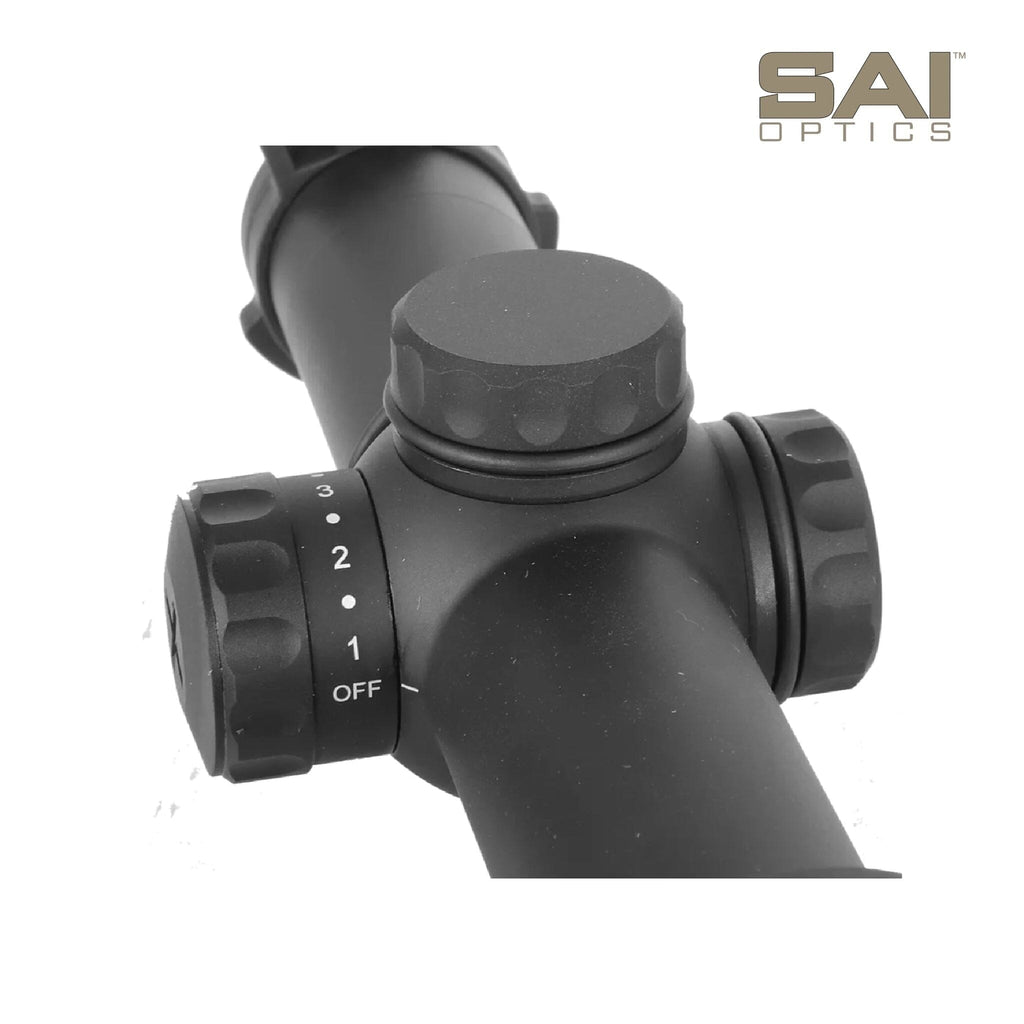

- LED-Illuminated Reticle – Red LED active only on fine stadia and center cross (10 brightness levels); thick reference elements remain etched.
- Rugged Tactical Construction – Waterproof to 3 m, fogproof (nitrogen-purged), shock-rated to 1000 g over 10,000 impacts, and operates from –40 °C to +65 °C.
- Matte Black Type II Hardcoat Finish – Durable and non-reflective for low-profile use.
- Modular Design – Accepts flip-up covers, ARDs, laser filters, and standard accessory rings.
Technical Specifications for SAI Optics 1-6x24 Riflescope No RAF Reticle
|
Specification |
Details |
|
Manufacturer |
SAI Optics |
|
Model / MPN |
RNG16-BK22-MB1 |
|
SKU |
RNG16-BK22-MB1 |
|
UPC |
666595000902 |
|
Magnification |
1–6× |
|
Objective Lens Diameter |
24 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
MRAD crosshair, first focal plane, BDC (No RAF) |
|
Click Value |
0.1 mrad |
|
Elevation/Windage Range |
±35 mrad (~120 MOA) |
|
Parallax |
Fixed @ 110 m |
|
Eye Relief |
90 mm (3.54″) |
|
Exit Pupil |
9.5 mm (1×) / 4.0 mm (6×) |
|
Field of View @ 1× / 6× |
22° (38.8 m) / 3.7° (6.5 m) |
|
Length |
256 mm (10.07″) |
|
Weight |
510 g (18 oz) |
|
Finish |
Matte Black, Type II Hardcoat |
|
Housing Material |
Aircraft-grade aluminum |
|
Waterproof / Fogproof |
Yes – 3 m / 2 hr; nitrogen-purged |
|
Shock Resistance |
1000 g over 10,000 cycles |
|
Illumination |
LED, 10 brightness settings |
|
Battery Type |
CR2032 |
|
Operating Temperature |
–40 °C to +65 °C |
|
Warranty |
5-year limited / lifetime mechanical |
|
Country of Origin |
Japan (optics); assembled by SAI/ATI |
Included Accessories
- Tenebraex Tactical Flip-Up Lens Covers
- KillFlash Anti-Reflection Device
- CR2032 Battery
- Adjustment-Cap Retaining Lanyard
- Battery Removal Disc
- User Manual & Warranty Documentation
