SAI Optics 1-6x24 Riflescope RAF Reticle
Features
-

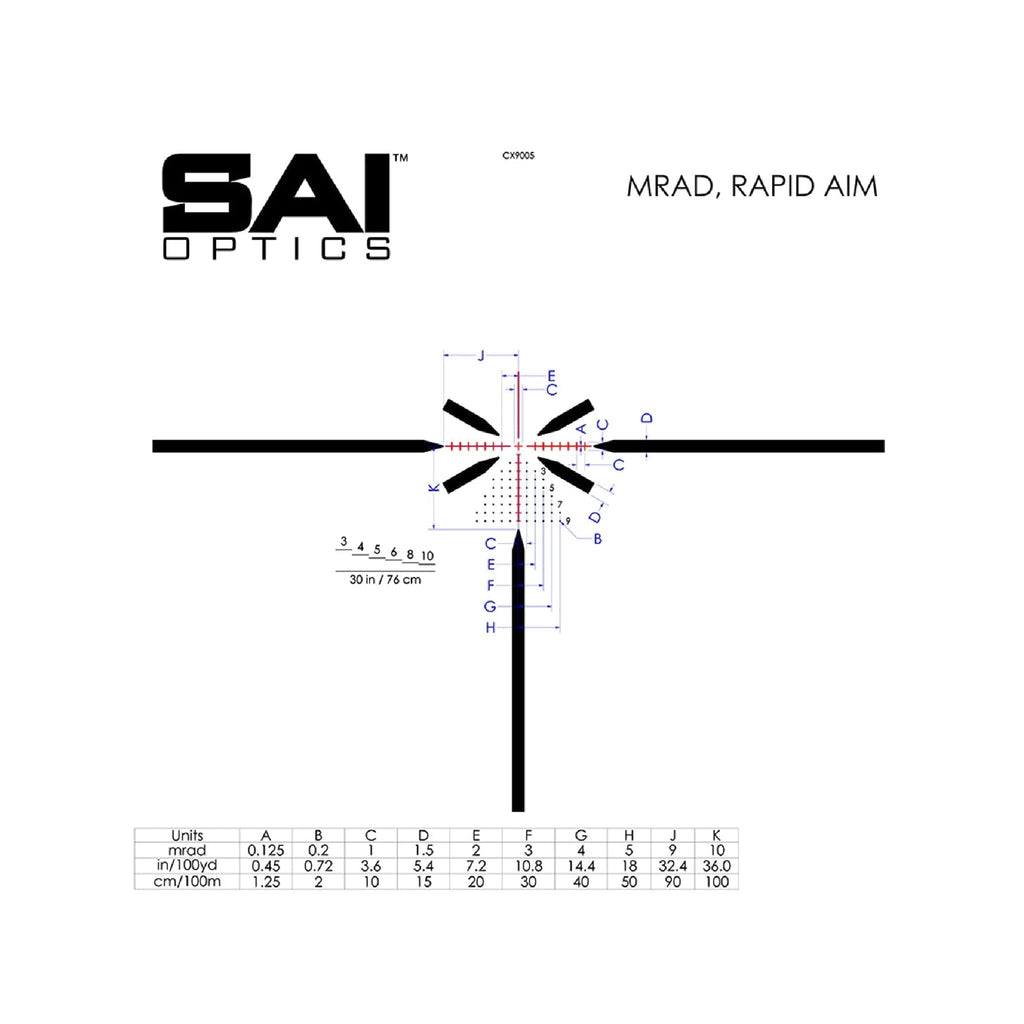

Rapid Aiming Feature™ (RAF) Reticle with MRAD BDC – First focal plane reticle featuring a bold open “X” for close-quarters engagement, a floating center cross, elevation holdovers, windage dots, and VSOR rangefinding lines calibrated in MRAD.
-
1–6× Magnification – Versatile magnification range suitable for both close-quarters and mid-range shooting.
-
First Focal Plane (FFP) – Reticle maintains consistent subtensions throughout the entire zoom range for accurate ranging and holdovers.
-

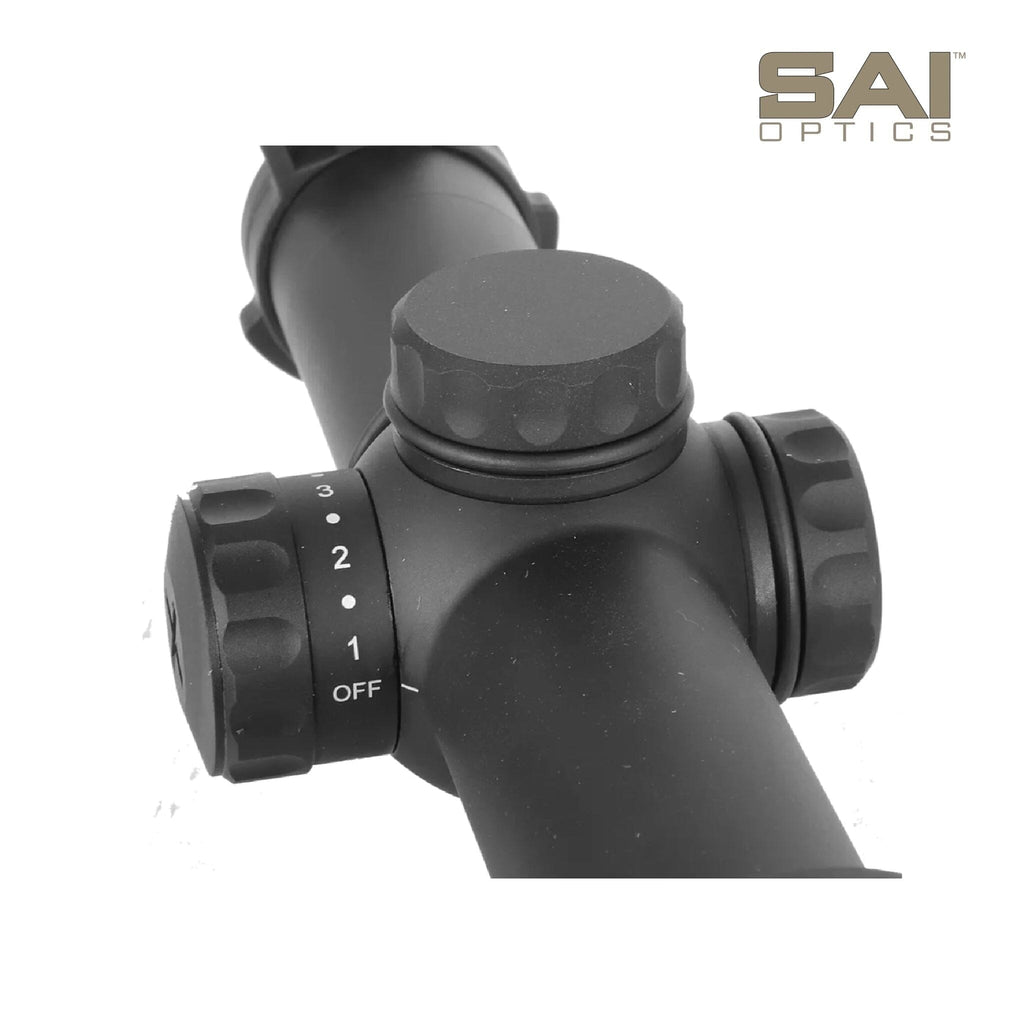

LED-Illuminated Center Cross – 10 adjustable brightness levels; illumination focuses only on the center cross and fine stadia, leaving the RAF X always visible.
-
Fixed Parallax at 110 m – Optimized for practical engagement distances with minimal visual distortion.
-
Tactical-Grade Construction – Shock-rated to 1000 g over 10,000 cycles, waterproof up to 3 meters for 2 hours, fogproof and nitrogen-purged, and reliable in extreme environments from –40°C to +65°C.
-
Matte Black Finish – Durable, non-reflective, Type II hardcoat anodized finish for stealth and corrosion resistance.
-
Accessory-Compatible Design – Accepts standard flip covers, anti-reflection devices, and filter-compatible accessories.
Technical Specifications for SAI Optics 1-6x24 Riflescope RAF Reticle
Specification
|
Details
|
Manufacturer
|
SAI Optics
|
Model / MPN
|
RNG16-BK22-MA1
|
SKU
|
RNG16-BK22-MA1
|
UPC
|
666595000896
|
Magnification
|
1–6×
|
Objective Lens Diameter
|
24 mm
|
Tube Diameter
|
30 mm
|
Reticle
|
FFP MRAD BDC Reticle with Rapid Aiming Feature (RAF)
|
Click Value
|
0.1 mrad
|
Elevation / Windage Range
|
±35 mrad (approx. 120 MOA)
|
Parallax
|
Fixed at 110 m
|
Eye Relief
|
~90 mm (3.5″)
|
Exit Pupil
|
9.5 mm (1×) / 4.0 mm (6×)
|
Field of View @ 100 m
|
38.8 m (1×) / 6.5 m (6×)
|
Length
|
256 mm (10.07″)
|
Weight
|
510 g (18 oz)
|
Finish
|
Hardcoat Anodized – Matte Black
|
Housing Material
|
Aircraft-Grade Aluminum
|
Waterproof / Fogproof
|
Submersible to 3 m for 2 hours; nitrogen-purged
|
Shock Resistance
|
1000 g rated – 10,000 cycle impact testing
|
Illumination
|
LED – 10 brightness settings
|
Battery Type
|
CR2032
|
Operating Temperature
|
–40°C to +65°C
|
Warranty
|
5-Year Limited / Lifetime Mechanical
|
Country of Origin
|
Japan (optics); assembled by SAI
|
Included Accessories
-
Tenebraex Flip-Up Lens Covers
-
KillFlash Anti-Reflection Device
-
CR2032 Battery
-
Adjustment Cap Lanyard
-
Battery Tool
-
User Manual
-
Warranty Card
