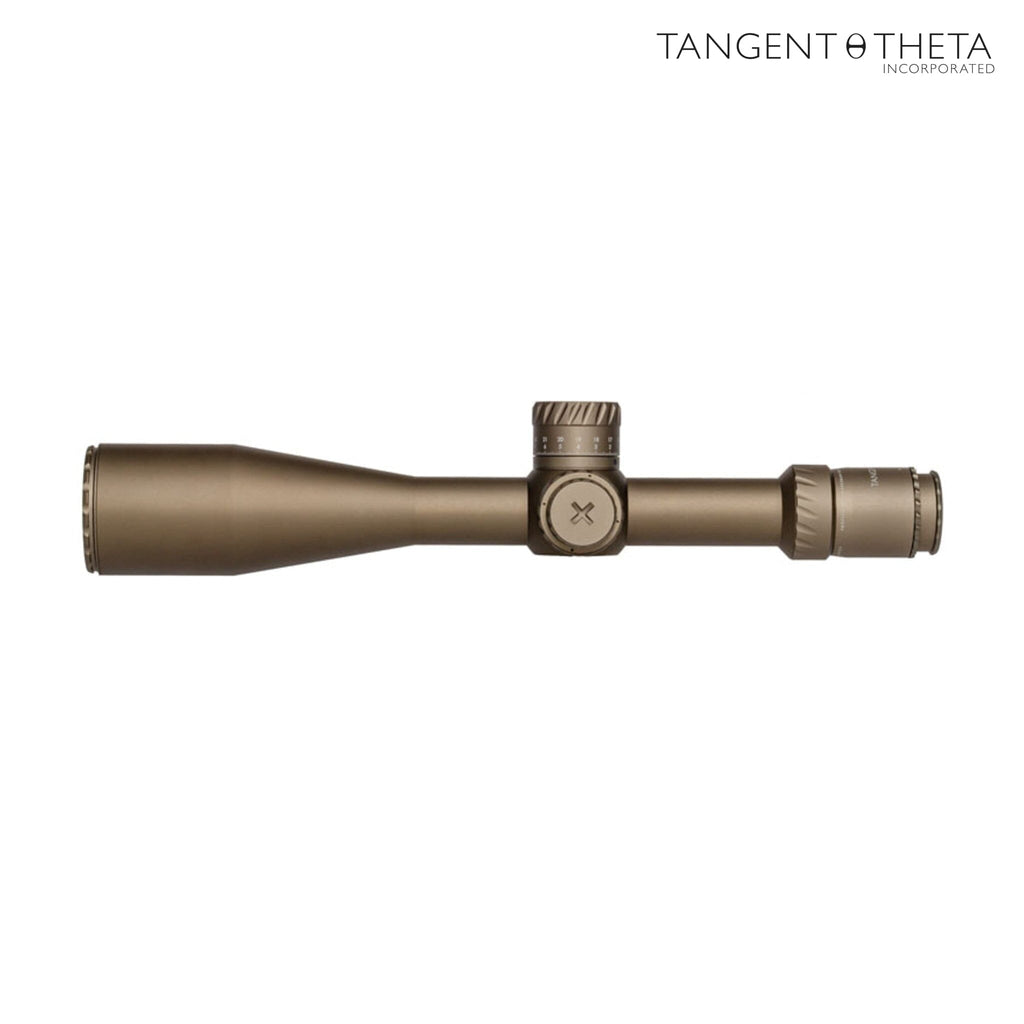

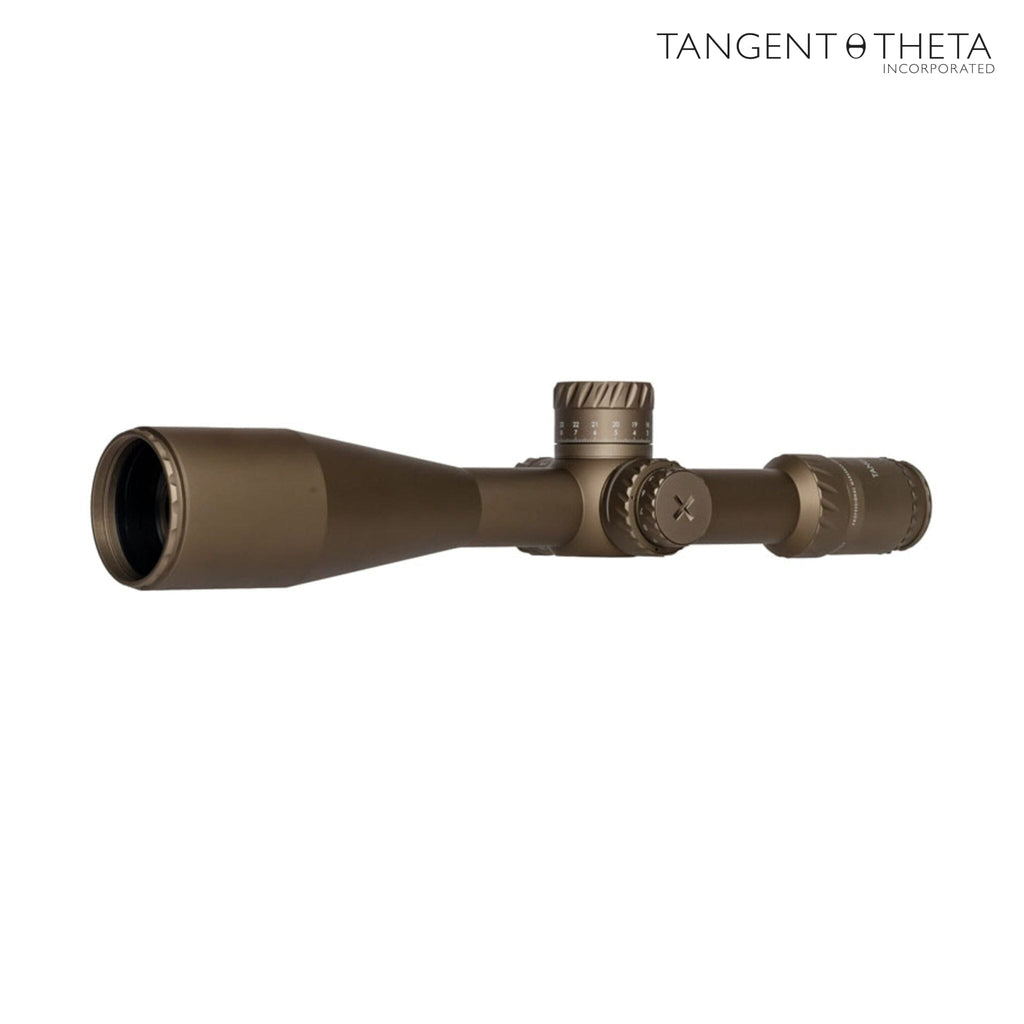

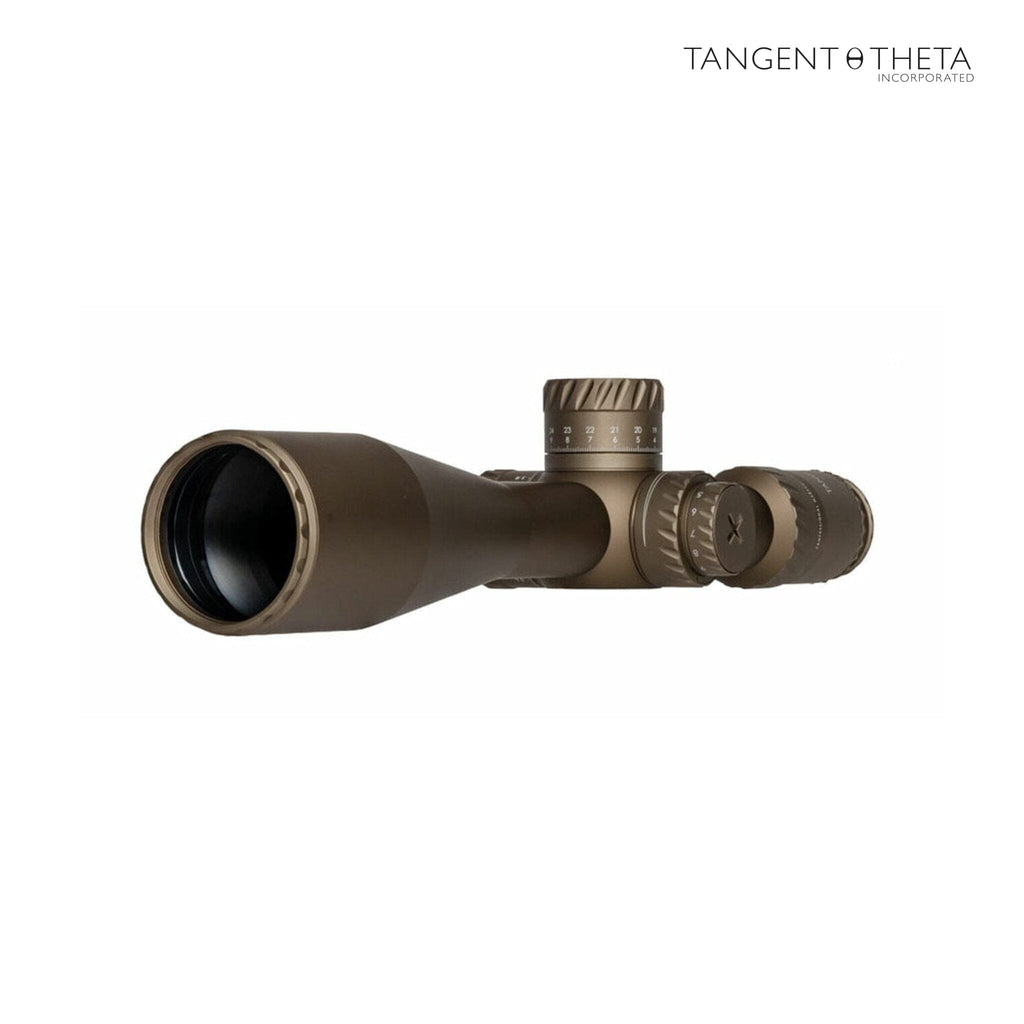

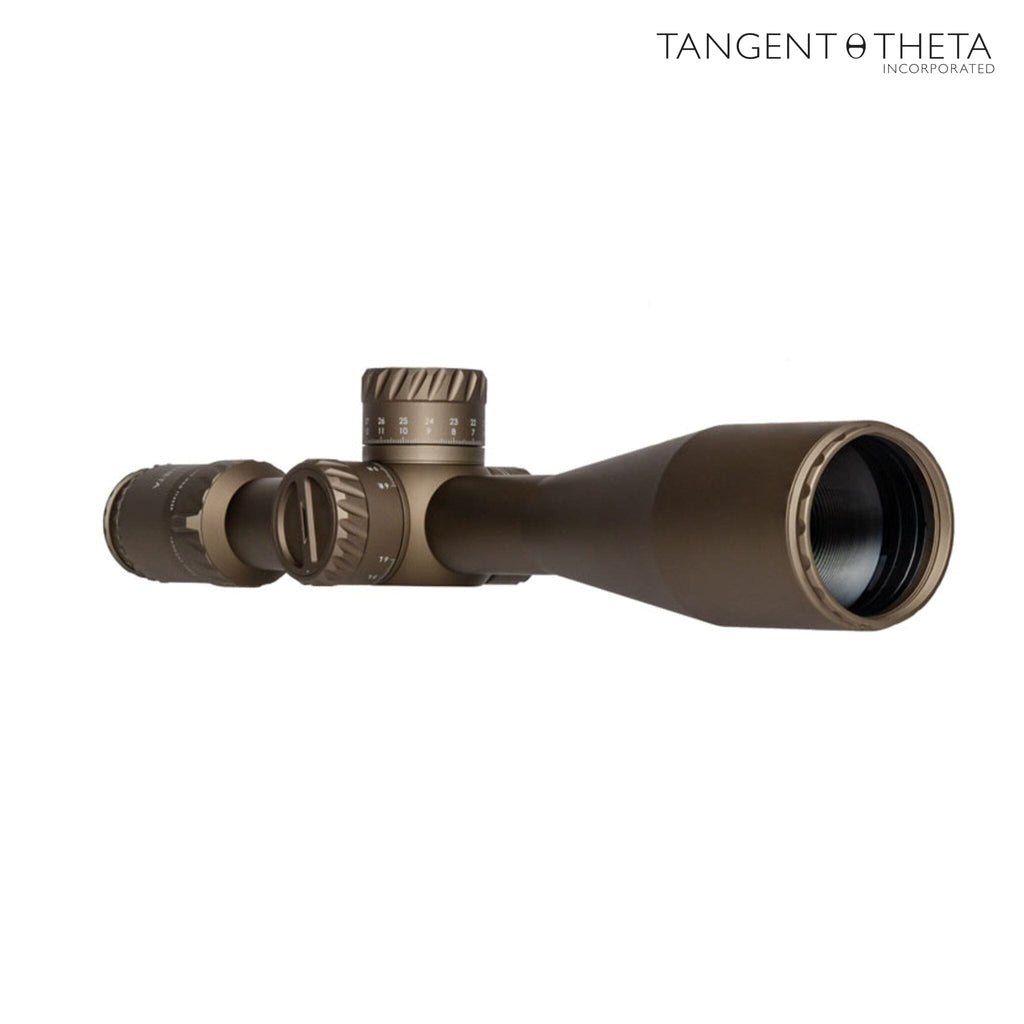

Tangent Theta TT525P 5-25×56 Riflescope - Gen 2 XR Reticle - Coyote Brown
Features
-

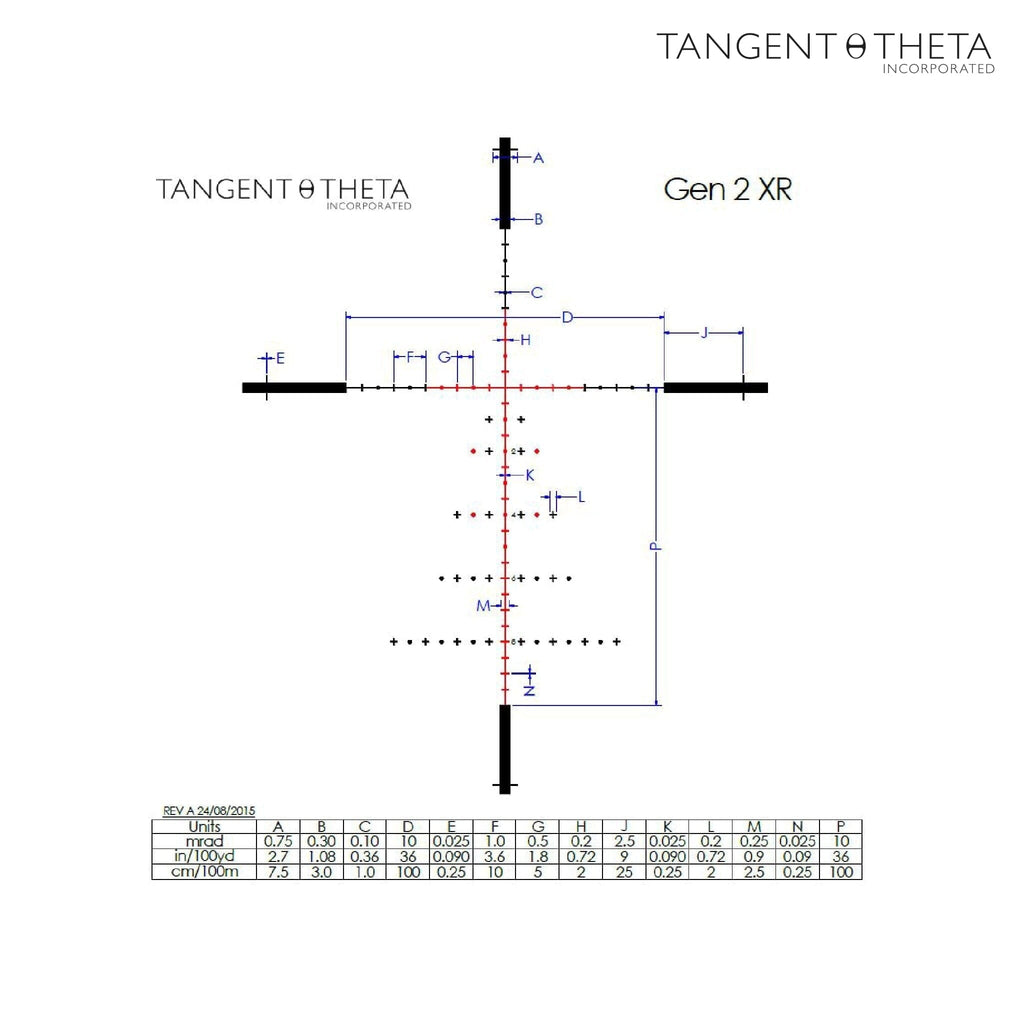

First‑Focal‑Plane Gen 2 XR Reticle – True‑subtension XR grid remains accurate at all magnifications for rapid ranging and precise hold‑over; red‑LED center illumination with 11 brightness levels and 6 h auto‑off.
-
Tool‑Less Re‑Zero® & Zero‑Stop Turrets – Exposed elevation turret with mechanical zero‑stop and patent‑pending tool‑less re‑indexing after sight‑in; windage turret provides a second revolution for extended range adjustments.
-
Premium Low‑Light Optics – Fully multi‑coated premium glass paired with a 56 mm objective delivers outstanding light transmission, contrast, and edge‑to‑edge clarity in any lighting.
-
Side Parallax Focus – Side‑mounted dial adjusts parallax from 50 m to infinity, eliminating focal shift and ensuring crisp reticle clarity at all ranges.
-
Rugged 34 mm Chassis – One‑piece aircraft‑grade aluminum tube in coyote brown Type II hard‑anodized finish; O‑ring sealed and nitrogen‑purged for IPX7 waterproofing and fog‑proof reliability.
-
Versatile 5×–25× Magnification – Broad zoom range supports rapid target acquisition up close and precision engagements at long distance.
Technical Specifications for Tangent Theta TT525P 5-25×56 Riflescope - Gen 2 XR Reticle - Coyote Brown
Specification
|
Details
|
Manufacturer
|
Tangent Theta (Armament Technology, Canada)
|
Model / Part Number
|
TT525P – Gen 2 XR / 800100‑0501
|
SKU / MPN
|
800100‑0501
|
UPC
|
666595531345
|
Reticle
|
First‑Focal‑Plane Gen 2 XR, illuminated (11 levels; 6 h auto‑off)
|
Illumination Battery
|
1 × CR2032 3 V lithium
|
Magnification Range
|
5 × – 25 ×
|
Objective Lens Diameter
|
56 mm
|
Tube Diameter
|
34 mm
|
Field of View
|
4.3° @ 5× (7.6 m @ 100 m); 0.9° @ 25× (1.6 m @ 100 m)
|
Eye Relief
|
90 mm
|
Exit Pupil
|
11 mm @ 5×; 2.3 mm @ 25×
|
Diopter Range
|
–3 to +2.5
|
Elevation Total Adj.
|
30 mrad (103 MOA); Working 28 mrad (96 MOA)
|
Windage Total Adj.
|
± 10 mrad (± 34 MOA); Working ± 6 mrad (± 20 MOA)
|
Click Value
|
0.1 mrad (¼ MOA) per click
|
Parallax Adjustment
|
Side focus, 50 m to ∞
|
Length
|
425 mm (16.7 in)
|
Weight
|
1,150 g (40.6 oz)
|
Finish
|
Coyote Brown Type II hard‑anodize
|
Waterproof / Fogproof
|
IPX7 (1 m submersion for 30 min); nitrogen‑purged
|
Warranty
|
Limited lifetime warranty
|
Included Accessories
-
Flip‑up lens covers
-
CR2032 battery (installed)
-
Instruction manual & warranty documentation
