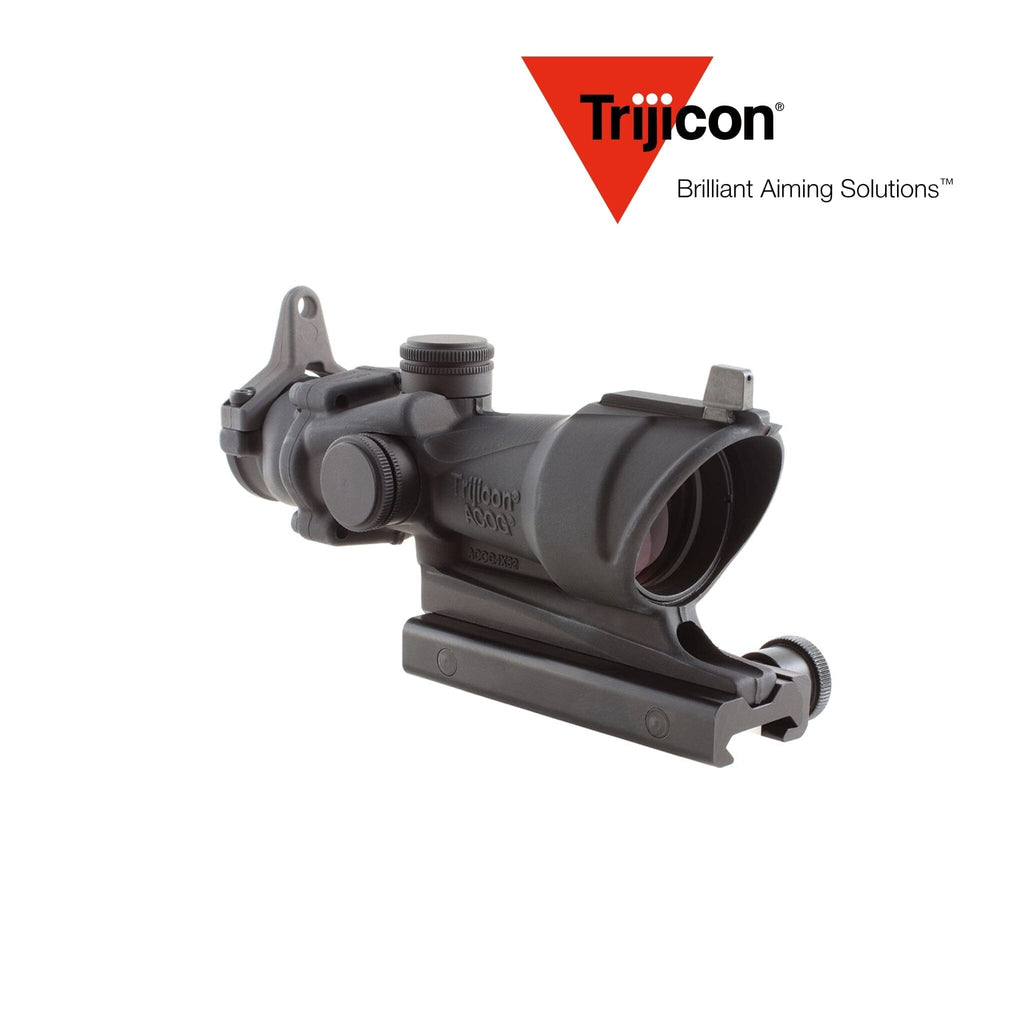

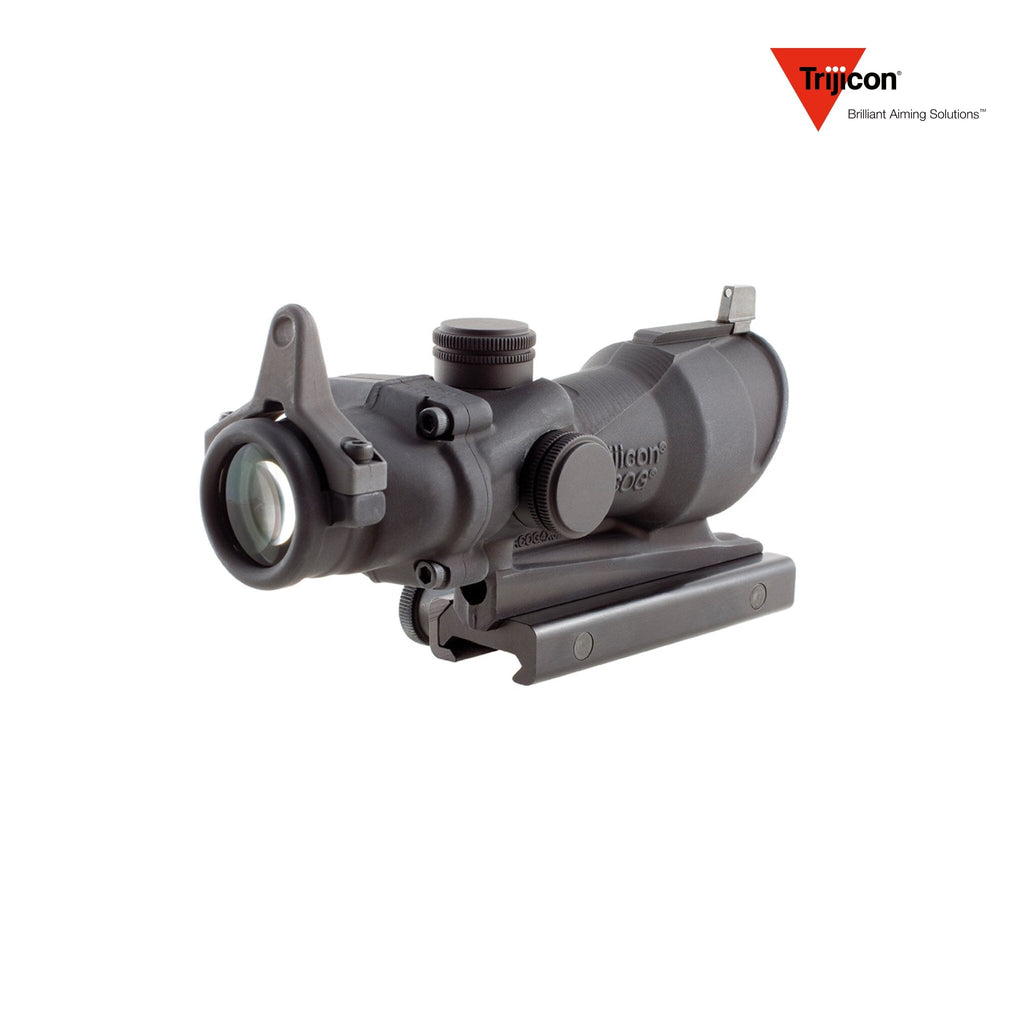

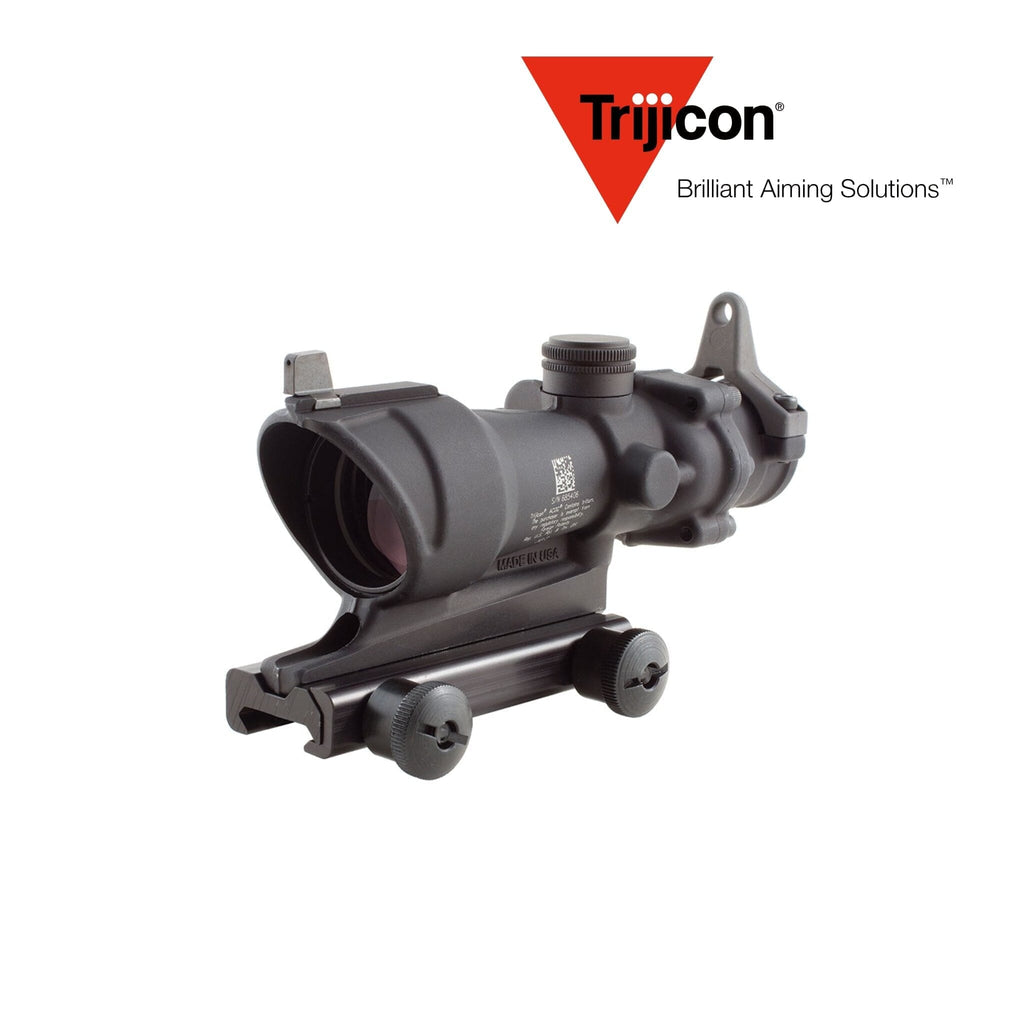

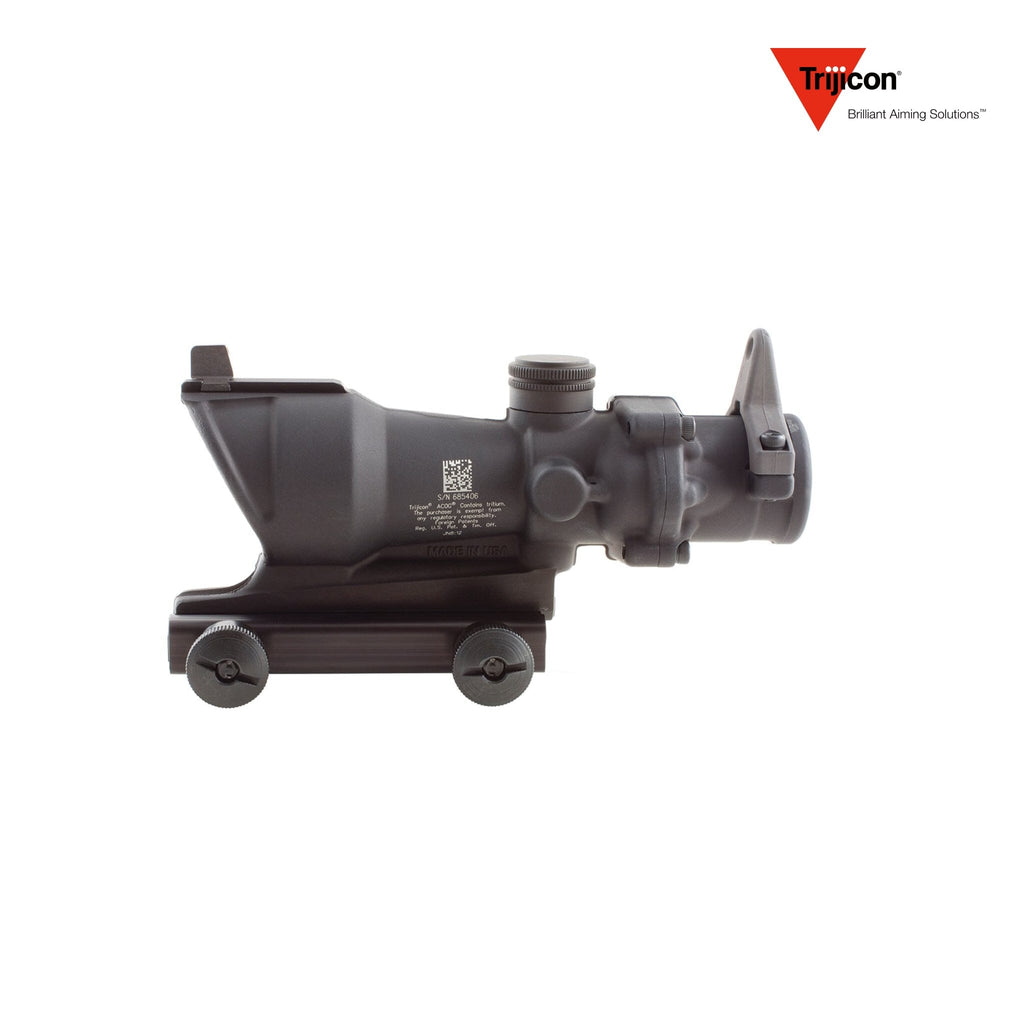

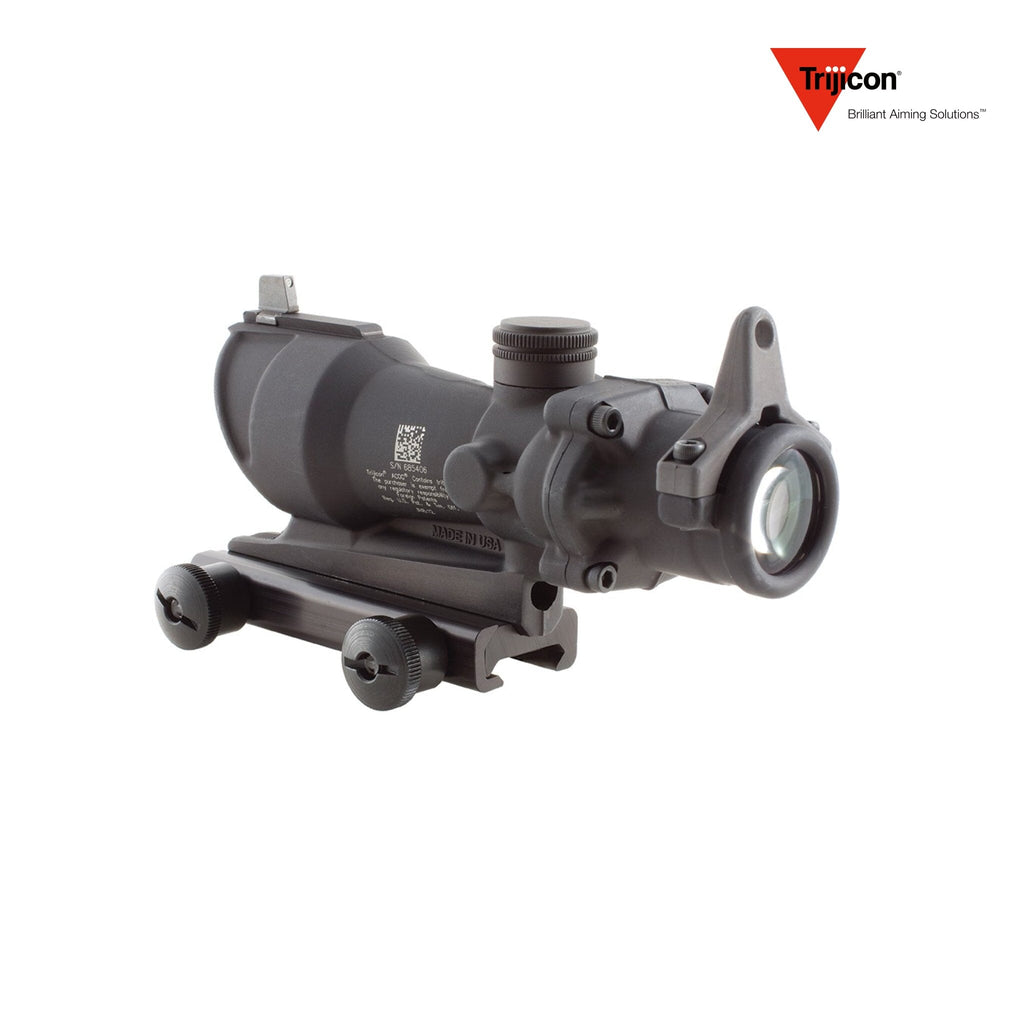

Trijicon ACOG 4x32 Tritium Riflescope .223/5.56 BDC Amber Crosshair Reticle
Trijicon ACOG 4×32 Tritium Riflescope .223/5.56 BDC Amber Crosshair Reticle
Features
- Tritium‑Only Illumination: Reticle is black in bright light; glows amber in low/no light from an internal tritium lamp—no fiber optic, no batteries.
- M4/M4A1 Ballistic Match: .223/5.56 BDC stadia optimized around 62‑gr M855 from 14.5–16″ carbines; engage from CQB to 600 m without dialing.

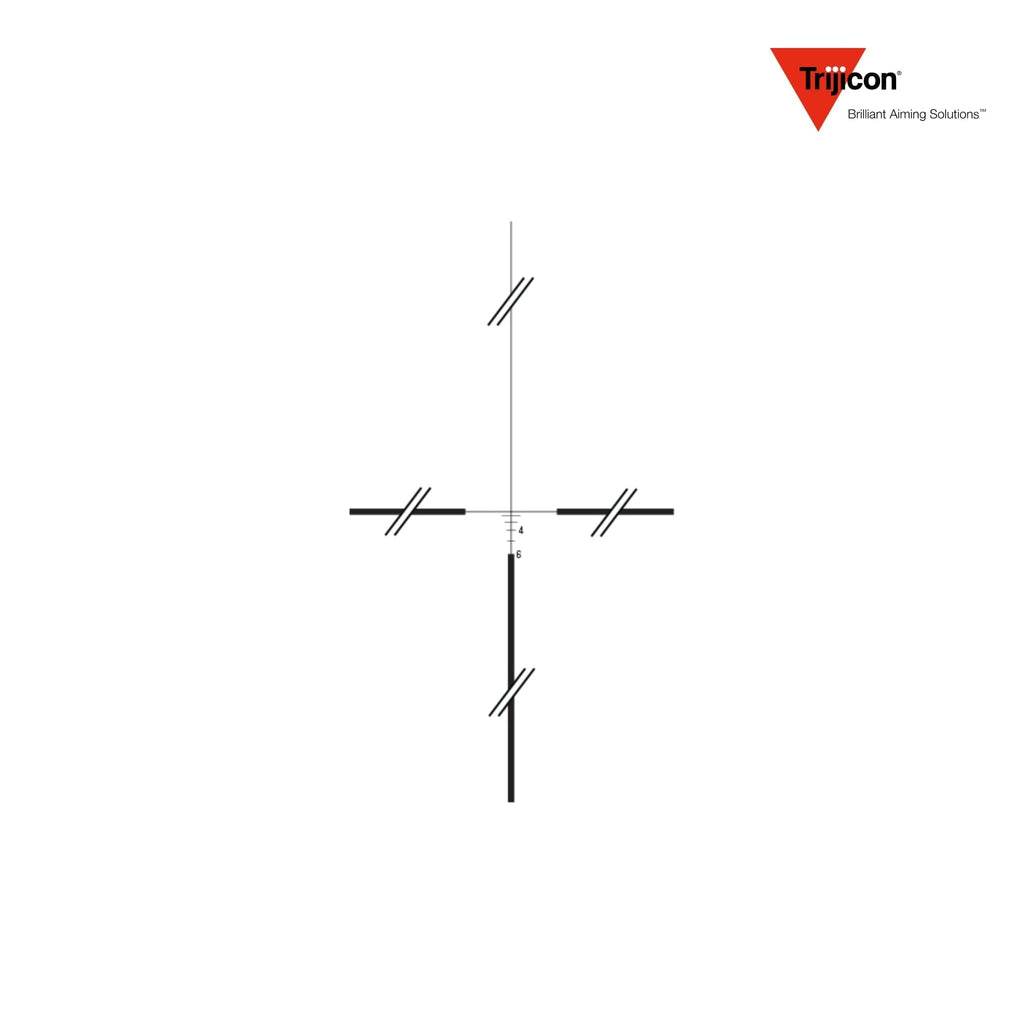

- Amber BDC Crosshair Reticle: Simple vertical drop scale with range references; illuminated center promotes positive aiming in the dark.
- Integrated Backup Iron Sights: Rear ghost‑ring aperture and front blade molded into the housing for emergency close‑range use.
- Forged 7075‑T6 Aluminum Housing: One‑piece, shock‑resistant combat body built to survive deployment abuse.
- Sealed & Deep‑Water Rated: Waterproof to 100 m and nitrogen‑purged to resist internal fogging across temperature swings.
- ½ MOA External Adjusters: 2 clicks/inch @100 yd windage & elevation under tethered caps; rugged internal prism adjustment system holds zero.
- Compact 4× Combat Glass: Bright, wide field (7°) helps with rapid ID and transitions.
- TA51 Flattop Adapter Included: Ready for MIL‑STD‑1913 / AR‑15 flattop rails; historically adaptable to carry‑handle installs.
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 Tritium Riflescope .223/5.56 BDC Amber Crosshair Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA01NSN / 100091 |
|
SKU |
TA01NSN |
|
UPC |
719307300538 |
|
Country of Origin |
USA |
|
Magnification |
4× fixed |
|
Objective Lens Diameter |
32 mm |
|
Optical Design |
Fixed‑power prism (integral ACOG housing) |
|
Reticle |
Amber .223/5.56 BDC Crosshair (tritium illuminated; black by day) |
|
Illumination Source |
Tritium—battery‑free, no fiber optic |
|
BDC Range |
Scaled to 600 m w/ 62‑gr 5.56 (M855) carbine velocities |
|
Eye Relief |
1.5″ (38 mm) |
|
Field of View @ 100 yd |
36.8 ft (7°) |
|
Exit Pupil |
8.1 mm |
|
Adjustment Click Value |
½ MOA (≈2 clicks/inch @100 yd) |
|
Total Adjustment Range |
~40 MOA windage & elevation |
|
Parallax Focus |
Fixed (optimized ~100 m) |
|
Overall Length |
5.8″ (147 mm) |
|
Weight |
~15 oz class w/ TA51 mount (optic body slightly less) |
|
Housing Material / Finish |
Forged aluminum; matte black hard anodize |
|
Waterproof / Fog‑Proof |
Waterproof to 100 m; nitrogen‑purged |
|
Shock Resistance |
Combat‑rated for service calibers |
|
Mount Interface |
TA51 flattop Picatinny thumbscrew adapter (included) |
|
Backup Iron Sights |
Built‑in rear aperture & front blade (close emergency use) |
Included Accessories
- TA01NSN 4×32 Tritium ACOG optic (.223/5.56 BDC Amber Crosshair)
- TA51 flattop Picatinny thumbscrew mount
- Integrated backup iron sights
- Rubber lens cap / dust cover (package dependent)
- Lens cleaning tool
- Tethered adjuster caps & lanyard
- Trijicon sticker
- Owner’s manual & warranty card
SEO Keywords
Trijicon ACOG TA01NSN, 4×32 Tritium Amber Crosshair 5.56 BDC, M4A1 TA01NSN ACOG, battery‑free tritium ACOG scope, Trijicon military carbine optic.
