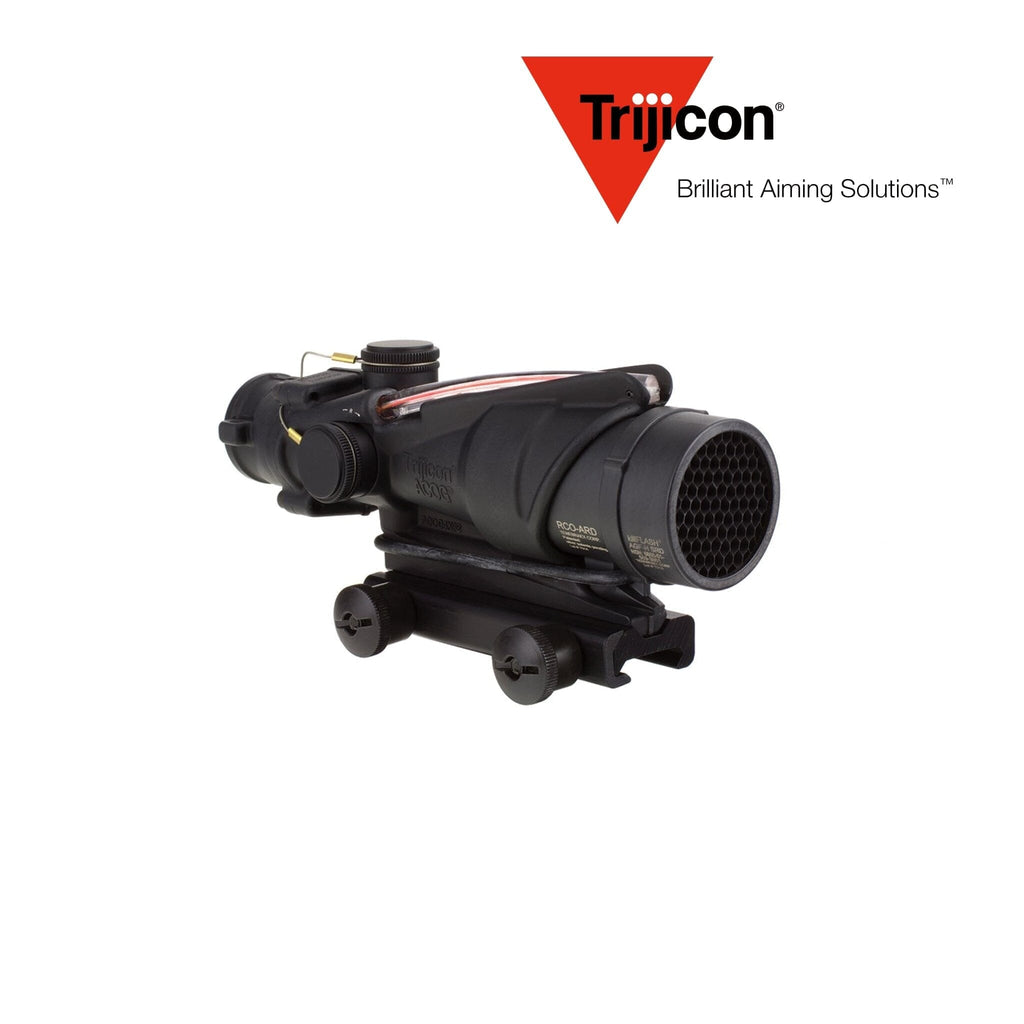

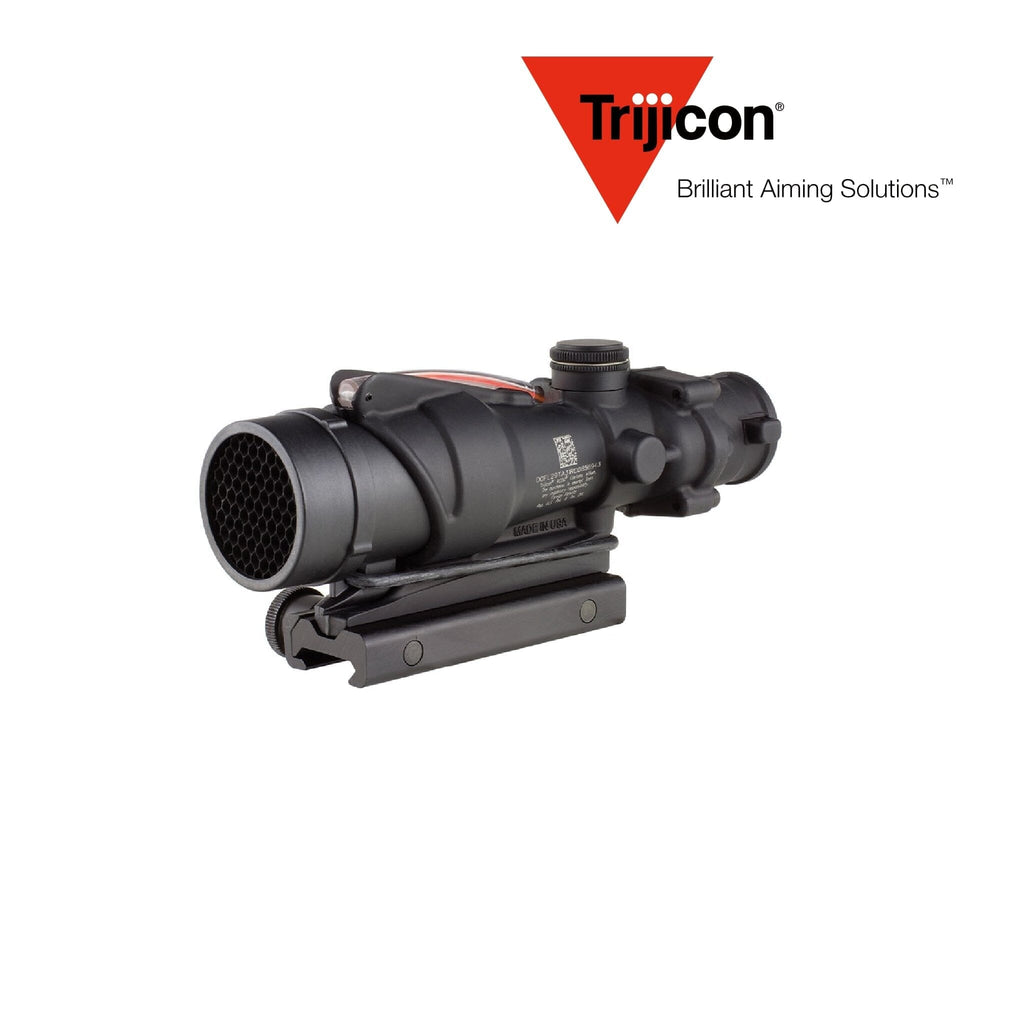

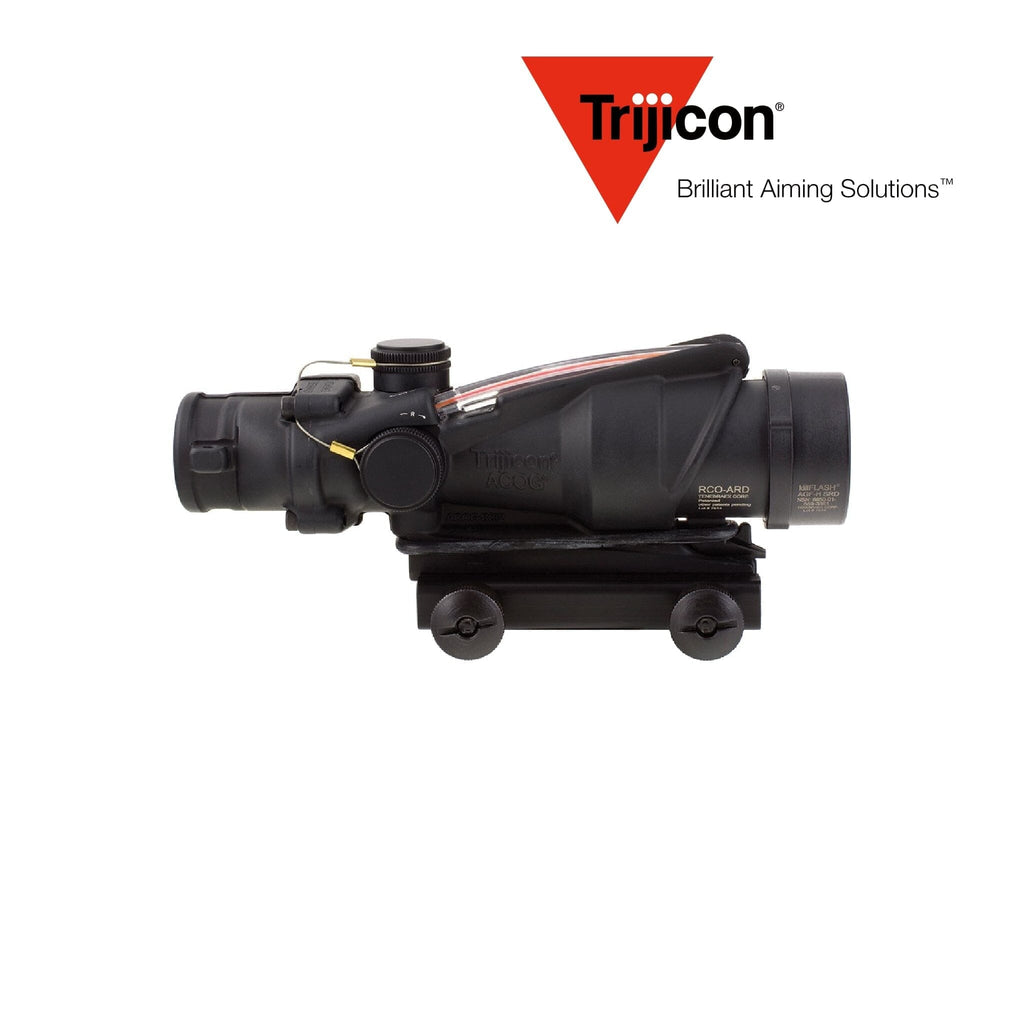

Trijicon ACOG 4×32 USMC RCO Riflescope .223/5.56 BDC Red Chevron Reticle
$1,499.99
Shipping calculated at checkout.
Trijicon ACOG 4×32 USMC RCO Riflescope .223/5.56 BDC Red Chevron Reticle
Features
- USMC Rifle Combat Optic (RCO) Configuration: Calibrated for the M16A4 20" barrel 5.56 NATO trajectory; issued‑pattern optic with government‑spec kit components.
- Dual‑Illuminated, Battery‑Free Reticle: Fiber optics power the aiming point in daylight; tritium provides a self‑luminous glow in low/no light—always on, no batteries.

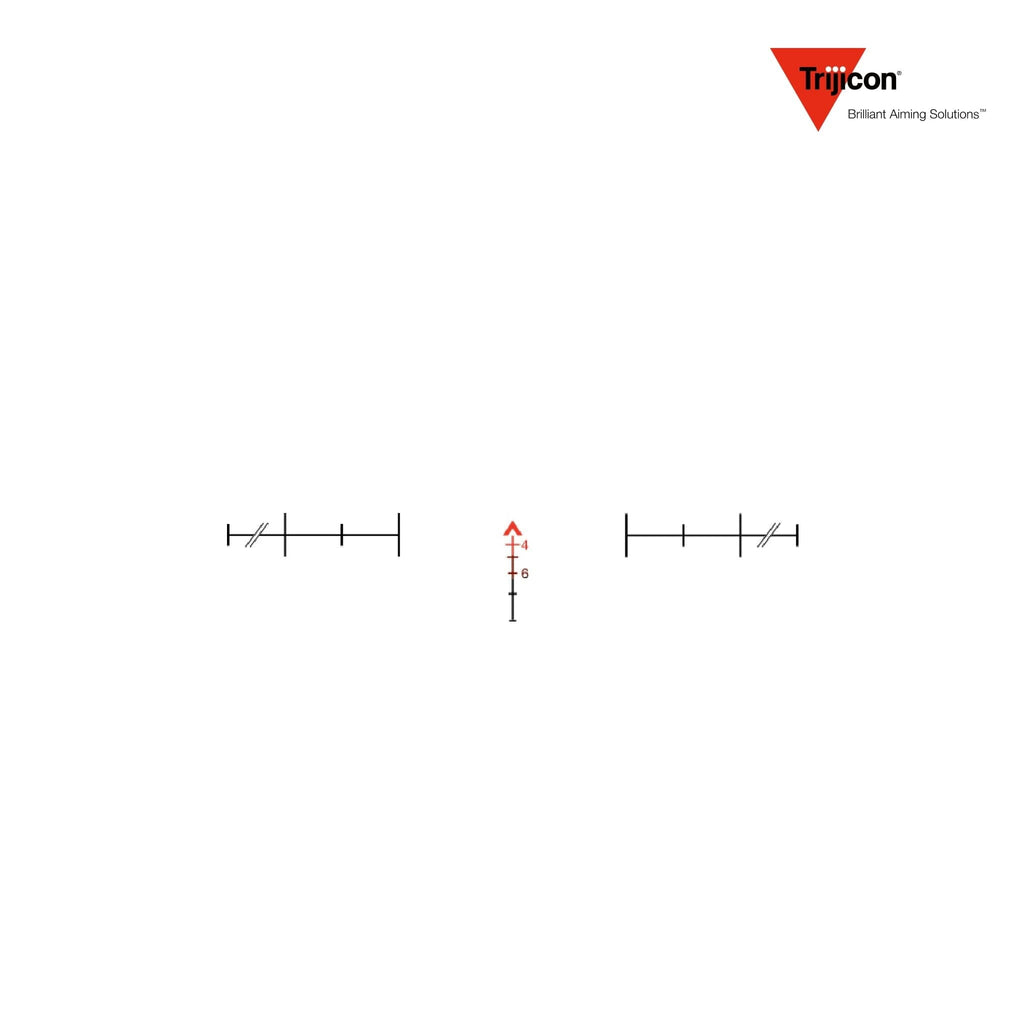

- Red Chevron .223/5.56 BDC Reticle: Chevron tip is your 100 m zero; descending stadia provide holds for extended range with M16A4 velocity curves. Chevron width may be used for coarse range estimation on silhouette targets.
- Rugged Forged 7075‑T6 Aluminum Housing: Combat‑proven ACOG durability—shock, recoil, and harsh‑environment resistant; hard‑anodized matte black finish.
- Wide Situational Field of View: 7° (36.8 ft @ 100 yd) aids scanning and mover tracking while shooting both eyes open (BAC concept).
- ½ MOA External Adjusters: 2 clicks/inch @100 yd windage & elevation; no tools required for gross correction (caps protect the adjusters).
- Waterproof / Fog‑Proof: Deep‑water sealed construction; nitrogen‑purged for internal fog resistance.
- USMC Kit Accessories: Typically ships with KillFlash® ARD, flip caps, TA51 flattop mount, and cleaning/maintenance items (see Included Accessories).
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 USMC RCO Riflescope .223/5.56 BDC Red Chevron Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA31RCO‑A4CP / 100226 |
|
SKU |
TA31RCO‑A4CP |
|
UPC |
719307302068 |
|
Country of Origin |
USA |
|
Magnification |
4× fixed |
|
Objective Lens Diameter |
32 mm |
|
Optical Design |
Fixed‑power prism (integral ACOG housing) |
|
Reticle |
Red Chevron .223/5.56 BDC (dual‑illum fiber optic / tritium) |
|
Illumination |
Fiber (daylight auto‑bright) / tritium (night); battery‑free |
|
Eye Relief |
1.5″ (38 mm) |
|
Field of View @ 100 yd |
36.8 ft (7°) |
|
Exit Pupil |
8.1 mm |
|
Adjustment Click Value |
½ MOA (≈2 clicks/inch @100 yd) |
|
Total Adjustment Range |
~40 MOA windage & elevation (ACOG 4×32 class) |
|
Parallax Focus |
Fixed ~100 m |
|
Overall Length |
5.8″ optic body (~6.7″ typical RCO kit w/ ARD / caps) |
|
Weight |
9.9 oz optic‑only; ~15–16 oz typical complete USMC RCO kit (mount, ARD, caps) |
|
Housing Material / Finish |
Forged aluminum; matte black hard anodize |
|
Waterproof / Fog‑Proof |
Sealed; nitrogen‑purged; deep‑water rated |
|
Shock Resistance |
Combat‑rated for duty calibers |
|
Mount Interface |
TA51 flattop Picatinny thumbscrew adapter (included) |
Included Accessories (USMC RCO Package Contents)
- TA31RCO‑A4CP 4×32 ACOG (Red Chevron .223/5.56 BDC)
- TA51 flattop Picatinny thumbscrew mount (Colt‑style)
- KillFlash® / ARD (anti‑reflection device)
- Flip‑up objective & eyepiece caps (RCO pattern)
- Adjuster cap lanyard assembly
- Lens cleaning tool (LensPen® style)
- Protective soft cover / packaging (varies)
- Owner’s manual, RCO zeroing instructions & warranty materials
