Trijicon Ascent 1-4x24 Riflescope Black BDC Target Holds – AT424-C-2800001
Trijicon
Trijicon Ascent 1-4x24 Riflescope Black BDC Target Holds – AT424-C-2800001
Shipping Information
Orders ship within the United States only and are typically processed in 1–2 business days. Delivery estimates and any free-shipping offers are shown at checkout. We do not ship internationally. Read our full Shipping Policy.
Returns
Unused items in their original packaging may be returned within 30 days of delivery. Optics that have been mounted or used may be inspected. Email support@dnrsports.com to start a return. Read our full Return & Refund Policy.
Warranty Information
Products are covered by their manufacturer's warranty; coverage and length vary by brand. We'll help you start a claim if needed — email support@dnrsports.com. Read our Warranty page.
The D&R Standard
- Secure Online Ordering
- Carefully Selected Equipment
- Knowledgeable Product Support
- Manufacturer Warranty Information Available
Overview

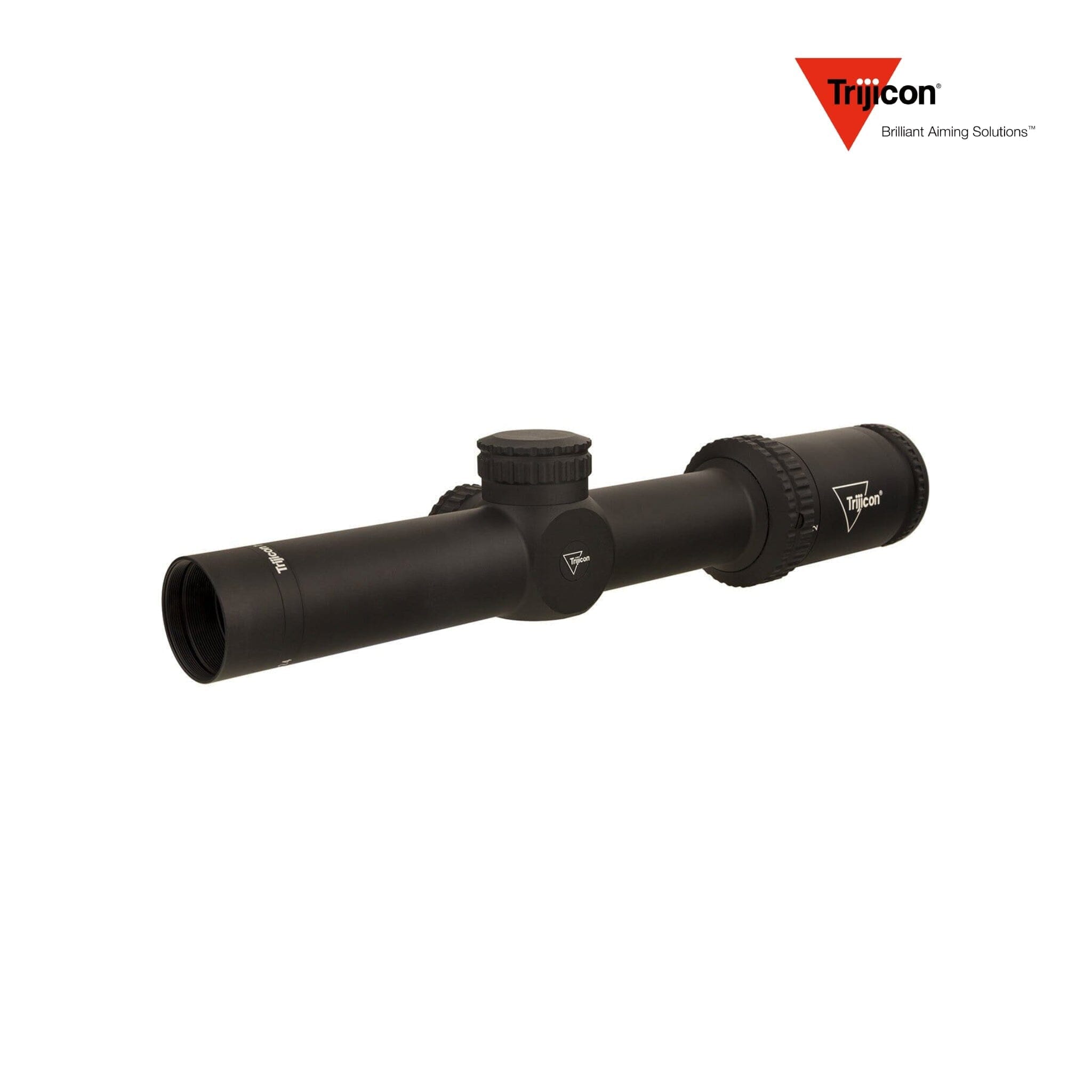

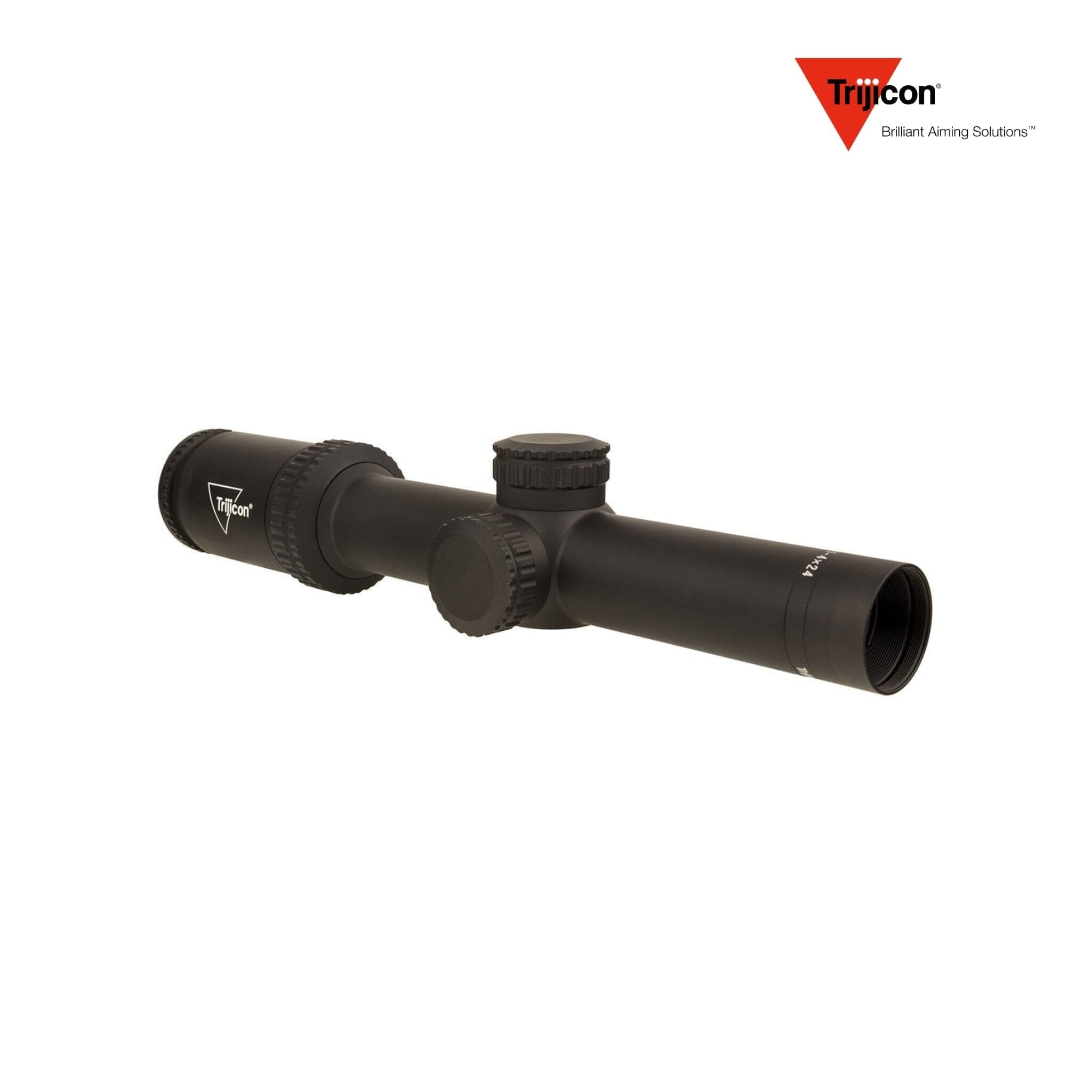

The Trijicon Ascent 1-4x24 Riflescope Black BDC Target Holds is a Trijicon rifle scope with 1-4x magnification and 24 mm objective.
How It Compares
Browse all rifle scopes or Trijicon rifle scopes.
Ideal For
- Shooters who want the reach of 1-4x on one rifle without swapping optics
- Low-light work, where the 24 mm objective is still gathering light at dusk
- Anyone who wants a clean BDC Target Holds reticle and no illumination battery to remember
- Hunters who want the reticle to stay the same size as they zoom
Key Features
- Magnification / Objective: 1-4x
- Objective: 24 mm

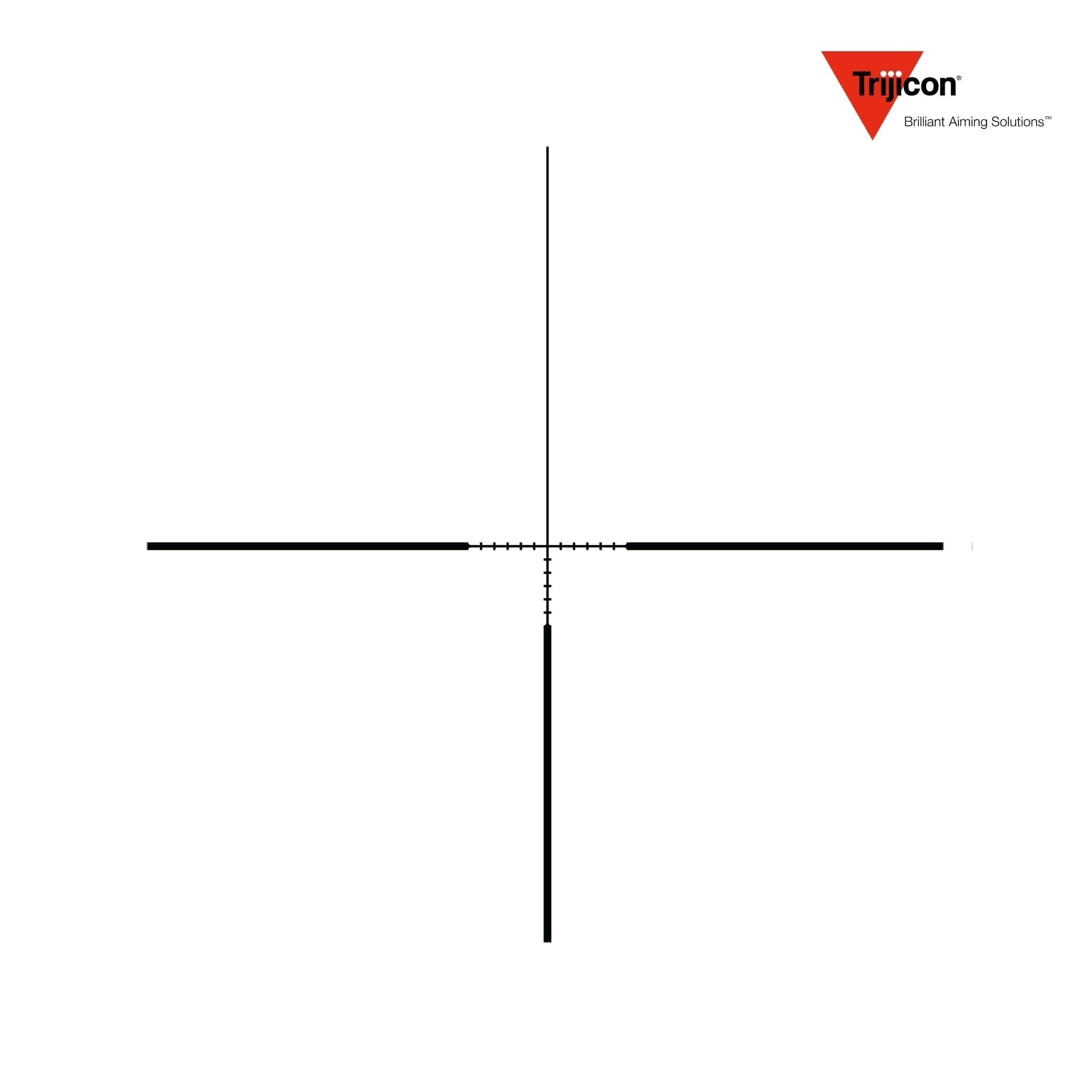

- Reticle: BDC Target Holds (etched, non-illuminated; Bullet Drop Compensating: Yes)
- Illumination: None - non-illuminated black etched reticle.
- Focal Plane: Second Focal Plane (SFP)
- Tube Diameter: 30 mm
- Click Value: 1/4 MOA per click
- Adjustment Range: 100 MOA total travel
About This Model
- Reticle: BDC Target Holds (etched, non-illuminated; Bullet Drop Compensating: Yes)
- Illumination: None - non-illuminated black etched reticle.
- Turrets: 1/4 MOA per click
- Warranty: Trijicon Limited Lifetime Warranty
What's Included
- Lens Cap, Scopecoat, Quick Reference Guide, Warranty Card, Vinyl Logo Sticker
Technical Specifications
Magnification / Objective |
1-4x |
Objective |
24 mm |
Tube Diameter |
30 mm |
Focal Plane |
Second Focal Plane (SFP) |
Reticle |
BDC Target Holds (etched, non-illuminated; Bullet Drop Compensating: Yes) |
Reticle Color |
Black (etched) |
Illumination |
None - non-illuminated black etched reticle. |
Click Value |
1/4 MOA per click |
Adjustment Range |
100 MOA total travel |
Parallax |
Fixed (non-adjustable) |
Eye Relief |
2.6 - 3.9 in (66.0 - 99.1 mm) |
Field of View |
95 - 24.2 ft @ 100 yds (18 - 4.6 deg) |
Length |
10.4 in |
Weight |
15.9 oz |
Housing |
6061-T6 aluminum (6061 aircraft-grade on TR32/33/34/Ascent pages), hard-coat anodized |
Water Resistance |
Waterproof - submersion depth 10 ft (3 m); nitrogen-filled/fogproof |
SKU / MPN / UPC |
AT424-C-2800001 / AT424-C-2800001 / 719307402966 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is it first or second focal plane?
Second Focal Plane (SFP). The reticle stays the same visual size as you zoom, so holdovers are calibrated at one magnification.
Which reticle does it have?
BDC Target Holds (etched, non-illuminated; Bullet Drop Compensating: Yes).
Is the reticle illuminated?
None - non-illuminated black etched reticle.
What is the parallax setting?
Fixed (non-adjustable).
Is this a genuine Trijicon product?
Yes — factory-new Trijicon, supplied through US distribution. The part number is AT424-C-2800001 and the barcode is 719307402966.
What warranty does it carry?
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner.
Technical Specifications
- SKU
- AT424-C-2800001
- UPC
- 719307402966
- Manufacturer
- Trijicon
- Model / MPN
- AT424‑C‑2800001
- Country of Origin
- Japan
- Magnification
- 1–4× variable
- Objective Lens Diameter
- 24 mm
- Tube Diameter
- 30 mm
- Reticle
- BDC Target Holds (Second Focal Plane)
- Illumination
- None (non-illuminated reticle)
- Eye Relief
- 2.6″–3.9″ (≈66–99 mm)
- Field of View @ 100 yd
- 95 ft (1×) – 24.2 ft (4×)
- Exit Pupil
- 0.69″–0.2″ (~17.5–5.1 mm)
- Adjustment Click Value
- ¼ MOA
- Total Adjustment Range
- 100 MOA elevation & windage
- Parallax
- Fixed at 100 yd
- Overall Length
- 10.4″ (~264 mm)
- Weight
- 15.9 oz (~451 g)
- Housing Material / Finish
- 6061‑T6 aluminum; hard-anodized matte black
- Optical Coatings
- Fully multi-coated glass
- Waterproof / Fogproof
- Waterproof to 10 ft (~3 m); nitrogen-purged
- Shock Resistance
- Designed to withstand heavy recoil and field use
- Mount Compatibility
- Standard 30 mm rings (mount not included)
