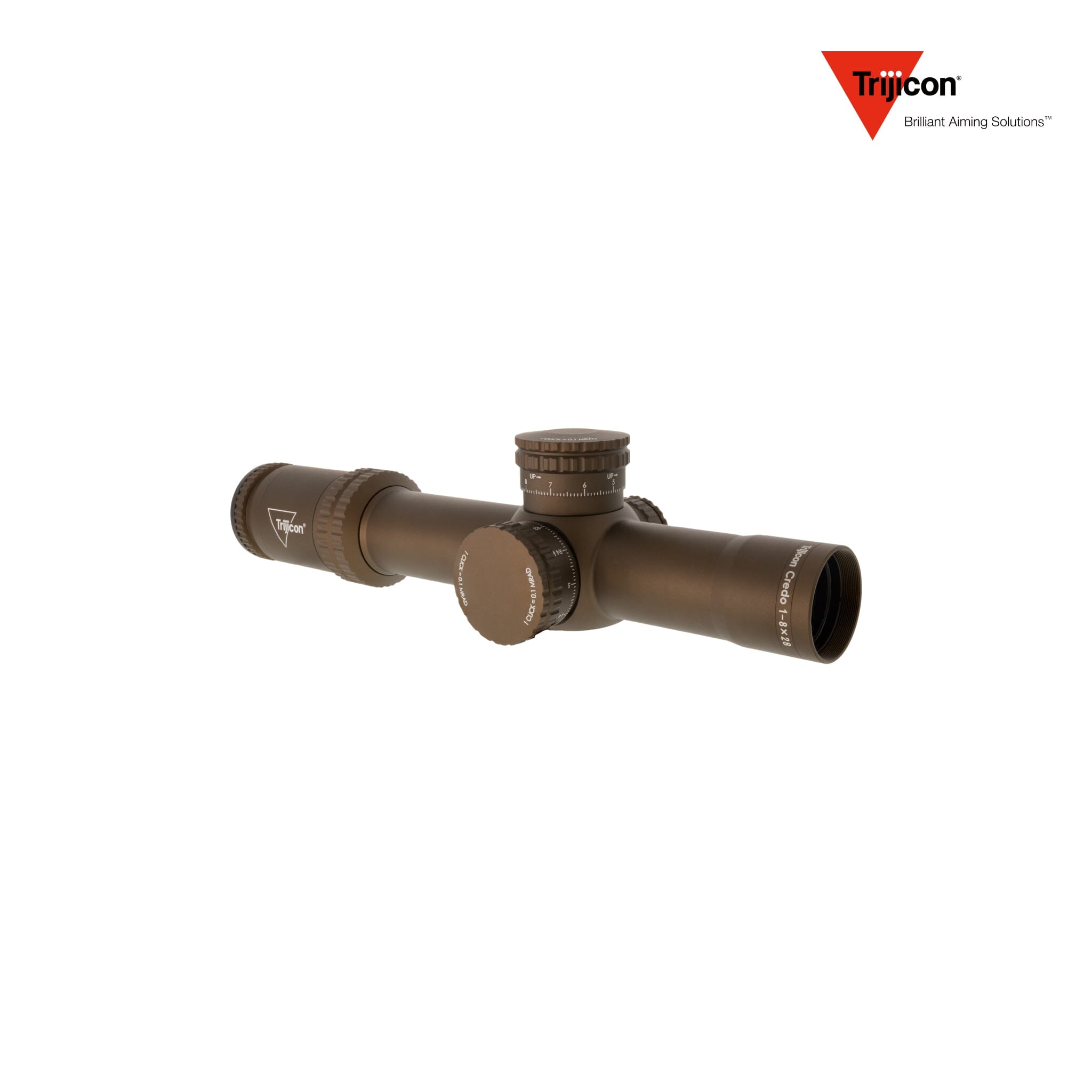

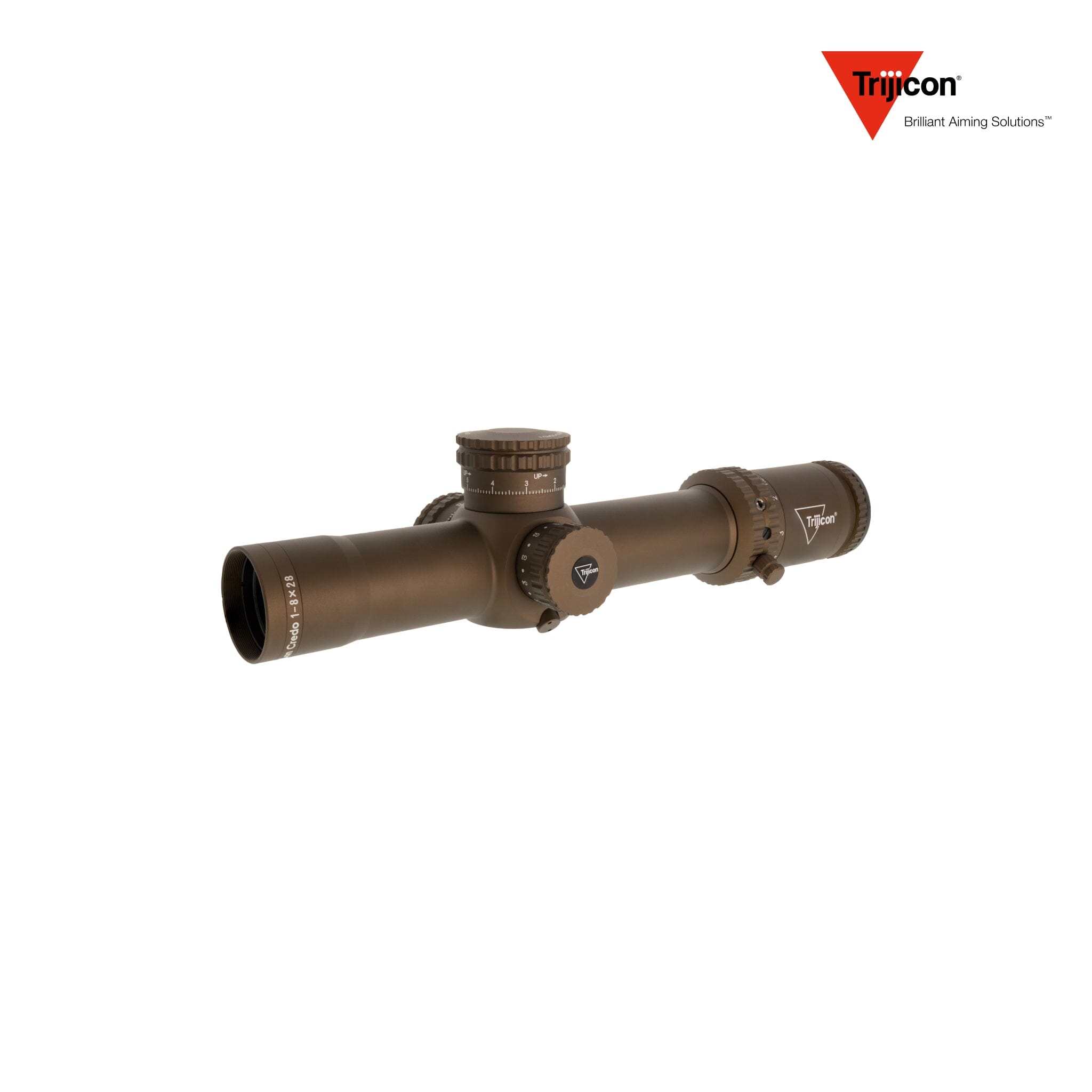

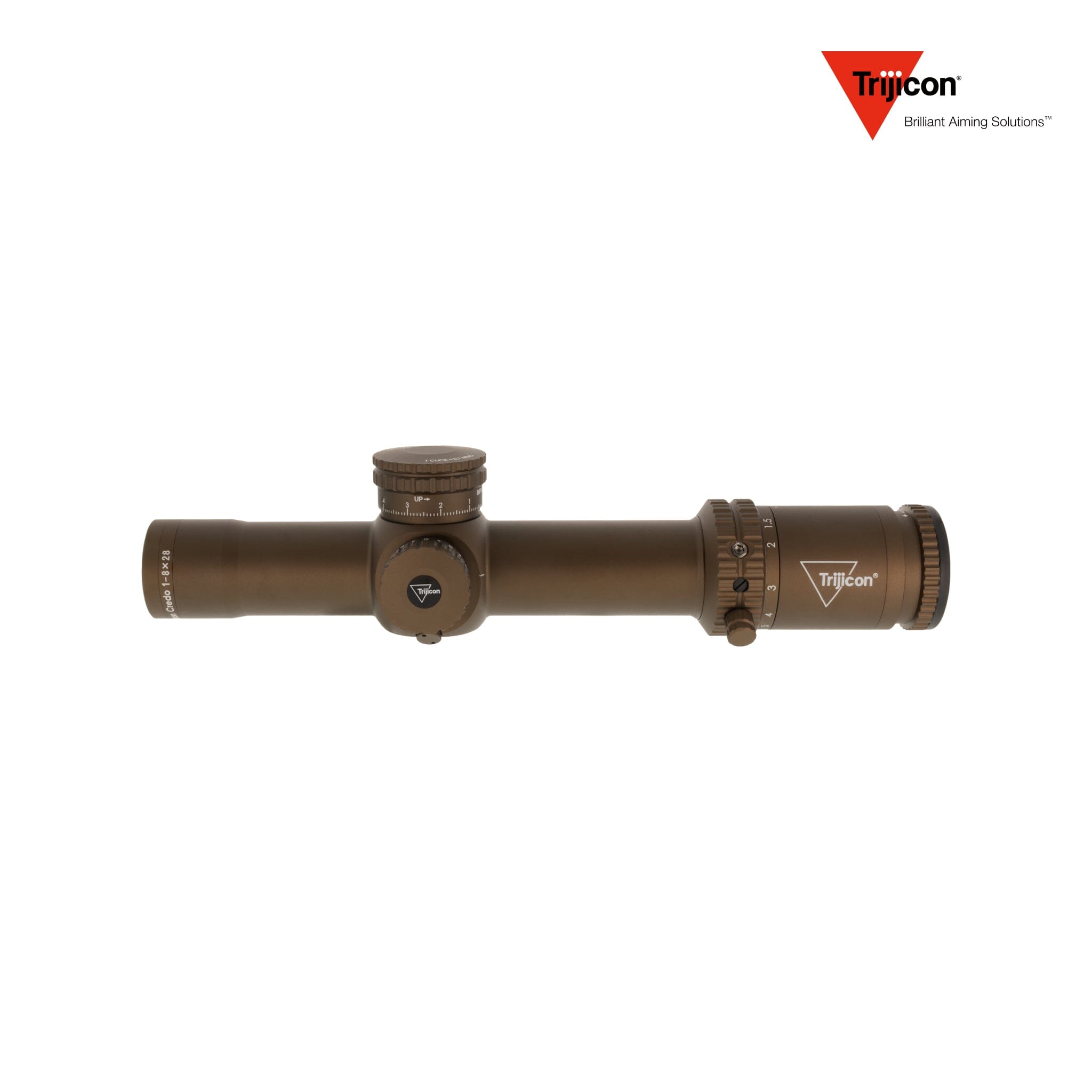

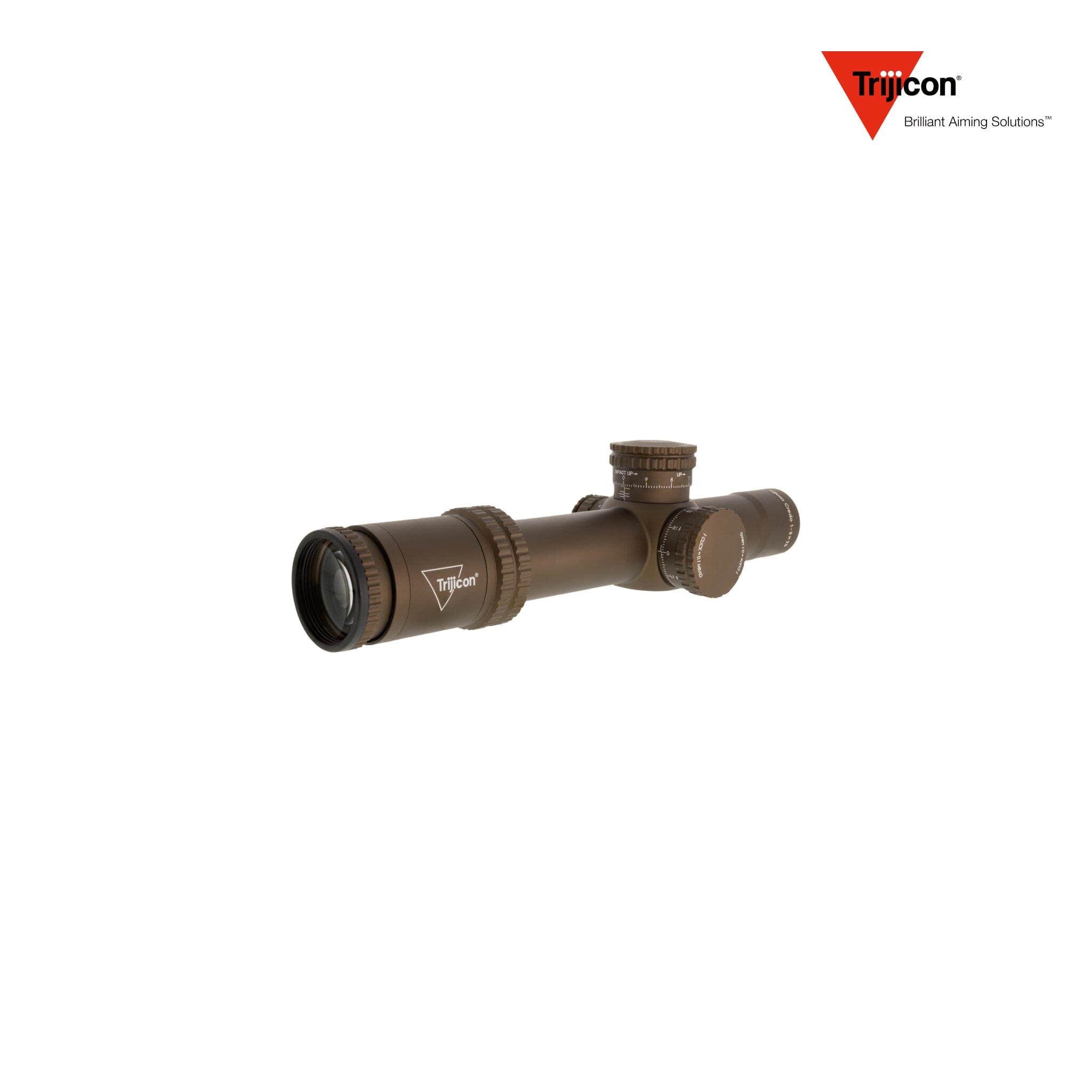

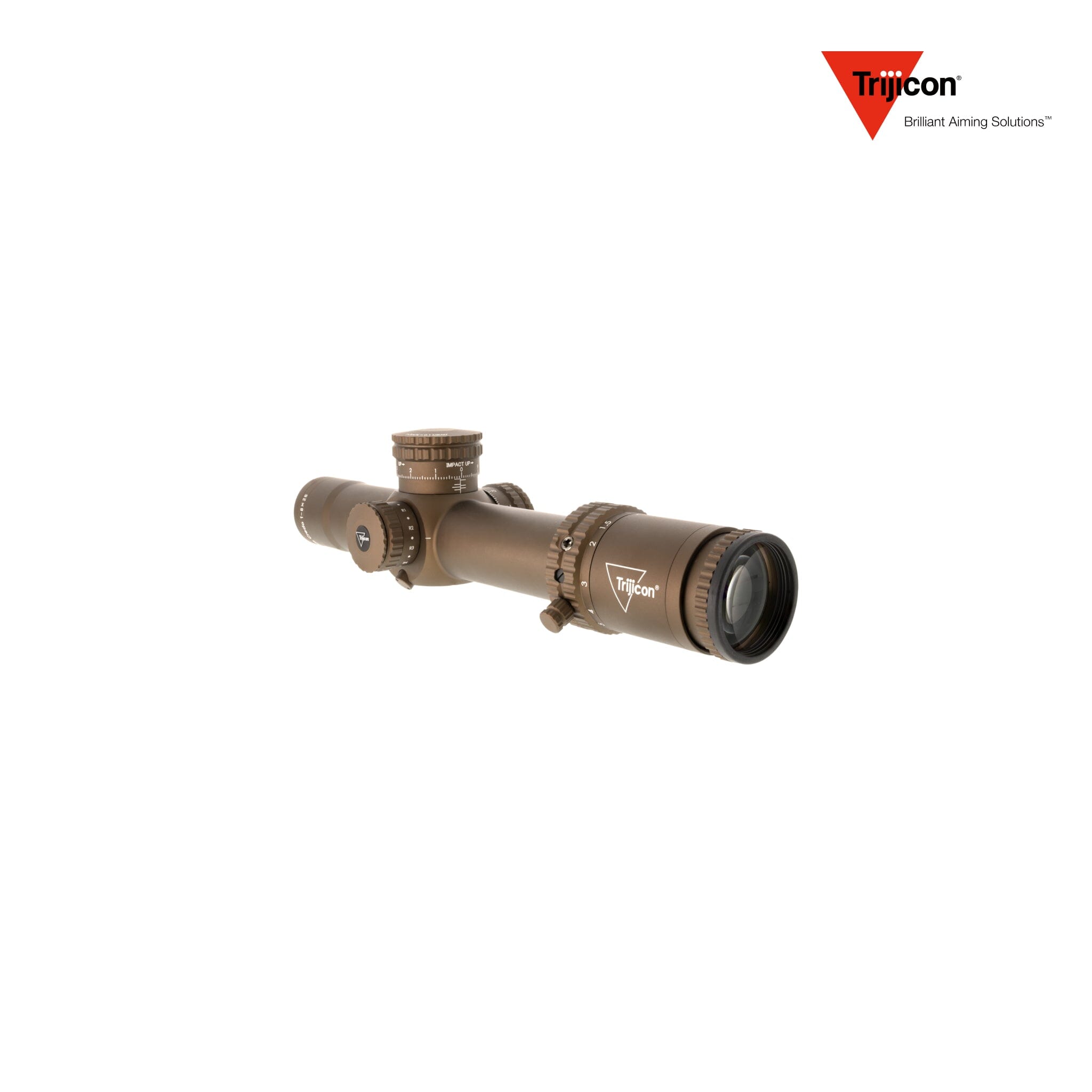

Trijicon Credo 1-8x28 Riflescope Coyote Brown Red/Green MOA Segmented Circle – CR828-C-2900055
Trijicon
Trijicon Credo 1-8x28 Riflescope Coyote Brown Red/Green MOA Segmented Circle – CR828-C-2900055
Shipping Information
Orders ship within the United States only and are typically processed in 1–2 business days. Delivery estimates and any free-shipping offers are shown at checkout. We do not ship internationally. Read our full Shipping Policy.
Returns
Unused items in their original packaging may be returned within 30 days of delivery. Optics that have been mounted or used may be inspected. Email support@dnrsports.com to start a return. Read our full Return & Refund Policy.
Warranty Information
Products are covered by their manufacturer's warranty; coverage and length vary by brand. We'll help you start a claim if needed — email support@dnrsports.com. Read our Warranty page.
The D&R Standard
- Secure Online Ordering
- Carefully Selected Equipment
- Knowledgeable Product Support
- Manufacturer Warranty Information Available
Overview
The Trijicon Credo 1-8x28 Riflescope Coyote Brown Red/Green MOA Segmented Circle is a Trijicon lpvo rifle scope with 1-8x magnification and 28mm objective.
How It Compares
Compare with the Trijicon Credo 1-8x28 FFP Riflescope Red/Green MRAD Segmented Circle and Trijicon Credo 1-8x28 Riflescope – MRAD Segmented Circle Reticle – Coyote Brown Anodized. Browse all LPVO rifle scopes or Trijicon rifle scopes.
Ideal For
- Shooters who want the reach of 1-8x on one rifle without swapping optics
- Low-light work, where the 28mm objective is still gathering light at dusk
- Shooting into shadow or at first light, with the MOA Segmented Circle reticle illuminated
- Holdover and ranging at any magnification, since the reticle scales with the image
Key Features
- Magnification / Objective: 1-8x
- Objective: 28mm

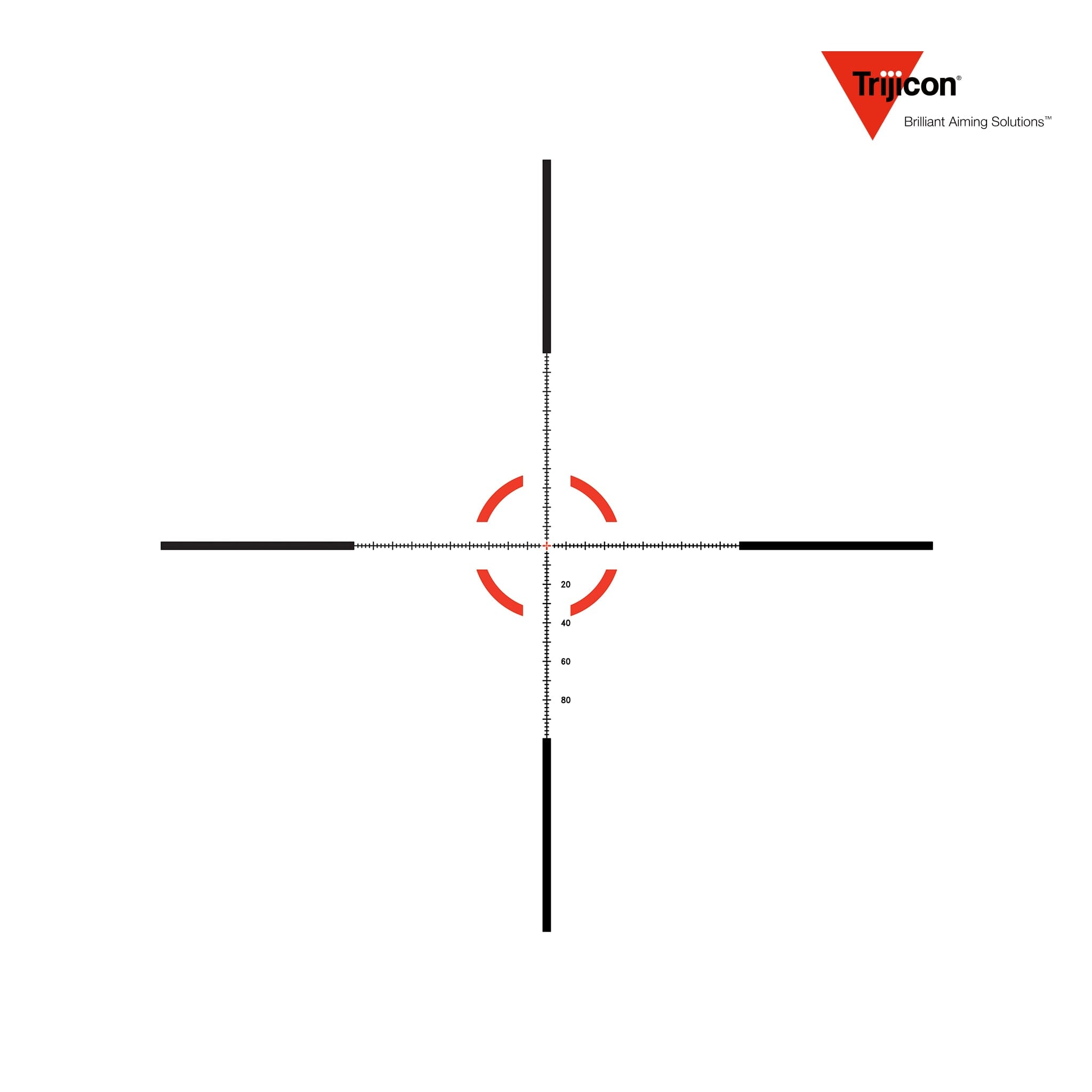

- Reticle: MOA Segmented Circle
- Illumination: LED, 10 settings total (5 red + 5 green) with 'off' between each; 1x CR2032 (included). Battery life Red: 39 hrs, Green: 94 hrs at setting 7/10.
- Focal Plane: First Focal Plane (FFP)
- Click Value: 1/4 MOA (0.25 MOA) per click
- Adjustment Range: 100 MOA total travel
- Parallax: Fixed; distance
About This Model
- Reticle: MOA Segmented Circle
- Illumination: LED, 10 settings total (5 red + 5 green) with 'off' between each; 1x CR2032 (included). Battery life Red: 39 hrs, Green: 94 hrs at setting 7/10.
- Turrets: 1/4 MOA (0.25 MOA) per click
- Warranty: Trijicon Limited Lifetime Warranty
What's Included
- Scopecoat
- 3mm hex key
- repositionable magnification knob + replacement screw
- 1 CR2032 battery
- quick reference guide
- warranty card
- vinyl logo sticker.
Technical Specifications
Magnification / Objective |
1-8x |
Objective |
28mm |
Focal Plane |
First Focal Plane (FFP) |
Reticle |
MOA Segmented Circle |
Reticle Color |
Dual Red/Green (day and night reticle color) |
Illumination |
LED, 10 settings total (5 red + 5 green) with 'off' between each; 1x CR2032 (included). Battery life Red: 39 hrs, Green: 94 hrs at setting 7/10. |
Click Value |
1/4 MOA (0.25 MOA) per click |
Adjustment Range |
100 MOA total travel |
Parallax |
Fixed; distance |
Eye Relief |
3.0 - 4.0 in (76-101.6mm) |
Exit Pupil |
11.7 - 3.5 mm (0.46-0.14 in) |
Field of View |
105.8 - 13.2 ft @ 100 yds (20-2.53 deg) |
Length |
10.8 in (10.8 x 3.2 x 2.6 in) |
Weight |
25.6 oz (725.75 g) [HX/Credo sheet |
Housing |
6061 aircraft grade aluminum, Coyote Brown Anodized |
Water Resistance |
Waterproof/fogproof |
SKU / MPN / UPC |
CR828-C-2900055 / CR828-C-2900055 / 719307622777 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is it first or second focal plane?
First Focal Plane (FFP). Because the reticle scales with the image, holdovers are correct at any magnification.
Which reticle does it have?
MOA Segmented Circle.
Is the reticle illuminated?
LED, 10 settings total (5 red + 5 green) with 'off' between each; 1x CR2032 (included). Battery life Red: 39 hrs, Green: 94 hrs at setting 7/10.
What is the parallax setting?
Fixed; distance.
Is this a genuine Trijicon product?
Yes — factory-new Trijicon, supplied through US distribution. The part number is CR828-C-2900055 and the barcode is 719307622777.
What warranty does it carry?
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
Technical Specifications
- SKU
- CR828-C-2900055
- UPC
- 719307622777
- Optic Type
- Low-Power Variable Riflescope (LPVO)
- Magnification
- 1-8x
- Objective Lens Diameter
- 28 mm
- Focal Plane
- First Focal Plane (FFP)
- Reticle Type
- MRAD Segmented Circle, illuminated red/green
- Reticle Color
- Red/Green
- Tube Diameter
- 34 mm
- Glass Coating
- Fully multi-coated broadband anti-reflective
- Eye Relief
- 3.0″ – 4.0″
- Parallax
- Fixed at 100 yds
- Windage Adjustment
- 0.1 MRAD per click
- Elevation Adjustment
- 0.1 MRAD per click
- Total Adjustment Range (Approx)
- ~29 MRAD (windage & elevation)
- Illumination Power
- LED reticle illumination powered by CR2032 battery
- Housing Material
- 7075-T6 aircraft-grade aluminum
- Finish / Color
- Coyote Brown anodized
- Water Resistance
- Waterproof and fogproof construction
- Length
- Approx. 10.8 in
- Weight
- Approx. 25.6 oz
