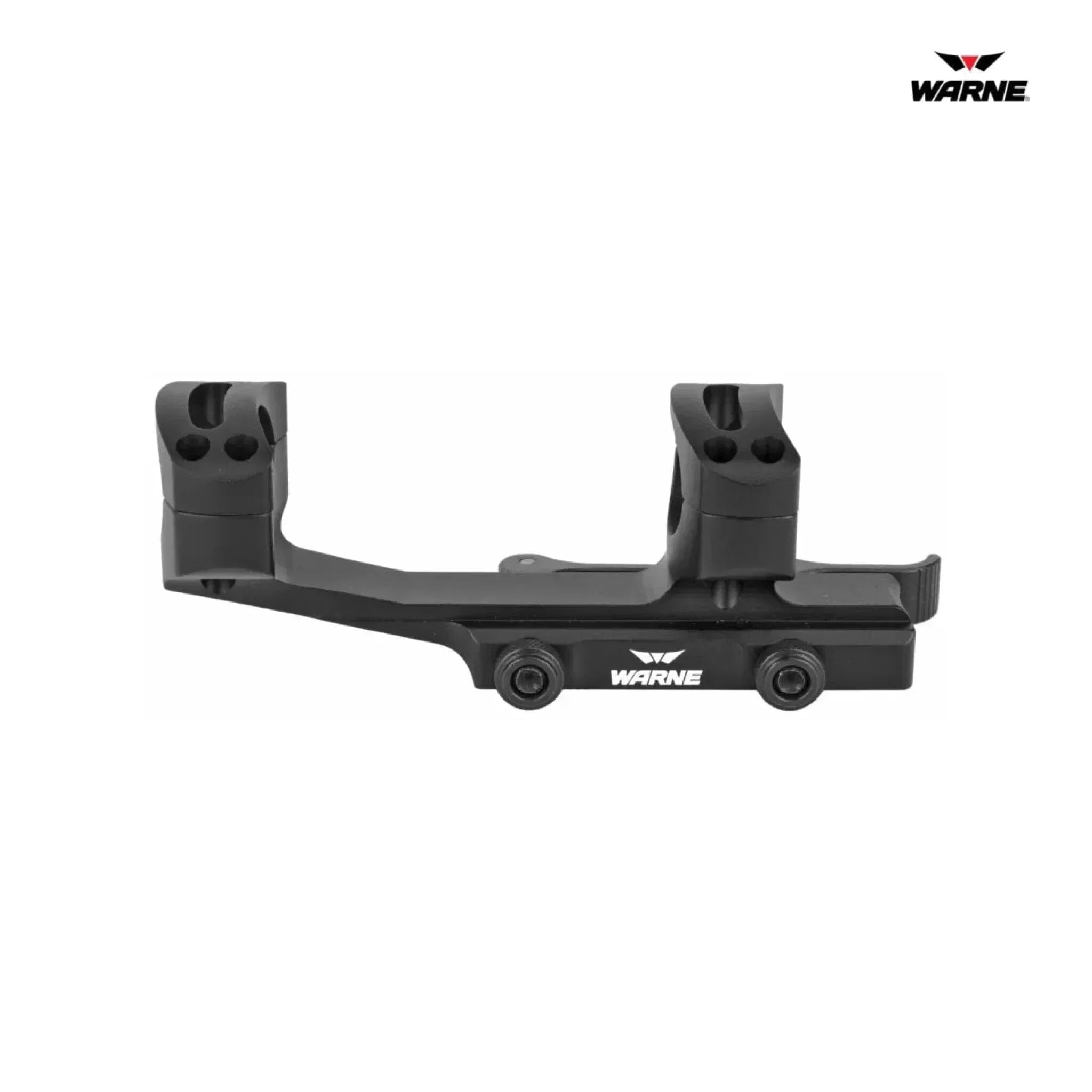

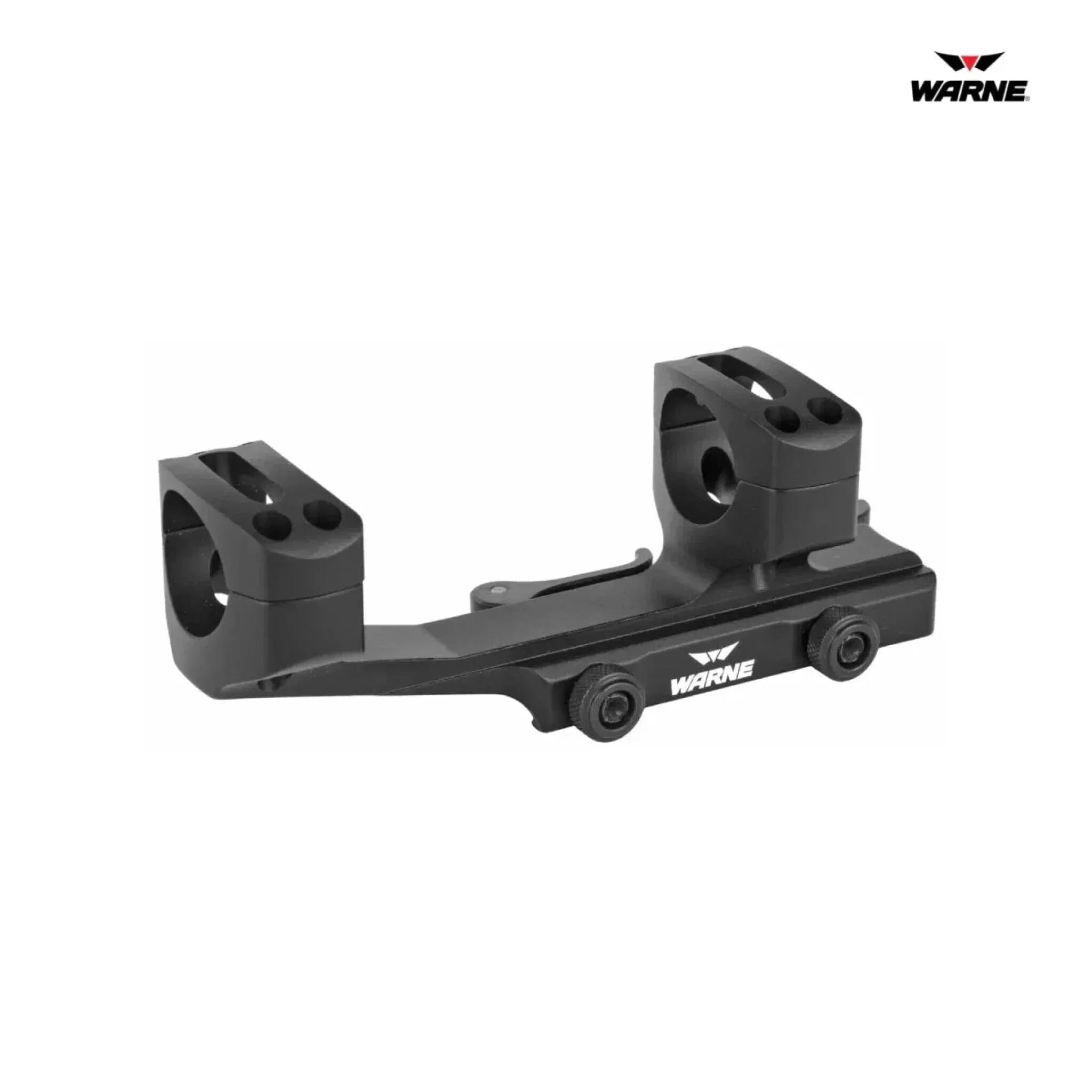

Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 1″ Tube - Black
Features
-

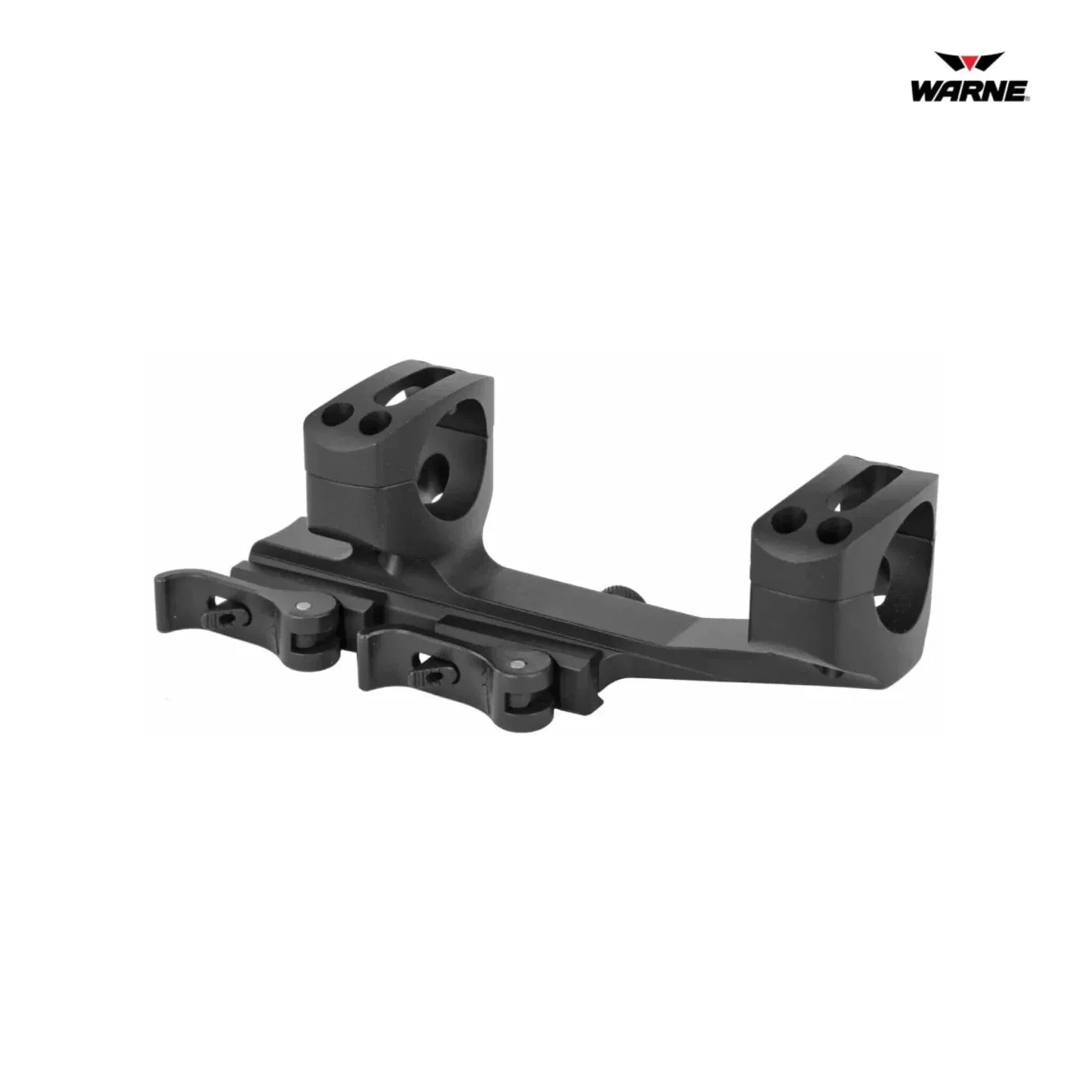

Patent-Pending Dual QD Levers – Two spring-loaded levers provide rapid, tool-free attachment/removal with reliable return-to-zero performance.
-
Skeletonized Cantilever Design – Forward-extended, one-piece mount gives extra eye relief for LPVOs and 24–56 mm objective scopes while reducing overall weight.
-
MSR Ideal Height – Positions your optic at the optimal height for proper cheek weld and fast target acquisition on flat-top rifles.
-
Premium Materials – CNC-machined 6061-T6 aluminum body with steel threaded inserts for durable, steel-on-steel contact at all fasteners.
-
Made in the USA – Designed and manufactured in Warne’s Texas facility to exacting quality standards.
Technical Specifications for Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 1″ Tube - Black
Specification
|
Details
|
Manufacturer
|
Warne Scope Mounts
|
Model / Part Number
|
QD X-SKEL Quick-Detach Cantilever / QDXSKEL1TW
|
SKU
|
QDXSKEL1TW
|
UPC
|
0656813106417
|
Tube Diameter
|
1.00 in (25.4 mm)
|
Objective Fit
|
Up to 56 mm
|
Height (Dim A)
|
1.00 in (25.4 mm)
|
Dimension B
|
1.43 in (36.3 mm)
|
Dimension C
|
0.75 in (19.1 mm)
|
Dimension D (Length)
|
3.05 in (77.5 mm)
|
Material
|
6061-T6 aluminum; steel threaded inserts
|
Finish
|
Matte black anodize
|
Weight
|
8.2 oz (232 g)
|
Mount Interface
|
MIL-STD-1913 Picatinny rail
|
Return-to-Zero
|
Guaranteed under recoil
|
Country of Origin
|
USA
|
Warranty
|
Warne Lifetime Warranty
|
Included Accessories
-
Dual QD levers (installed)
-
#8-32 Torx screws & steel inserts
-
Installation instructions & warranty card
