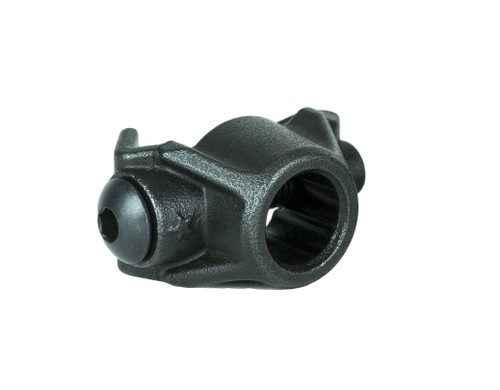

The BCM RSM-1913 is a quick-detach sling mount for AR-15 and M4 rifles, clamping to any MIL-STD-1913 Picatinny rail.
Clamp-on rail accessories have a reputation for creeping, and a sling mount is the worst place for that to happen because it carries the entire weight of the rifle every time the rifle hangs. Bravo Company USA's answer is a non-rotational locking interface with eight indexed positions, engaging two lugs and a single 1913 slot. Once torqued, the socket cannot rotate around the rail and the mount cannot walk along it.
The body is machined entirely from steel and stands just 7/16 in (11 mm) proud of the rail, so it adds a sling point without adding a handful. A hex wrench is supplied for fitting.
How It Compares
If your handguard is M-LOK and you would rather not add a rail section first, the BCM MCMR QD Sling Mount attaches directly to M-LOK instead.
Key Features
- All-steel construction — built for the load a sling point actually takes
- Eight-position non-rotational lock — the socket angle you set is the angle it keeps
- 7/16 in (11 mm) profile — low enough to stay out of the way of the support hand
- Single-slot footprint — uses two lugs and one 1913 slot, leaving the rest of the rail free
- Hex wrench included — nothing else to buy to fit it
Compatibility & Fitment
Fits any MIL-STD-1913 Picatinny rail with a free slot — a quad rail, a rail ladder on a free-float tube, or a Picatinny section added to an M-LOK handguard — on AR-15/M4 rifles. It needs two lugs and one slot to seat correctly, so leave that much rail clear where you intend to mount it. A push-button QD swivel is required and is sold separately.
Technical Specifications
Platform | AR-15 / M4 |
Fits | Any MIL-STD-1913 Picatinny rail with two lugs and one free slot |
Type | Rail-clamping quick-detach sling mount |
Material | Steel |
Length | 7/16 in (11 mm) height above the rail |
Mount Interface | 1913 Picatinny, eight-position non-rotational lock; push-button QD swivel socket (swivel sold separately) |
Made in | USA |
Brand | Bravo Company USA |
US Shipping & Support
Shipped from D&R Sports Center in the USA with fast, tracked delivery. Questions on fit, mounting or which model suits your setup? Our team is glad to help before and after your purchase.
Frequently Asked Questions
How much rail does it need?
Two lugs and one 1913 slot. That is a small footprint, so it will fit on a short rail ladder as well as a full-length quad rail, but you do need that much clear space at the point you want the sling to attach.
Is a QD swivel included?
No. The mount supplies the socket and the swivel is a separate part. Either the 1-1/4 inch QD sling swivel for 1-1/4 inch slings or the 1 inch D-ring version will click straight in.
My handguard is M-LOK. Can I use this?
Only if you first add a Picatinny rail section, such as the BCM 3 inch Picatinny Rail Section. If you would rather not add a rail, the BCM MCMR QD Sling Mount bolts directly into M-LOK slots and does the same job.
