Mounting a pistol red dot is straightforward once one thing clicks: the footprint. A footprint is the specific pattern of screw holes and recoil lugs on the bottom of the optic, and it has to match whatever it bolts to — a milled slide cut or an adapter plate.
Get this wrong and nothing else matters. The optic will not sit down, the screws will not line up, and no amount of force will fix it. It is also the single most common reason a pistol optic gets returned.
The footprints you'll meet most
- Trijicon RMR — the most widespread full-size footprint, effectively an industry standard. Many optics and nearly every plate system support it. See Trijicon RMR and SRO optics.
- Shield RMSc — the dominant micro footprint for slim and compact carry pistols. If your pistol is a micro-compact, this is likely your world.
- Others — Aimpoint ACRO, Docter/Noblex, and proprietary patterns exist. Manufacturers like Holosun offer models in several footprints, so read the exact model.
Two traps inside that list. First, optics on the same footprint are not always the same size — an RMR-footprint optic from one maker may have a different housing width, which matters for holster fit even though it bolts straight on. Second, several enclosed carry optics use their own smaller patterns that are neither RMR nor RMSc, so "enclosed" and "micro" are not interchangeable terms.
How to find out what you have
If your pistol is optics-ready, the answer is in the box: the plates that came with it are labelled, and the manual lists what each one fits. If the plates have gone missing, the manufacturer's website will list the plate kit for your model.
If the slide is already milled, whoever cut it chose a footprint — ask them, or measure the hole spacing and compare against published patterns. Do not guess from a photograph; several patterns look near-identical and differ by a millimetre or two.
Three ways to mount

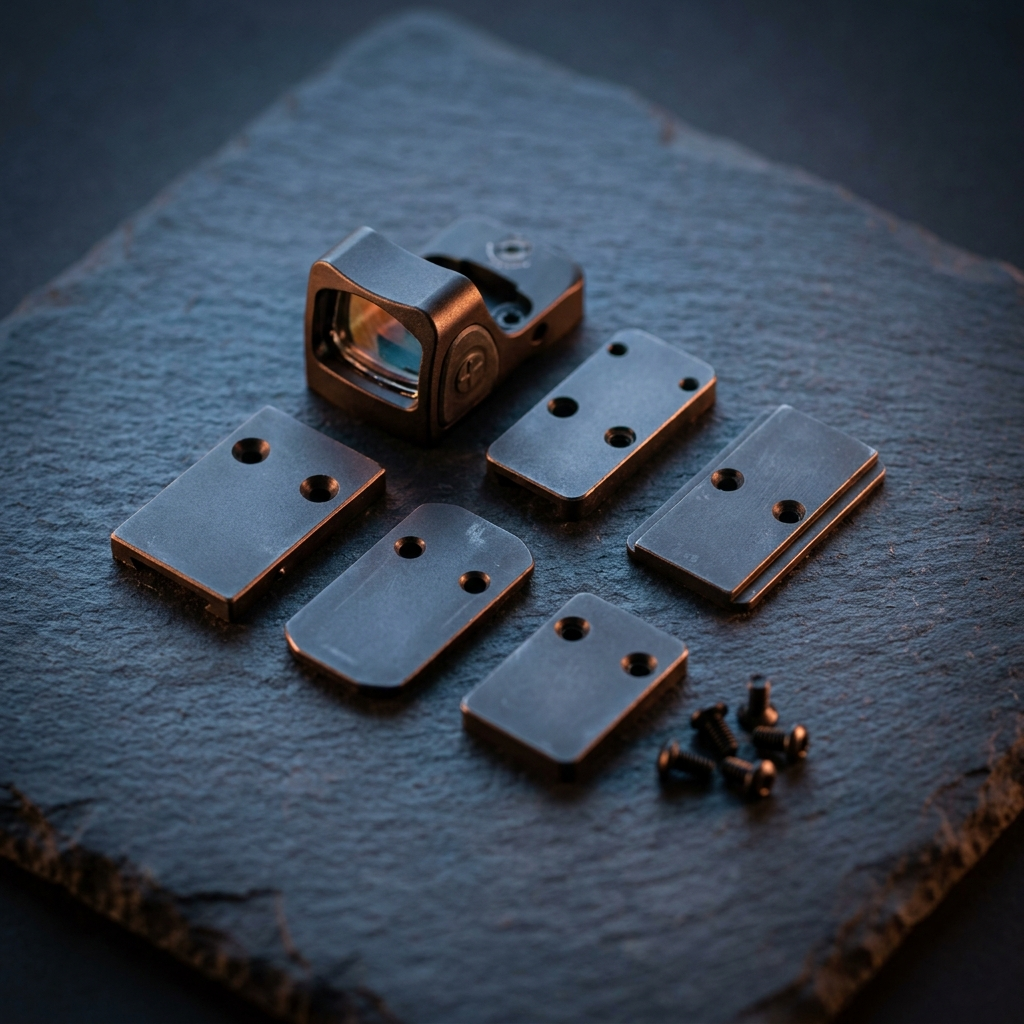

- Optics-ready pistol with plates — most modern pistols ship with a plate kit. Pick the plate that matches your optic's footprint. This is the most flexible path.
- Directly milled slide — a gunsmith cuts the slide to a specific footprint, giving the lowest possible mount. Commit to a footprint before you cut.
- Adapter plate — converts one footprint to another, at the cost of a little extra height.
Direct milling is the most durable because the optic sits on steel with no intermediate part to work loose, and it is the lowest, which helps co-witnessing. It is also permanent. Mill for RMR if you want the widest future choice of optics; mill for a micro pattern only if you are certain the pistol will always wear a micro optic.
Adapter plates are convenient and they work, but every plate is one more interface that can loosen. If you use one, check the screws periodically.
Don't overlook these
Buy screws of the correct length, use thread locker, and confirm your carry holster is cut for an optic. Co-witnessing iron sights is worth planning for at the same time.
Screw length deserves emphasis because it causes two separate failures. Too short and there is not enough thread engagement, so the optic works loose under recoil. Too long and the screw bottoms out in the slide, which feels tight while the optic is still not clamped — and that one is invisible until the optic shifts. Use the screws supplied for your specific optic-and-plate combination rather than whatever is in the parts tin.
On thread locker: a medium-strength blue product is standard. Let it cure before shooting rather than heading straight to the range.
And sights: if you want backup irons visible through the window, you will need taller suppressor-height sights, because standard sights disappear below an optic. Decide that before you buy, since changing sights later means another trip to the gunsmith. See co-witnessing iron sights with a red dot.
After it is mounted
Re-check the screws after the first 200 rounds or so. A slide accelerates and stops violently, and a pistol optic lives in a harsher environment than anything on a rifle. Then zero it — see how to mount and zero a pistol red dot.
