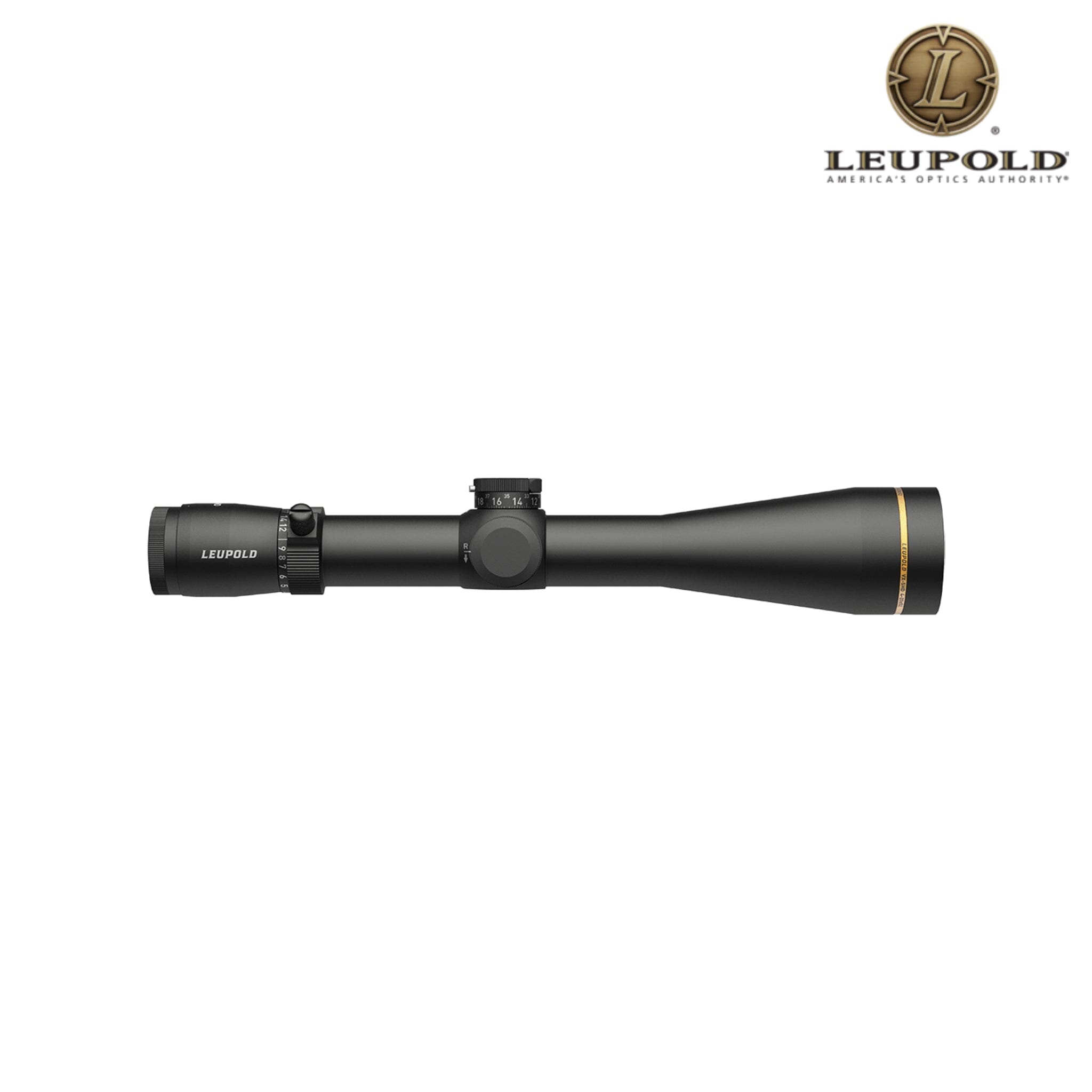

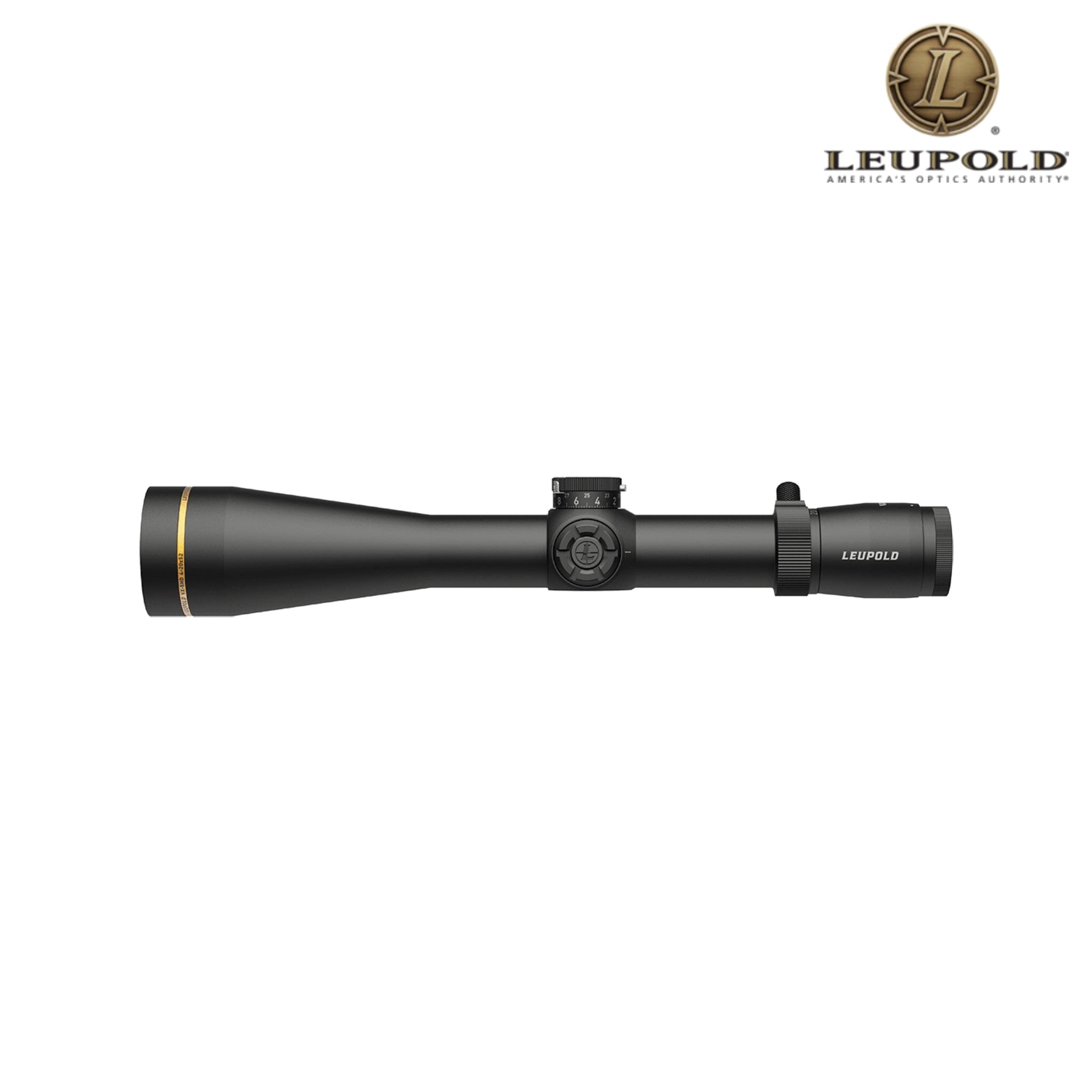

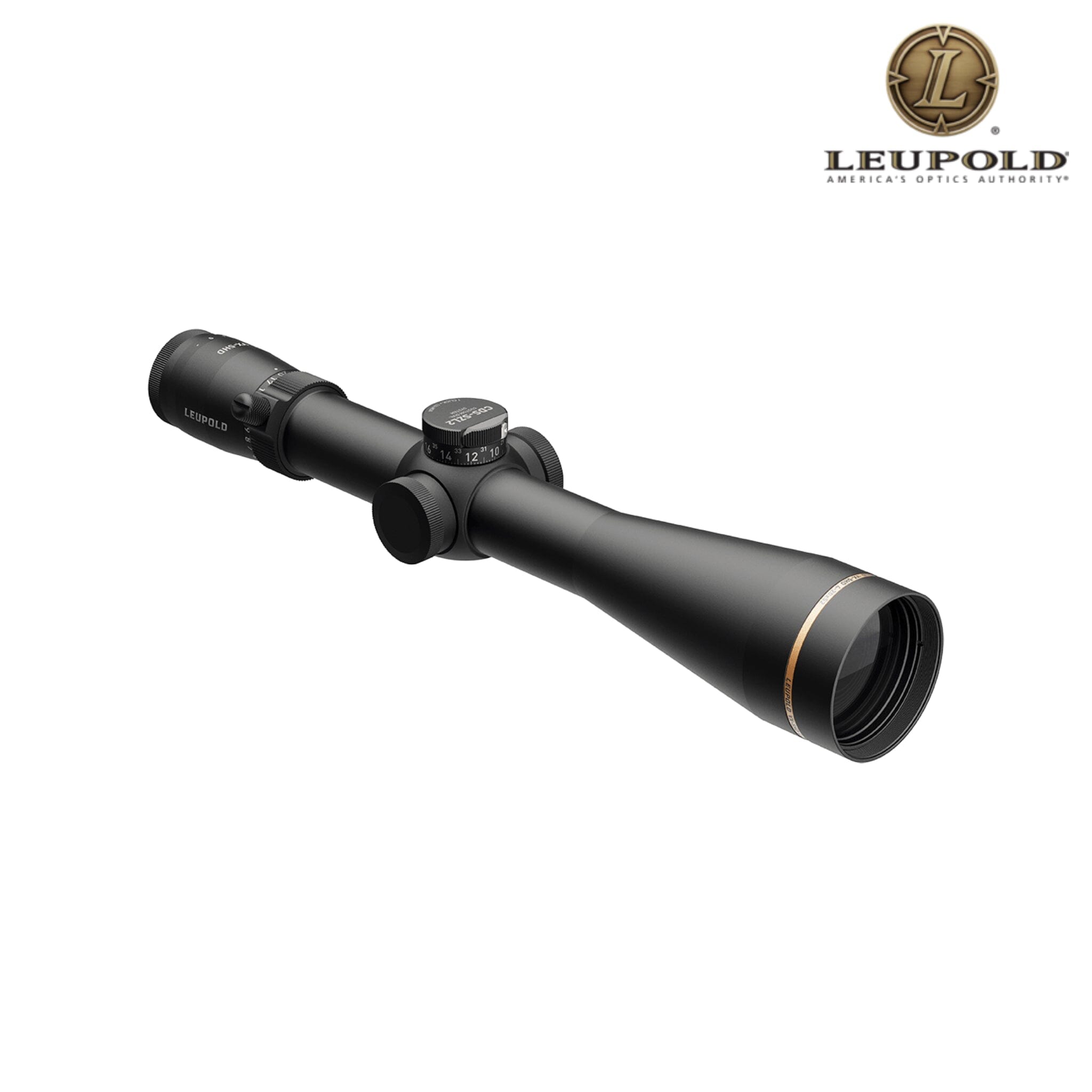

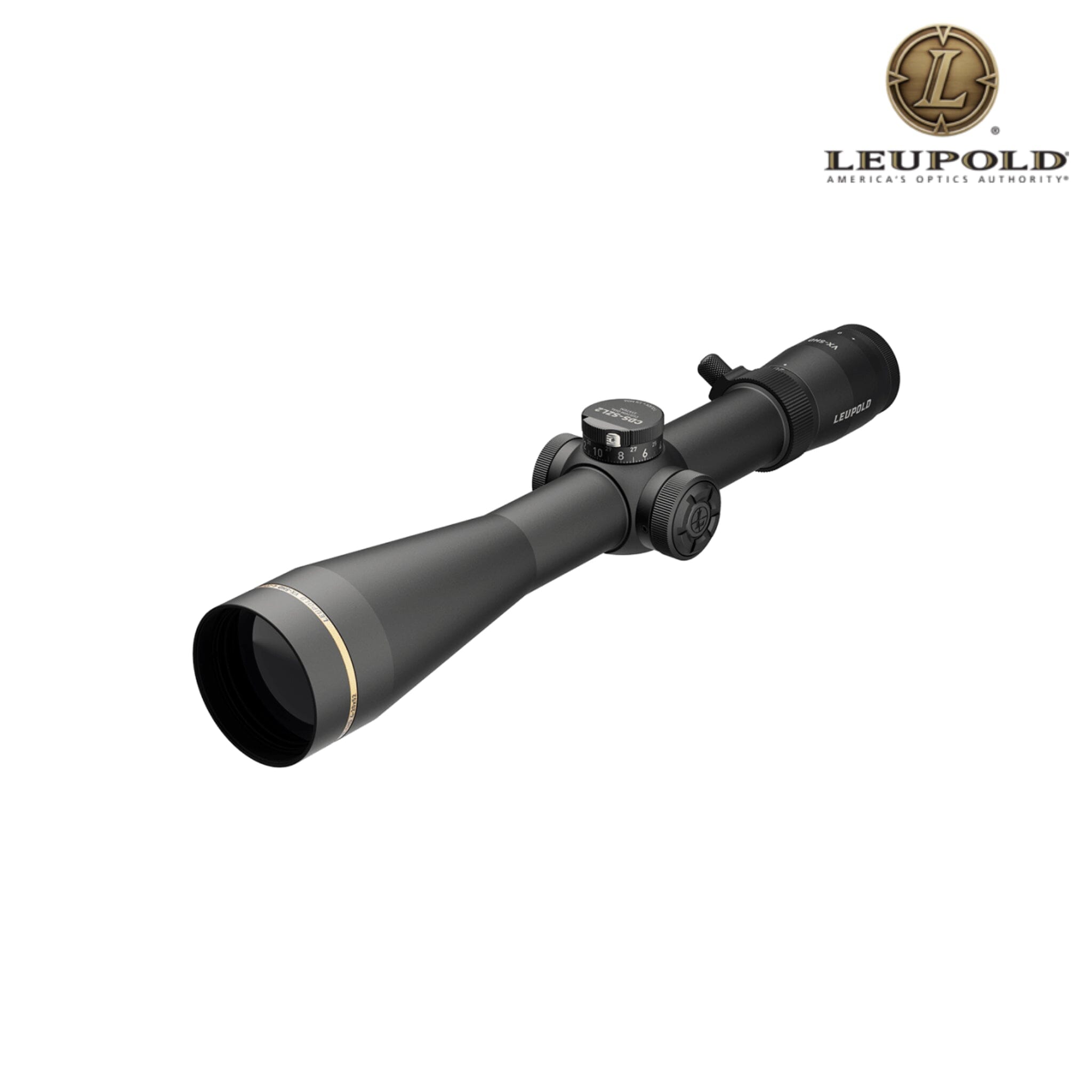

Leupold VX-5HD Gen 2 4-20x52 Rifle Scope CDS-SZL2 Illuminated SFP FireDot Duplex – 183858
Leupold
Leupold VX-5HD Gen 2 4-20x52 Rifle Scope CDS-SZL2 Illuminated SFP FireDot Duplex – 183858
Shipping Information
Add your shipping details here, or link your shipping policy page.
Returns
Add your return policy summary here, or link your returns page.
Warranty Information
Add manufacturer warranty information for this product here.
The D&R Standard
- Secure Online Ordering
- Carefully Selected Equipment
- Knowledgeable Product Support
- Manufacturer Warranty Information Available
Overview
The Leupold VX-5HD Gen 2 4-20x52 Rifle Scope pairs a second focal plane illuminated FireDot Duplex reticle with Leupold's Professional-Grade Optical System, delivering bright, high-contrast images and repeatable adjustments in a rugged 34mm maintube — designed, machined and assembled in the USA.
How It Compares
Want a different reticle or magnification? Compare the 4-20x52 Duplex, 4-20x52 TMOA, 1-5x24 FireDot 4 Fine Illuminated. Browse all Leupold rifle scopes, the full rifle scopes range.
Ideal For
- Big-game and open-country hunting
- Low-light dawn and dusk hunts
- All-weather field use
Key Features

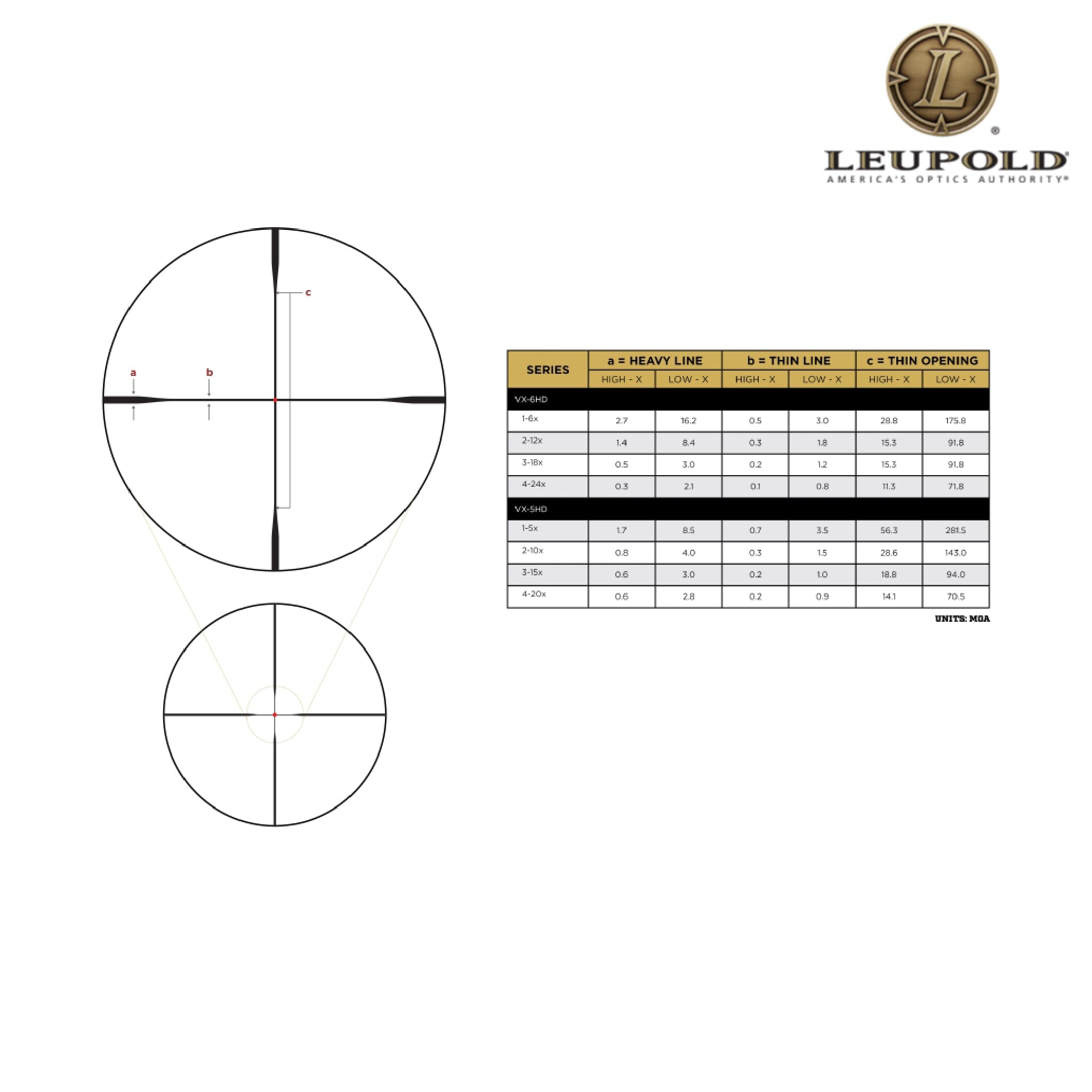

- Illuminated FireDot Duplex reticle with Motion Sensor Technology (CR2032)
- Professional-Grade Optical System with industry-leading glare reduction

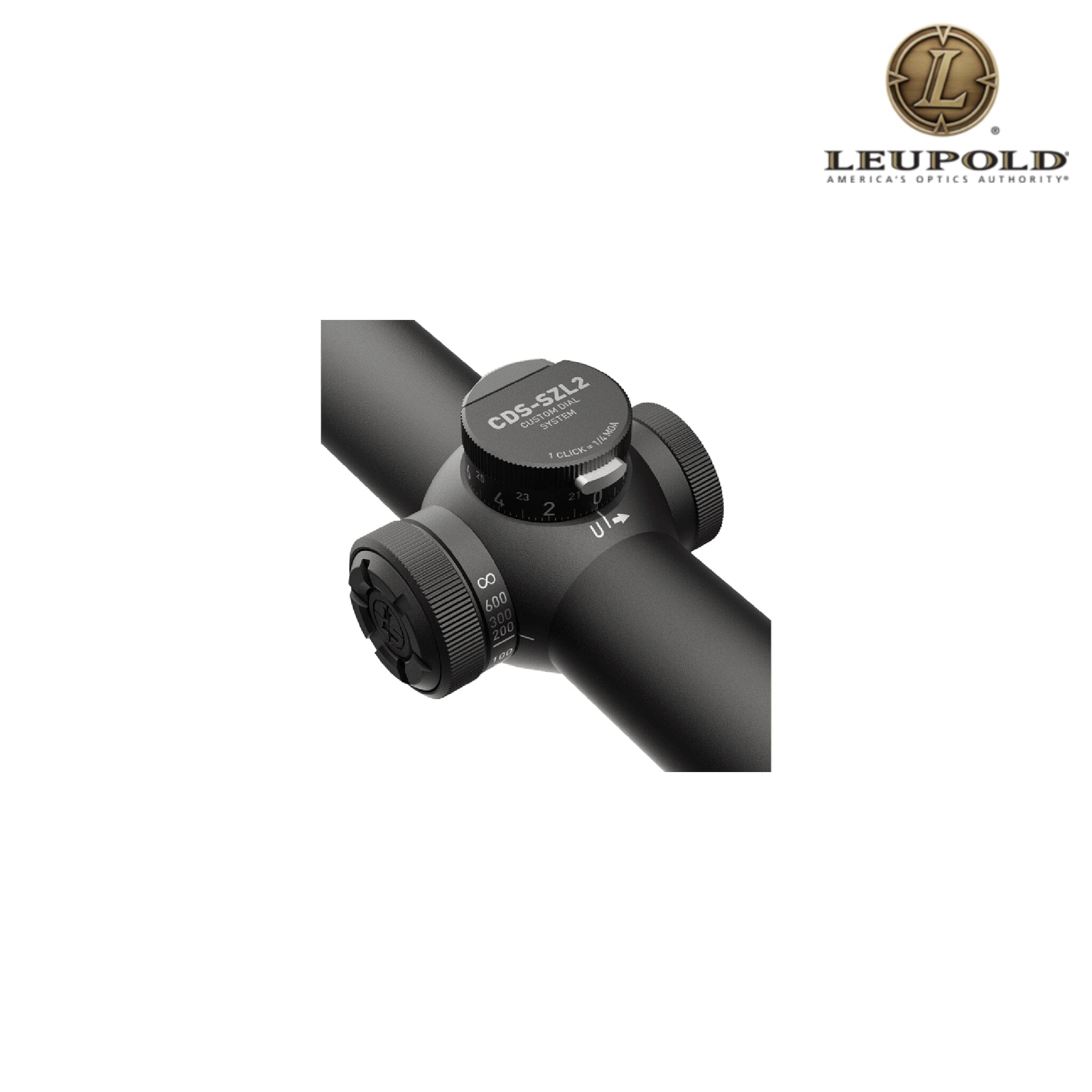

- CDS-SZL2 SpeedSet elevation dial with ZeroLock (1/4 MOA clicks), free custom CDS dial eligible
- 100 MOA elevation adjustment range
- 100% waterproof, fogproof and shockproof
- Backed by Leupold's Full Lifetime Guarantee
Technical Specifications
Magnification |
4-20x |
Objective Lens |
52mm |
Tube Diameter |
34mm |
Reticle |
FireDot Duplex |
Focal Plane |
Second Focal Plane (SFP) |
Illumination |
Yes |
Turret System |
CDS-SZL2 |
Click Value |
1/4 MOA |
Elevation Adjustment |
100 MOA |
Windage Adjustment |
75 MOA |
Parallax |
Side Focus (50 yd min) |
Eye Relief |
3.8 in |
Field of View @ 100 yds |
27.7-5.8 ft |
Length |
14.5 in |
Weight |
24 oz |
Finish |
Matte Black |
Warranty |
Leupold Full Lifetime Guarantee |
SKU / MPN / UPC |
183858 / 183858 / 030317036928 |
What's Included
- Riflescope
- Scope cover
- Lens cloth
- CR2032 battery
- Leupold guarantee card
US Shipping & Support
In stock and ready to ship from D&R Sports Center with fast, tracked delivery across the USA. Questions on reticle choice or mounting? Our team is glad to help before and after your purchase.
Frequently Asked Questions
Is the 4-20x52 VX-5HD Gen 2 first or second focal plane?
It is a second focal plane (SFP) scope, so the FireDot Duplex reticle stays a constant visual size while holdovers are true at maximum magnification.
What are the turret adjustments?
CDS-SZL2 SpeedSet elevation dial with ZeroLock (1/4 MOA clicks), free custom CDS dial eligible, giving 100 MOA of elevation travel with a positive return to zero.
Is the reticle illuminated?
Yes. The FireDot Duplex reticle is illuminated with Motion Sensor Technology that puts the sight into standby after five minutes of inactivity and wakes it instantly on movement, running on a CR2032 battery.
What rings or mount do I need?
It uses a 34mm maintube. See our scope mounts & rings in the matching diameter.
Is it covered by warranty?
Yes — the optic is backed by Leupold's Full Lifetime Guarantee; the illumination electronics carry Leupold’s electronics warranty.
